2024 North Point

Starting at $110,775

From the top to bottom, Jayco’s North Point Fifth Wheel uses superior construction and materials to provide safety and security on the road. The Magnum Truss XL6 roof rafter system is the strongest tested roof in the industry and is constructed out of a one-piece seamless roof material with a 20 year warranty. The 5 star handling package featured 17.5-inch "H" rated Uniroyal tires, MORryde rubber pin box, Dexter axles, ABS and tow assist braking system.

Learn More »

Standard Features
and Options

See All »

Standard Exterior Equipment

(3) 40 lb. propane bottles with auto regulator (120 lb. max LP system)
102 in. wide body construction
12 in. structural steel I-beam with 10 in. steel drop frame
3,000 lb. tow hitch with 4-way pin (N/A 390CKDS)
Battery disconnect
Built in sewer hose carrier
Climate Shield™ zero-degree tested weather protection:
- 40,000 BTU output furnace
- Double layer fiberglass batt insulation (roof and floor)
- Fully-enclosed and heated underbelly (ducted)
- PEX plumbing, 2 in. block foam and reflective foil
Custom automotive-grade vinyl exterior graphics package
Digital TV antenna with Wi-Fi extender
Exterior marine-grade speakers with Bluetooth® controller
Frameless, dark tinted, safety-glass windows
Fully enclosed, universal docking center:
- Black tank flush
- Independent satellite wiring
- Quick-connect outside shower
- Selectable water connections
- Whole coach cable hookups
- Winterization and sanitation
Inverter pre-wire to select outlets
JayPort system for outside griddle (all floorplans without a standard outside kitchen)
JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
LED exterior lighting package
Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with Alpha roof membrane system with limited lifetime warranty
Painted fiberglass front cap with clear coat and built-in specialty LED lighting
Pass-through storage with Slam-latch™ baggage doors
Skirt metal enclosed drop frame
Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including rear wall and slide room end walls)
Under-mounted spare tire
Water heater bypass

Standard Interior Equipment

5/8 in. tongue-and-groove joined plywood floor decking
Bathroom skylight
Built-in laundry hamper in wardrobe (select models)
Carbon monoxide and LP detector
Ceiling fan (select models)
CPAP prepped bedroom
Dual USB charging ports throughout
Extra 120V power outlets in kitchen and slide rooms
Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
Flip-up hidden storage in bedroom chest of drawers (select models)
Flip-up tabletop storage next to tri-fold sofa (select models)
Gas-strutted under-bed storage
Handcrafted hardwood glazed doors and drawers
JayVoice voice command system- controls lighting, A/C and furnace
LED accent lighting above slideouts
LED backlit custom framed mirror and medicine cabinet
LED interior lighting throughout
Porcelain toilet with foot flush
Pull-out spice rack above microwave (select models)
Pull-out utility drawer under kitchen sink
Residential quilted bedspread and pillow shams
Residential-grade, pull-out kitchen faucet
“Shoe garage” in hallway step (select models)
Soft close, heavy-duty, 75 lb. full-extension, steel ball-bearing drawer guides
Solid hardwood slide fascia
Stainless steel kitchen sink
Toe kick nightlights in bedroom and bathroom
Tri-fold hide-a-bed sofa with residential sleep surface (select models)
True interior design (Modern Farmhouse)
Vessel bowl sink with high rise faucet in main bathroom
Vinyl flooring (made in the USA) throughout (includes slideout floors)

Customer Value Package (Mandatory)

15,000 BTU “Whisper Quiet” A/C (main)
15,000 BTU “Whisper Quiet” A/C (bedroom)
16 gal. gas/electric DSI water heater
50 in. 4K Smart LED HDTV with fully digital HDMI® output and two extra HDMI cables
Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
Custom machined aluminum rims
Electric patio awning with integrated LED lights
Hidden hinges on cabinet doors
JBL® home entertainment system with sound bar and subwoofer
Keyed-Alike™ lock system (single key for all doors/locks)
MORryde Safe-T-Rail grab handle
Residential king (72 in. x 80 in.) mattress with under-bed storage
Rooftop and ground solar prep
Tire pressure monitoring system
Wireless remote control system (includes Bluetooth® wireless controls) with dimmer switches

5 Star Handling Package (Mandatory)

17.5 in. 16 ply 'H' rated Uniroyal tires
Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
MORryde® CRE-3000™ rubberized suspension
MORryde® rubber pin box
Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs

Luxury Package (Mandatory)

2nd electric patio awning with integrated LED lights
32 in. 4K Smart bedroom TV
6-point hydraulic auto-leveling system
Cellular prep for 4G WiFi repeater and JAYCOMMAND® “Smart RV” system
Central vacuum system with dust port
Frameless dark tinted safety-glass windows
Free-standing (no pedestal) table with leaf and (2) free-standing and (2) folding chairs
Fresh Water Drinking System (patented) (connects to ice maker)
GE 21 cu. ft. residential refrigerator with 1800W inverter
GE Profile Series 30 in. residential convection microwave with built in air fryer
GE Profile Series residential 24 in. range (3.7 cu. ft. with 9100 BTU high output burner)
High gloss gelcoated sidewalls
JAYCOMMAND® “Smart RV” system
LED fireplace with electric space heater
MORryde® StepAbove™ entrance steps with strut assist (main entrance)
Oversized multi-battery compartment (industry leading room for 4-6 batteries)
Privacy roller shades
Residential solid-surface kitchen countertop with bamboo sink cover and strainer
Residential walk-in shower with shampoo/soap holder and teak seat
Washer/dryer prep

Options

20 cu. ft. 12V refrigerator
39 in. 4K Smart TV in cargo area
3rd 15,000 BTU ducted A/C
5,500W Onan® Microquiet generator
7K hydraulic disc brake package (ABS N/A with disc brakes)
8K hydraulic disc brake package (ABS N/A with disc brakes)
Customer Value Package: 15,000 BTU central air with heat pump
Extreme Weather Package: 120V heated holding tank pads and 12V wrapped and heated fresh water line
Frameless dual pane tinted safety-glass windows
Generator prep
MORryde independent suspension with 8K axles and disc brakes (ABS not available)
Outside griddle for JayPort system (includes LP quick-connect) (310RLTS, 380RKGS)
Overlander 2 Solar Package: 30-amp controller, 1800W inverter and (2) 200W solar panels
Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable

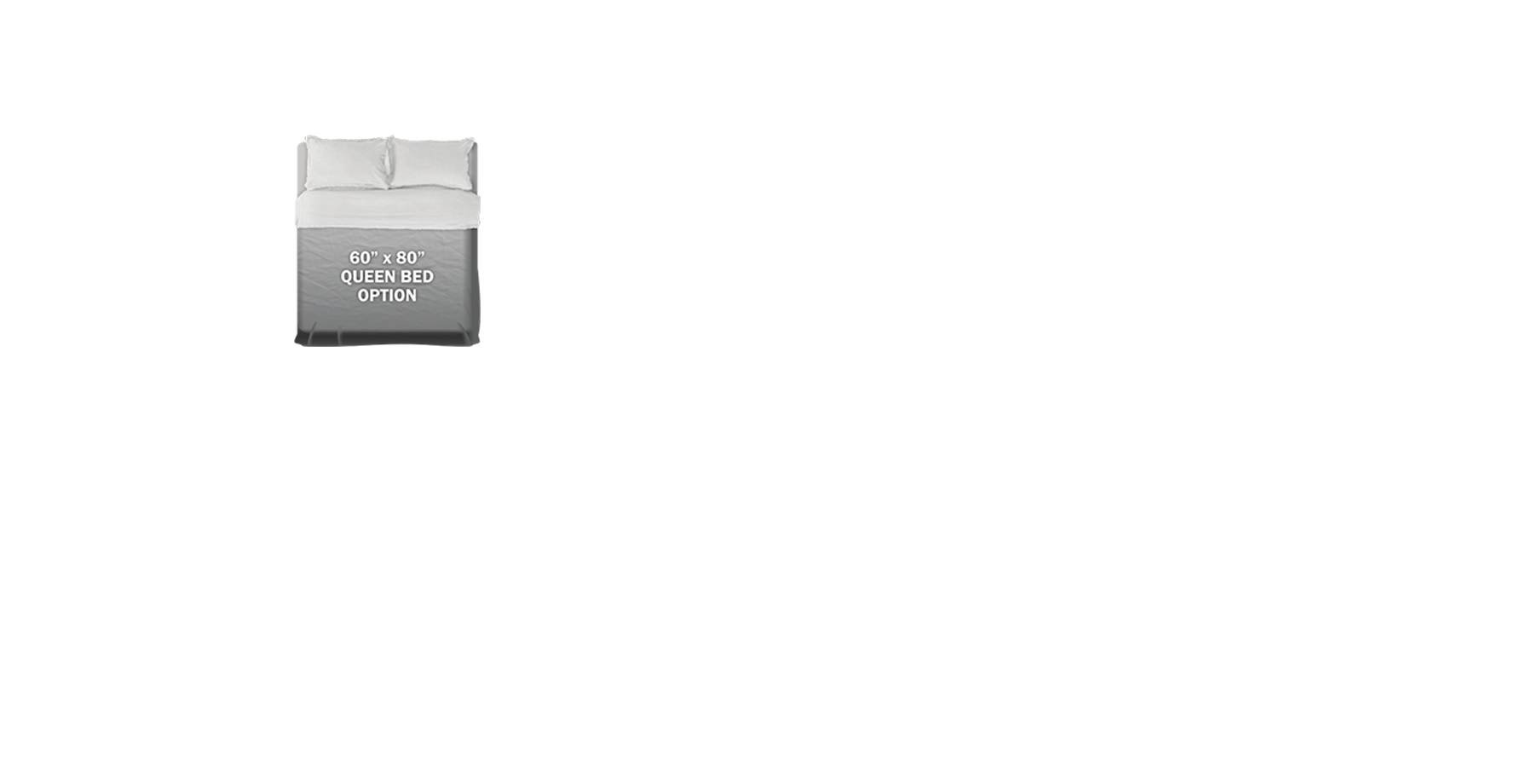

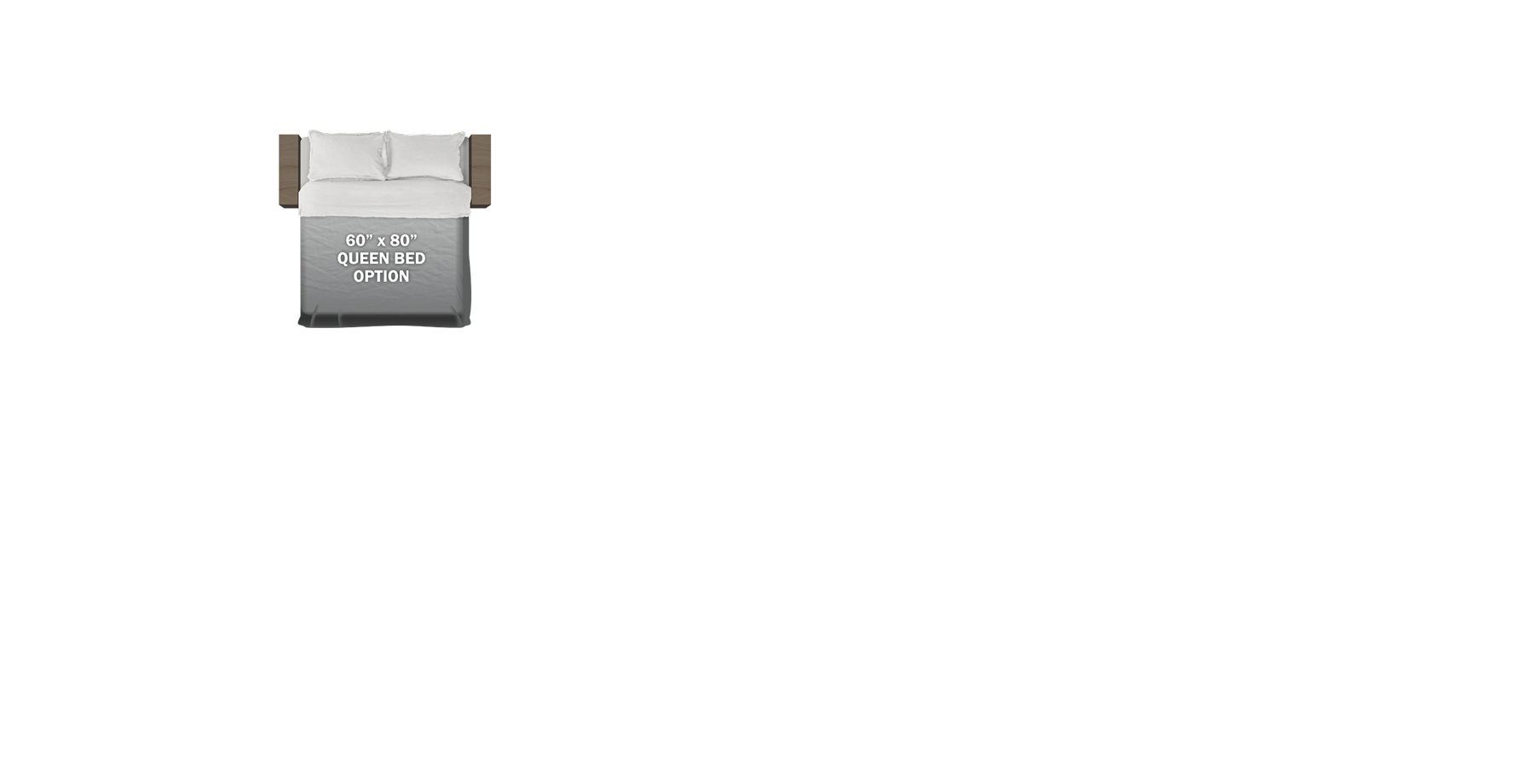

Queen residential foam top mattress
Sani-Con® Turbo waste management system
Slideout awning(s) (quantity varies by model)
Truma on-demand hot water system
Wireless backup/side view/front entry door observation kit with 7 in. monitor

Dry Hitch Weight (lbs)	2,975
Unloaded Vehicle Weight (lbs)	15,135
Cargo Carrying Capacity (lbs)	2,465
Gross Vehicle Weight Rating (lbs)	17,600

Exterior Length (overall)	43' 10"
Exterior Length (pin to bumper)	42' 1"
Exterior Height	12' 8"
Exterior Height (with A/C)	13' 4"
Exterior Height (with 2nd A/C)	13' 4"
Exterior Width	8' 6"
Exterior Width (with slides out)	13' 11"
Interior Height (main)	8' 6"
Interior Height (upper deck)	6' 7"
Awning Length	14' 0"
Awning Length 2	14' 0"

Fresh Water Capacity (gals)	75.0
Gray Water Capacity (gals)	82.5
Black Tank Capacity (gals)	74.0
Propane Unit (lbs)	120
Furnace, Auto-ignition (BTU output)	40000

Sleeps	up to 8
Water Heater	16
# of outside storage compartments	4
Furnace BTU	40000
Tire Size	215/75R17.5'H'

	3rd A/C in living area (15K BTU)	$1,193
	20 cu. ft. 12V refrigerator	$1,193
	Tailgate TV	$938
	Generator prep	$743
	5500W Onan microquiet generator	$6,743
	Truma on demand water heater	$1,575
	Sani-con® turbo waste management system	$525
	360° security kit with 7" monitor	$1,365
	Dual pane tinted safety glass windows	$2,243
	Slideout awnings (4)	$1,110
	8K axle with hydraulic disc brakes without ABS	$4,043
	Queen bed	$75
	Mor Ryde Independent Suspension 8K Axles with Disc Brakes	$11,843
	Customer Value Package	$4,500
	Customer Value Package w/ 15,000 BTU A/C & heat pump	$375
	Luxury Package	$10,200
	5 Star Handling Package	$5,993
	Overlander 2 Solar Package	$1,943
	Overlander 4 Solar Package	$14,093
	Overlander EXT Solar Package	$21,750
	Extreme Weather Package	$743
