2024 Seismic Luxury Series | 3512
2024 Seismic Luxury Series

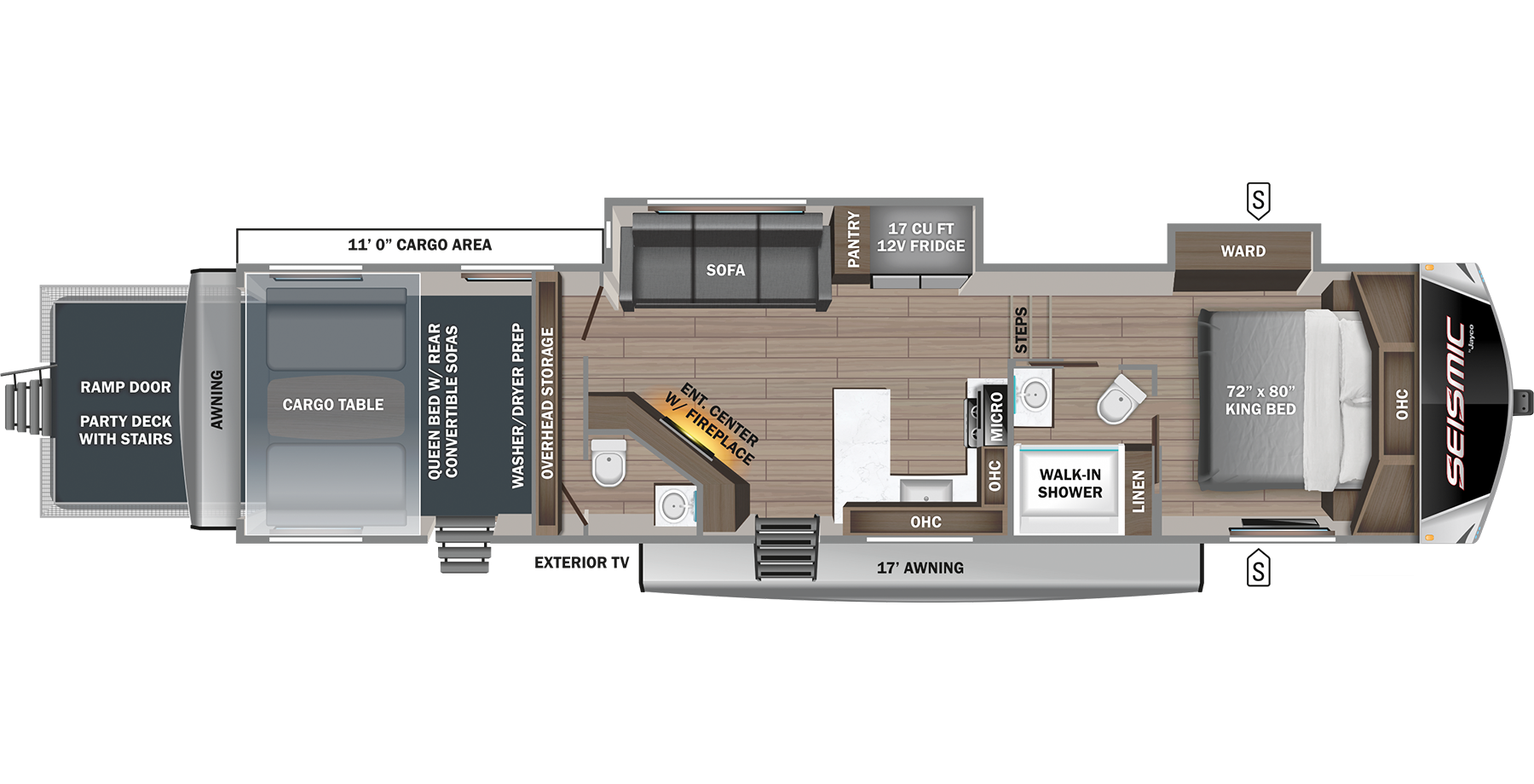

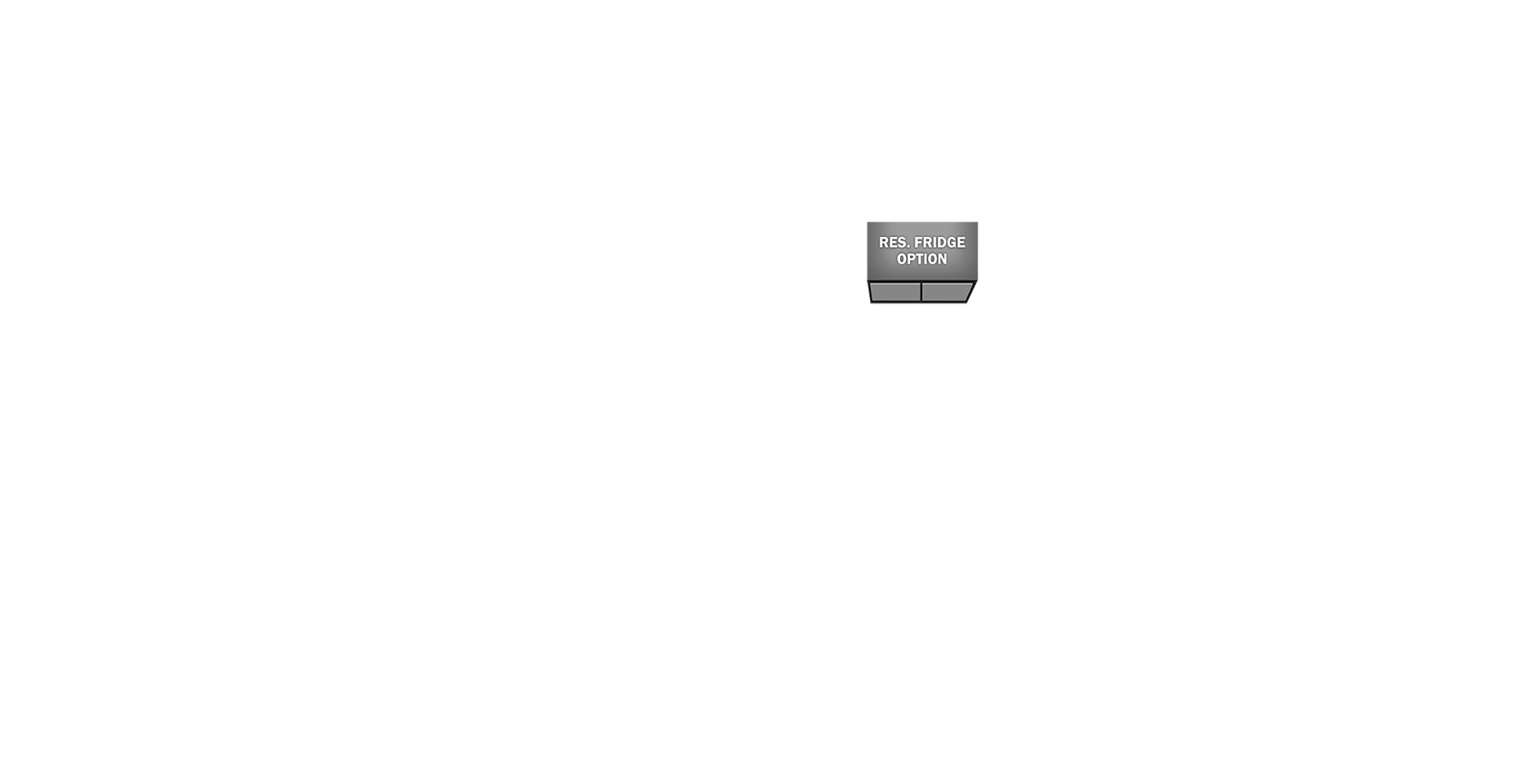

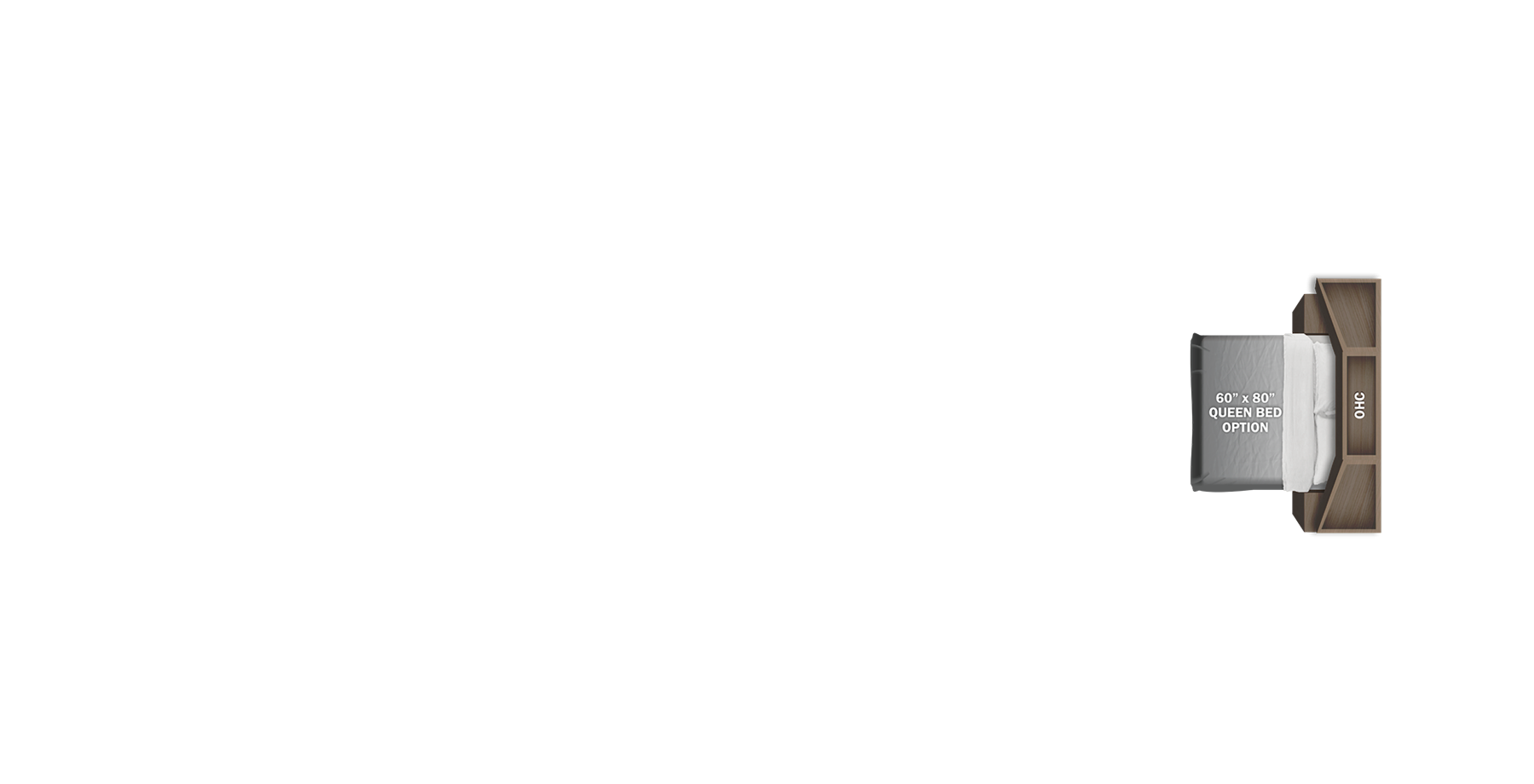

See Floorplan with
an Option Added:
See Floorplan with
Exterior

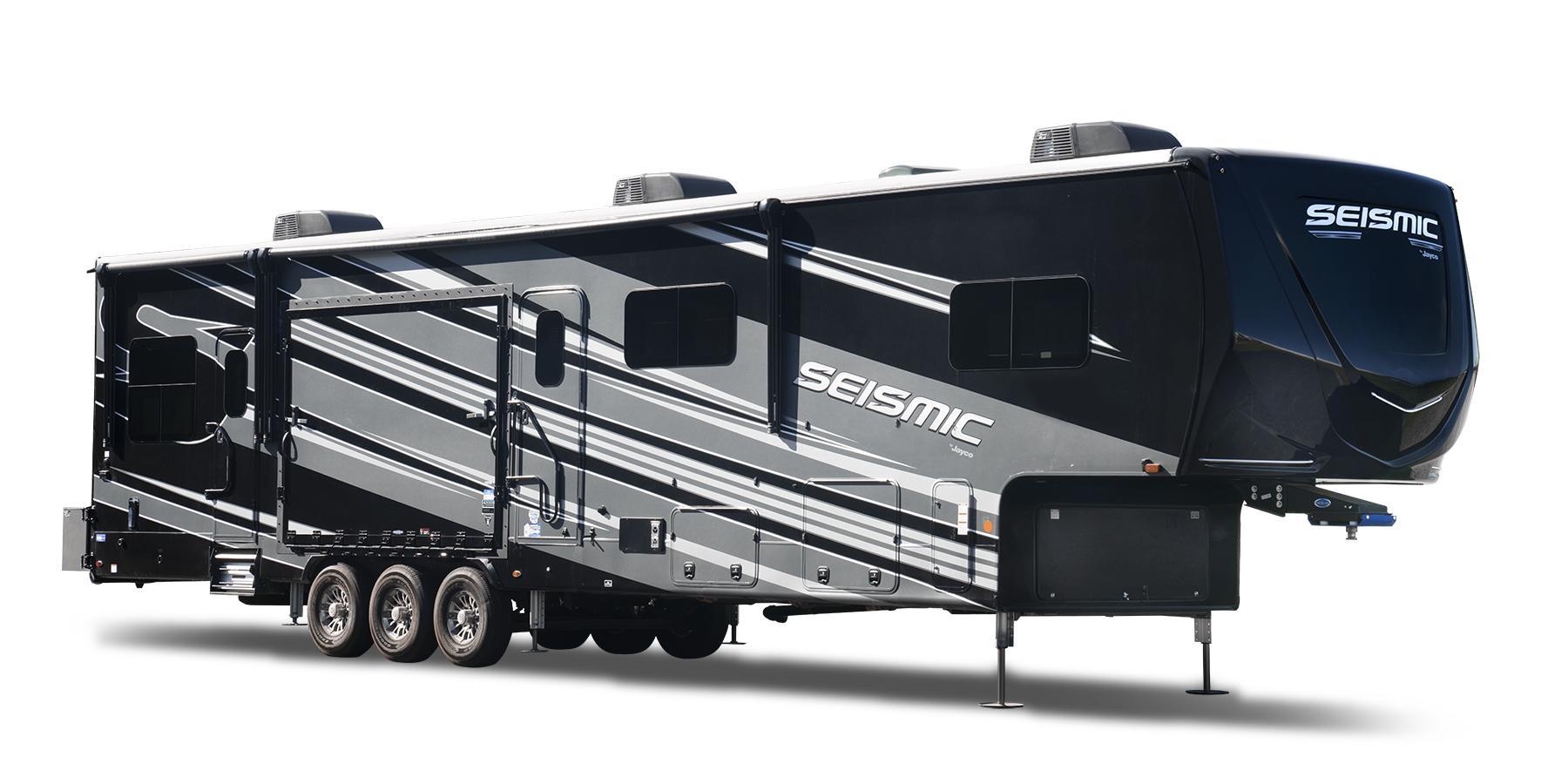

Metallic Ice Paint

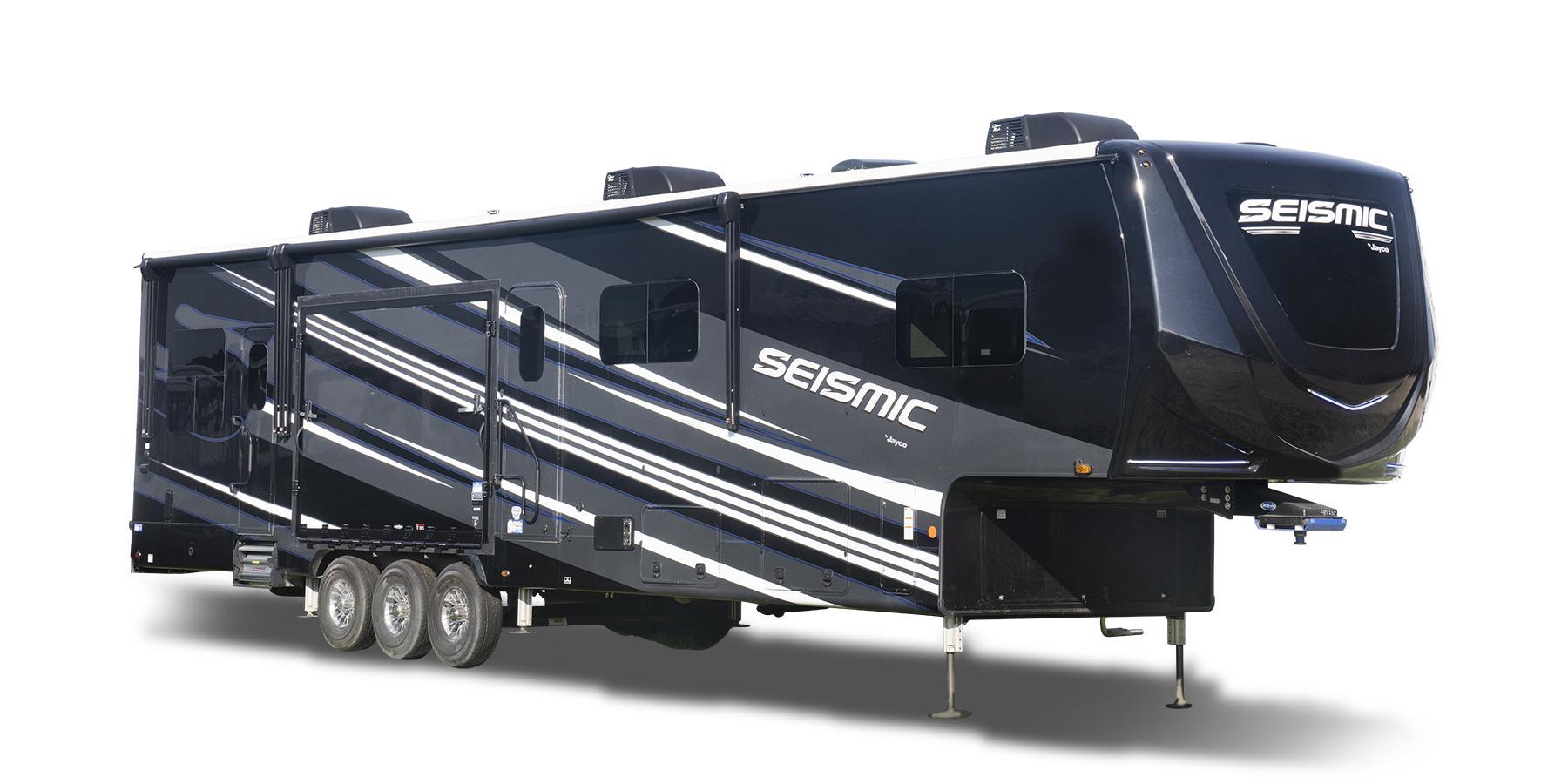

Velocity Blue Paint

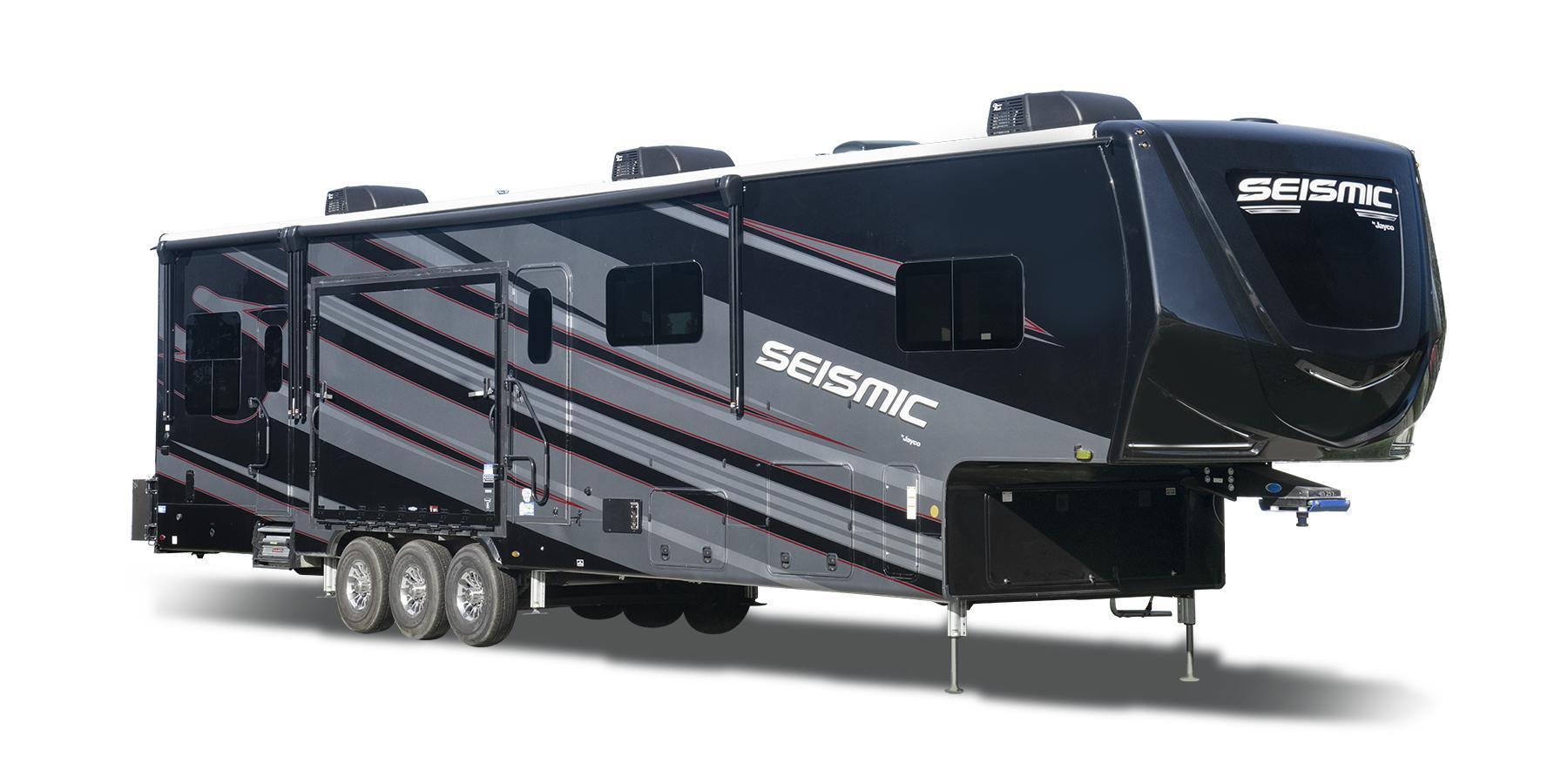

Victory Red Paint
Build and Price Your Jayco
Choose your customizations below and receive a price estimate.
Specifications
Weights
| Dry Hitch Weight (lbs) | 3,250 |
| Unloaded Vehicle Weight (lbs) | 14,175 |
| Cargo Carrying Capacity (lbs) | 3,325 |
| Gross Vehicle Weight Rating (lbs) | 17,500 |
Measurements
| Exterior Length (overall) | 41' 10" |
| Exterior Height | 12' 8" |
| Exterior Height (with A/C) | 13' 2" |
| Exterior Height (with 2nd A/C) | 13' 2" |
| Exterior Width | 8' 6" |
| Exterior Width (with slides out) | 13' 7" |
| Interior Height (main) | 8' 3" |
| Interior Height (upper deck) | 6' 4" |
| Awning Length | 15' 0" |
| Awning Length 2 | 11' 0" |
| Garage Length | 12' 6" |
Tank Capacities
| Fresh Water Capacity (gals) | 106.0 |
| Gray Water Capacity (gals) | 87.0 |
| Black Tank Capacity (gals) | 87.0 |
| Propane Unit (lbs) | 60 |
| Fuel Tank Capacity (gals) | 27 |
Miscellaneous
| Sleeps | up to 7 |
| Water Heater | 12 |
| # of outside storage compartments | 2 |
| Furnace BTU | 40000 |
| Tire Size | 215/75R17.5'H' |
Exteriors
Options
2024 Seismic Luxury Series
Starting at $146,318
The Seismic Luxury Series Toy Hauler offers all the best of the Seismic Toy Hauler and adds touches of luxury throughout the 102-inch wide body. Luxury starts at the front of the RV with an automotive style front windshield in the bedroom. In the kitchen, you’ll find a GE residential appliance package featuring a microwave with a built-in air fryer. The Seismic Luxury Series Toy Hauler is warrantied for full-time RV use and has our 2+3 warranty.
Standard Features
and Options
