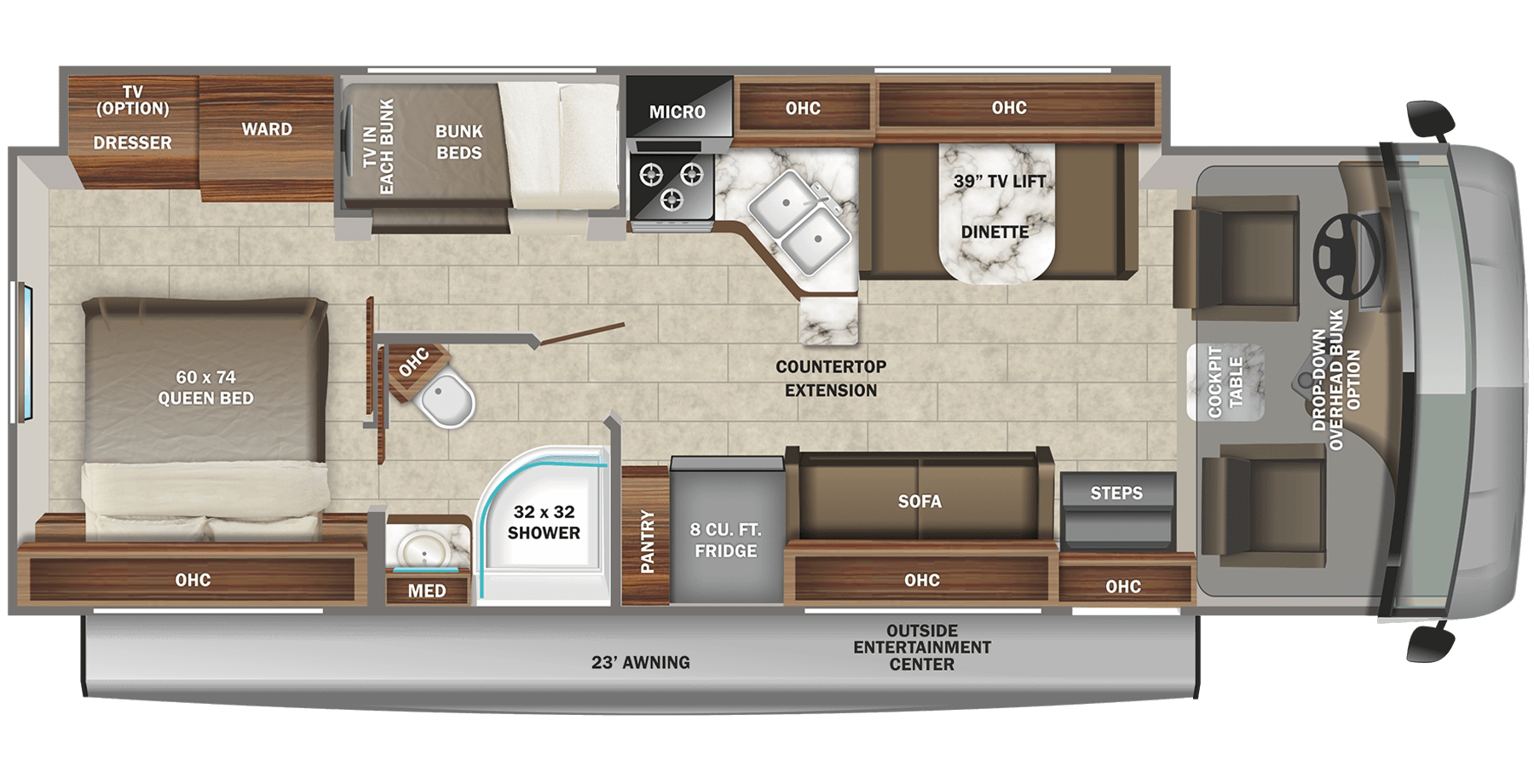

See Floorplan with
Interior Design
Bridgeport
Modern Farmhouse
Exterior
Standard Graphics
Specifications
Weights
Gross Vehicle Weight Rating (lbs) | 18,000 |
Gross Combined Weight Rating (lbs) | 23,000 |
Measurements
Exterior Length (overall) | 32' 2" |
Exterior Height (with A/C) | 12' 5" |
Exterior Width | 8' 5" |
Exterior Width (with slides out) | 9' 11" |
Interior Height (main) | 7' 0" |
Awning Length | 23' 0" |
Tank Capacities
Fresh Water Capacity (gals) | 72.0 |
Gray Water Capacity (gals) | 40.0 |
Black Tank Capacity (gals) | 49.0 |
Propane Unit (lbs) | 56 |
Fuel Tank Capacity (gals) | 80 |
Miscellaneous
Sleeps | up to 8 |
Tire Size | 245/70R19.5G |
Engine Size | Triton 7.3L EFI V8 Premium |
Exterior Cargo Capacity (cu. ft.) | 124 |
2022 Alante
Starting at $163,418
If you’re looking for your first Class A, the easy-to-manage Alante is a great place to start. As the shortest Class A by Jayco, Alante offers a mix of drivability and floorplans, for couples and families, and introduces solar, battery, WiFi and smart TV upgrades for 2022.
