2024 Terrain

Name: 2024 Terrain
Brand: Jayco

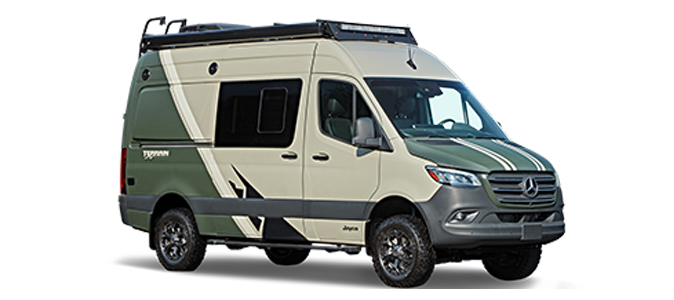

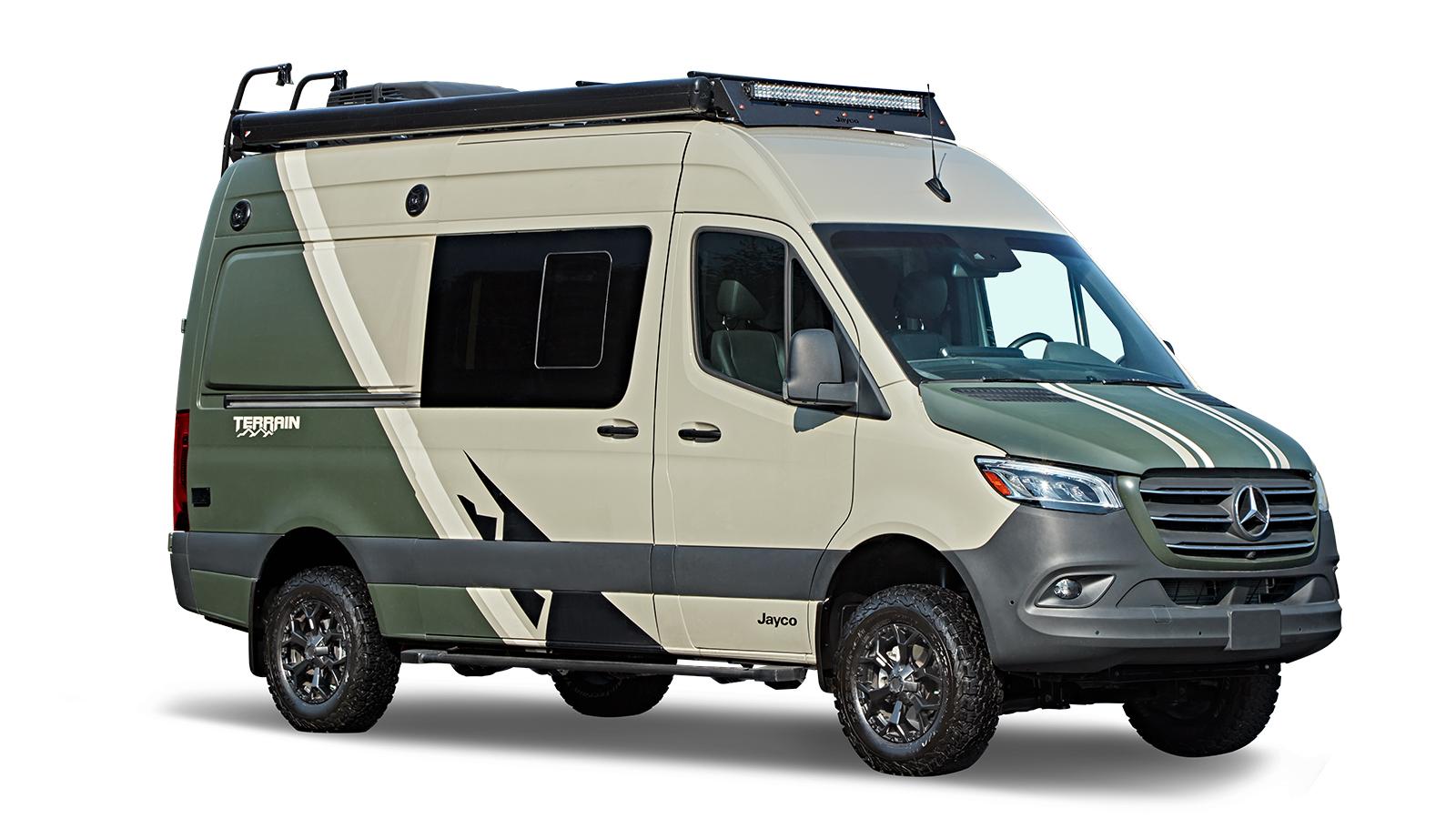

The Jayco Terrain Class B is ready to answer the call of the wild, starting with the Sprinter AWD Premium Mercedes-Benz® chassis it’s built on. The standard 48V 210 amp hour smart lithium battery provides 10KW hours of power and the new Starlink satellite internet system keeps you connected. Inside you’ll find Tecnoform® cabinets throughout with integrated kitchen pullouts, a dual bench seat with two seatbelts and slide/recline features and a rear garage with a power drop-down overhead bunk rated at 750 lbs.

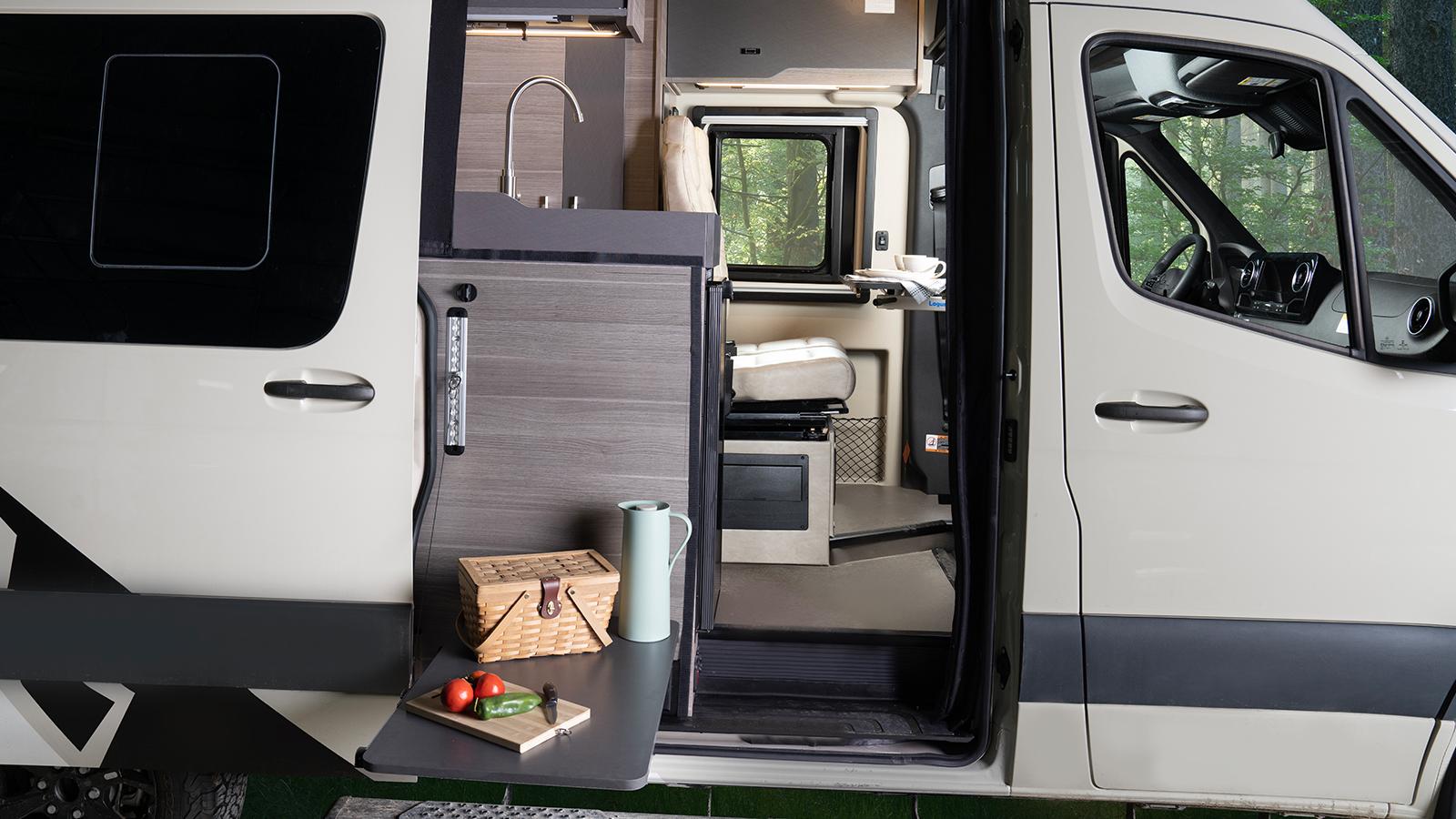

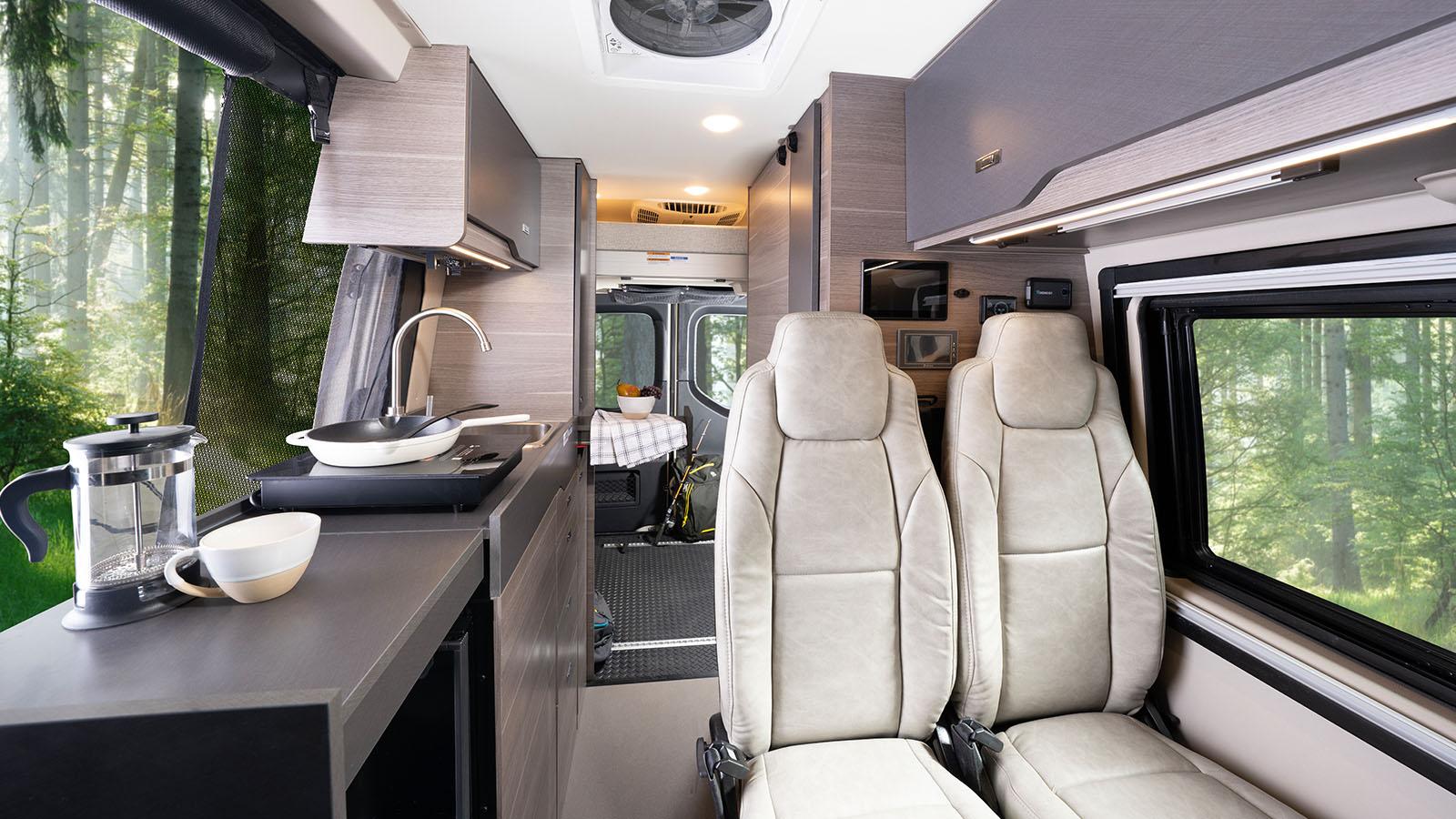

Terrain 19Y Kitchen Countertop Extension

MORE PHOTOS

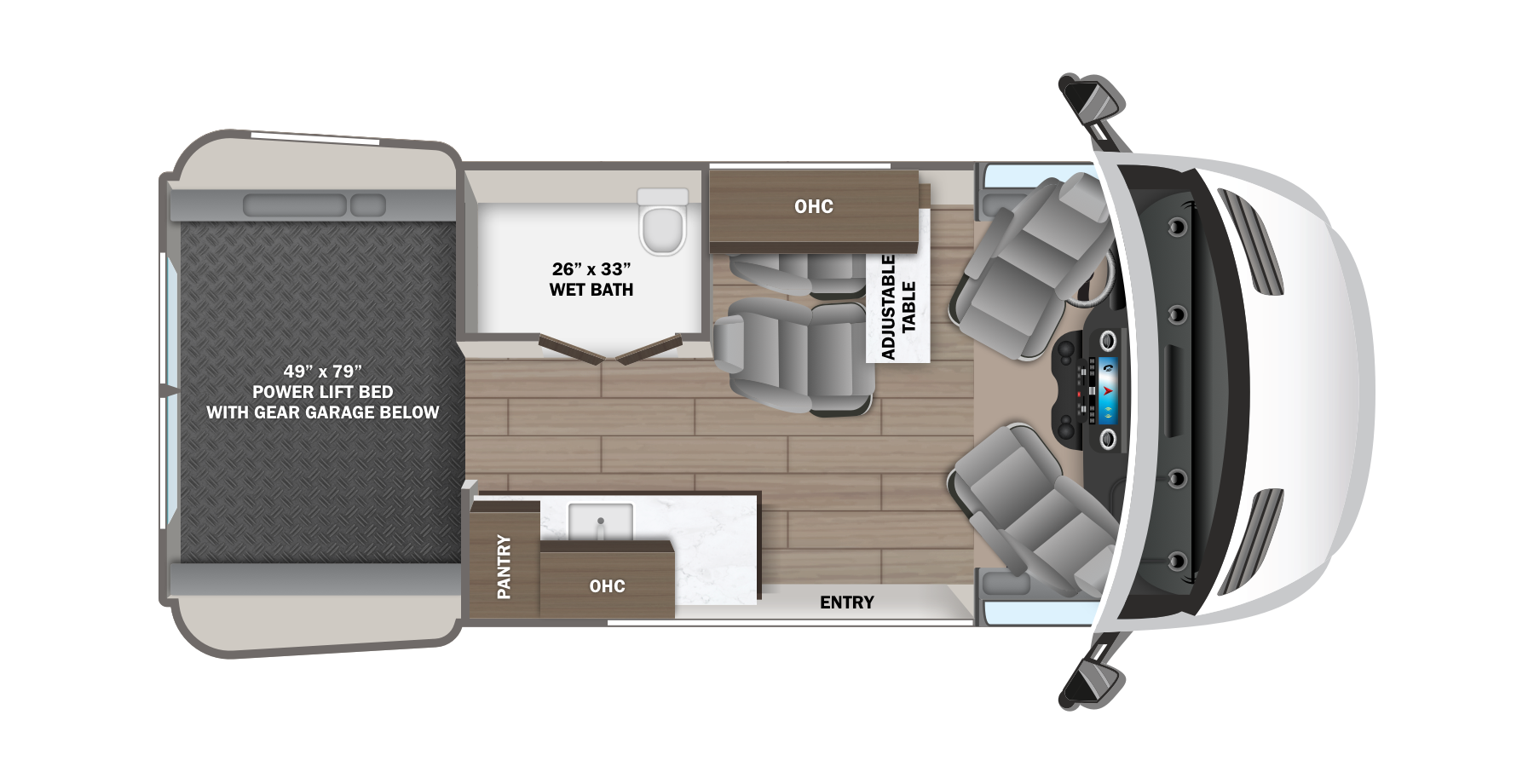

Terrain Floorplans and Prices

Transform from off-road ruggedness to luxurious comfort where you can eat, sleep, shower, lounge and more in the Terrain.

Sleeps up to 2
Length 19' 7" - 19' 7"

See Floorplans »

Standard Features and Options

Standard Driving Equipment

Mercedes-Benz® Sprinter 2500 AWD van with 144 in. wheelbase
GVWR- 9,050 lb.
GCWR- 13,930 lb.
2.0L 4-cylinder diesel engine with 211HP and 332 ft.-lb. torque
9-speed automatic transmission
250-amp alternator
5,000 lb. rear hitch receiver with 7 pin connector
12V chassis battery
24.5 gal. fuel tank (diesel)
5.8 gal DEF Tank

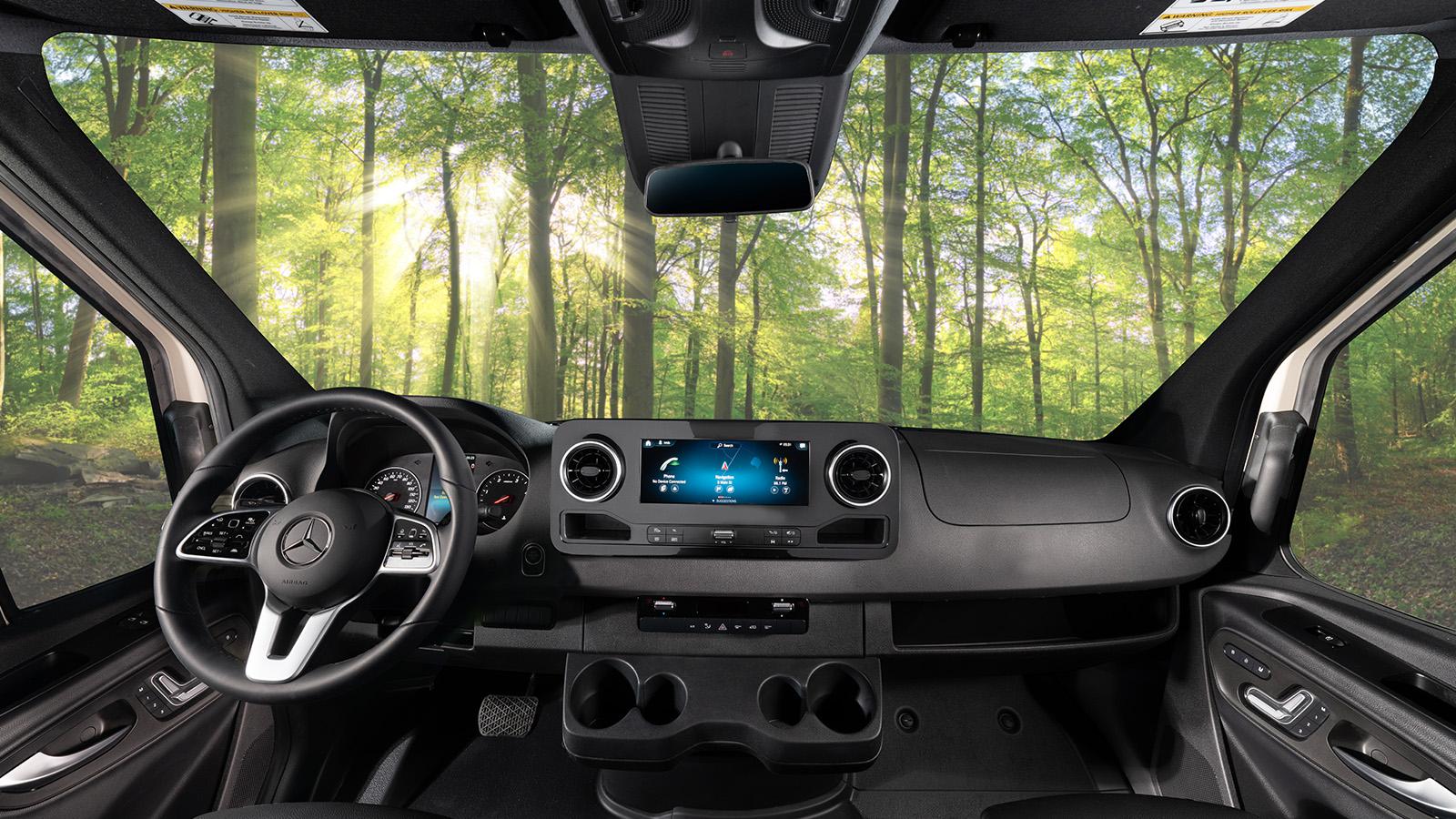

10.25 in. integrated Mercedes-Benz® MBUX infotainment center with GPS, Apple® CarPlay™ and Android Auto™
Power folding/heated side-view mirrors
Heated power swivel driver/passenger seats
Leather-wrapped tilt steering wheel with integrated controls
Smartphone tray with wireless charging
Parking package with 360° camera
Backup camera
Active Distance Assist DISTRONIC®
Active lane keeping assist
Crosswind assist
Hill start assist
Brake assist plus
Traffic sign assist
Attention assist
Breakdown management
Emergency call system
Driver and passenger airbags
Tire pressure monitoring system (TPMS)
Rain-sensing windshield wipers
Headlight assistant
LED high performance headlights
Third brake light
Power windows and door locks
Privacy shades for cab windows
Remote keyless entry

Standard Exterior Equipment

LED-lit running boards for cab and entry doors
Fold-down exterior table
Daytime running headlamps
Renogy lithium system featuring 48V-210 amp hour smart lithium battery and 3,500W inverter OR Lithionics lithium system featuring 48V-165 amp hour smart lithium battery and 3,000W inverter (lithium system dependent on build date)
Prepped for auto engine start with high idle
2nd 48V alternator dedicated to lithium battery
House battery disconnect switch

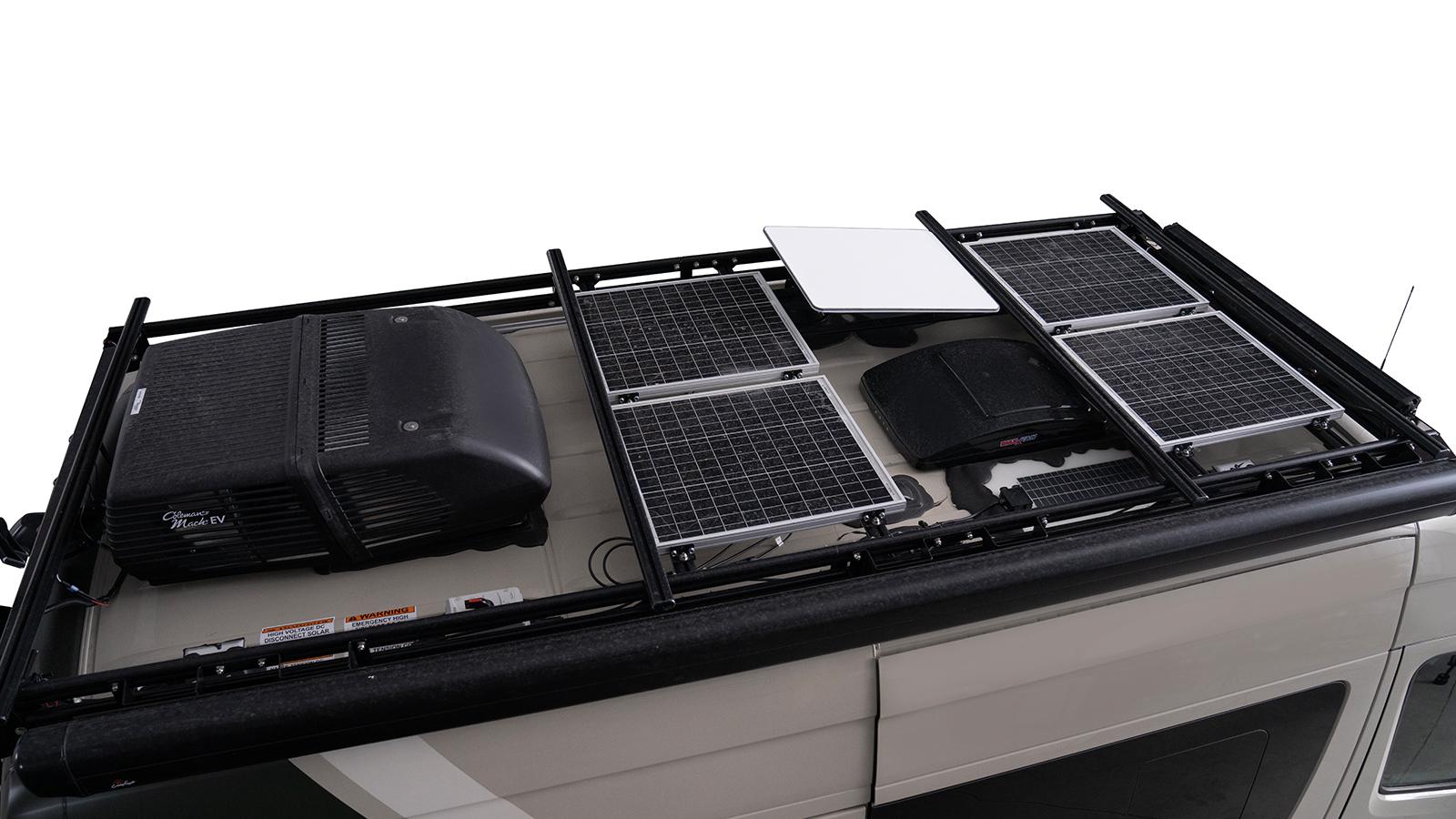

200W of roof-mounted solar panels
Slow charge solar panel for chassis battery (N/A with Lithionics Battery system)
Portable solar plug (N/A with Lithionics Battery system)
30-amp electrical service with detachable power cord
120V exterior outlet
Heated grey tank (12V pad) with skid plate
Interior-mounted fresh water tank
LED-lit holding tank valves
Utility center with water controls and outside hose
City water connection
Winterization drain system
12V demand water pump
Water filtration system

Standard Interior Equipment

Custom-molded ABS interior wall panels
Soft-touch vinyl ceiling
High-intensity LED ceiling lights
Tecnoform® European-style, cabinetry
Durable rubber flooring
Firefly total coach control system with wall-mounted touchscreen and mobile app
MaxxAir Deluxe roof vent
120V/USB outlets throughout
Side screen door with magnetic and zipper close offs
Removable privacy shade for sliding door window
Rear screen door with roll-up and black out capabilities
Rear dual-pane acrylic window with cassette shades
(2) sliding vented windows

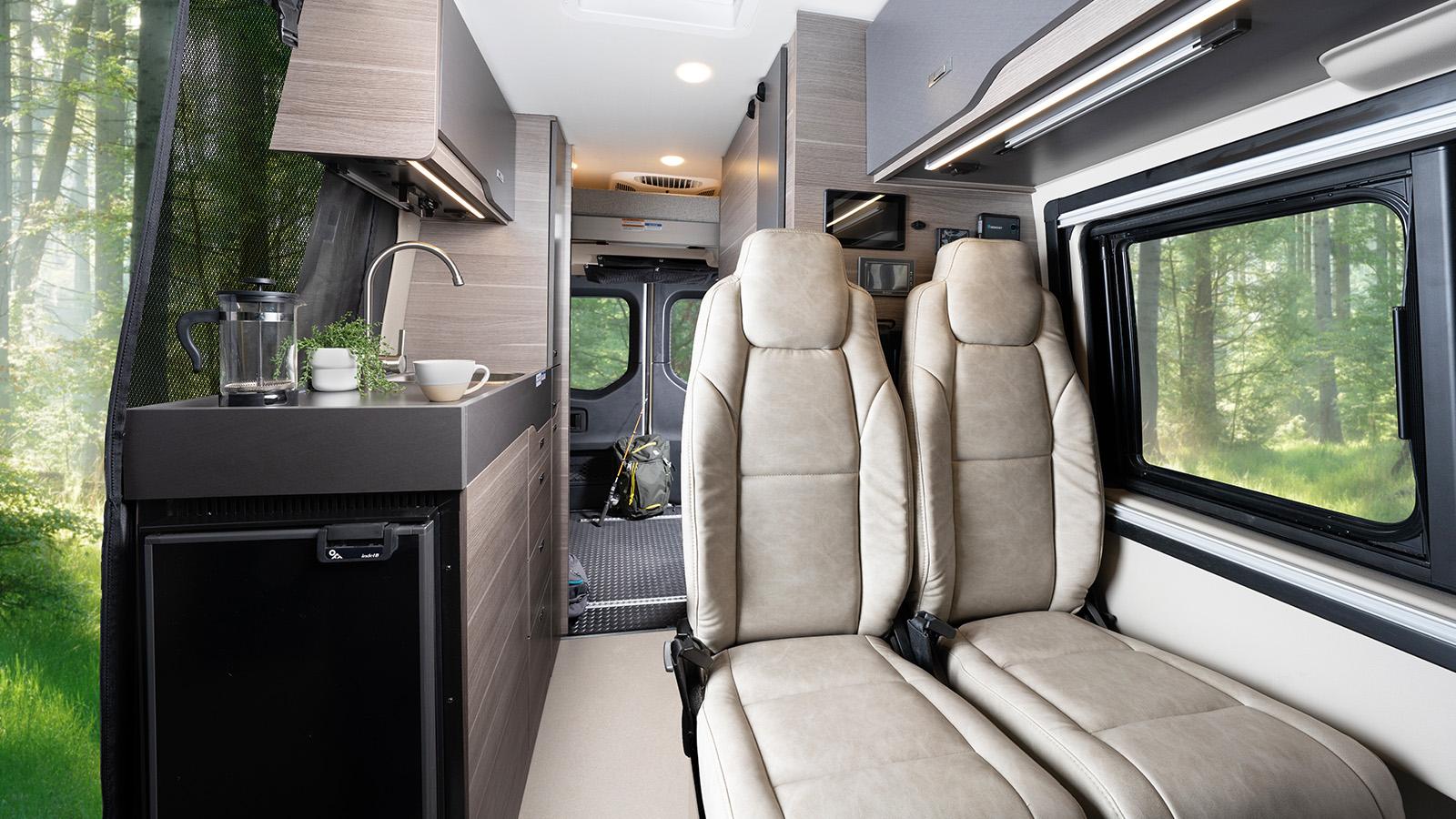

(2) additional cab bucket seats with slide and recline features
Removable/adjustable table
JBL® Flip 6 removable wireless Bluetooth speaker
Tecnoform® pull-out kitchen countertop extension
Pantry
3 cu.ft. DC refrigerator
Portable induction cooktop

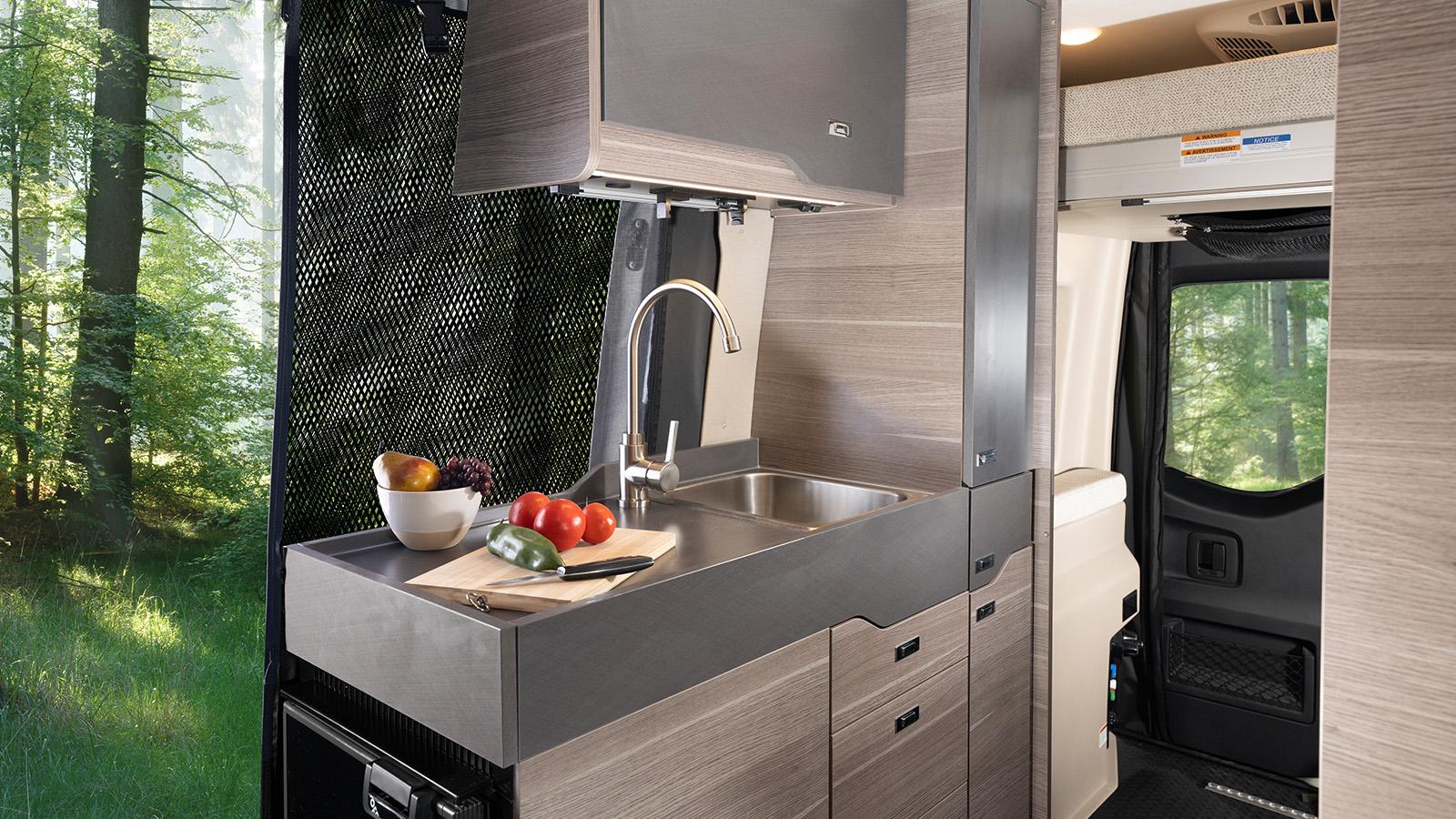

Stainless-steel sink

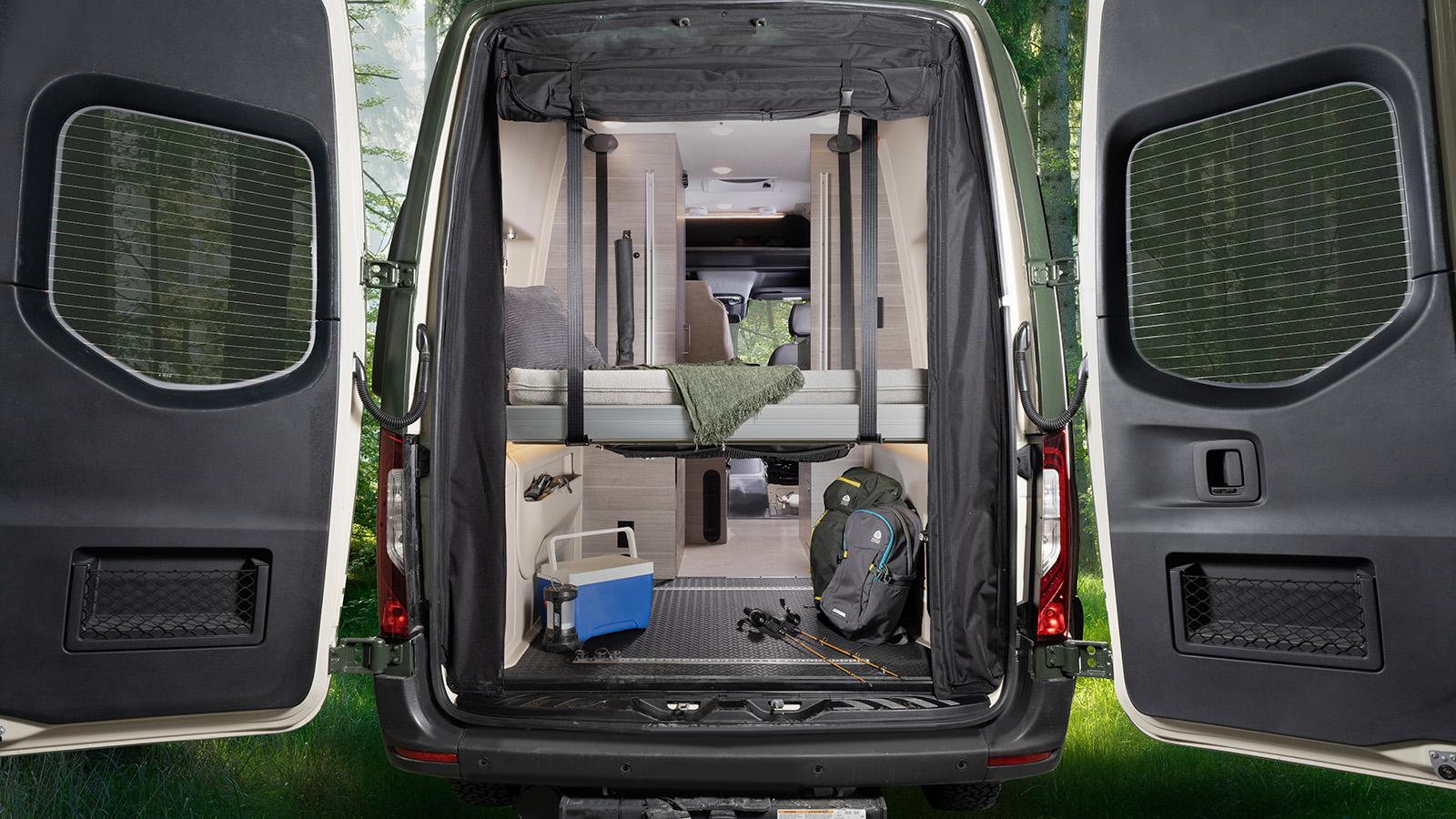

Drop-down overhead bed with 750 lb. capacity
Fiberglass side pods create larger sleeping surface

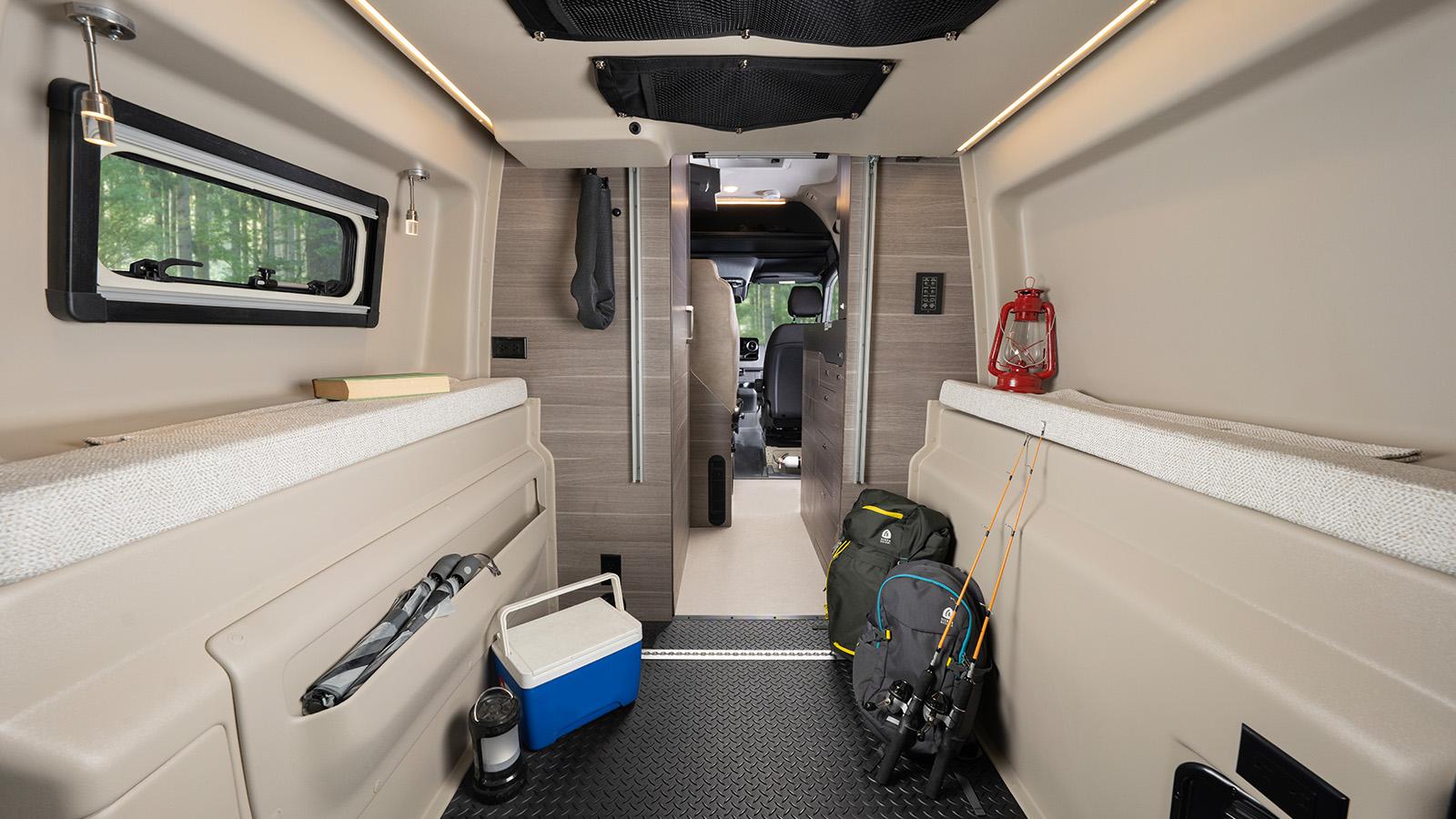

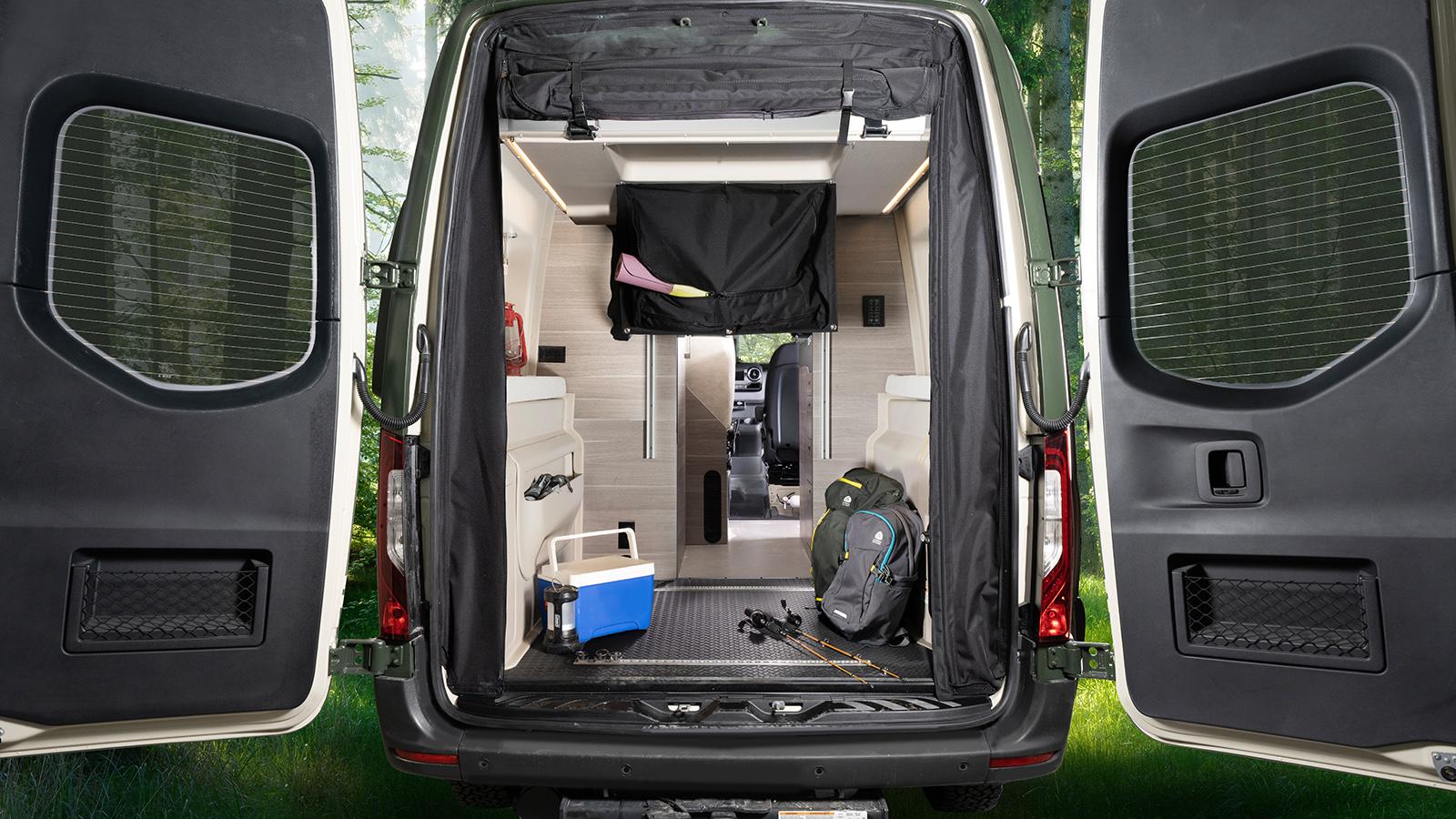

Rear garage under bed with L-track mounts for securing cargo
(2) recessed under-bed storage bags
All-in-one wet bath with shower and cassette toilet
Aqua View® SHOWERMI$ER™ water management system
Removable bamboo shelf in wet bath
Retractable clothes line in shower
Powered roof vent in bathroom
Seatbelts in all seating locations
Smoke alarm
Carbon monoxide detector
Fire extinguisher

Customer Value Package (Mandatory)

JRide®: Koni® shocks, heavy-duty rear stabilizer bar
Carefree® armless patio awning with LED light strip and wind sensor
Double roof rack and moveable roof ladder
Front and rear wind deflectors with front LED light bar
Timberline hydronic heating system with LED touchscreen control
13,500 BTU 48V Coleman®-Mach® 10 air conditioner
Black aluminum wheels with BFGoodrich® All-Terrain T/A® KO2® tires

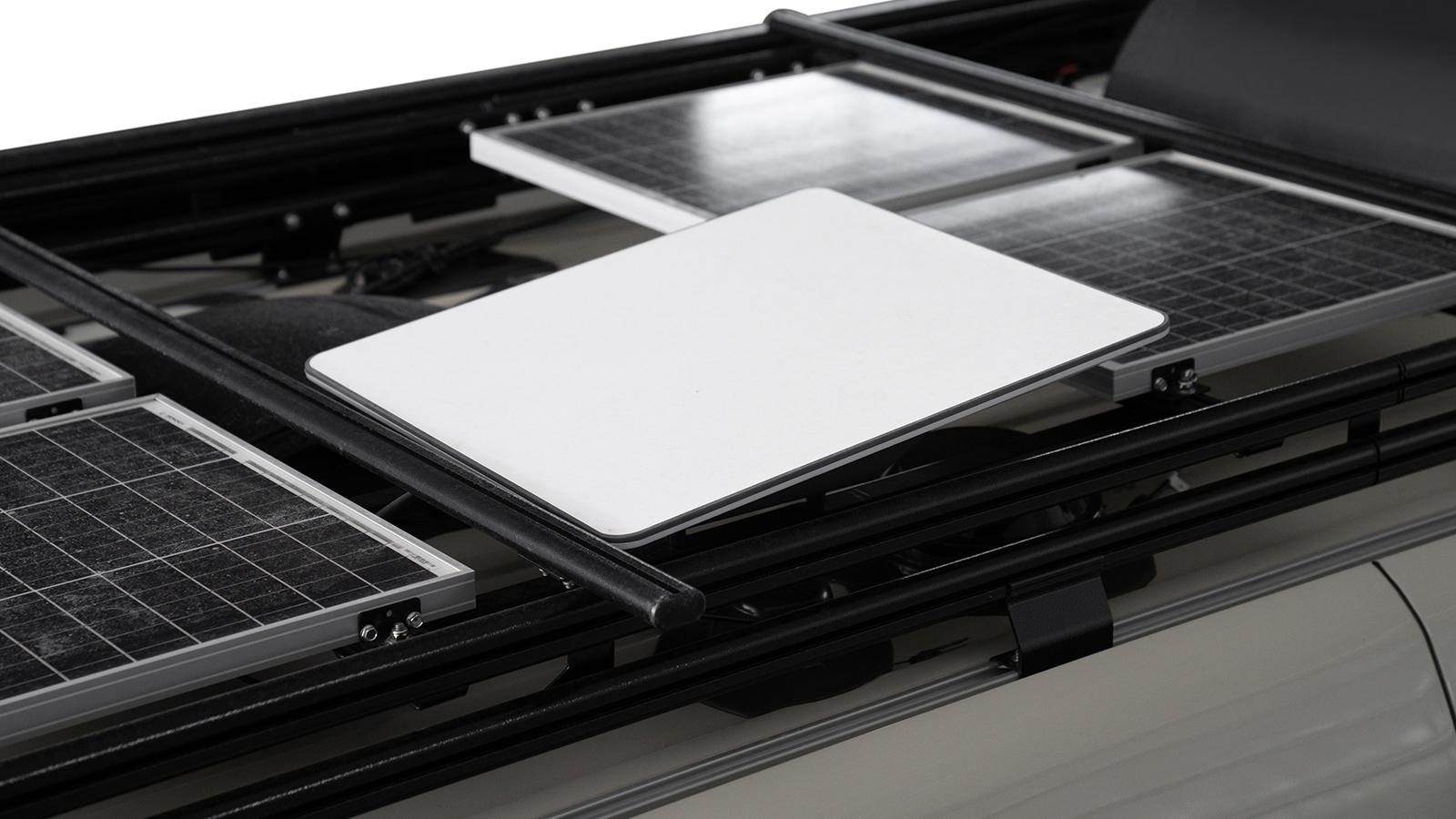

Starlink satellite internet system

Standard Features
and Options

See all »

JRide^®

We engineer each motorhome with several specific enhancements for a powerful blend of precise handling and renowned stability on the road. Because the journey should be as exciting as the destination.

Learn more »

Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single motorhome. With sidewall or roof-mounted prep kits, you have the option to easily install solar panels, or additional panels if already solar equipped, for extra power at your camp.

Learn more »

Incredible Bunk Ratings

Go ahead and bring another traveler or some extra gear. With an overhead bunk capacity of 750 lbs., Jayco beats the industry standard by 300lbs. On top of that, Jayco offers a 300 lb. capacity in each standard bunk.

Learn more »
