Redhawk SE

2022 Redhawk SE

Built on the Chevrolet 4500 chassis, the 2022 Redhawk SE combines all the legendary construction elements Jayco is known for with features and designs selected specifically to enhance comfort on-the-road and at camp. The Redhawk SE is a great option for families or couples looking to give RVing a try, or switch from a towable for the first time.

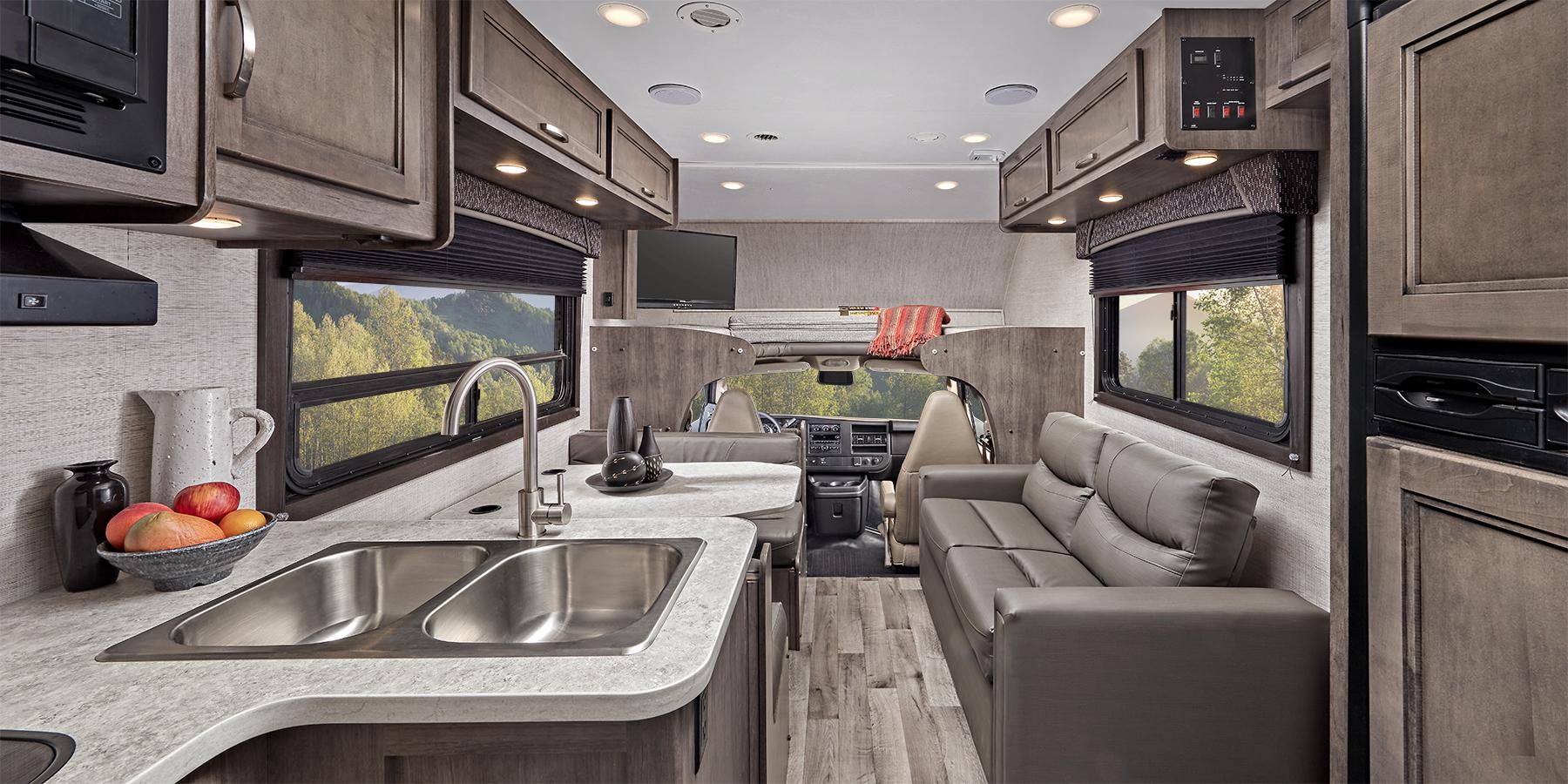

Redhawk SE 27N Front to Back

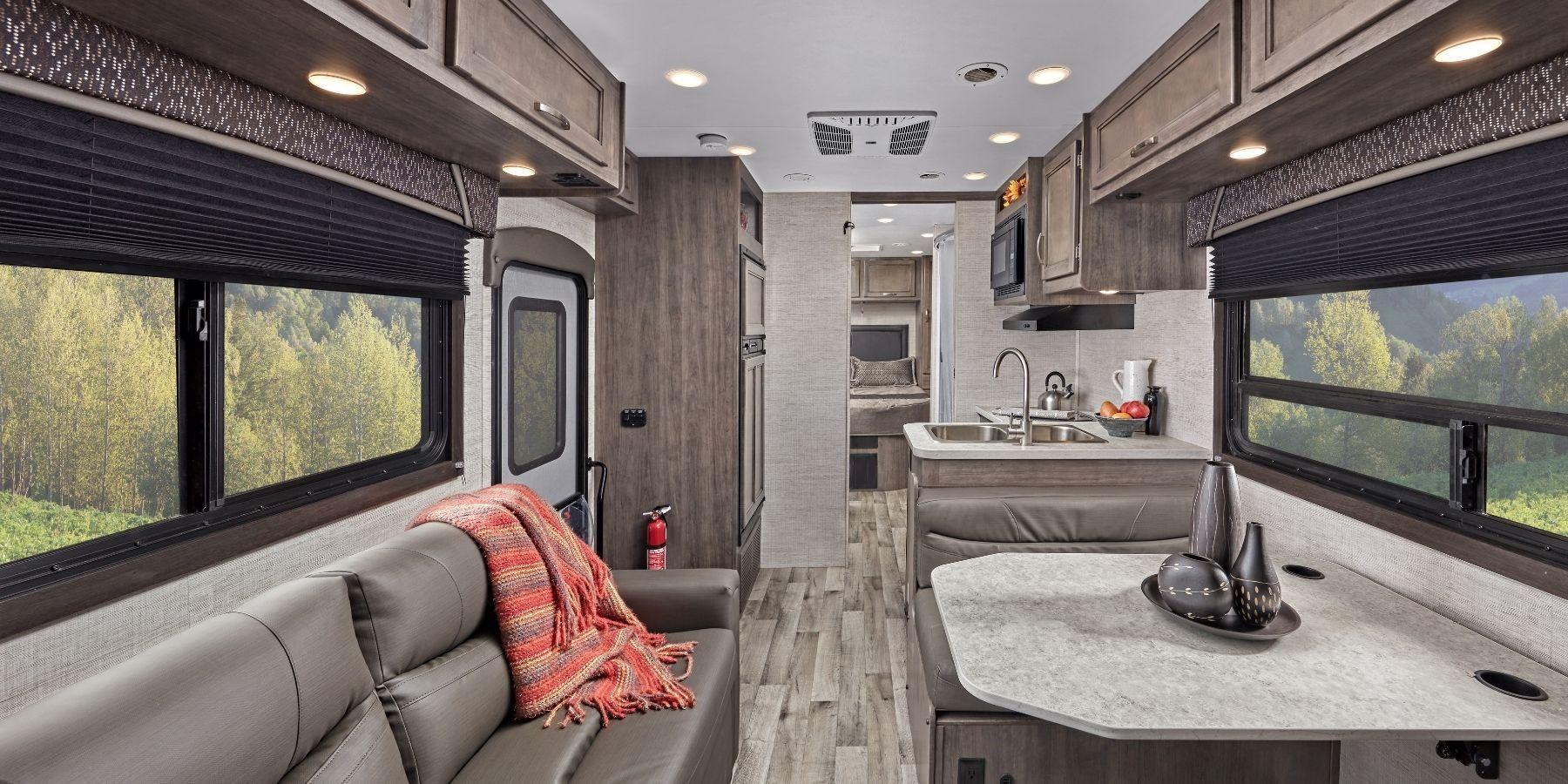

Redhawk SE 27N Back to Front

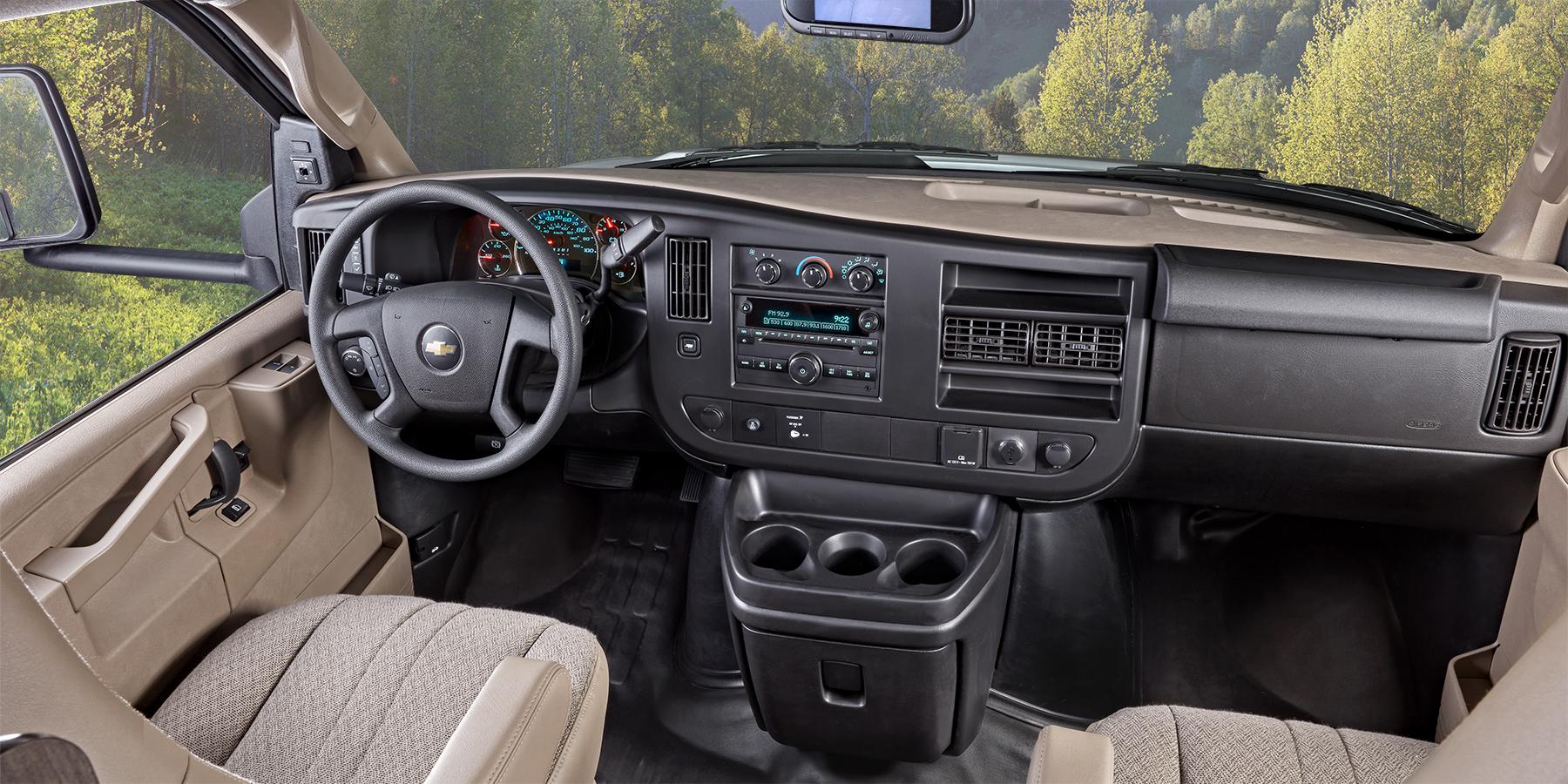

Redhawk SE 27N Cockpit

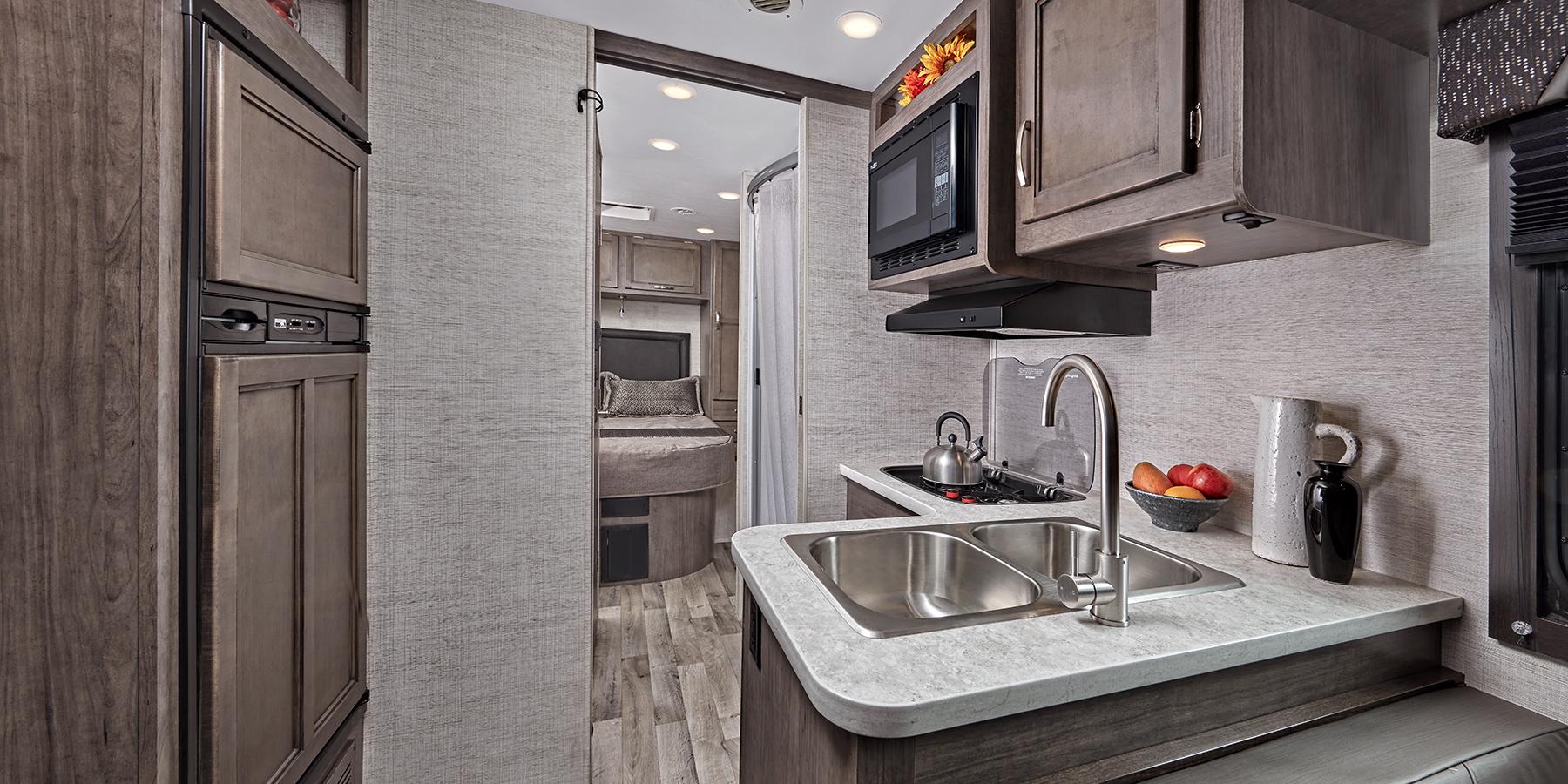

Redhawk SE 27N Kitchen

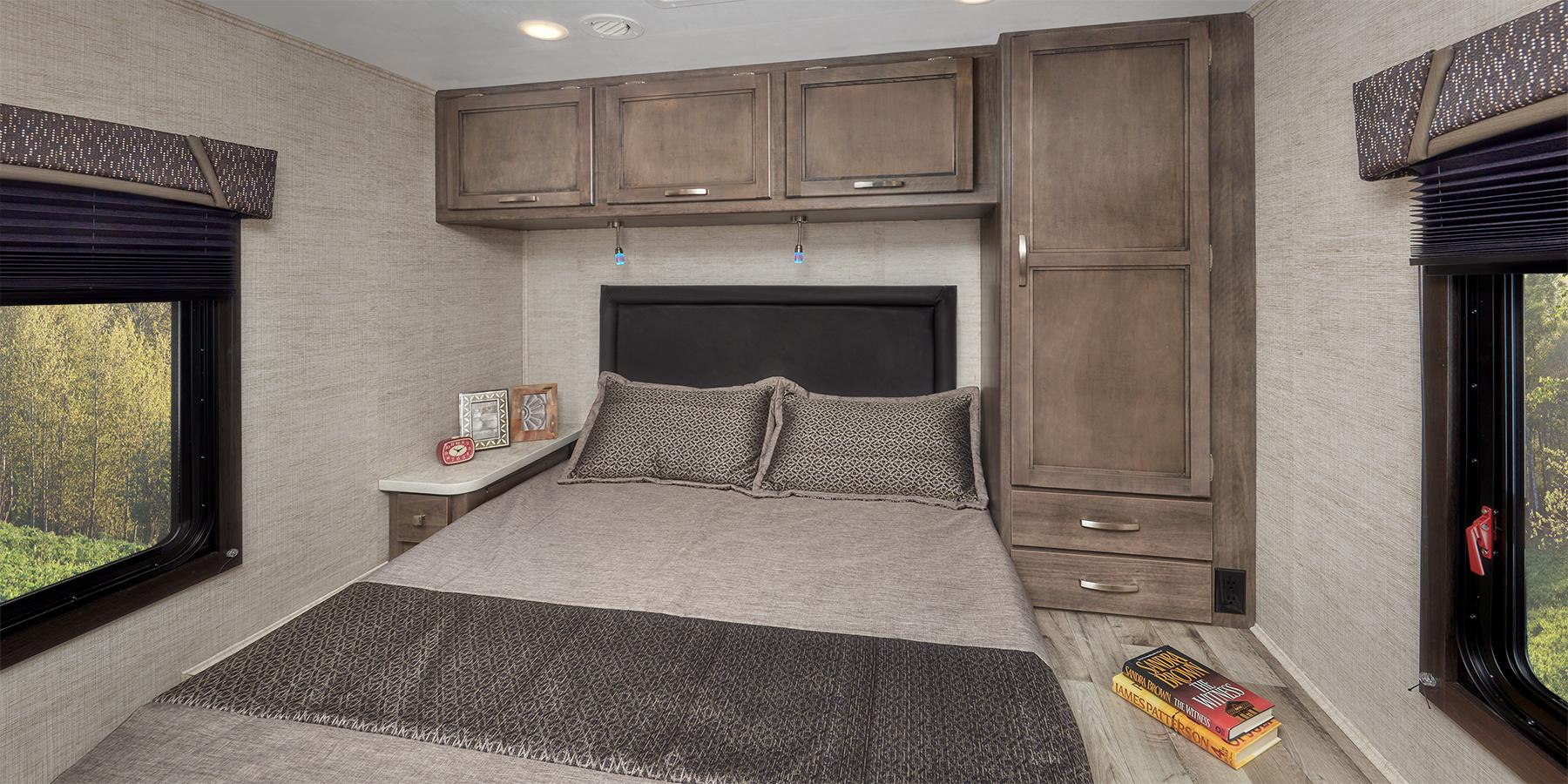

Redhawk SE 27N Bedroom MORE PHOTOS

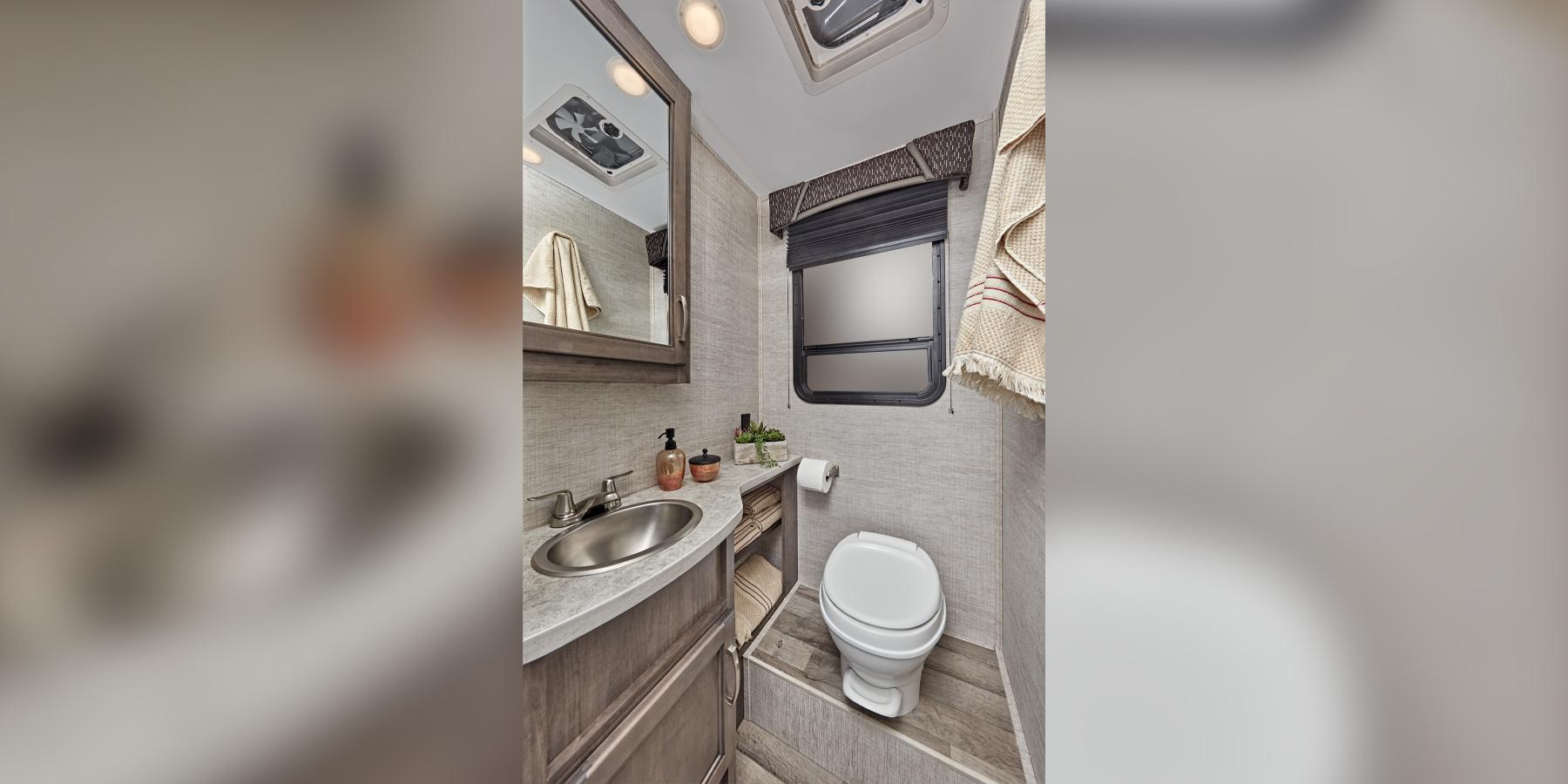

Redhawk SE 27N Bathroom

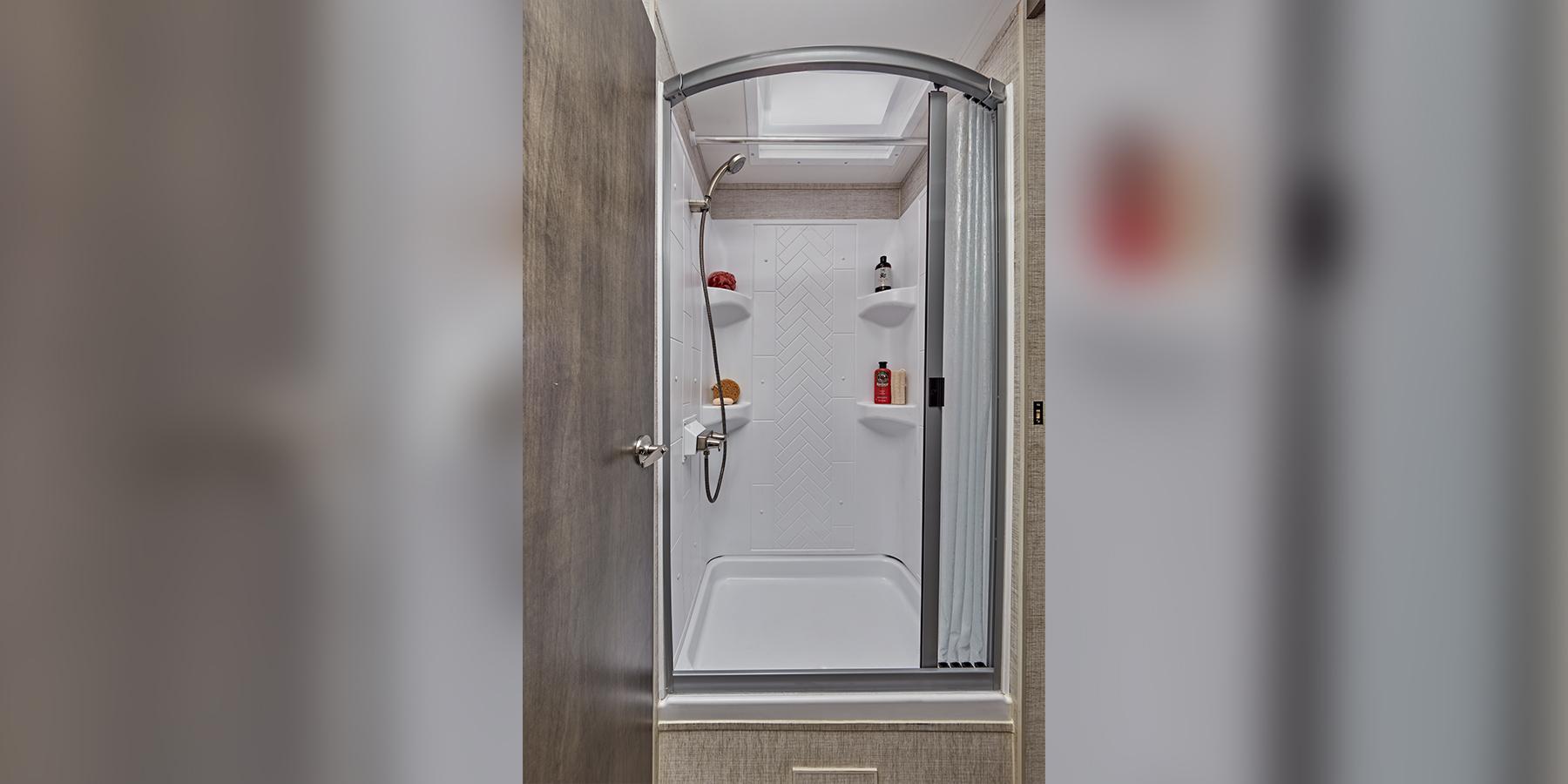

Redhawk SE 27N Shower

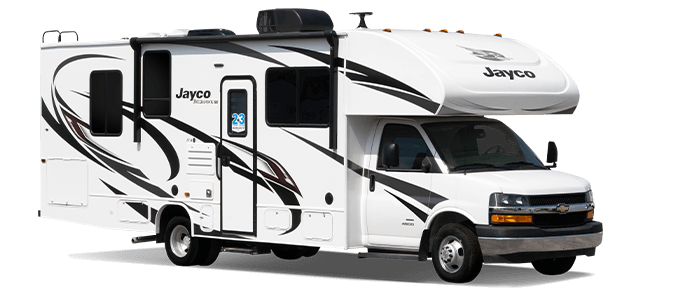

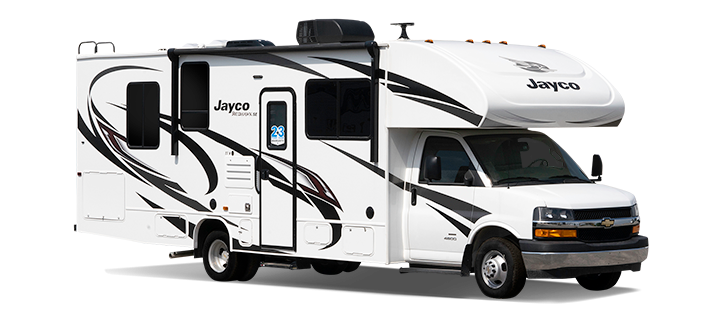

Redhawk SE Exterior
Redhawk SE

Redhawk SE Floorplans and Prices

Choose between three different Redhawk SE floorplans and two different lengths: 25' 2" and 30' 3".

Sleeps up to 5
Length 25' 2" - 30' 3"

See Floorplans »

Standard Features and Options

Standard Driving Equipment

  • Chevrolet® 4500 Chassis
  • GVWR- 14,200 lb.
  • GCWR- 20,000 lb.
  • 6L Vortec V8 401 HP engine with 464 ft.-lb. torque
  • Hydra-matic 6-speed automatic transmission with overdrive
  • 120-amp alternator
  • E-rated highway tires- LT225/75R16
  • Power anti-lock brakes with power steering
  • 5,000 lb. hitch with 500 lb. tongue capacity and 7-pin plug
  • 12V chassis battery
  • 57 gal. fuel tank
  • Remote-controlled, side-view mirrors
  • Driver and passenger airbags
  • Power windows and door locks
  • Tilt steering wheel
  • A/C and cruise control
  • Auxiliary start switch
  • Privacy curtains for cab area

Standard Exterior Equipment

  • StrongholdVBL™ roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
  • TPO laminated roof
  • Aluminum running boards
  • Fiberglass exterior walls with vinyl graphics
  • Leveling jack prep
  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step with integrated house battery compartment
  • 12V house battery
  • 12.2 gal. propane tank (41 lb.)
  • LP quick-connect hookup
  • Exterior utility center
  • Winterization drain system
  • Outside shower
  • 12V demand water pump
  • Onan® 4,000-watt MicroQuiet™ gas generator
  • Transfer switch with reverse polarity protection
  • 30-amp electrical service
  • Solar prep
  • Third brake light
  • Roof ladder
  • 4 in. bumper tube sewer hose storage

Standard Interior Equipment

  • 84 in. ceiling height
  • High-intensity, recessed LED ceiling lights
  • Hardwood cabinet doors
  • Ball-bearing drawer guides
  • Jayco-exclusive, easy-operation legless dinette table
  • 2-point lap safety belts in all designated seating locations
  • Interior entrance door grab handle
  • Interior command center
  • Pleated blackout shades
  • 13,500 BTU ducted A/C
  • 31,000 BTU auto-ignition furnace
  • 6 gal. gas/electric DSI auto-ignition water heater
  • Cable TV hookup with RG-6 coax
  • Digital antenna with signal booster
  • 2-burner cooktop with flush cover
  • Convection microwave oven
  • Stainless steel kitchen sink
  • Decorative kitchen backsplash
  • Water filtration system
  • Shower with decorative ABS surround and skylight
  • Stainless steel bathroom sink
  • Toilet with foot flush
  • Queen-size bed with bedspread
  • Under-bed storage (select models)
  • Large wardrobes
  • Overhead bunk with 750 lb. capacity
  • Smoke alarm
  • Carbon monoxide detector

Customer Value Package (Mandatory)

  • One-piece, seamless, fiberglass front cap
  • Heated holding tanks (12V pads)
  • Electric patio awning
  • Black holding tank sprayer
  • Backup camera
  • 6 cu. ft. flush-mount refrigerator
  • LED HDTV

Options

  • Hydraulic leveling jacks
  • 190W solar panel with dual controller and second house battery

Standard Features
and Options

See all »
Stronghold VBL™ Lamination
Solar Power
One-Piece Seamless Front Cap
Incredible Bunk Ratings
Seatbelts in All Designated Seating Locations

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single motorhome.  With sidewall or roof-mounted prep kits, you have the option to easily install solar panels, or additional panels if already solar equipped, for extra power at your camp.

Learn more »

One-Piece Seamless Front Cap

An RVs front cap bears a lot of the brunt of the road. The one-piece, seamless front cap resists wear and tear like fading or moisture damage over the years.

Learn more »

Incredible Bunk Ratings

Go ahead and bring another traveler or some extra gear. With an overhead bunk capacity of 750 lbs., Jayco beats the industry standard by 300lbs. On top of that, Jayco offers a 300 lb. capacity in each standard bunk.

Learn more »

Seatbelts in All Designated Seating Locations

To help you keep you most precious cargo safe as you roll on down the road, we install seatbelts in every designated seating location.

Learn more »
