Redhawk

2024 Redhawk

If motorhome ownership seems daunting, dip your toe in with the Jayco Redhawk Class C, featuring all the family-favorite amenities and floorplans. The Redhawk is a show-stopper, starting with the one-piece seamless fiberglass front cap with automotive-bonded panoramic window and power shade. For ease of navigation, the 9-inch Sony® Infotainment system comes with Apple® CarPlay™, Android Auto™ and integrated side-view cameras. Check out all the new looks for 2024, including new flooring, new farmhouse wallboard and more.

Redhawk

Redhawk Floorplans and Prices

With multiple configurations and inventive floorplans, there’s room for the whole gang in the Redhawk.

Sleeps up to 7
Length 26' 8" - 32' 6"

Standard Features and Options

Standard Driving Equipment

  • Ford® E-450 chassis
  • GVWR- 14,500 lb.
  • GCWR- 22,000 lb.
  • 7.3L V-8 325 HP engine with 450 ft.-lb. torque
  • 6-speed TorqShift® series transmission with overdrive
  • 210-amp alternator
  • Catalytic converter theft deterrent
  • E-rated highway tires- LT225/75R16
  • Tire pressure monitoring system (TPMS)
  • Power anti-lock brakes with power steering
  • 7,500 lb. hitch with 750 lb. tongue capacity and 7-pin plug
  • 12V chassis battery
  • 55 gal. fuel tank
  • Swivel driver and passenger seats (select floorplans)
  • Remote-controlled, side-view mirrors
  • Tilt steering wheel
  • Cruise control
  • Hill start assist
  • Electronic stability control
  • Traction control
  • Auxiliary start switch
  • Power windows and door locks
  • Driver and passenger airbags
  • Privacy curtain for cab area

Standard Exterior Equipment

  • StrongholdVBL™ roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
  • TPO laminated roof
  • Aluminum running boards
  • Fiberglass exterior walls with vinyl graphics
  • Leveling jack prep
  • Frameless windows
  • Remote keyless cab entry
  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step with integrated house battery compartment
  • (2) high-output, marine-grade exterior speakers
  • Slideout awning(s)
  • Pass-through storage compartment with light (select models)
  • Third brake light
  • Roof ladder
  • 4 in. bumper tube sewer hose storage
  • Prep for satellite dish
  • Cable TV hookup with RG-6 coax
  • Digital antenna with signal booster
  • 4,000W generator
  • Solar prep
  • 12V house battery
  • Transfer switch with reverse polarity protection
  • 30-amp electrical service
  • 12.2 gal. propane tank (41 lb.)
  • LP quick-connect hookup
  • Exterior utility center
  • Winterization drain system
  • Outside shower
  • 12V demand water pump
  • Water filtration system

Standard Interior Equipment

  • Overhead bunk with 750 lb. capacity and safety net
  • 84 in. ceiling height
  • High-intensity, recessed LED ceiling lights
  • LED-lit slideout fascia
  • Hardwood cabinet doors and drawer fronts
  • Ball-bearing drawer guides
  • Interior entrance door grab handle
  • Interior command center
  • Pleated blackout shades
  • 15,000 BTU ducted A/C
  • 30,000 BTU auto-ignition furnace
  • Electric fireplace (26M)
  • 6 gal. gas/electric DSI auto-ignition water heater

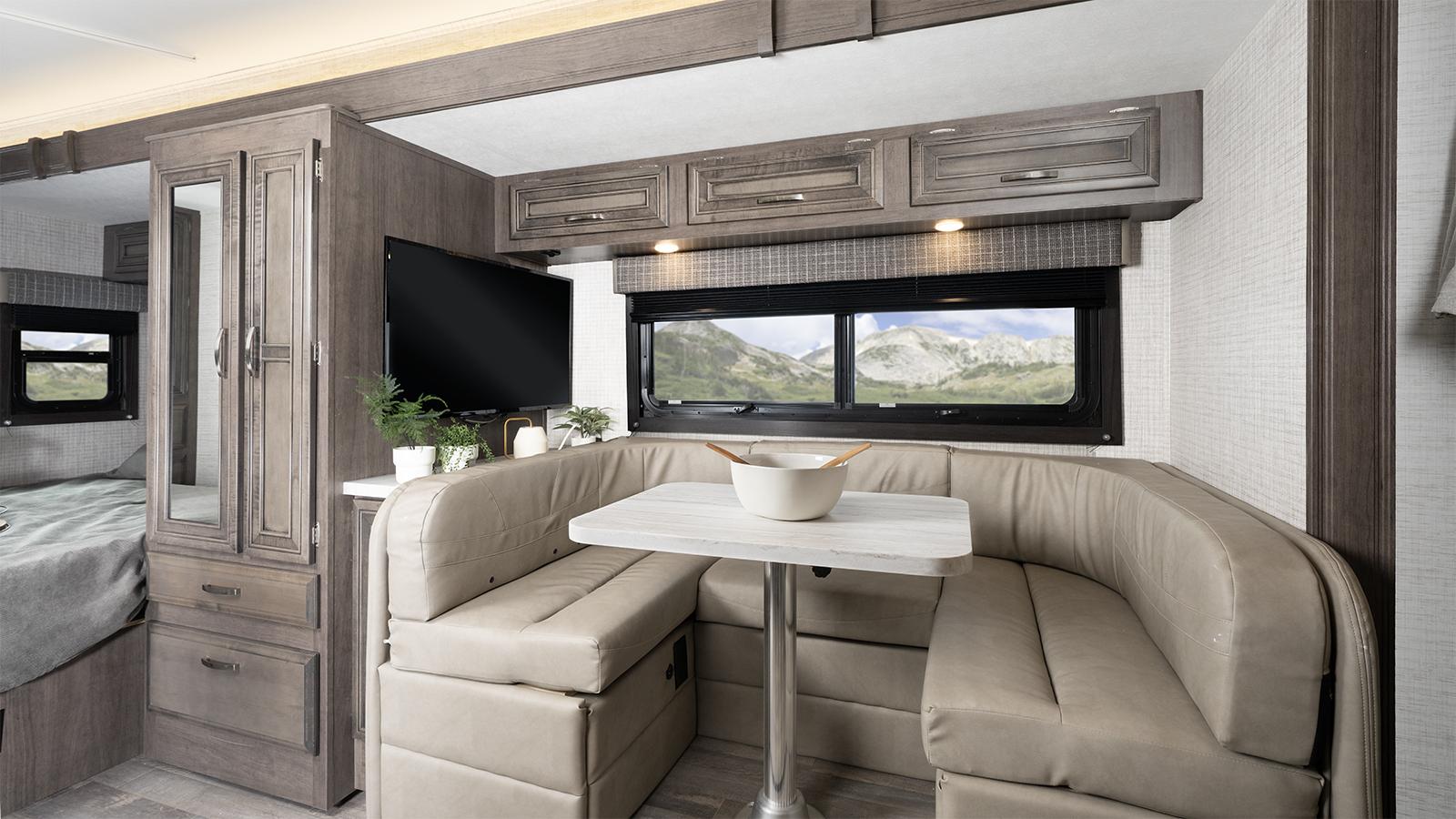

  • Jayco-exclusive, easy-operation legless dinette table
  • 2-point lap safety belts in all designated seating locations
  • Car seat tethers (select floorplans)

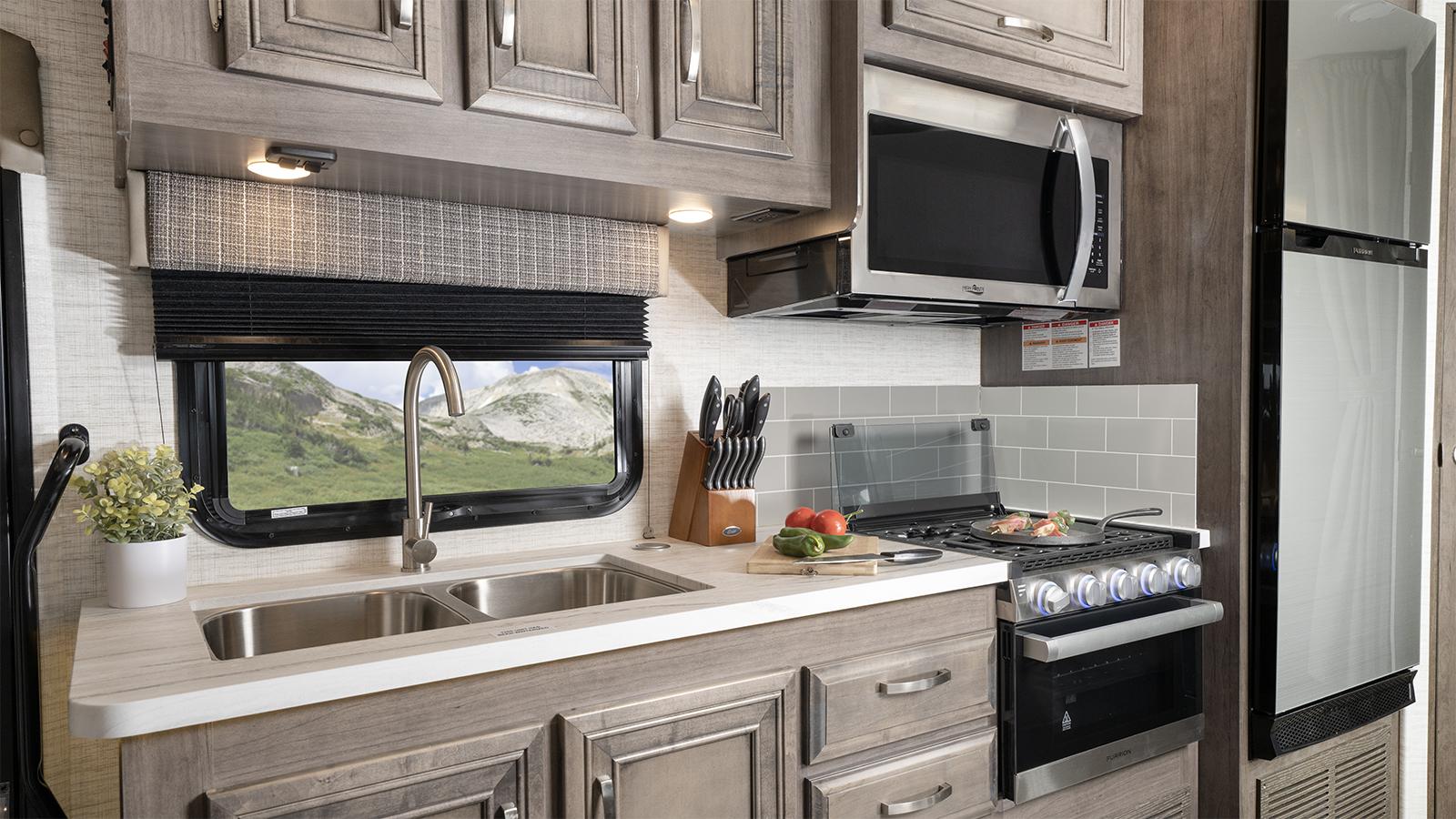

  • 10 cu. ft. 12V refrigerator
  • Furrion® all-in-one cooktop and oven
  • Residential-size microwave
  • Stainless steel kitchen sink
  • Decorative kitchen backsplash
  • Pop-up charging station with 120V outlet and USB plugs
  • LED-lit pressed countertops

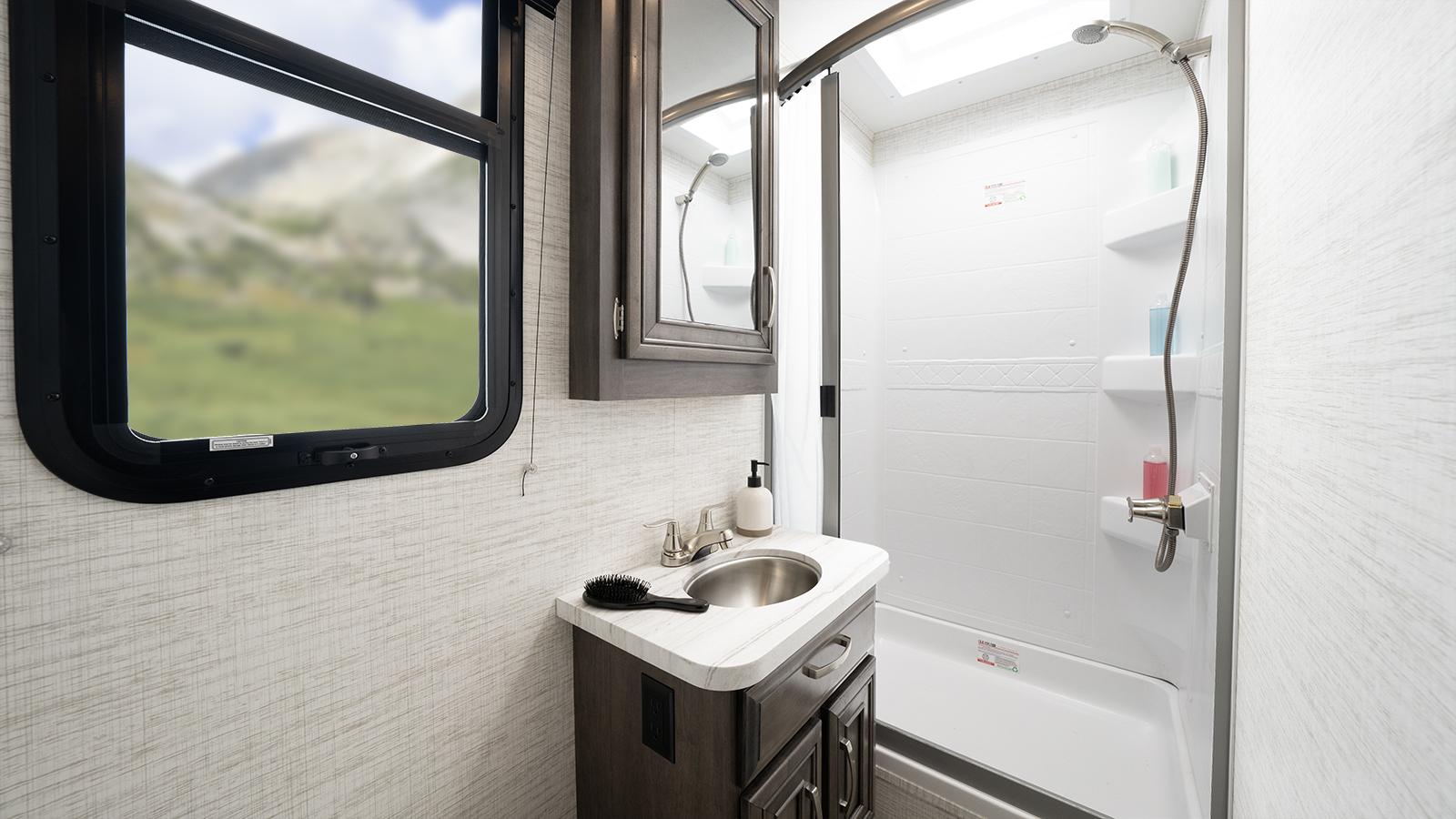

  • Shower with decorative ABS surround and skylight
  • Stainless steel bathroom sink
  • Toilet with foot flush
  • Vent fan in bathroom

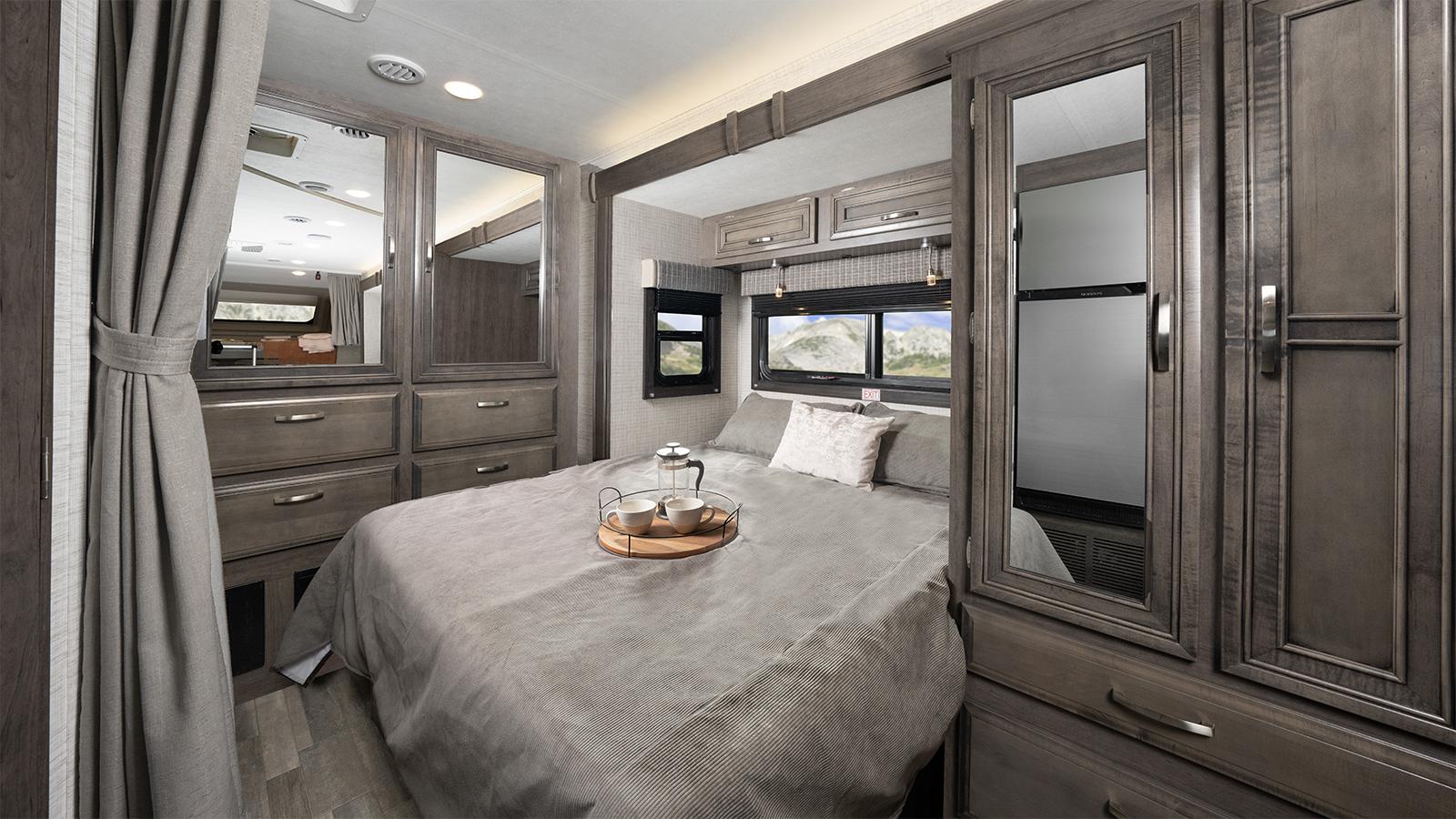

  • Queen-size bed with bedspread (24B, 26XD, 29XK, 31F)
  • Queen-size power Murphy Bed (26M)
  • USB port and wireless charging in nightstands (26XD, 29XK, 31F)
  • USB port in cabinet over bed (24B, 26M)
  • Under-bed storage (select models)
  • Large wardrobes
  • Bunks with industry-exclusive 300 lb. capacity each (31F)
  • Smoke alarm
  • Carbon monoxide detector
  • Fire extinguisher

Customer Value Package (Mandatory)

  • JRide®: Computer-balanced driveshaft, standard front and rear stabilizer bars, Hellwig® helper springs, rubber isolation body mounts
  • One-piece, seamless, fiberglass front cap
  • Automotive-bonded, panoramic window in front cap with power shade
  • Heated holding tanks (12V pads)
  • Electric patio awning with LED lights
  • Black holding tank sprayer

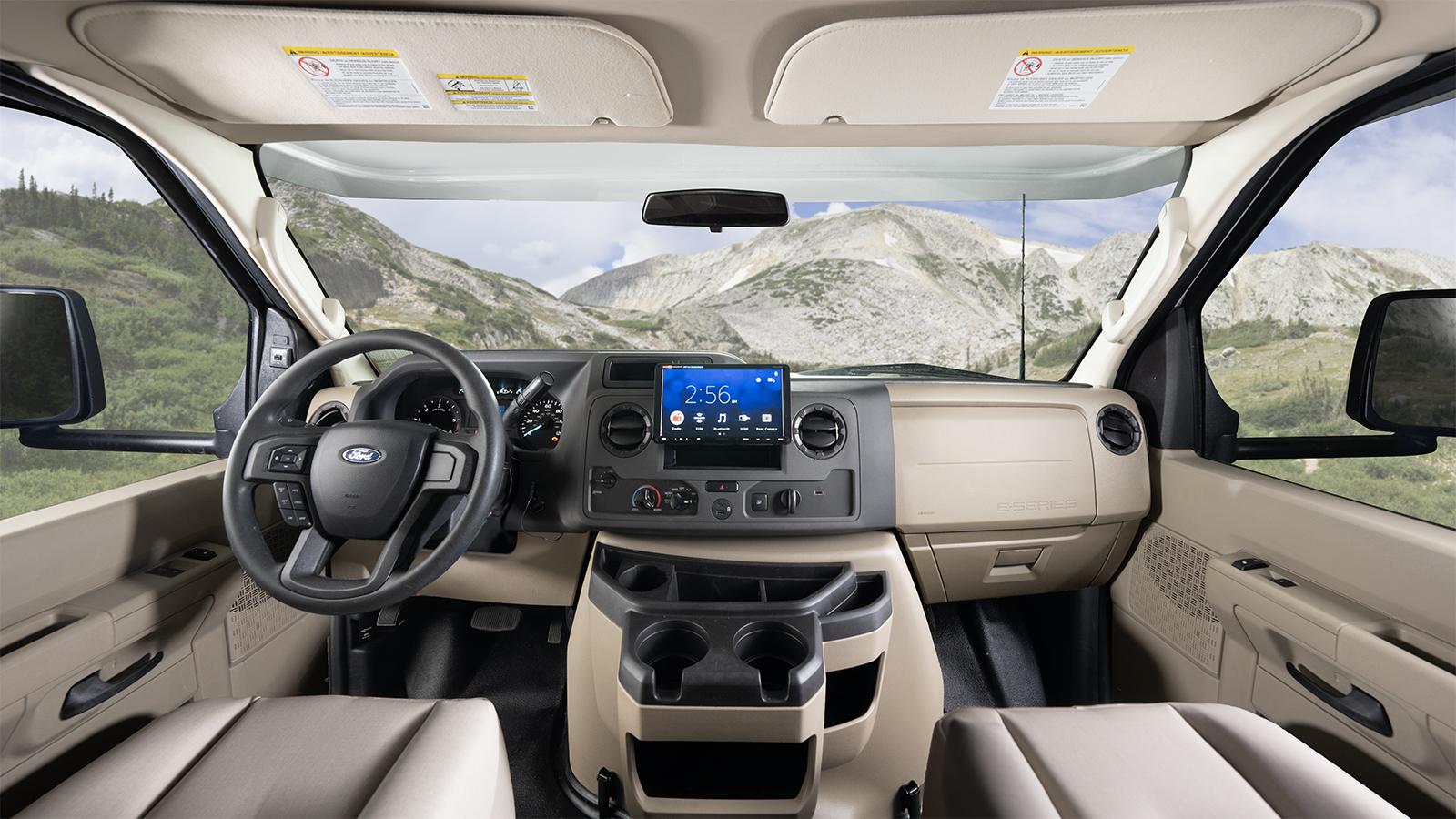

  • Sony® infotainment center with Apple® CarPlay™ and Android Auto™
  • Backup and side-view cameras
  • LED HD Smart TV in living area

Options

  • Automatic hydraulic leveling jacks
  • Theater seating ILO dinette and additional TV in cab-over (24B, 26M)
  • Theater seating ILO sofa (26XD, 29XK, 31F)
  • 200W solar panel with dual controller and second house battery
  • Dual A/C units with power management system (26M, 29XK, 31F)
  • Folding windshield sun shade

Standard Features
and Options

JRide<sup>®</sup>
Stronghold VBL™ Lamination
Solar Power
One-Piece Seamless Front Cap
Incredible Bunk Ratings
Seatbelts in All Designated Seating Locations
Catalytic Converter Theft Deterrent

JRide®

We engineer each motorhome with several specific enhancements for a powerful blend of precise handling and renowned stability on the road. Because the journey should be as exciting as the destination.

Learn more »

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single motorhome.  With sidewall or roof-mounted prep kits, you have the option to easily install solar panels, or additional panels if already solar equipped, for extra power at your camp.

Learn more »

One-Piece Seamless Front Cap

An RVs front cap bears a lot of the brunt of the road. The one-piece, seamless front cap resists wear and tear like fading or moisture damage over the years.

Learn more »

Incredible Bunk Ratings

Go ahead and bring another traveler or some extra gear. With an overhead bunk capacity of 750 lbs., Jayco beats the industry standard by 300lbs. On top of that, Jayco offers a 300 lb. capacity in each standard bunk.

Learn more »

Seatbelts in All Designated Seating Locations

To help you keep you most precious cargo safe as you roll on down the road, we install seatbelts in every designated seating location.

Learn more »

Catalytic Converter Theft Deterrent

Jayco is the only motorhome manufacturer to equip all motorhomes built on the Ford F53 chassis with a catalytic converter theft deterrent. This feature protects you from catalytic converter theft to save you time and money.

Redhawk Videos

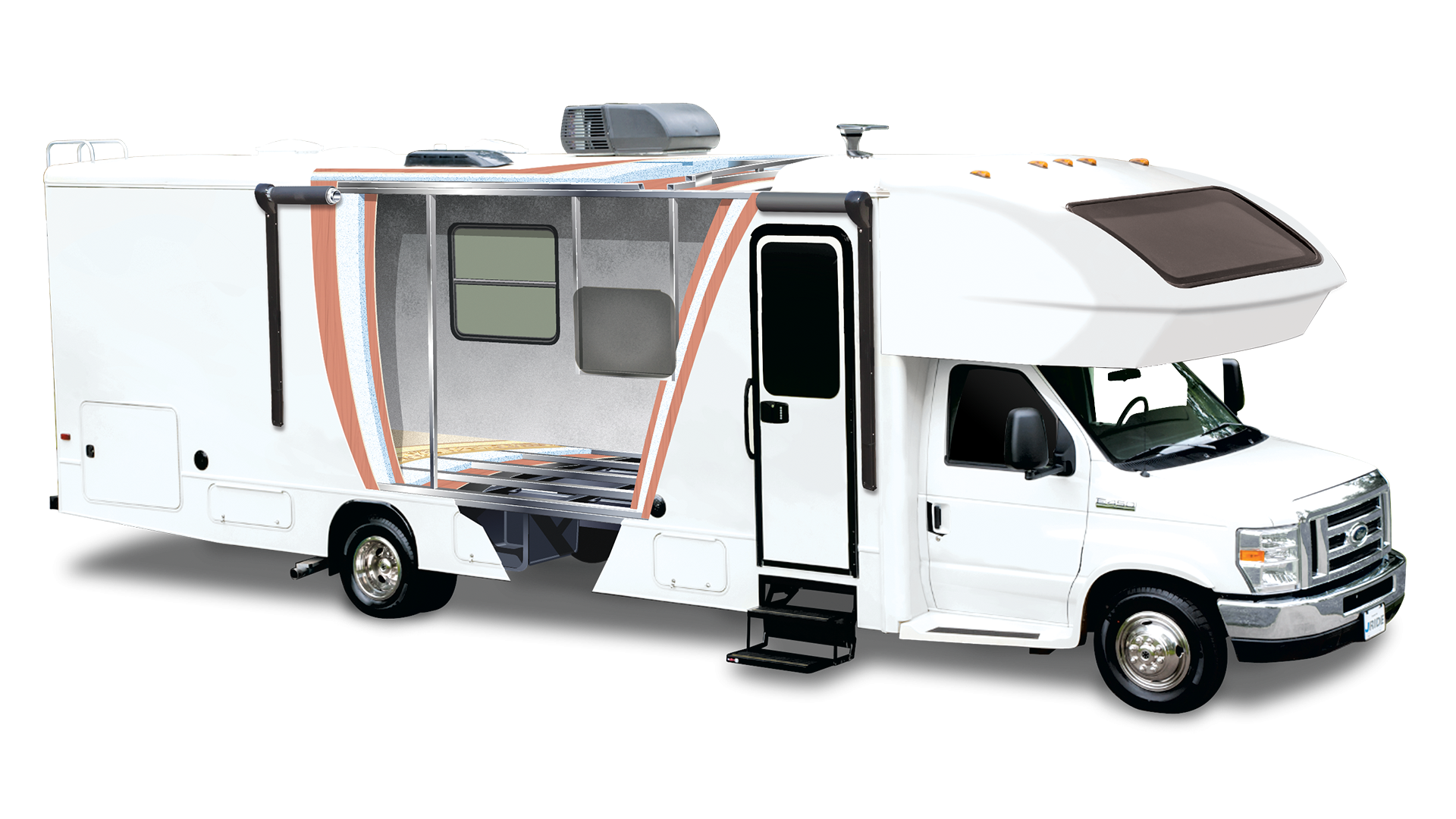

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6
7

Enjoy a quiet and comfortable drive thanks to this powerful blend of ride and handling features. JRide upgrades on the Redhawk include:

 - Computer-balanced driveshaft

 - Standard front and rear stabilizer bars

 - Hellwig® helper springs

 - Rubber isolation mounts

Jayco RV's StrongholdVBL® vacuum-bond process applies 144 tons of pressure to wall components (fiberglass exterior siding, welded aluminum framing, block foam insulation, metal backers and interior wall panels) for 16 to 18 minutes for an incredibly strong and durable product. All sidewalls, floors and roofs are built by Jayco RV in a temperature and humidity-controlled facility.

The Redhawk's one-piece, seamless front cap resists wear and tear like fading or moisture damage over the years. An automotive-bonded panoramic window with a power shade in the front cap lets in plenty of natural light.

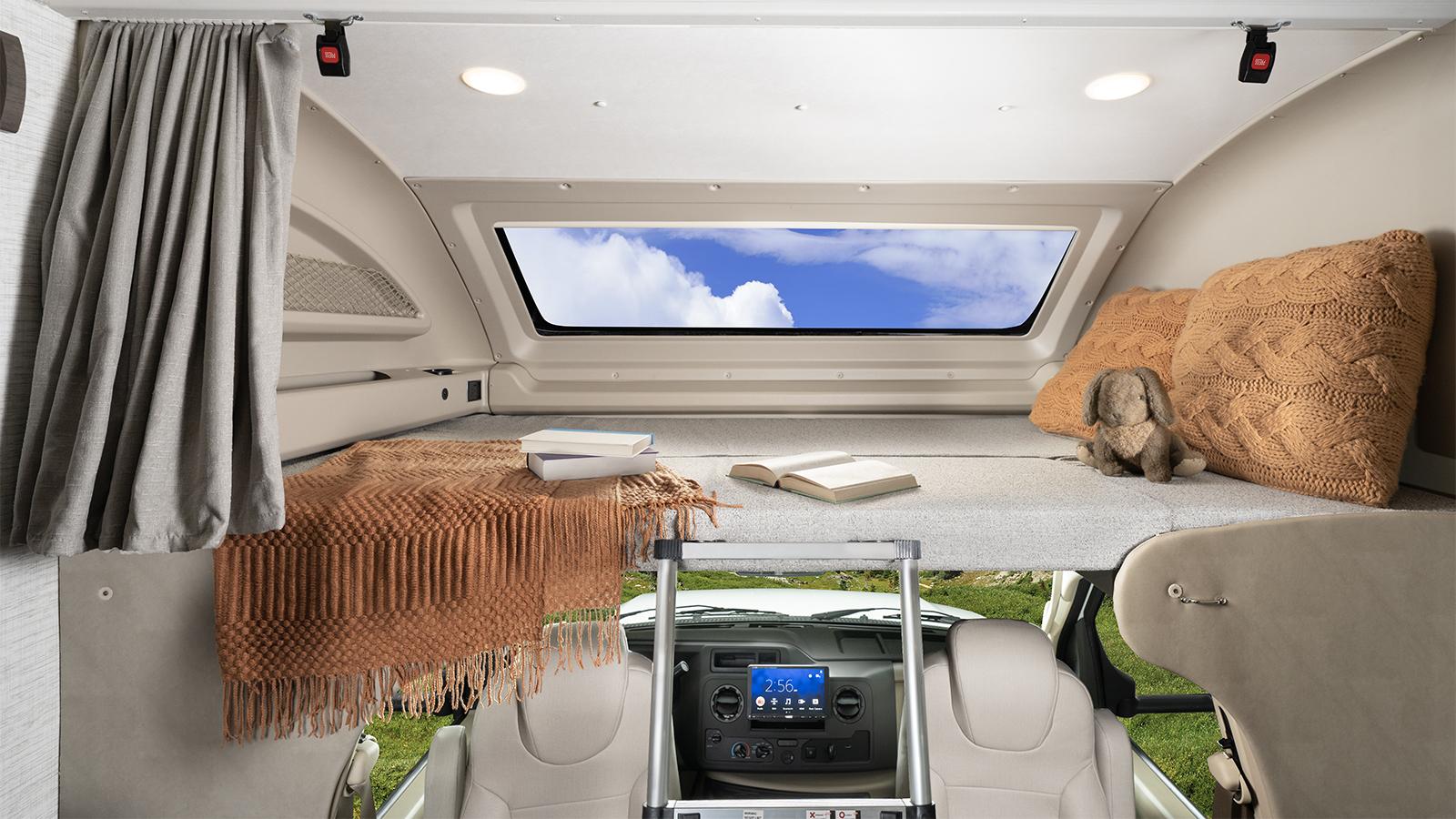

The overhead bunk in a Redhawk boasts a weight capacity of 750 lbs. This is 300 lbs. more than the industry standard and allows owners to sleep two full-sized adults or store extra gear while traveling.

Redhawk's frameless windows make exterior maintenance easier than ever and give the motorhome a sleek, modern look.

The Redhawk comes standard with a ducted 15,000 BTU air conditioner. For those who prefer travel in extra hot temperatures, optional dual air conditioners with a power management system will keep the Redhawk nice and cool.

Jayco RV installs stress-tested seatbelts in every designated seating position to ensure the safety of your entire family.
