Redhawk SE

2024 Redhawk SE

Enter into Class C RV ownership with room for the whole family in the 2024 Jayco Redhawk SE. Choose from the Ford® E-450 or Chevrolet® 4500 chassis to take you where the road leads you. Solidly built, the Redhawk SE features a one-piece seamless fiberglass front cap, rubber isolation mounts, heated holding tanks and an optional 200W solar panel with dual controller and second house battery (standard pre-wire). Experience the new look of the 2024 model with stainless steel appliances, new flooring, new wallboard (main and accent) and the Ashville décor with new vinyl.

Redhawk SE 27N Rear Interior

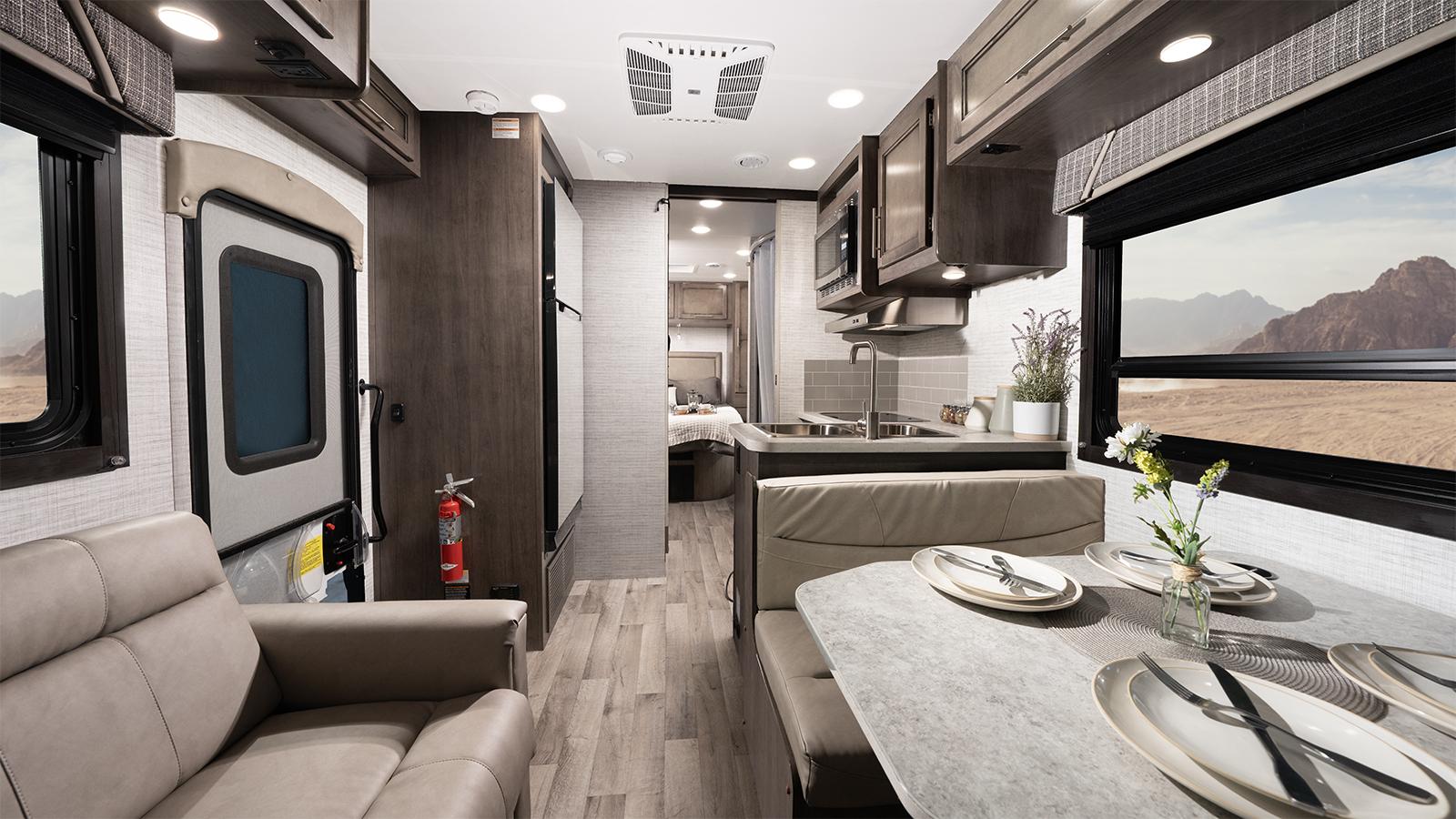

Redhawk SE 27N Front Interior

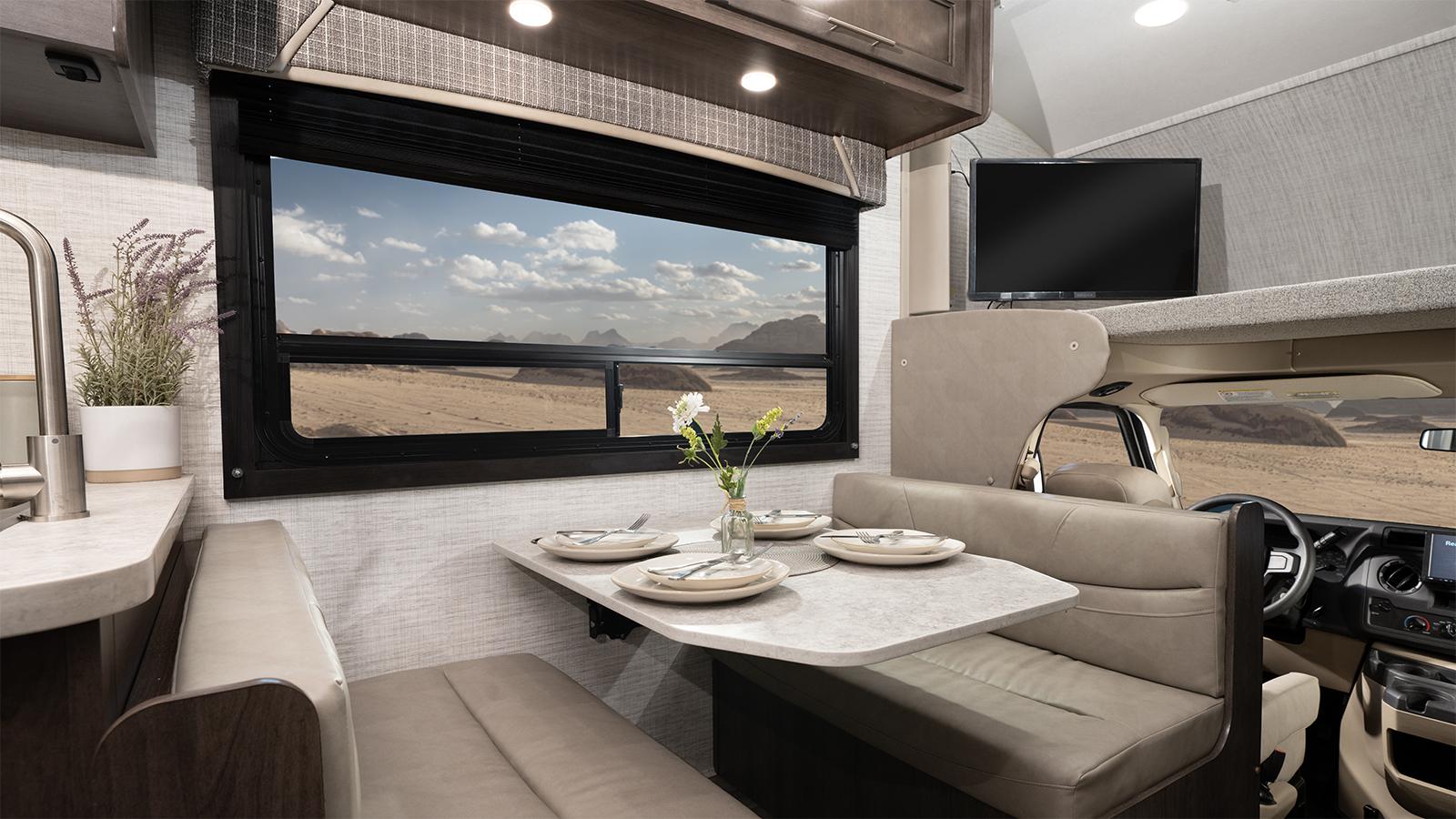

Redhawk SE 27N Dinette

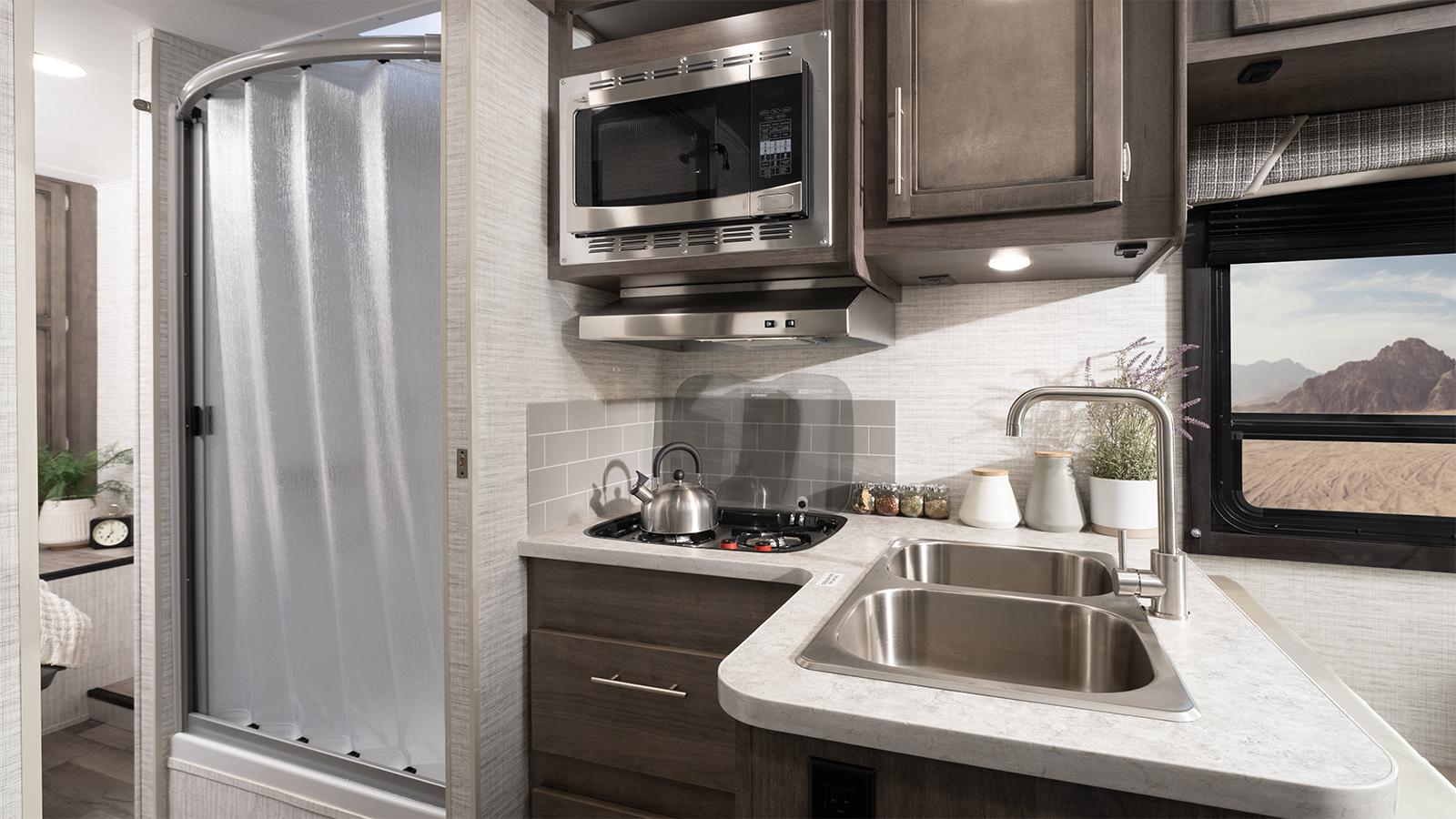

Redhawk SE 27N Kitchen

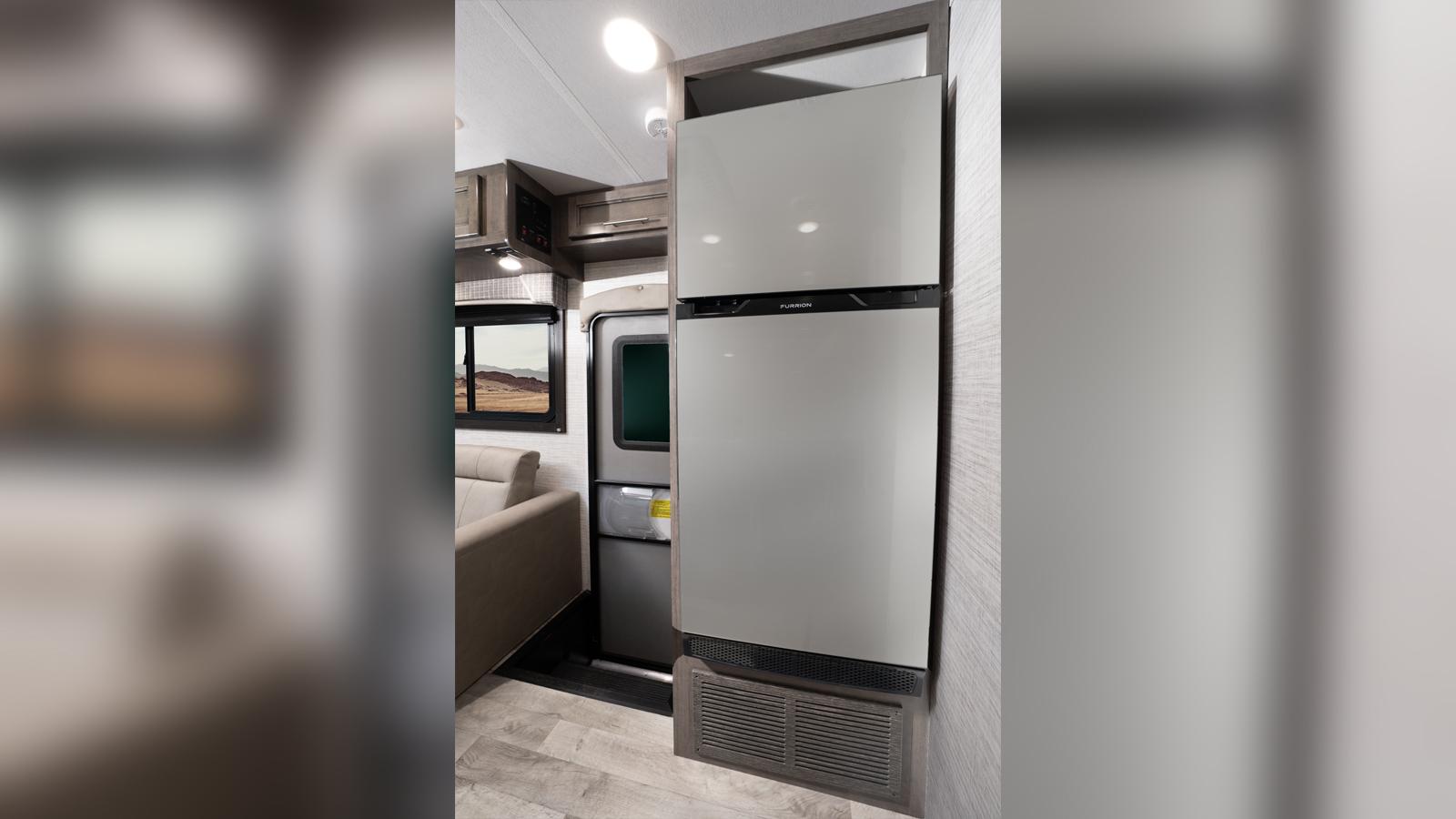

Redhawk SE 27N 12V Refrigerator MORE PHOTOS

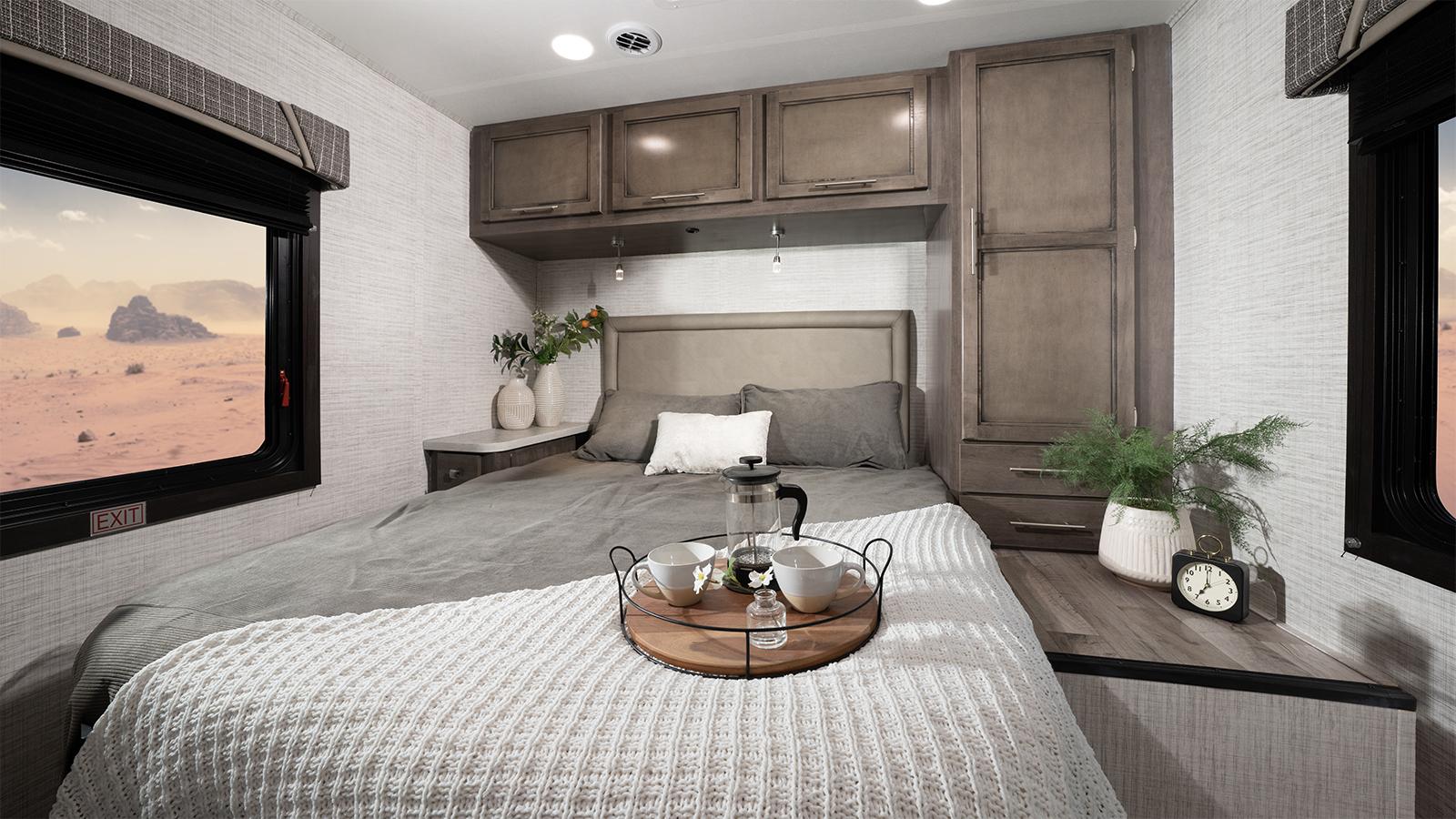

Redhawk SE 27N Bedroom

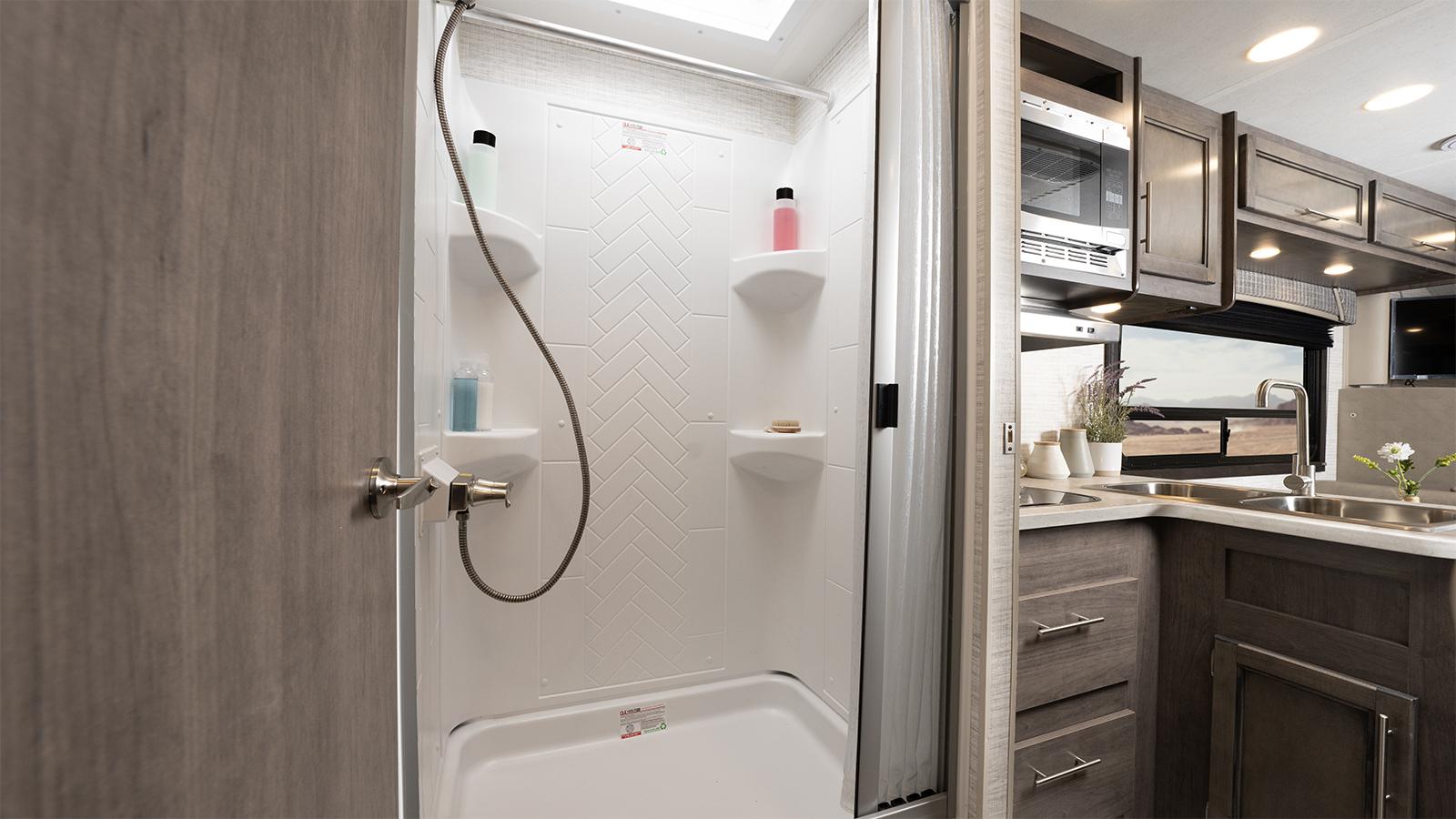

Redhawk SE 27N Shower

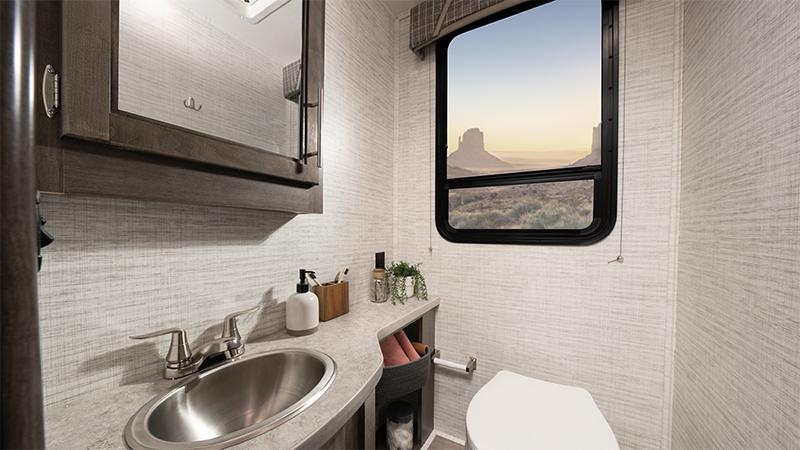

Redhawk SE 27N Bathroom

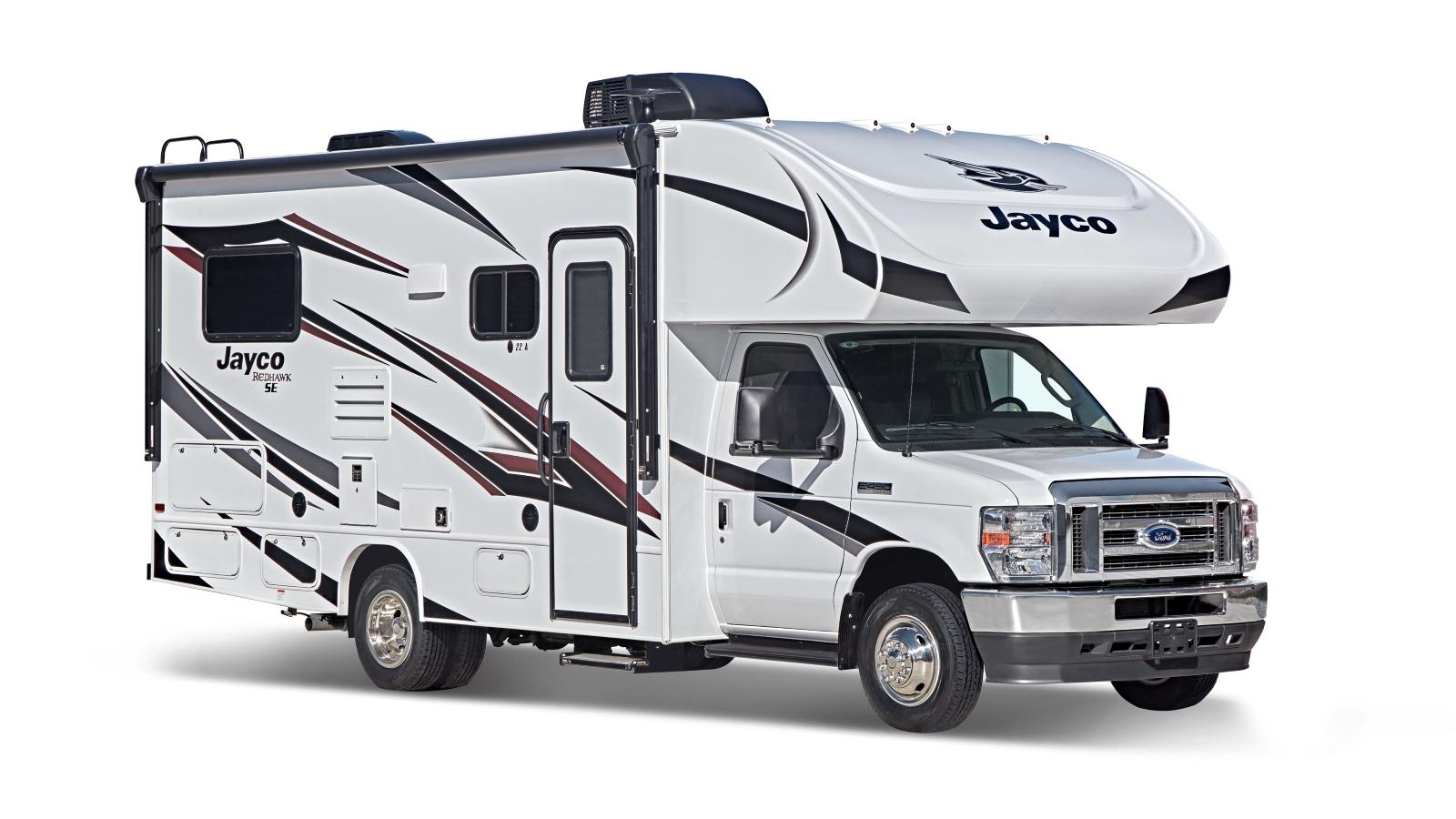

Redhawk SE Exterior
Redhawk SE

Redhawk SE Floorplans and Prices

 With room to sleep up to five, the Redhawk SE floorplans have space for everyone.

Sleeps up to 5
Length 24' 8" - 30' 3"

See Floorplans »

Standard Features and Options

Standard Driving Equipment

     Chassis Equipment for 22A, 22C, 27N

  • Chevy® 4500 chassis
  • GVWR- 14,200 lb.
  • GCWR- 20,000 lb.
  • 6.6L Vortec V8 401 HP engine with 464 ft.-lb. torque
  • Hydra-matic 6-speed automatic transmission with overdrive
  • 150-amp alternator
  • 5,000 lb. hitch with 500 lb. tongue capacity and 7-pin plug
  • 57 gal. fuel tank
  • StabiliTrak stability control system
  • OnStar with 4G LTE

     Chassis Equipment for 22AF, 22CF, 27NF

  • Ford® E-450 chassis
  • GVWR- 14,500 lb.
  • GCWR- 22,000 lb.
  • 7.3L V-8 325 HP engine with 450 ft.-lb. torque
  • 6-speed TorqShift® series transmission with overdrive
  • 210-amp alternator
  • 7,500 lb. hitch with 750 lb. tongue capacity and 7-pin plug
  • 55 gal. fuel tank
  • Tire pressure monitoring system (TPMS)
  • Catalytic converter theft deterrent
  • Electronic stability control
  • Traction control

     Driving Equipment on All Floorplans

  • E-rated highway tires- LT225/75R16
  • 12V chassis battery
  • Power anti-lock brakes with power steering
  • Remote-controlled, side-view mirrors
  • Hill start assist
  • Tilt steering wheel
  • Cruise control
  • Power windows and door locks
  • Auxiliary start switch
  • Driver and passenger airbags
  • Privacy curtain for cab area

Standard Exterior Equipment

  • StrongholdVBL™ roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
  • TPO laminated roof
  • Aluminum running boards
  • Fiberglass exterior walls with vinyl graphics
  • Leveling jack prep
  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step with integrated house battery compartment
  • Third brake light
  • Roof ladder
  • 4 in. bumper tube sewer hose storage
  • Cable TV hookup with RG-6 coax
  • Digital antenna with signal booster
  • 4,000W generator
  • Solar prep
  • 12V house battery
  • Transfer switch with reverse polarity protection
  • 30-amp electrical service
  • 12.2 gal. propane tank (41 lb.)
  • LP quick-connect hookup
  • Exterior utility center
  • Winterization drain system
  • Outside shower
  • 12V demand water pump
  • Water filtration system

Standard Interior Equipment

  • Overhead bunk with 750 lb. capacity
  • 84 in. ceiling height
  • High-intensity, recessed LED ceiling lights
  • Hardwood cabinet doors
  • Ball-bearing drawer guides
  • Interior entrance door grab handle
  • Interior command center
  • Pleated blackout shades
  • 13,500 BTU ducted A/C
  • 30,000 BTU auto-ignition furnace
  • 6 gal. gas/electric DSI auto-ignition water heater
  • Jayco-exclusive, easy-operation legless dinette table
  • 2-point lap safety belts in all designated seating locations
  • 10 cu. ft. 12V refrigerator
  • 2-burner cooktop with flush cover
  • Convection microwave oven
  • Stainless steel kitchen sink
  • Decorative kitchen backsplash
  • Shower with decorative ABS surround and skylight
  • Stainless steel bathroom sink
  • Toilet with foot flush
  • Queen-size bed with bedspread
  • Under-bed storage (select models)
  • Large wardrobes
  • Smoke alarm
  • Carbon monoxide detector
  • Fire extinguisher

Customer Value Package (Mandatory)

  • One-piece, seamless, fiberglass front cap
  • Heated holding tanks (12V pads)
  • Electric patio awning
  • Black holding tank sprayer
  • Backup camera
  • LED HD Smart TV

Options

  • Automatic hydraulic leveling jacks
  • 200W solar panel with dual controller and second house battery

Standard Features
and Options

See all »
Stronghold VBL™ Lamination
Solar Power
One-Piece Seamless Front Cap
Incredible Bunk Ratings
Seatbelts in All Designated Seating Locations
Catalytic Converter Theft Deterrent

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single motorhome.  With sidewall or roof-mounted prep kits, you have the option to easily install solar panels, or additional panels if already solar equipped, for extra power at your camp.

Learn more »

One-Piece Seamless Front Cap

An RVs front cap bears a lot of the brunt of the road. The one-piece, seamless front cap resists wear and tear like fading or moisture damage over the years.

Learn more »

Incredible Bunk Ratings

Go ahead and bring another traveler or some extra gear. With an overhead bunk capacity of 750 lbs., Jayco beats the industry standard by 300lbs. On top of that, Jayco offers a 300 lb. capacity in each standard bunk.

Learn more »

Seatbelts in All Designated Seating Locations

To help you keep you most precious cargo safe as you roll on down the road, we install seatbelts in every designated seating location.

Learn more »

Catalytic Converter Theft Deterrent

Jayco is the only motorhome manufacturer to equip all motorhomes built on the Ford F53 chassis with a catalytic converter theft deterrent. This feature protects you from catalytic converter theft to save you time and money.

Redhawk SE Videos

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5

The Redhawk SE comes on the Chevy 4500 chassis or Ford E-450 chassis - the choice is yours!

The Chevy 4500 chassis features a 6.6L Vortec V8 401 HP engine with 464 ft.-lb. torque and 5,000 lb. hitch capacity.

The Ford E-450 chassis features a 7.3L V-8 325 HP engine with 450 ft.-lb. torque and 7,500 lb. hitch capacity.

Jayco RV's StrongholdVBL® vacuum-bond process applies 144 tons of pressure to wall components (fiberglass exterior siding, welded aluminum framing, block foam insulation, metal backers and interior wall panels) for 16 to 18 minutes for an incredibly strong and durable product. All sidewalls, floors and roofs are built by Jayco RV in a temperature and humidity-controlled facility.

The Redhawk SE's one-piece, seamless front cap resists wear and tear like fading or moisture damage over the years.

The overhead bunk in a Redhawk SE boasts a weight capacity of 750 lbs. This is 300 lbs. more than the industry standard and allows owners to sleep two full-sized adults or store extra gear while traveling.

Jayco RV installs stress-tested seatbelts in every designated seating position to ensure the safety of your entire family.
