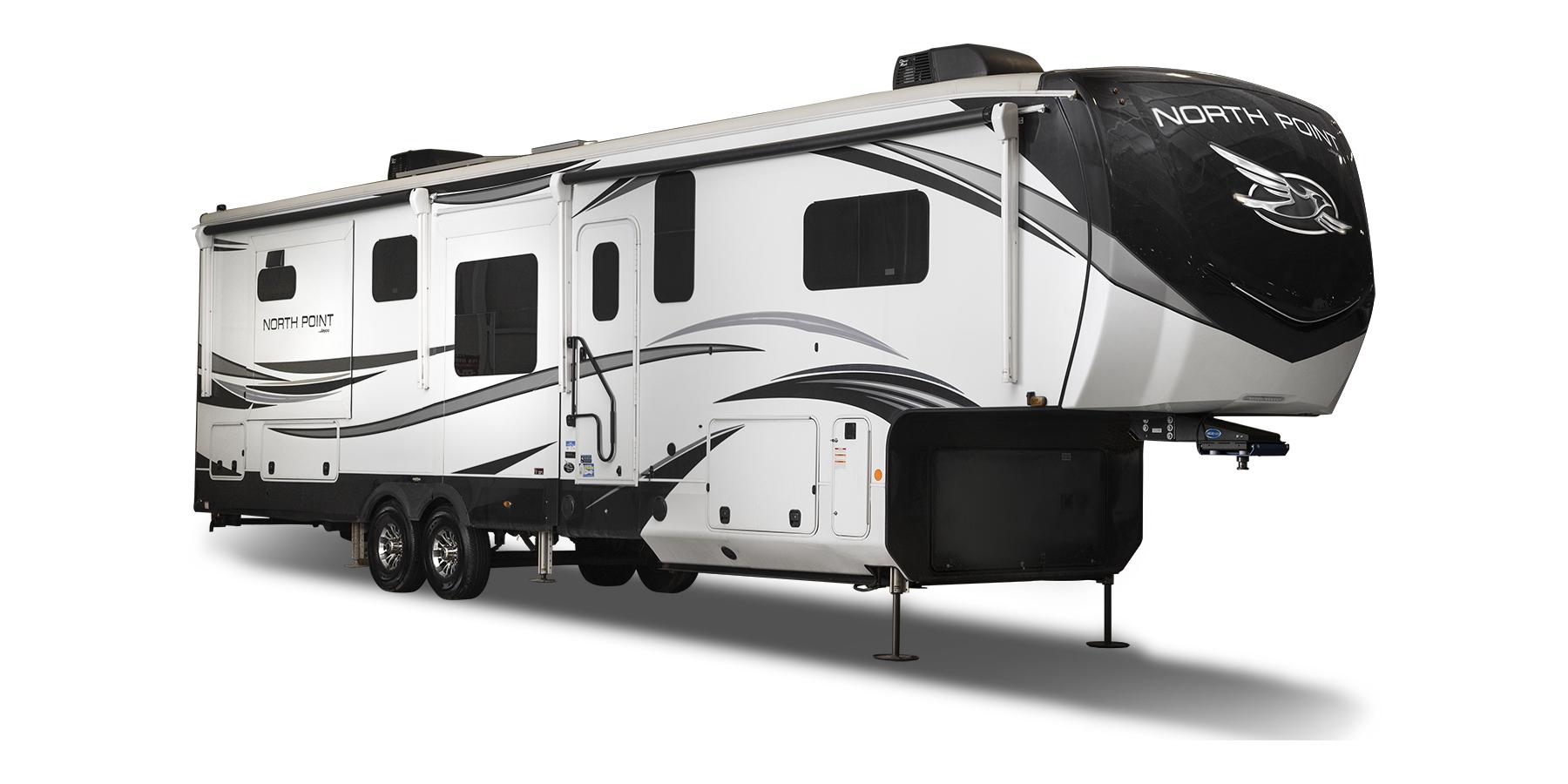

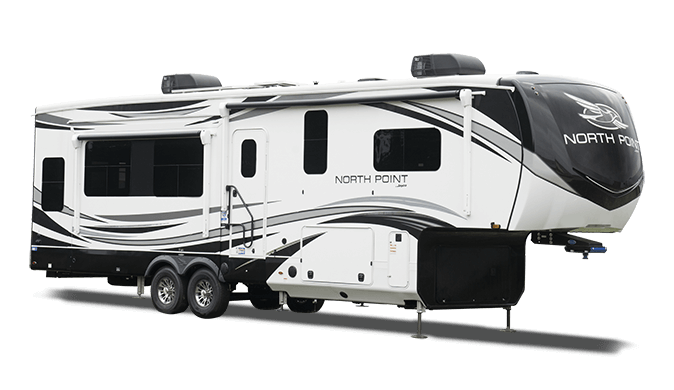

2022 North Point

At this price point, you’ll be hard-pressed to find a full-profile fifth wheel camper with this mix of luxurious features. The 2022 North Point Luxury Fifth Wheel boasts more luxurious interior details than ever; upgraded bathrooms, kitchens, solar options and all kinds of features the seasoned or newbie RVer will appreciate. Whether you’ve owned a motorhome and want to transition to a towable, or you’d like to upgrade from a smaller trailer, the North Point is sure to please.

North Point

North Point Floorplans and Prices

New floorplan choices include an elevated rear kitchen, a great new couple’s coach and a two-bedroom bunkhouse model.

Sleeps up to 10
Length 36' 2" - 44' 0"
Weight 12,180 - 14,545 lbs.

Standard Features and Options

Standard Exterior Equipment

  • Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including rear wall and slide room end walls)
  • Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with one-piece, seamless roof material with a 20 year warranty
  • Climate Shield™ zero-degree tested weather protection:
    • Fully-enclosed and heated underbelly (ducted)
    • 40,000 BTU output furnace
    • Double layer fiberglass batt insulation (roof, floor & behind cap)
    • PEX plumbing
  • JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending)
  • Painted fiberglass front cap with built-in specialty LED lighting
  • Frameless, dark tinted, safety-glass windows
  • Custom automotive-grade vinyl exterior graphics package
  • Skirt metal enclosed drop frame
  • LED exterior lighting package
  • Dual 30 lb. propane bottles with auto regulator
  • Doorside compartment framed and vented for third propane bottle
  • Pass-through storage with Slam-latch™ baggage doors
  • Digital TV antenna with Wi-Fi extender
  • Exterior marine-grade speakers
  • Fully enclosed, universal docking center:
    • Selectable water connections
    • Quick-connect outside shower
    • Black tank flush
    • Winterization and sanitation
    • Independent satellite
    • Whole coach cable hookups
  • Water heater bypass
  • Battery disconnect
  • Under-mounted spare tire (Goodyear® Endurance® tires - made in the USA)
  • LP quick-connect (outside griddle/grill prep)
  • Built in sewer hose carrier
  • 3,000 lb. tow hitch with 4-way pin
  • Inverter pre-wire to select outlets

Standard Interior Equipment

  • Solid hardwood slide fascia
  • Handcrafted hardwood glazed doors, drawers and trim
  • 5/8 in. tongue-and-groove joined plywood floor decking
  • Vinyl flooring (made in the USA) throughout (includes slideout floors)
  • Ceiling fan (select models)
  • LED interior lighting throughout
  • LED accent lighting above slideouts
  • Tri-fold hide-a-bed sofa with residential sleep surface (select models)
  • Dual USB charging ports throughout
  • 12V charging station
  • “Shoe garage” in hallway step (select models)
  • Flip-up tabletop storage next to tri-fold sofa (select models)
  • JayVoice voice command system - controls lighting, A/C and furnace
  • Soft close, heavy-duty, 75 lb. full-extension, steel ball-bearing drawer guides
  • Stainless steel kitchen sink
  • Residential-grade, pull-out kitchen faucet
  • Extra 120V power outlets in kitchen and slide rooms

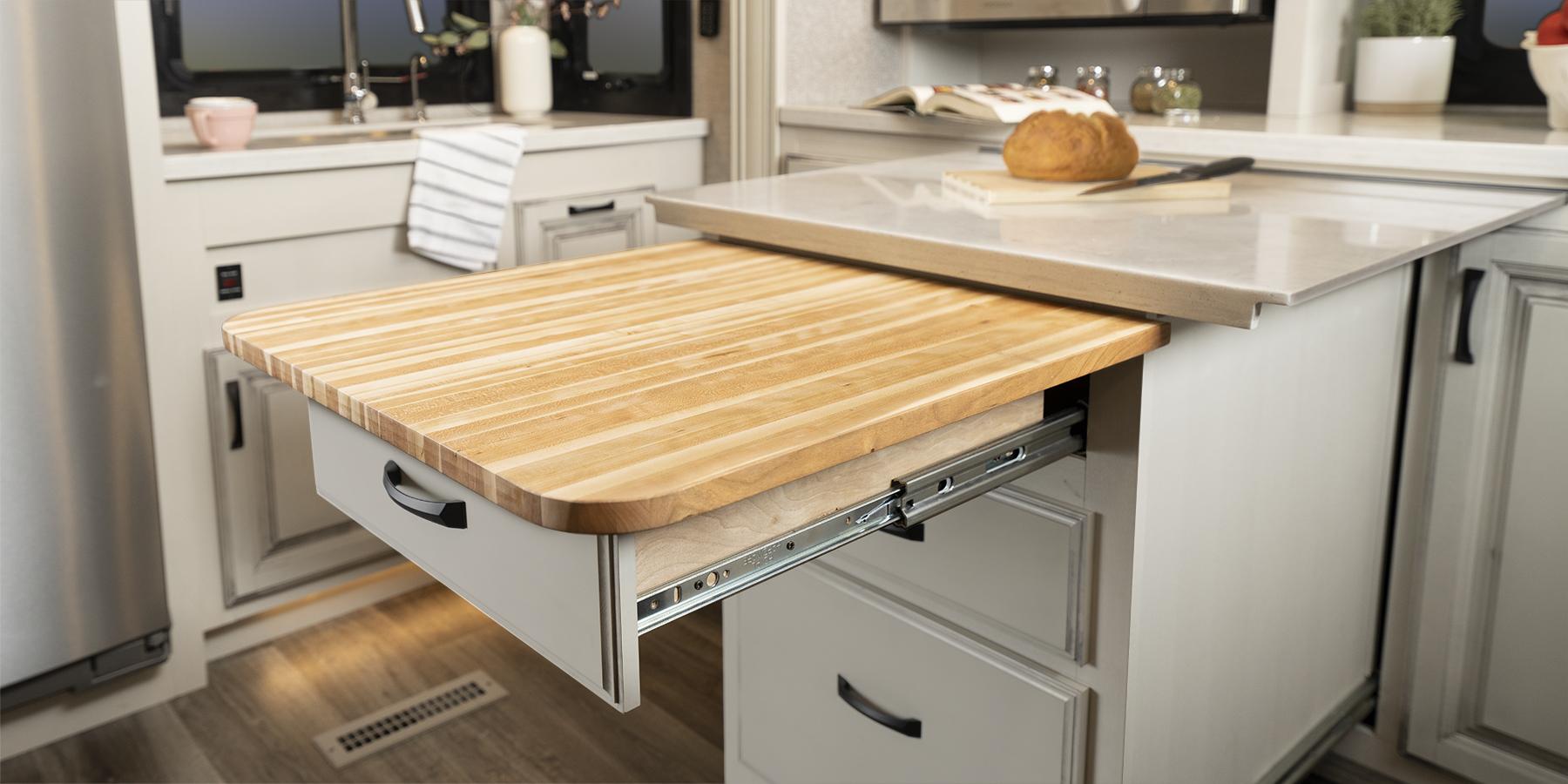

  • Pull-out countertop extension with 24 in. x 24 in. butcher block bar top (select models)
  • Pull-out utility drawer under kitchen sink
  • Toe kick nightlights in bedroom and bathroom
  • Residential quilted bedspread and pillows
  • Gas-strutted under-bed storage
  • C.P.A.P. prepped bedroom
  • Carbon monoxide and LP detector
  • Flip-up hidden storage in bedroom chest of drawers (select models)
  • Built-in laundry hamper in wardrobe (select models)
  • Cup holders in bedroom nightstands
  • Bathroom skylight
  • LED backlit custom framed mirror
  • Residential bathroom backsplash
  • Porcelain toilet with foot flush
  • Vessel bowl sink in main bathroom

Customer Value Package (Mandatory)

  • 15,000 BTU “Whisper Quiet” A/C (main)
  • 15,000 BTU “Whisper Quiet” A/C (bedroom)
  • Electric patio awning with integrated LED lights
  • Gas/electric DSI water heater
  • Custom machined aluminum rims
  • Keyed-Alike™ lock system (single key for all doors/locks)
  • Rooftop and ground solar prep
  • Backup and side observation camera prep
  • XL grab handle

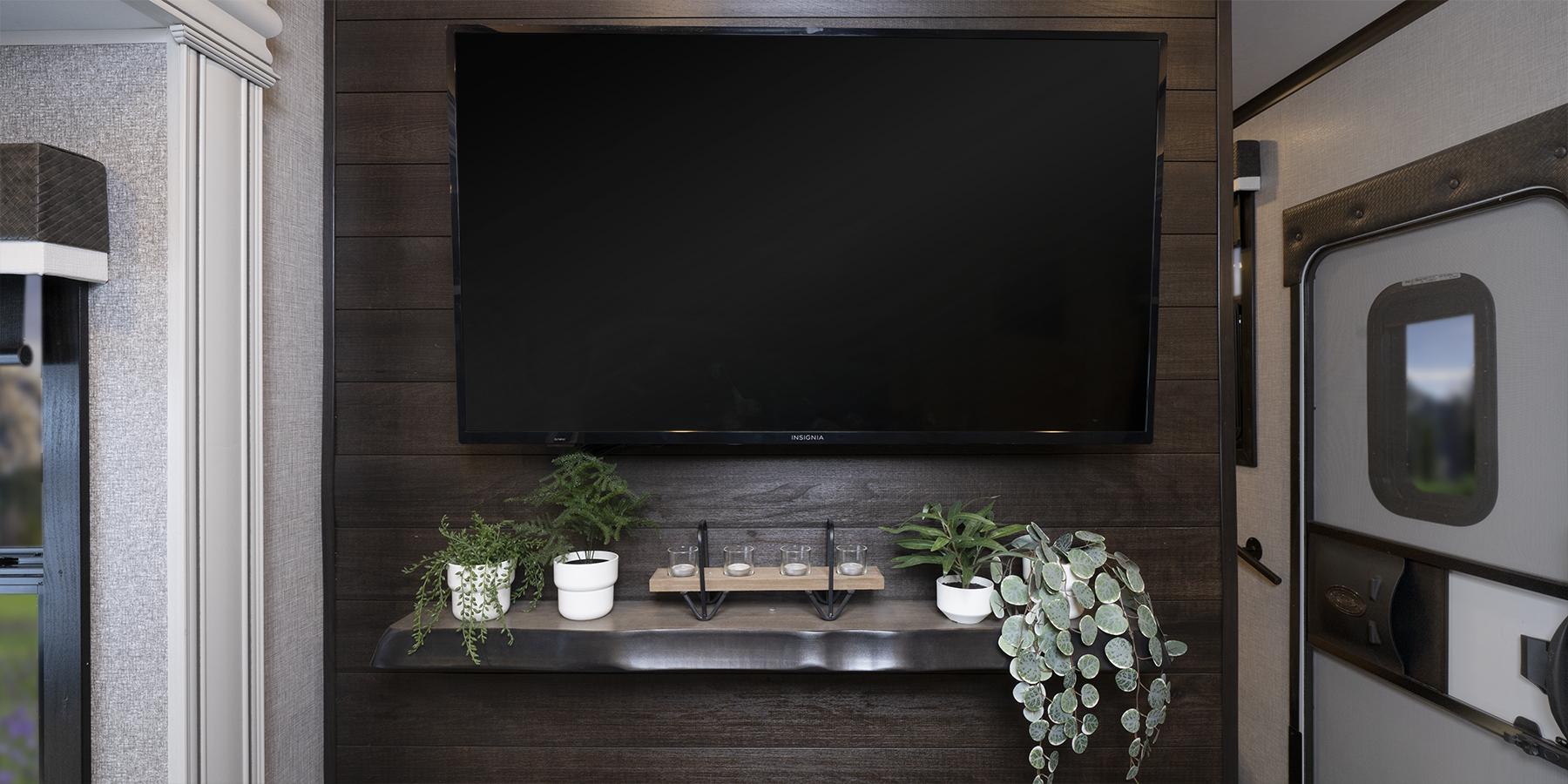

  • 50 in. SMART LED HDTV with fully digital HDMI® output
  • Home entertainment system with subwoofer
  • Hidden hinges on cabinet doors
  • Refrigerator temperature sensors linked to JAYCOMMAND®

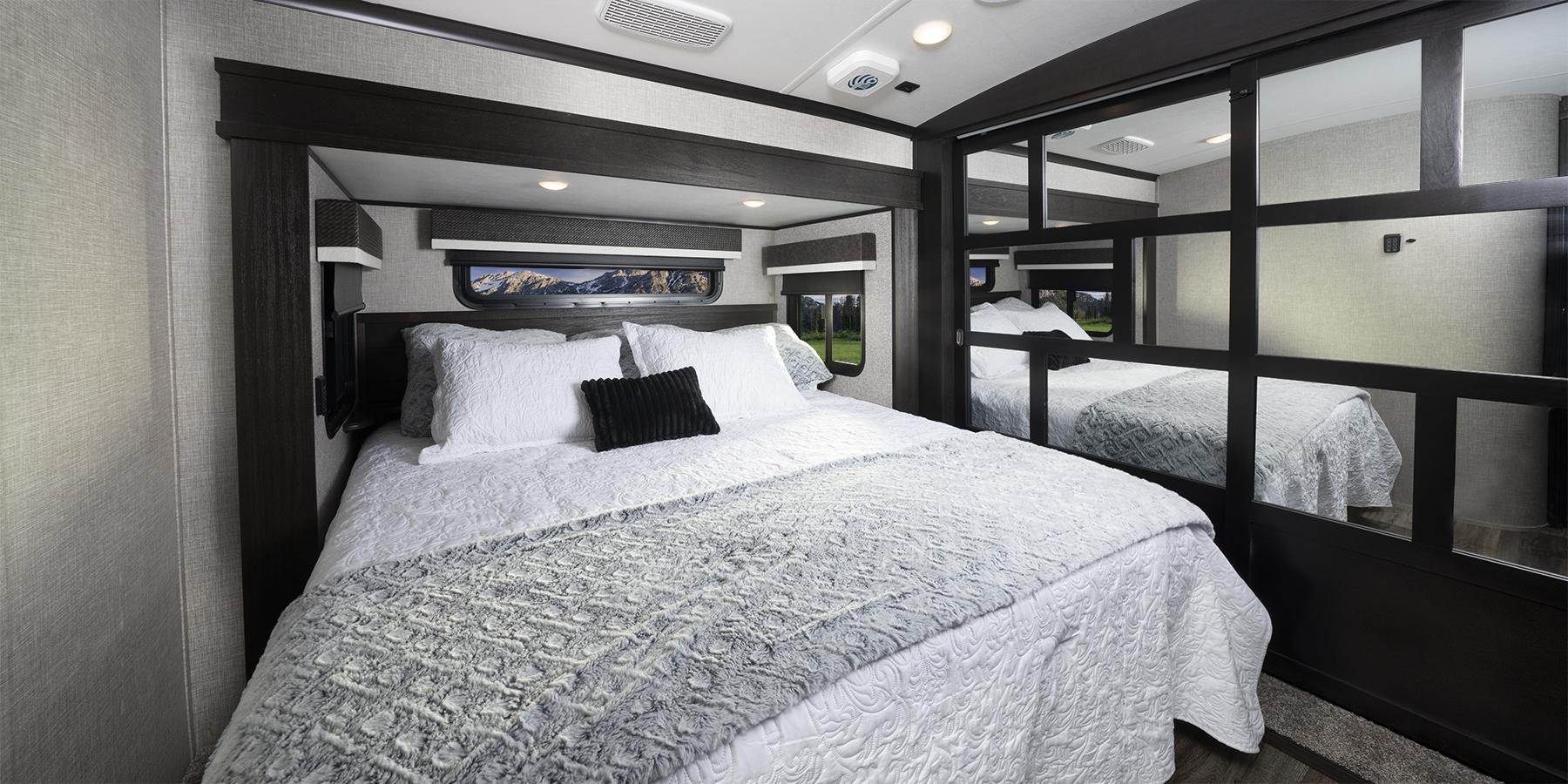

  • Residential queen (60 in. x 80 in.) mattress with under-bed storage

5 Star Handling Package (Mandatory)

  • Goodyear® Endurance® tires (made in the USA)
  • MORryde® rubber pin box
  • Dexter® Axles with Nev-R-Adjust® brakes, E-Z Lube® hubs, & 4,000 lb. leaf springs
  • MORryde® CRE-3000™ rubberized suspension
  • Wet bolt fasteners and bronze bushings

Luxury Package (Mandatory)

  • 6-point hydraulic auto-leveling system
  • 2nd electric patio awning with integrated LED lights

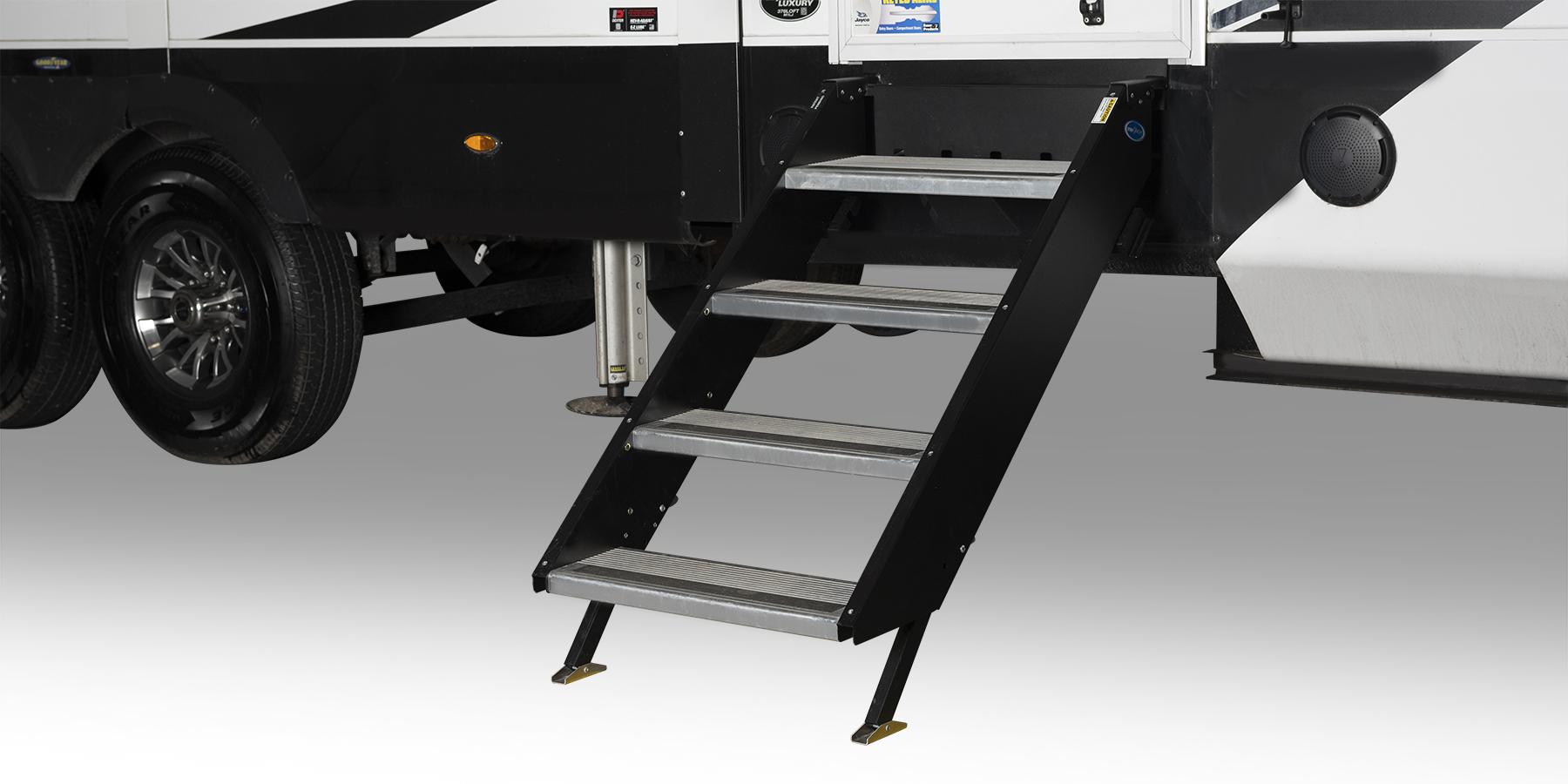

  • MORryde® StepAbove™ entrance steps (main entrance)
  • JAYCOMMAND® “Smart RV” system
  • Cellular prep for antenna and JAYCOMMAND® “Smart RV” system
  • Tire Pressure Monitoring System (TPMS)
  • High gloss gelcoated sidewalls
  • Oversized multi-battery compartment (industry leading room for 4-6 batteries)
  • Frameless dark tinted safety-glass windows
  • Privacy roller shades
  • Free-standing (no pedestal) table with leaf and (2) free-standing and (2) folding chairs

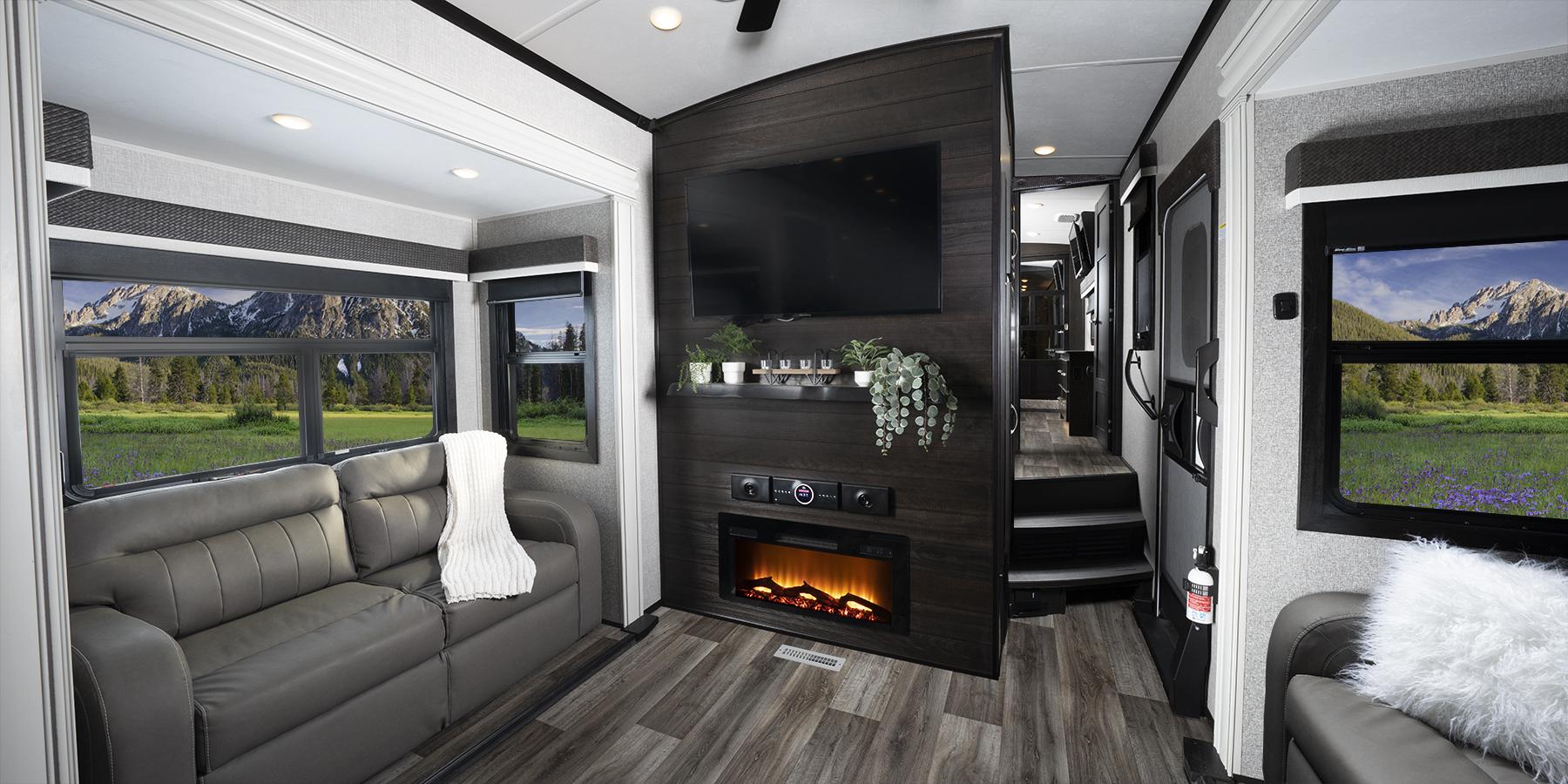

  • LED fireplace with electric space heater
  • Central vacuum system
  • Drinking Water System™ (patent-pending)

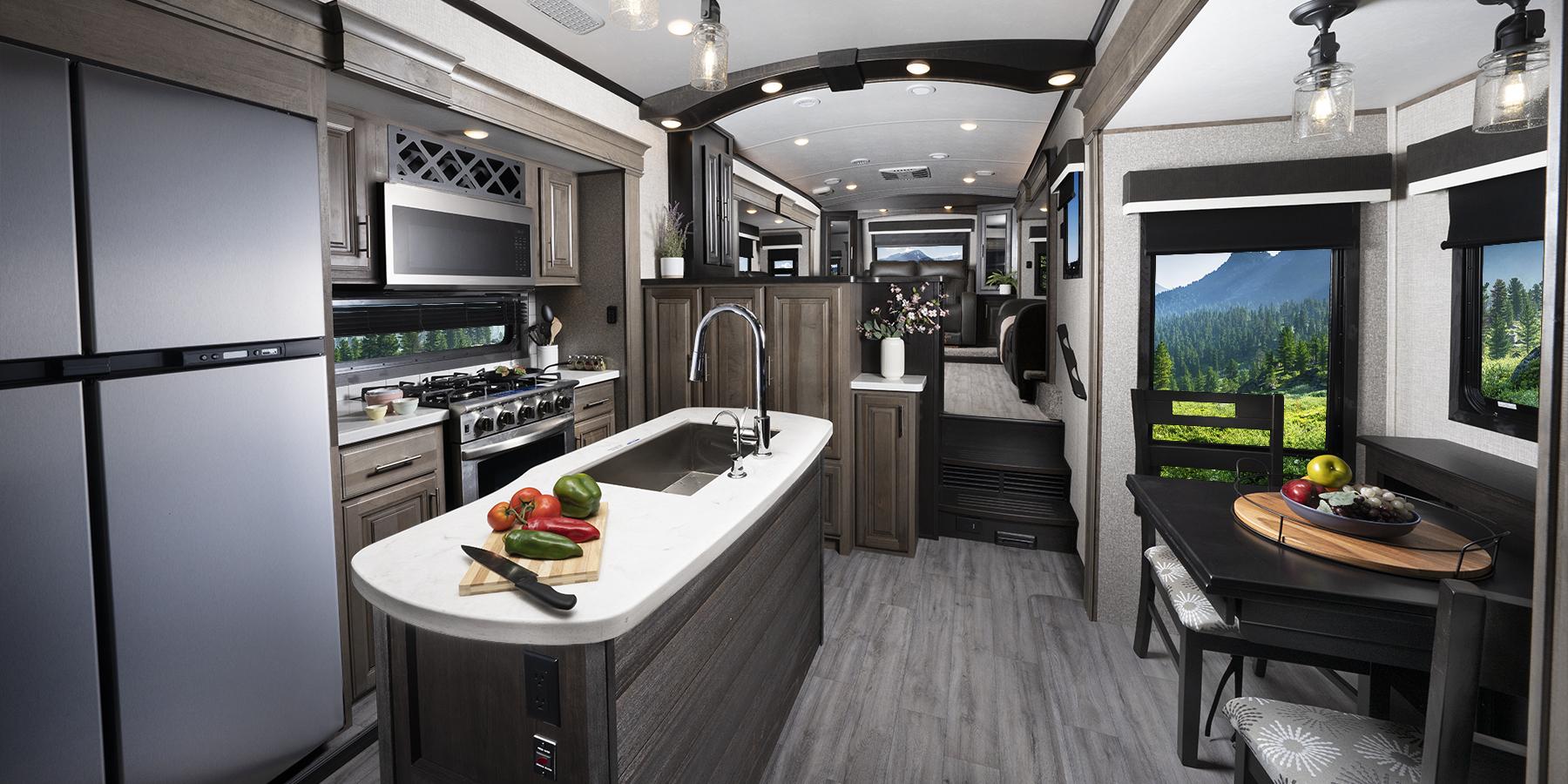

  • 30” residential microwave

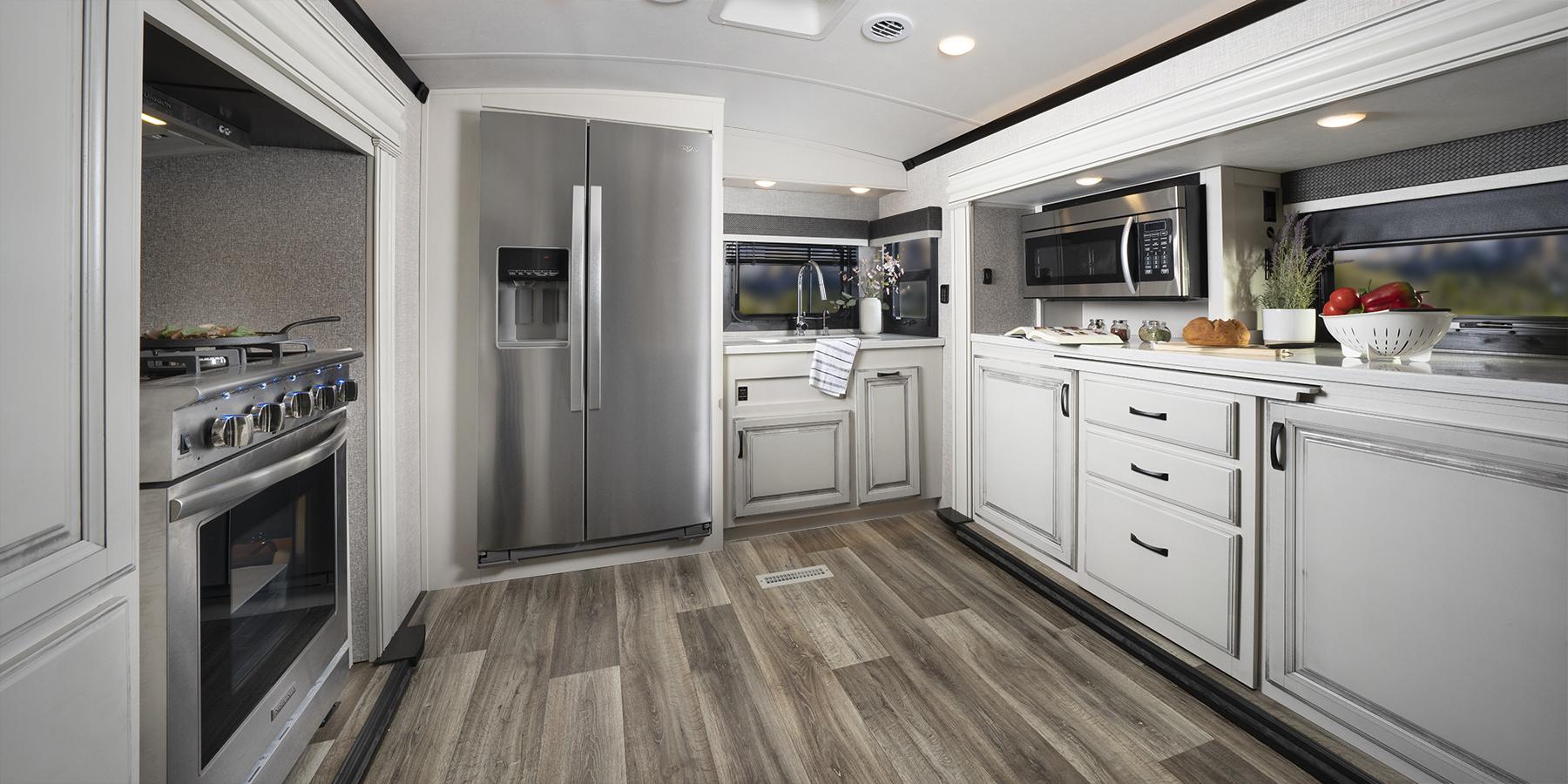

  • 21 cu. ft. residential refrigerator with 1800W inverter
  • Residential 24 in. Insignia™ stove (3.73 cu. ft. with 12,000 BTU high output burner)
  • Residential solid-surface kitchen countertop with bamboo sink cover and strainer
  • Washer/dryer prep
  • 32 in. bedroom TV

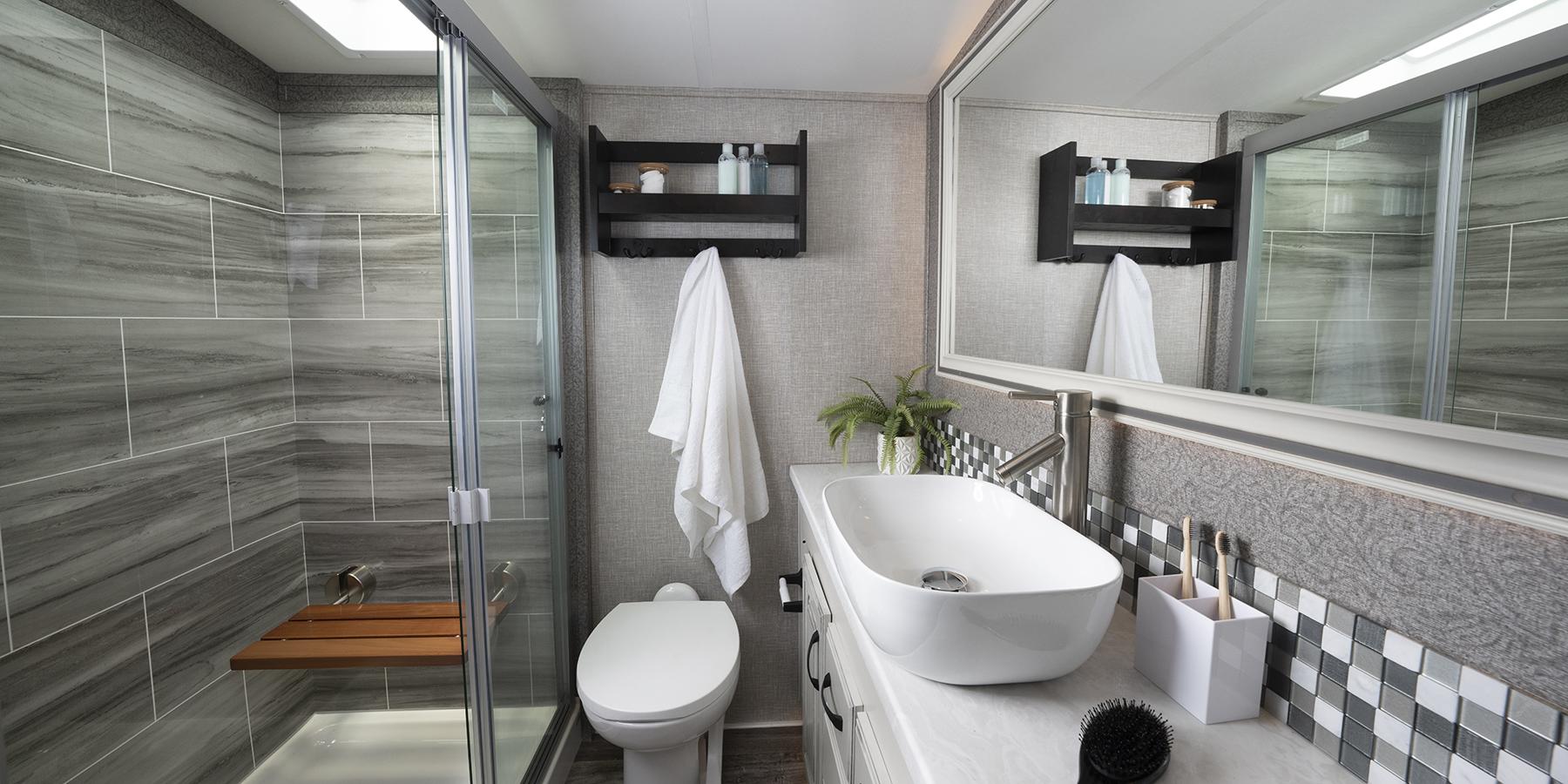

  • Residential walk-in shower with shampoo/soap holder and teak seat

Options

  • True interior design choice (Modern Farmhouse or Classic Cottage)
  • Customer Value Package: 15,000 BTU central air with heat pump
  • Extreme Weather Package: 120V heated holding tank pads and 12V wrapped and heated fresh water line
  • Overlander II Solar Package: (30 amp controller, 1,800W inverter and (2) 190 watt solar panels)
  • Wireless backup/rear and side view observation camera kit
  • Tailgate 39 in. TV in cargo
  • Sani-Con® Turbo waste management system
  • Generator prep with 120 lb. max LP system (3) 40 lb. LP bottles
  • 5,500W Onan® Microquiet generator
  • Frameless dual pane tinted safety-glass windows
  • Slideout awning (quantity varies by model)
  • Hydraulic disc brake package with 17.5” wheels with ‘H’ rated Goodyear® tires
  • 3rd-15,000 BTU ducted A/C
  • 18 cu. ft. Norcold® Polar Max gas/electric refrigerator
  • King residential foam-top mattress
  • Truma on-demand hot water system
  • Outside griddle for JayPort system (310RLTS, 373BHOK, 380RKGS)
  • Overlander EXT Solar Package: 3,000W inverter/charger with internal 50 amp transfer switch, energy  system, (6) solar panels with 200W each, (6) 100 amp/hour lithium batteries, 12V DC A/C, DC to DC battery charger, 100 amp MPPT controllermanagement

Standard Features
and Options

JAYCOMMAND<sup>®</sup>
5 Star Handling Package
American-made Goodyear<sup>®</sup> tires
Climate Shield
JaySMART™
Prepped for Solar Power
Strong foundations
Stronghold VBL™ Lamination
The Magnum Truss™ Roof System

JAYCOMMAND®

This system puts you in full control of your Jayco. Custom-built by our product development team and our partners, you can monitor and control key operations from just about anywhere on a phone or tablet.

Mini System Quick-Start Videos »Pro System Quick-Start Videos »

5 Star Handling Package

The 5 Star Handling package is a Jayco exclusive blend of five high-end components selected and installed to deliver a more safe and stable luxury fifth wheel towing experience.

Learn more »

American-made Goodyear® tires

Rugged fabric-steel Durawall® construction offers improved durability and carrying capacity, while remaining compatible with tire pressure monitoring systems and typical tire inflation stations. Tow with confidence.

Learn more »

Climate Shield

Extend your camping season with built-in protection against extreme heat and cold—even in temperatures as high as 100 degrees or as low as zero degrees (Fahrenheit).

Learn more »

JaySMART™

The exclusive safety system adds several tow vehicle-controlled exterior lights to indicate turning, braking, reverse travel and hazard situations—because a split second can make all the difference.

Learn more »

Prepped for Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single RV. With sidewall AND roof-mounted prep kits, you have the option to easily install solar panels for extra power at camp.

Learn more »

Strong foundations

While other manufacturers often weld or modify stock frames, every Jayco RV is built on a custom frame, designed and sized specifically to best support each unit on and off the road for years to come.

Learn more »

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

The Magnum Truss™ Roof System

In testing, the creatively engineered system withstood 4,500 pounds—50 percent more than competitors’ roofs.  Walk confidently on top of your unit and feel safer in wind or snowstorms.

Learn more »

North Point Videos

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6
7

The Magnum Truss™ Roof system is one of the strongest roofs in the industry. It's capable of withstanding 50 percent more weight- up to 4,500 lbs.- than the competition so that you can safely perform maintenance and avoid costly structure damage from debris, branches or snow.

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

Your RV needs a strong foundation built specifically for your floorplan. We build each trailer on a frame that has been specifically designed by our skilled team of engineers for its size and shape to better endure the wear and tear of the road. Our frames also include more outriggers and cross members for better support and structural integrity.

Functionality is key and that's why Jayco uses MORryde over other brands. MORryde suspensions absorb the 3-4 in. of up and down travel that trailers often take while on the road.

Jayco's standard Goodyear® tires are built using rugged fabric-steel and are reinforced specifically for trailering. Enhanced durability, geater carrying capacities and higher speed ratings help you stay safe, preventing dangerous blow outs all while remaining compatible with tire pressure monitoring systems and typical tire inflation stations.

Axles are a key factor to a comfortable and stable towing experience. That's why we partner with a long-standing American company, Dexter.

Most manufacturers use standard 3500 lb. springs but on all Luxury Fifth Wheels and Toy Haulers we upgrade to the heavy duty 4000 lb. springs for maximum strength.
