2022 Pinnacle | 37MDQS
2022 Pinnacle
Previous model years are dealer stock only.

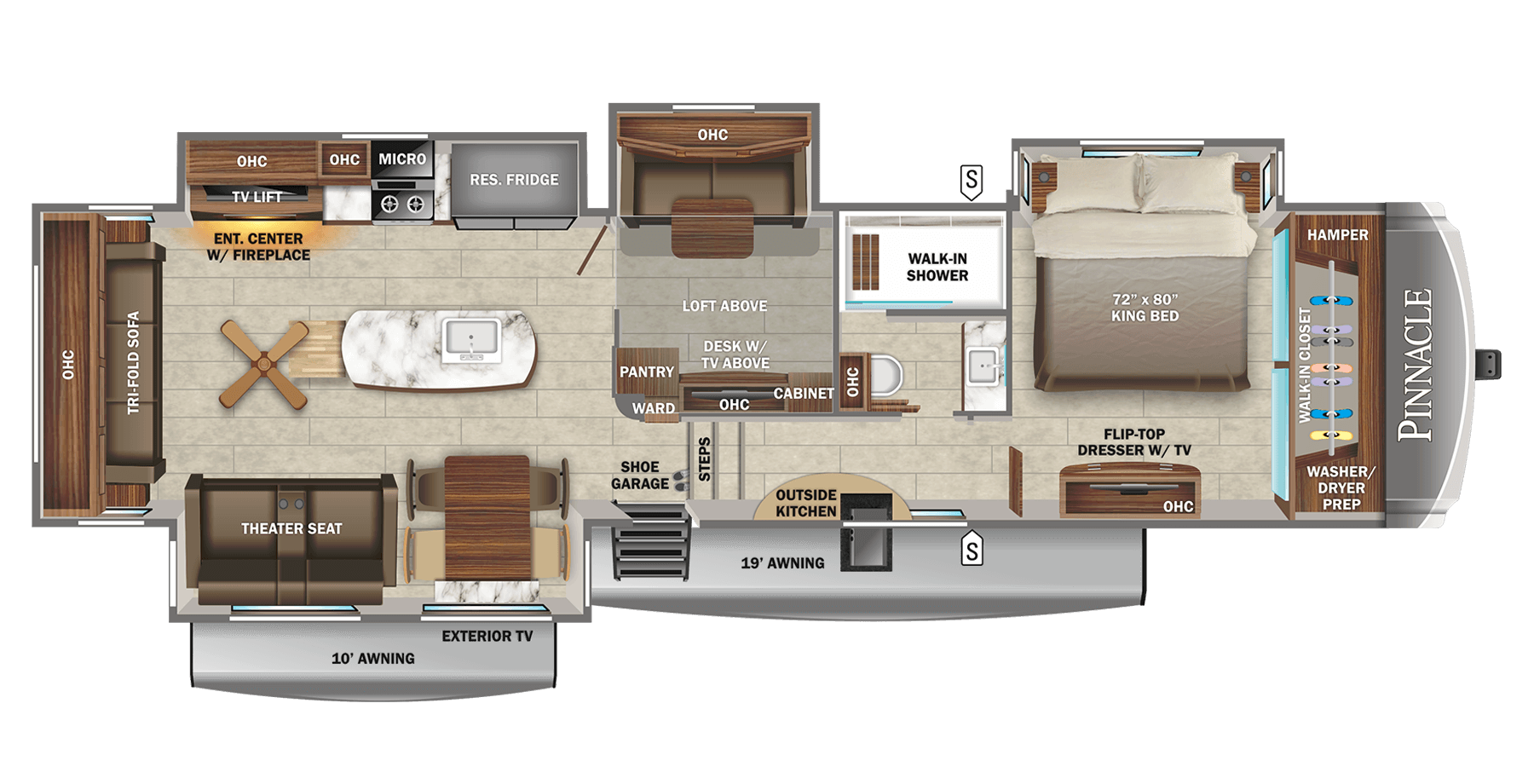

See Floorplan with
an Option Added:
See Floorplan with
Interior Design
Modern Farmhouse
Silvermist
Exterior
Diamond Paint
Sand Paint
Steel Paint
Specifications
Weights
| Dry Hitch Weight (lbs) | 2,920 |
| Unloaded Vehicle Weight (lbs) | 14,395 |
| Cargo Carrying Capacity (lbs) | 2,600 |
| Gross Vehicle Weight Rating (lbs) | 16,995 |
Measurements
| Exterior Length (overall) | 41' 7" |
| Exterior Length (pin to bumper) | 39' 10" |
| Exterior Height | 12' 7" |
| Exterior Height (with A/C) | 13' 4" |
| Exterior Height (with 2nd A/C) | 13' 4" |
| Exterior Width | 8' 6" |
| Exterior Width (with slides out) | 14' 5" |
| Interior Height (main) | 8' 7" |
| Interior Height (upper deck) | 6' 8" |
| Awning Length | 19' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 75.0 |
| Gray Water Capacity (gals) | 87.0 |
| Black Tank Capacity (gals) | 50.0 |
| Propane Unit (lbs) | 60 |
| Propane Unit (lbs) (Optional) | 120 |
Miscellaneous
| Sleeps | up to 8 |
| Water Heater | 10 |
| # of outside storage compartments | 2 |
| Tire Size | ST255/85R16'E' |
2022 Pinnacle
Starting at $118,968
A trendsetter in the luxury fifth wheel market, Pinnacle’s combination of technology, lavish details and sharp appearance can’t be beaten. Solid hardwood maple cabinetry, larger bathrooms and extra standard features stand out to even the most discerning RVer. Several interior design enhancements, including the addition of the wildly popular Modern Farmhouse and an extreme weather package, turn up the comfort even further in this 2022 luxury fifth wheel.
