2023 Eagle HT Fifth Wheels | NEW 26RU
2023 Eagle HT Fifth Wheels
Previous model years are dealer stock only.

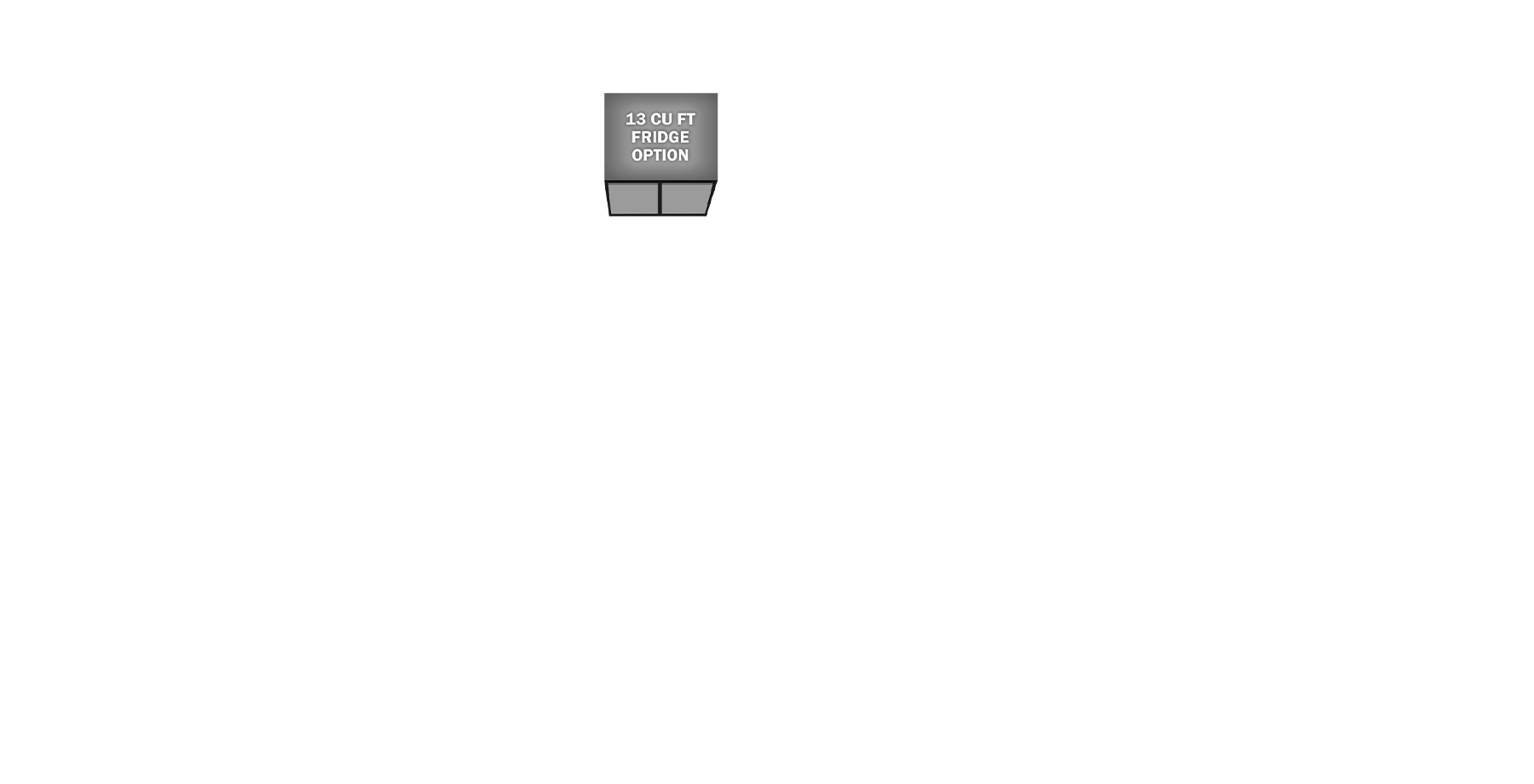

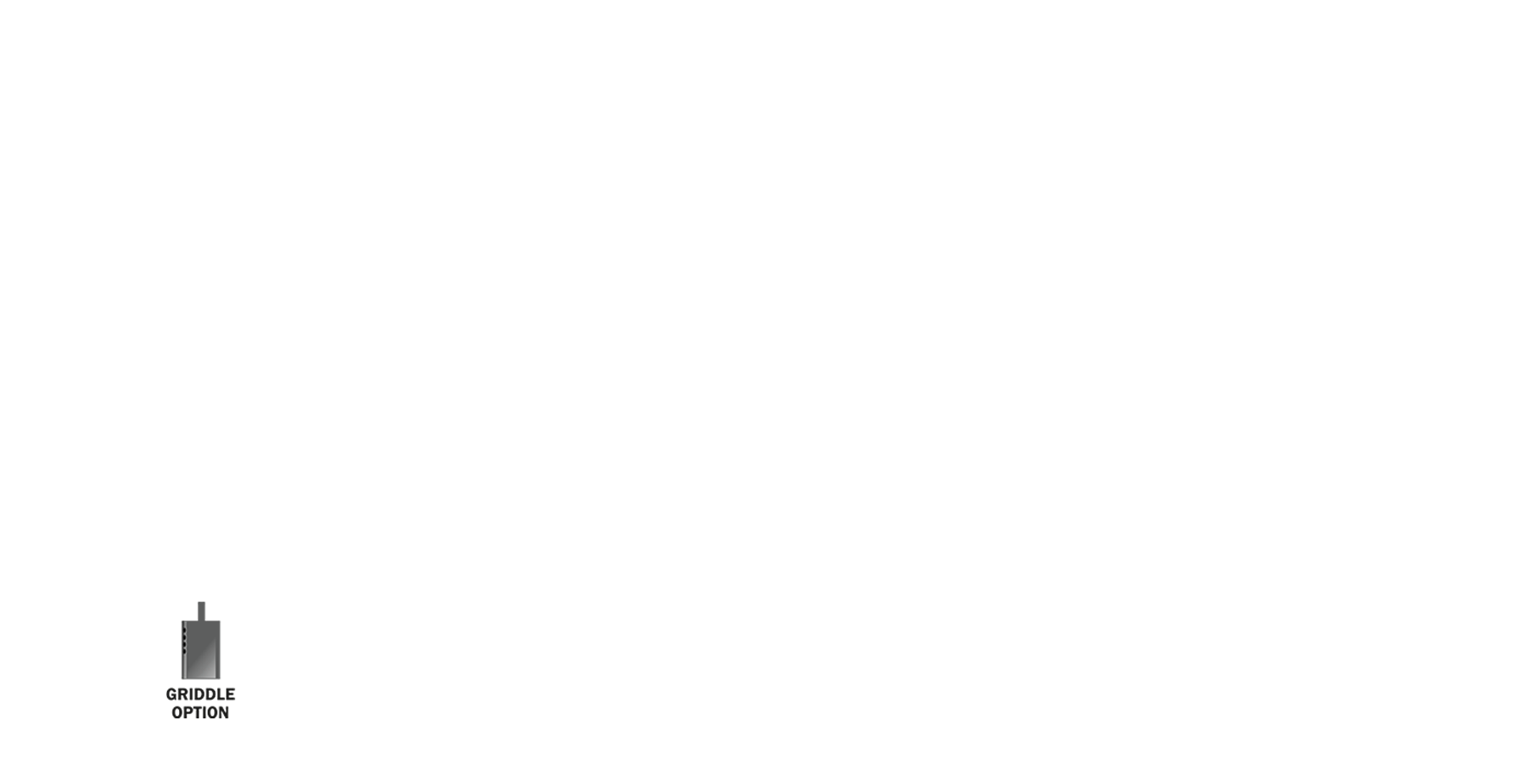

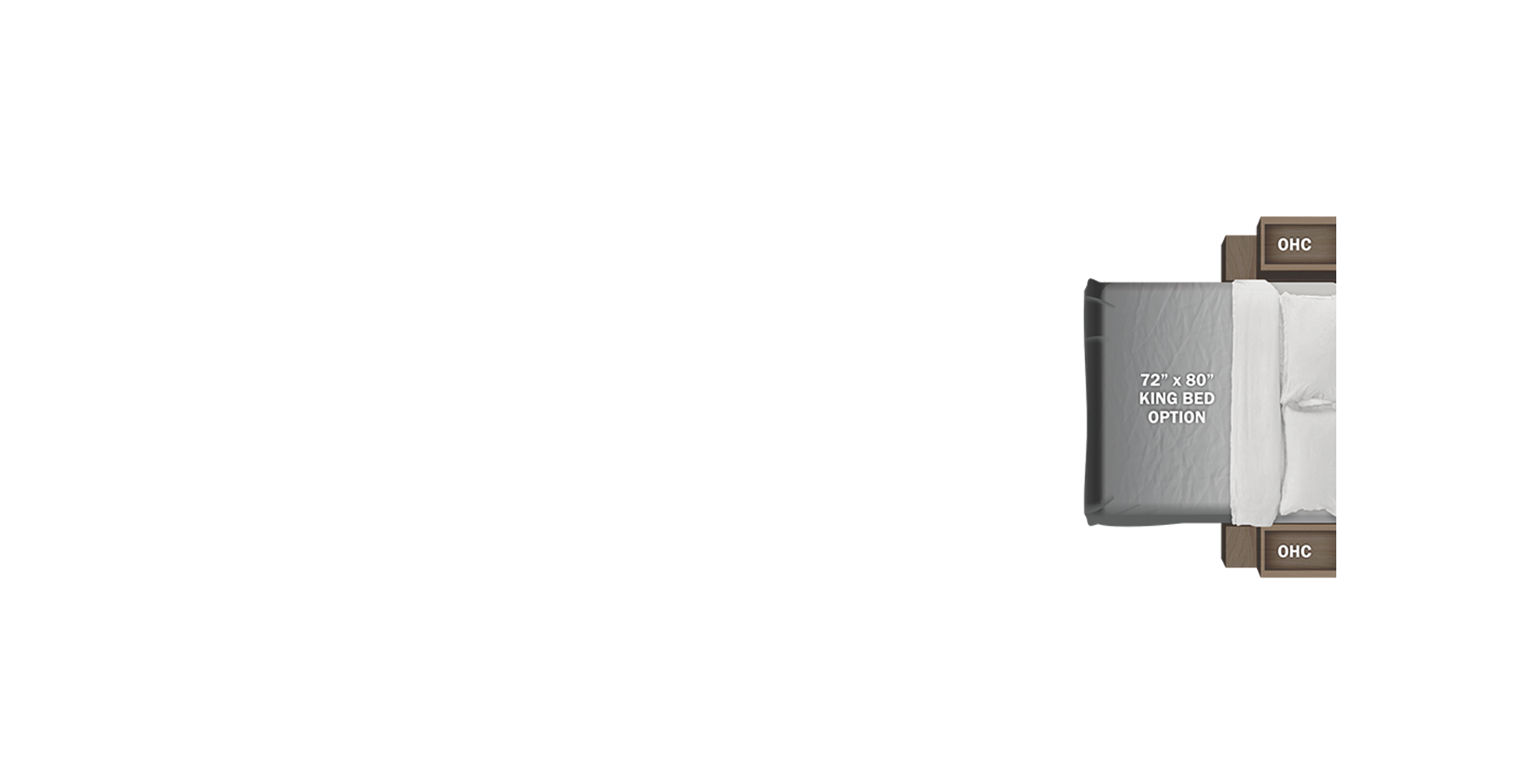

See Floorplan with
an Option Added:
See Floorplan with
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Interior Design
Modern Farmhouse
American Craftsman
Specifications
Weights
| Dry Hitch Weight (lbs) | 1,150 |
| Unloaded Vehicle Weight (lbs) | 7,805 |
| Cargo Carrying Capacity (lbs) | 2,190 |
| Gross Vehicle Weight Rating (lbs) | 9,995 |
Measurements
| Exterior Length (overall) | 29' 7" |
| Exterior Length (pin to bumper) | 28' 10" |
| Exterior Height | 12' 3" |
| Exterior Height (with A/C) | 12' 4" |
| Exterior Height (with 2nd A/C) | 13' 0" |
| Exterior Width | 8' 0" |
| Exterior Width (with slides out) | 11' 0" |
| Interior Height (main) | 8' 4" |
| Interior Height (upper deck) | 6' 2" |
| Awning Length | 16' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 81.0 |
| Gray Water Capacity (gals) | 82.0 |
| Black Tank Capacity (gals) | 45.0 |
| Propane Unit (lbs) | 60 |
| Propane Unit (lbs) (Optional) | 80 |
Miscellaneous
| Sleeps | up to 4 |
| Water Heater | Tankless |
| # of outside storage compartments | 3 |
| Furnace BTU | 35000 |
| Tire Size | ST225/75R15'E' |
2023 Eagle HT Fifth Wheels
Starting at $61,725
The Eagle HT Fifth Wheel is lightweight and easy to tow. Pre-wired for an inverter, easily add one to run your rig on batteries and enjoy off-grid capabilities. The 81-gallon fresh water tank adds to your ability for off-grid camping. Control it all from the JAYCOMMAND Smart System with TPMS, the hub of the RV. JAYCOMMAND allows you to control and monitor key operations from your smartphone or tablet with just the touch of a finger. This year sees updated décor throughout, including furniture, flooring, and fabric changes.
