2023 Pinnacle | 36FBTS
2023 Pinnacle
Previous model years are dealer stock only.

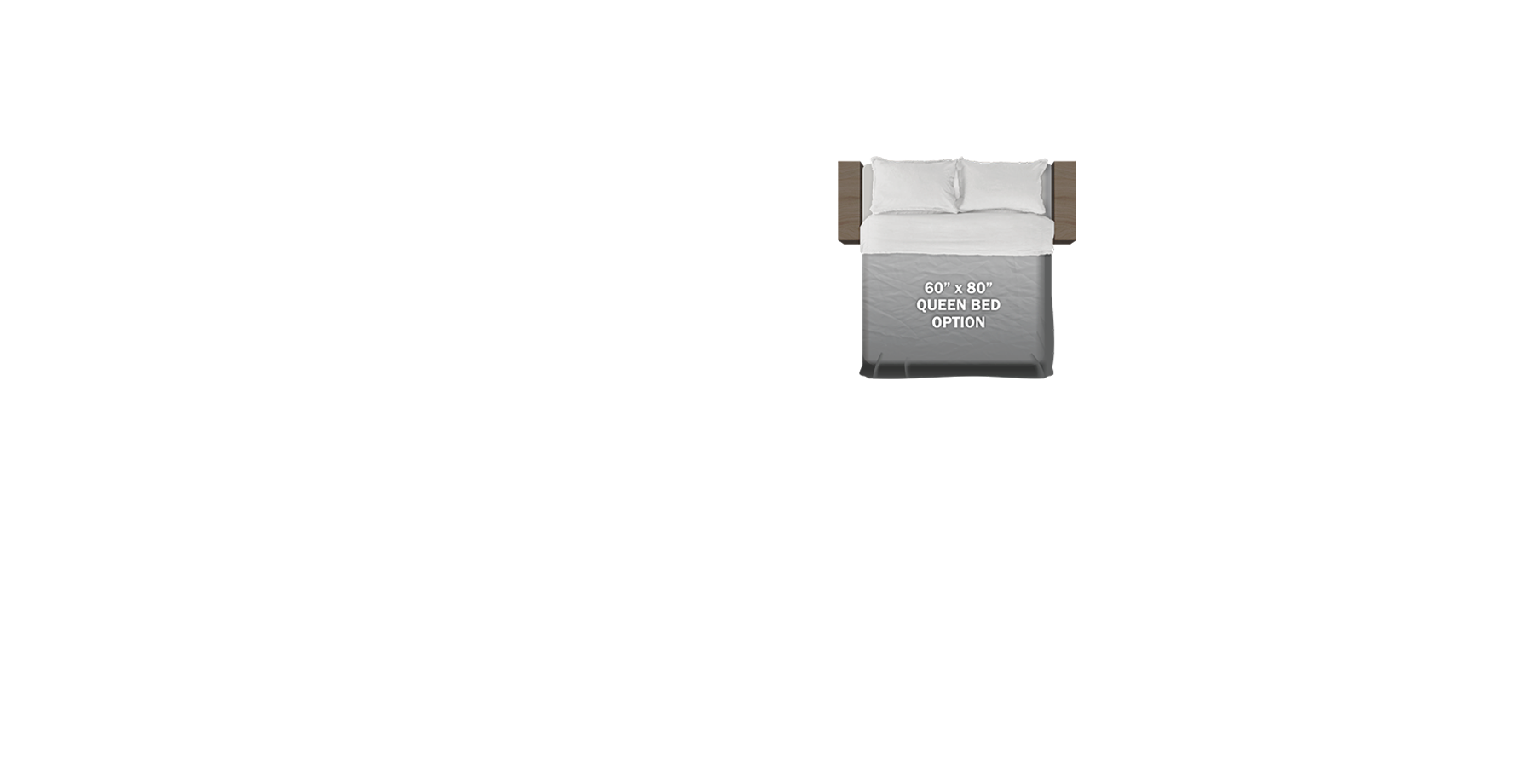

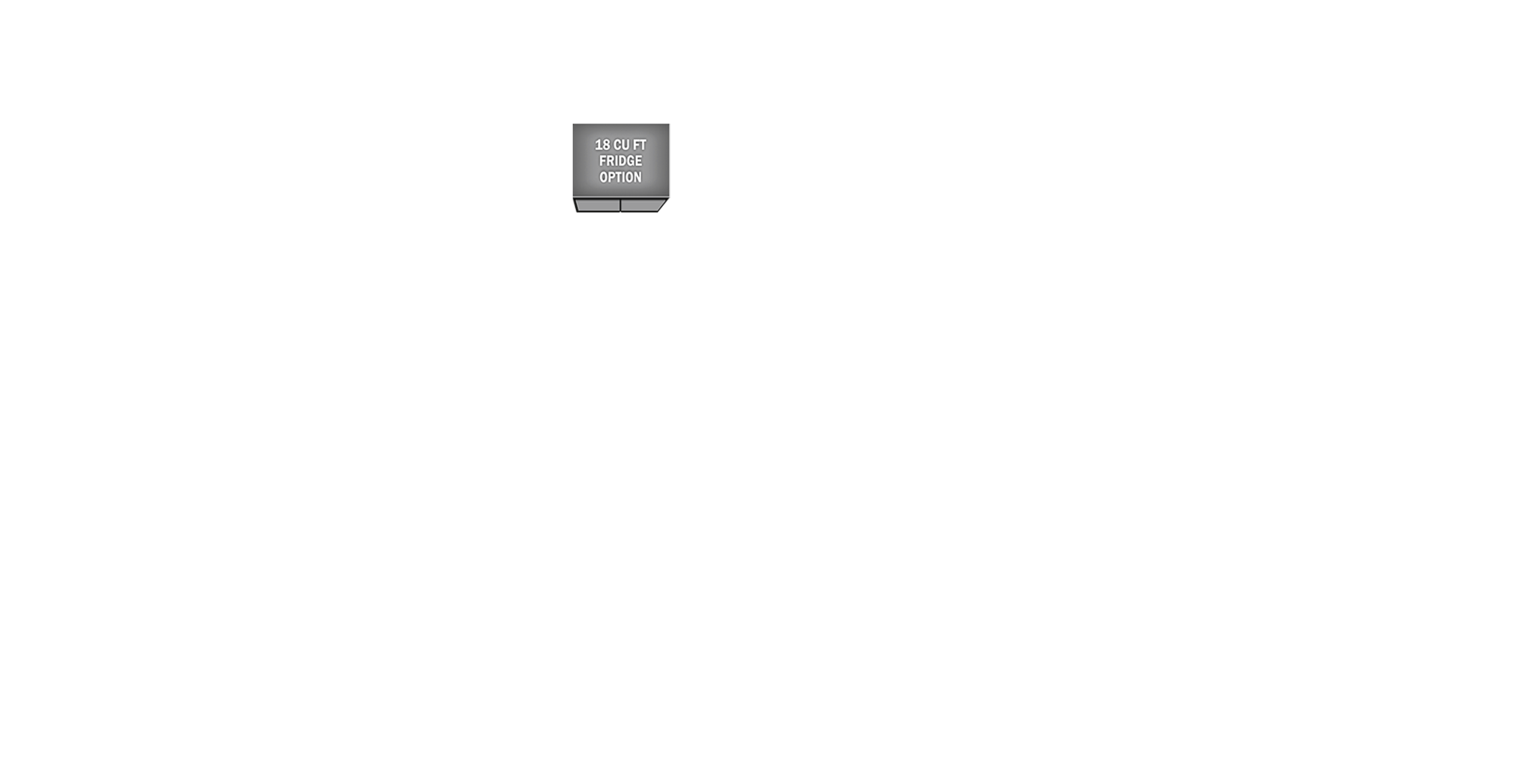

See Floorplan with
an Option Added:

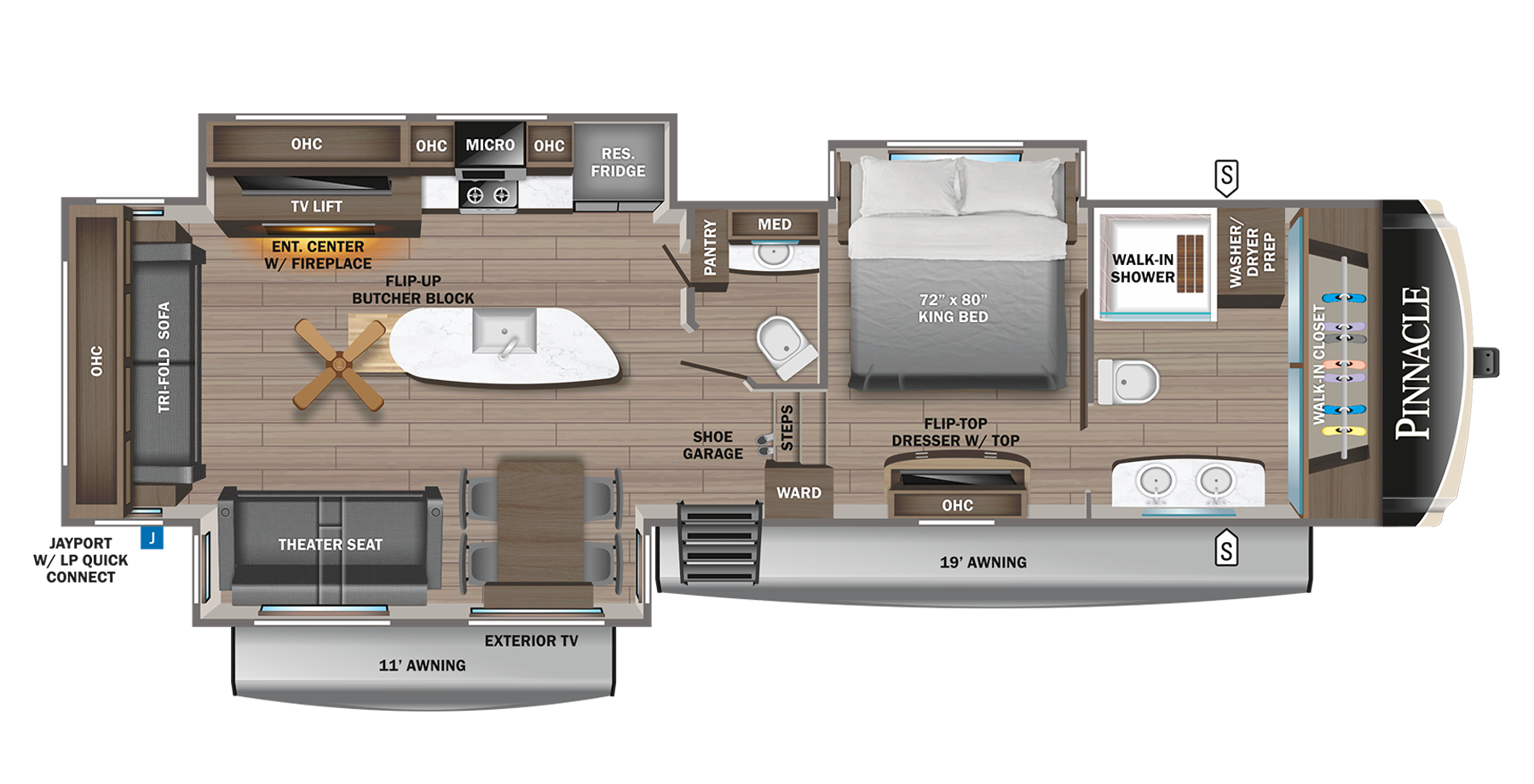

See Floorplan with
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Interior Design
Modern Farmhouse
Silvermist
Exterior
Diamond Paint
Sand Paint
Steel Paint
Specifications
Weights
| Dry Hitch Weight (lbs) | 2,510 |
| Unloaded Vehicle Weight (lbs) | 13,750 |
| Cargo Carrying Capacity (lbs) | 3,245 |
| Gross Vehicle Weight Rating (lbs) | 16,955 |
Measurements
| Exterior Length (overall) | 40' 9" |
| Exterior Length (pin to bumper) | 3' 3" |
| Exterior Height | 10' 5" |
| Exterior Height (with A/C) | 13' 4" |
| Exterior Height (with 2nd A/C) | 13' 4" |
| Exterior Width | 8' 7" |
| Exterior Width (with slides out) | 14' 3" |
| Interior Height (main) | 8' 7" |
| Interior Height (upper deck) | 6' 7" |
| Awning Length | 11' 0" |
| Awning Length 2 | 19' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 75.0 |
| Gray Water Capacity (gals) | 87.0 |
| Black Tank Capacity (gals) | 87.0 |
| Propane Unit (lbs) | 60 |
| Propane Unit (lbs) (Optional) | 120 |
| Furnace, Auto-ignition (BTU output) | 40000 |
Miscellaneous
| Sleeps | up to 6 |
| Water Heater | 12 |
| # of outside storage compartments | 2 |
| Furnace BTU | 40000 |
| Tire Size | ST255/85R16'E' |
2023 Pinnacle
Starting at $119,943
Aptly named, the Pinnacle luxury fifth wheel takes all the best a fifth wheel has to offer and elevates it to the top with technology, luxury, and attention to detail. The 102-inch wide body design provides the most room available in the industry. Room for solid hardwood cabinets and the Magnum 6XL roof rafter system – a six-inch roof that doesn’t taper down, creating higher ceilings throughout. Available in three stunning exterior full-body paint options, try the Pinnacle of camping today.
