2024 Pinnacle | 38FLGS
2024 Pinnacle
Previous model years are dealer stock only.

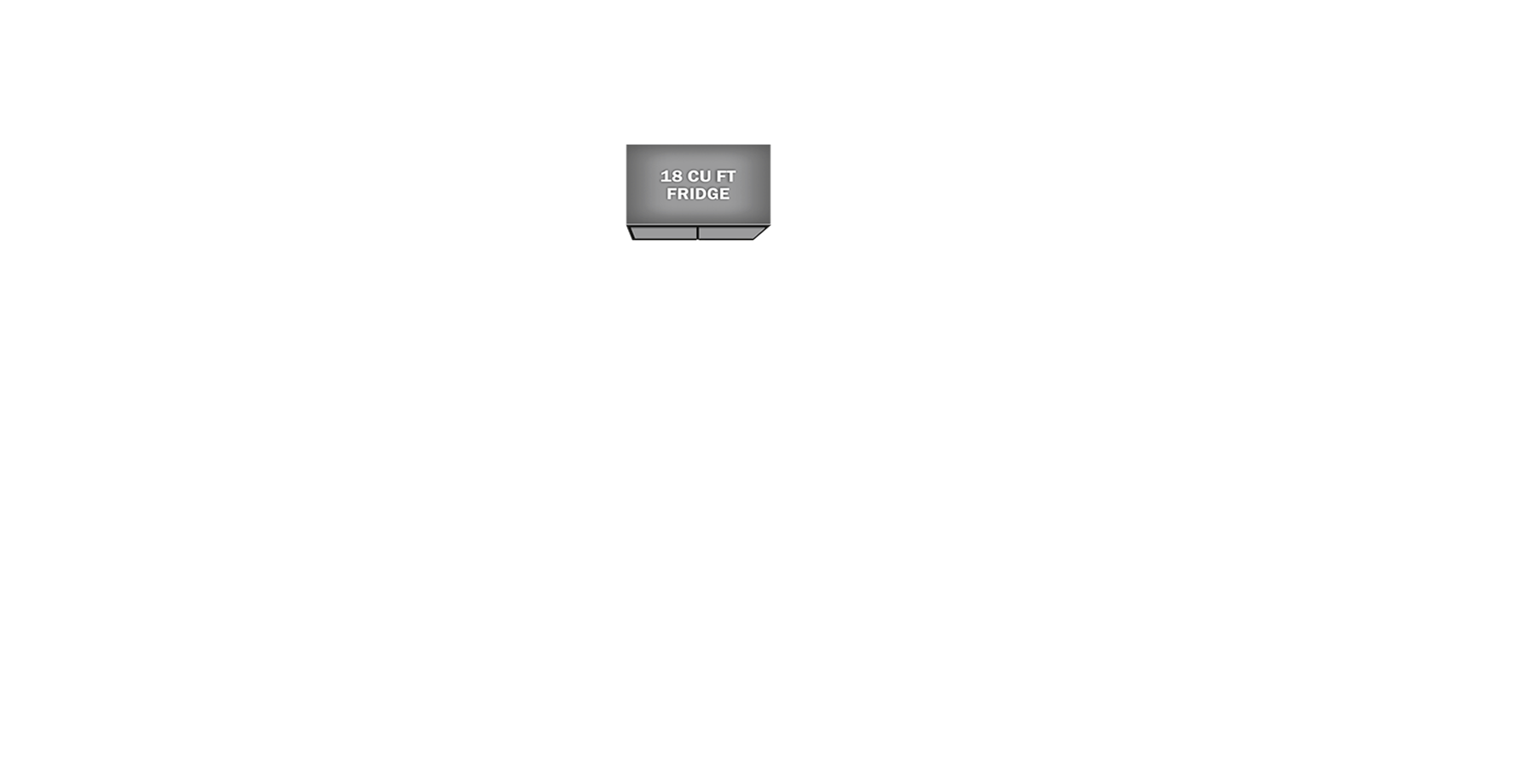

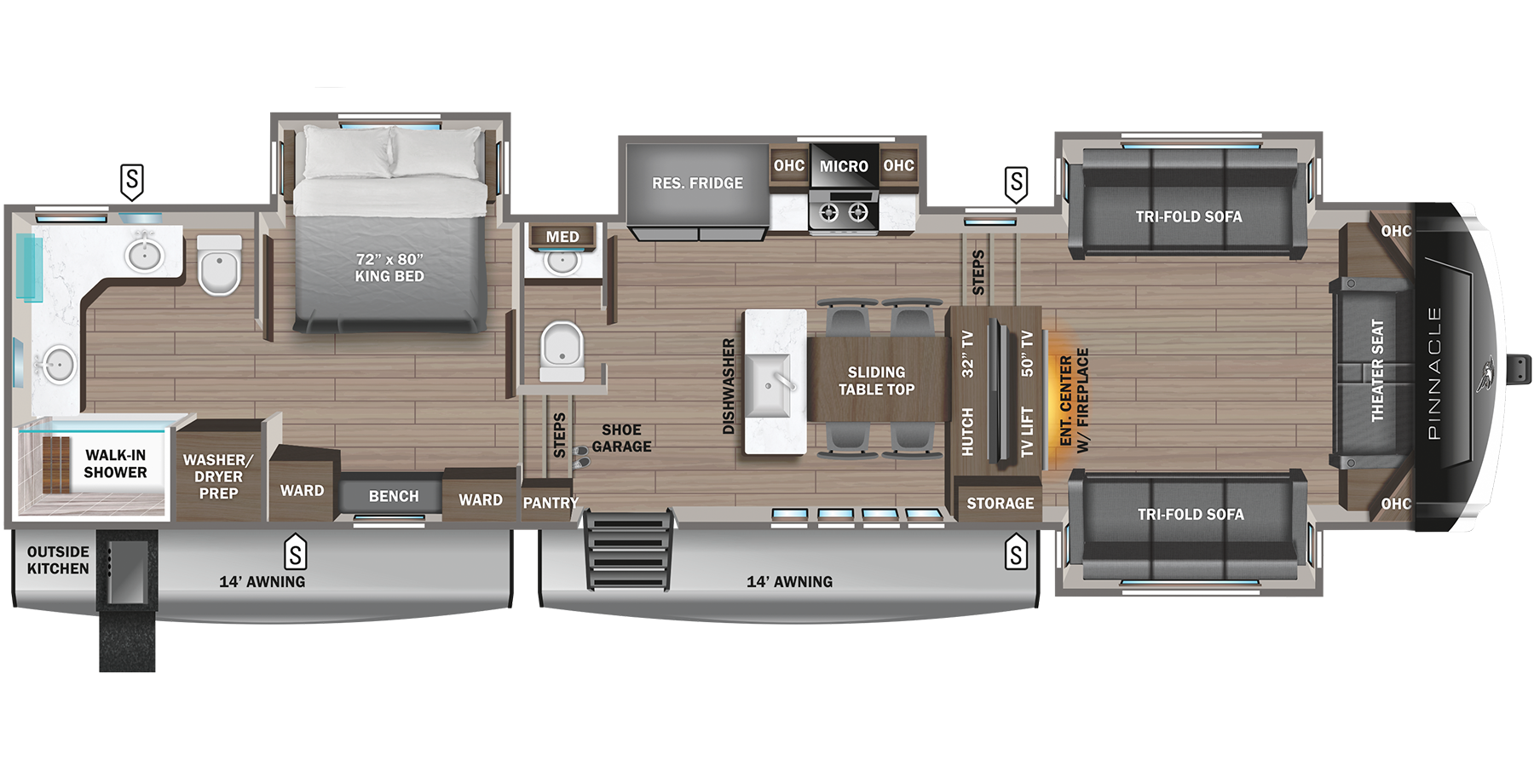

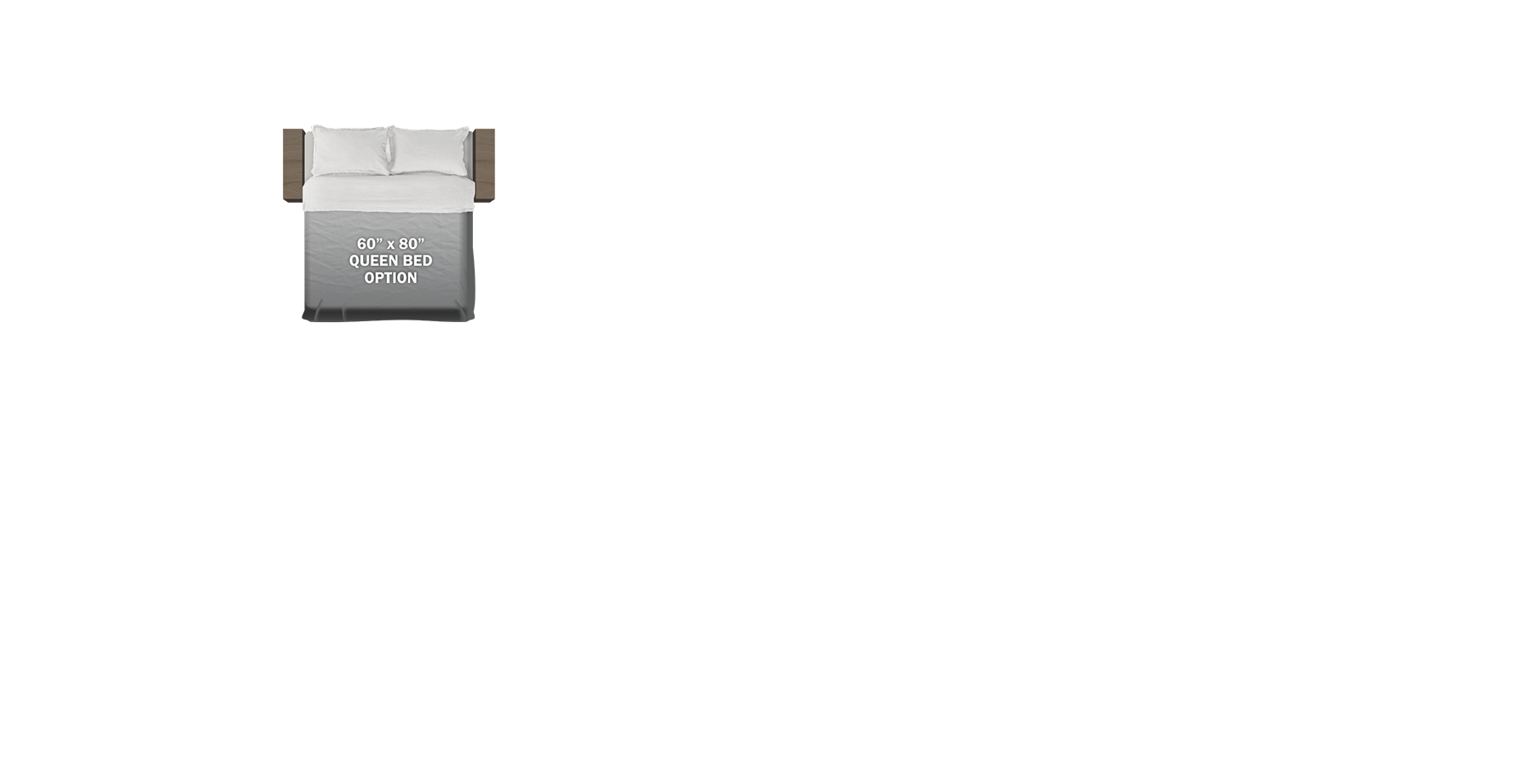

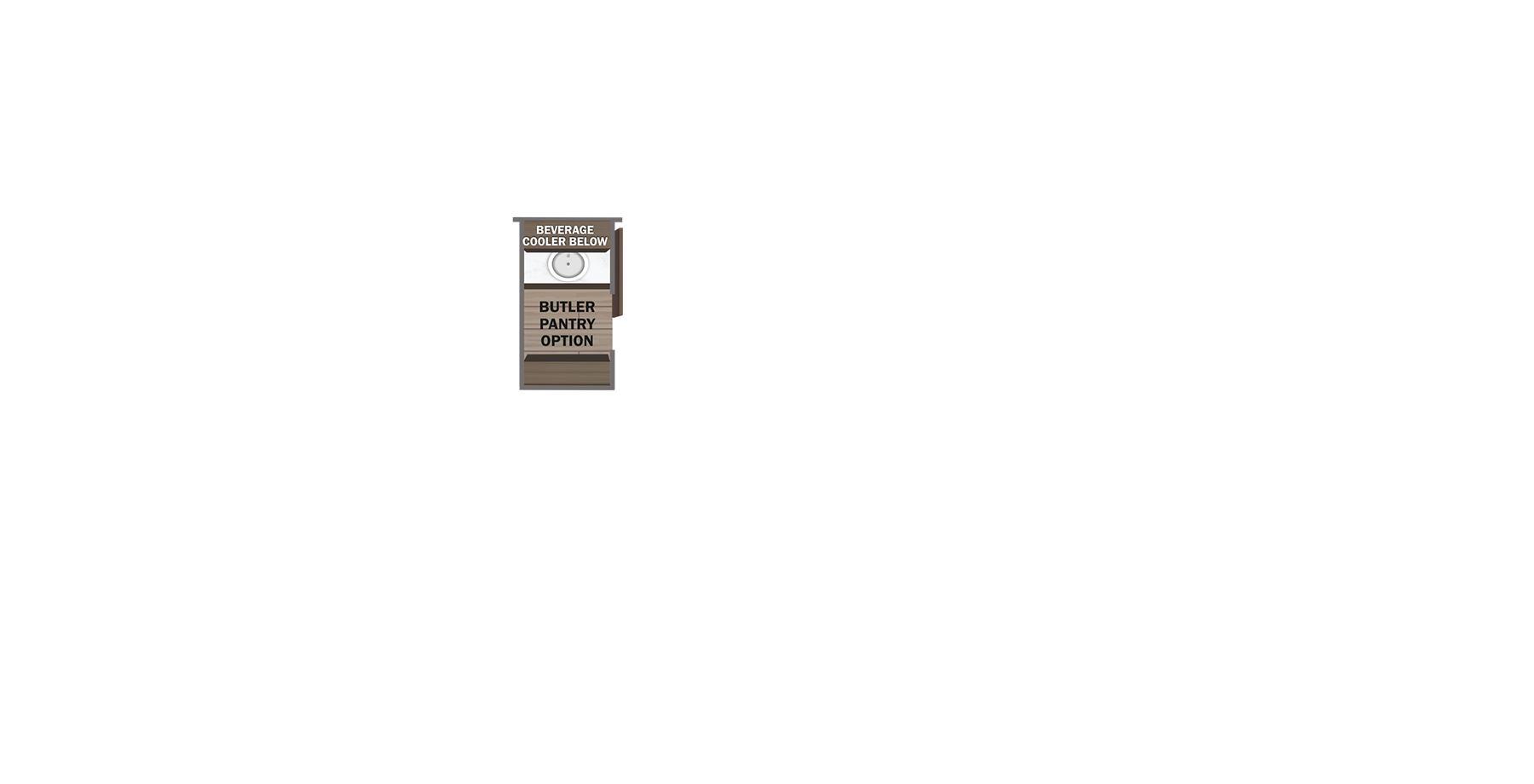

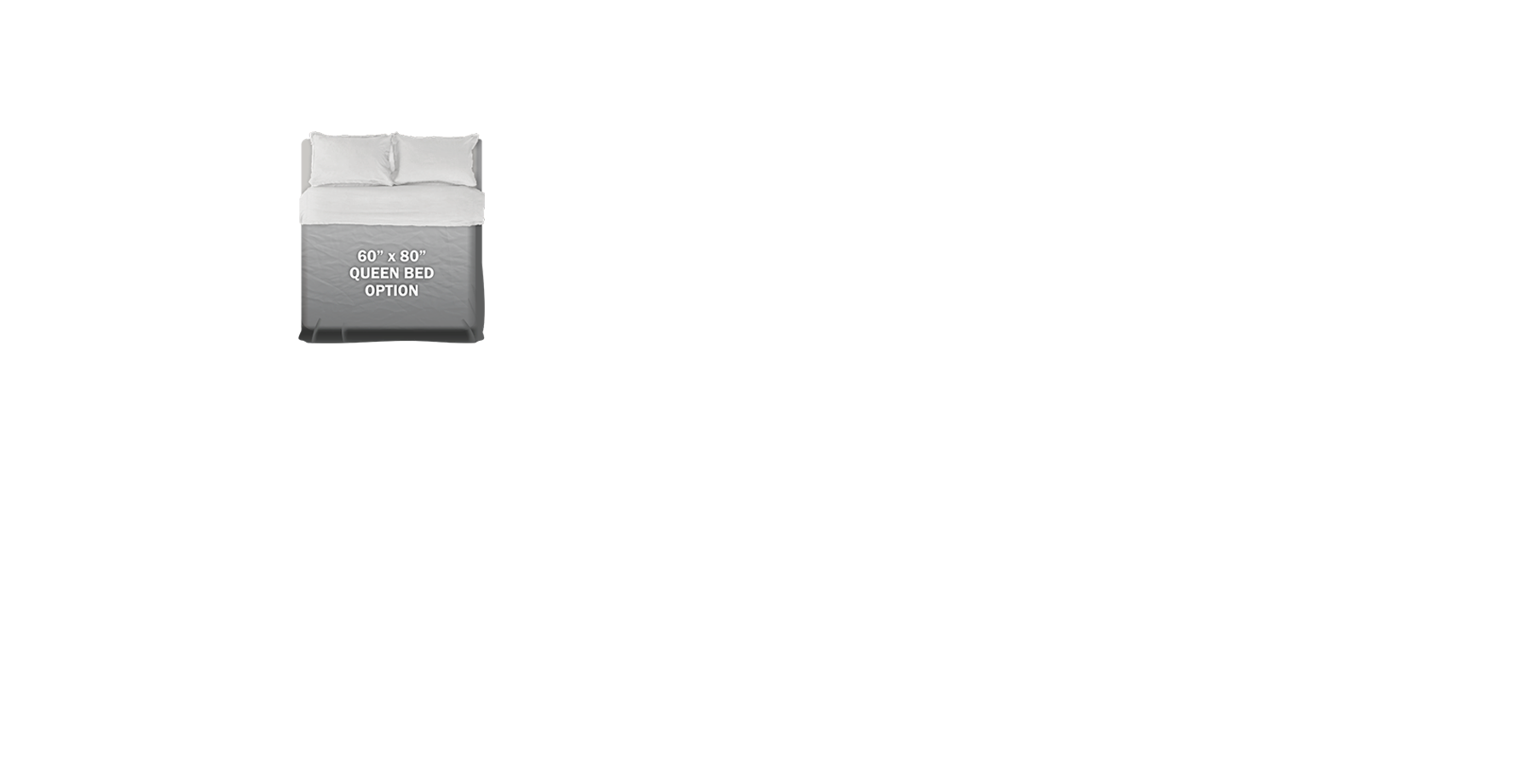

See Floorplan with
an Option Added:
See Floorplan with
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Exterior
Diamond Paint
Sand Paint
Steel Paint
Specifications
Weights
| Dry Hitch Weight (lbs) | 2,865 |
| Unloaded Vehicle Weight (lbs) | 15,350 |
| Cargo Carrying Capacity (lbs) | 2,650 |
| Gross Vehicle Weight Rating (lbs) | 18,000 |
Measurements
| Exterior Length (overall) | 44' 5" |
| Exterior Length (pin to bumper) | 42' 8" |
| Exterior Height | 12' 8" |
| Exterior Height (with A/C) | 13' 3" |
| Exterior Height (with 2nd A/C) | 13' 4" |
| Exterior Width | 8' 6" |
| Exterior Width (with slides out) | 13' 6" |
| Interior Height (main) | 8' 6" |
| Interior Height (upper deck) | 6' 7" |
| Awning Length | 14' 0" |
| Awning Length 2 | 14' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 75.0 |
| Gray Water Capacity (gals) | 82.5 |
| Black Tank Capacity (gals) | 74.0 |
| Propane Unit (lbs) | 60 |
| Propane Unit (lbs) (Optional) | 120 |
Miscellaneous
| Sleeps | up to 6 |
| Water Heater | 16 |
| # of outside storage compartments | 4 |
| Furnace BTU | 40000 |
| Tire Size | 215/75R17.5'H' |
2024 Pinnacle
Starting at $122,568
The pinnacle of luxury fifth wheels, Jayco’s Pinnacle Fifth Wheel pays attention to every detail so you don’t have to. The 102-inch wide-body design features solid hardwood cabinets and stiles with high sheen and a GE residential appliance package featuring a microwave with a built-in air fryer.
