2022 Jay Feather | 24RL
2022 Jay Feather
Previous model years are dealer stock only.
See Floorplan with
an Option Added:

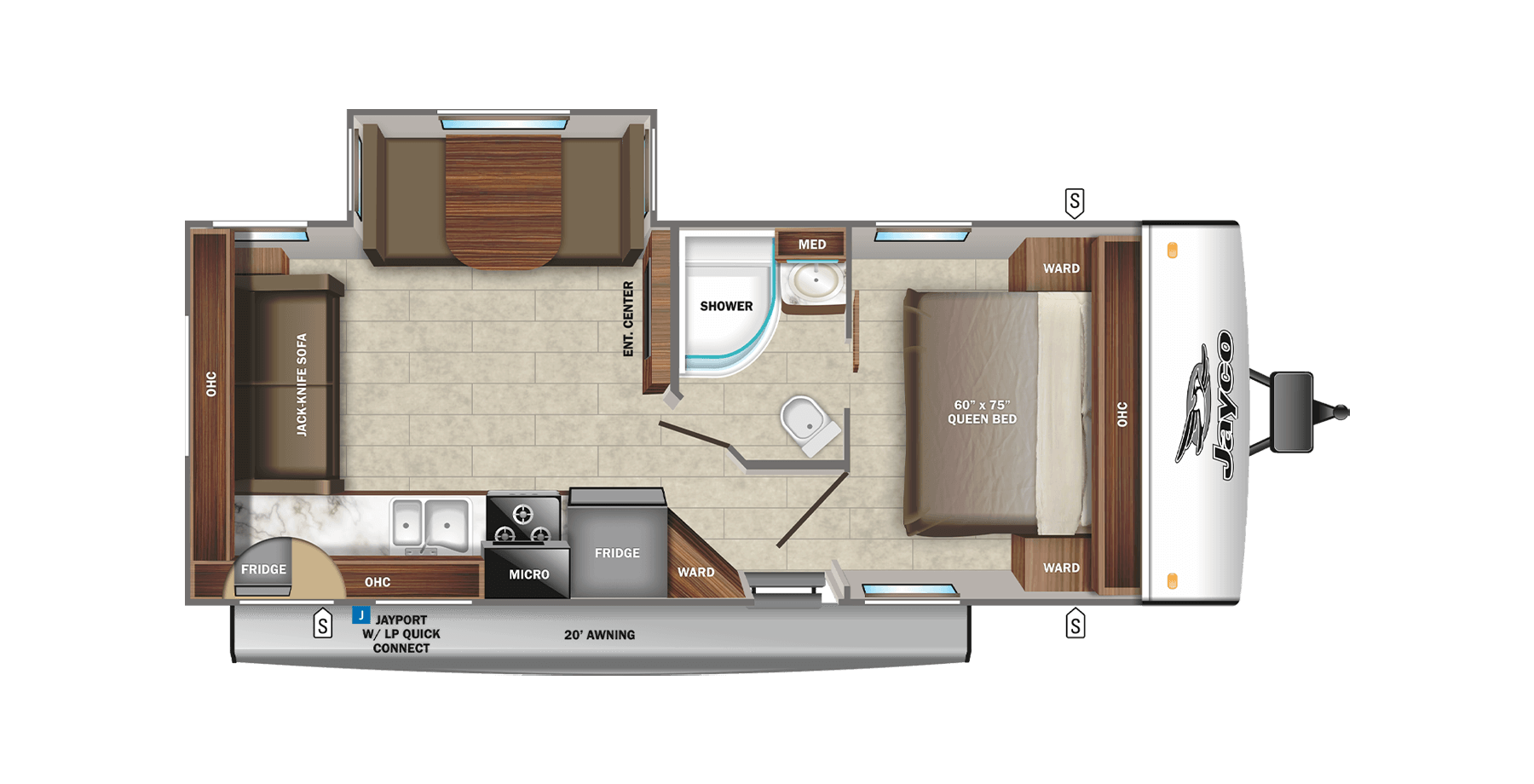

![24RL](/uploads/rvs/floorplans/6609-24RL.png)
![Theater seat](/uploads/rvs/overlays/86-overlay-24RL-theater-seating.png)

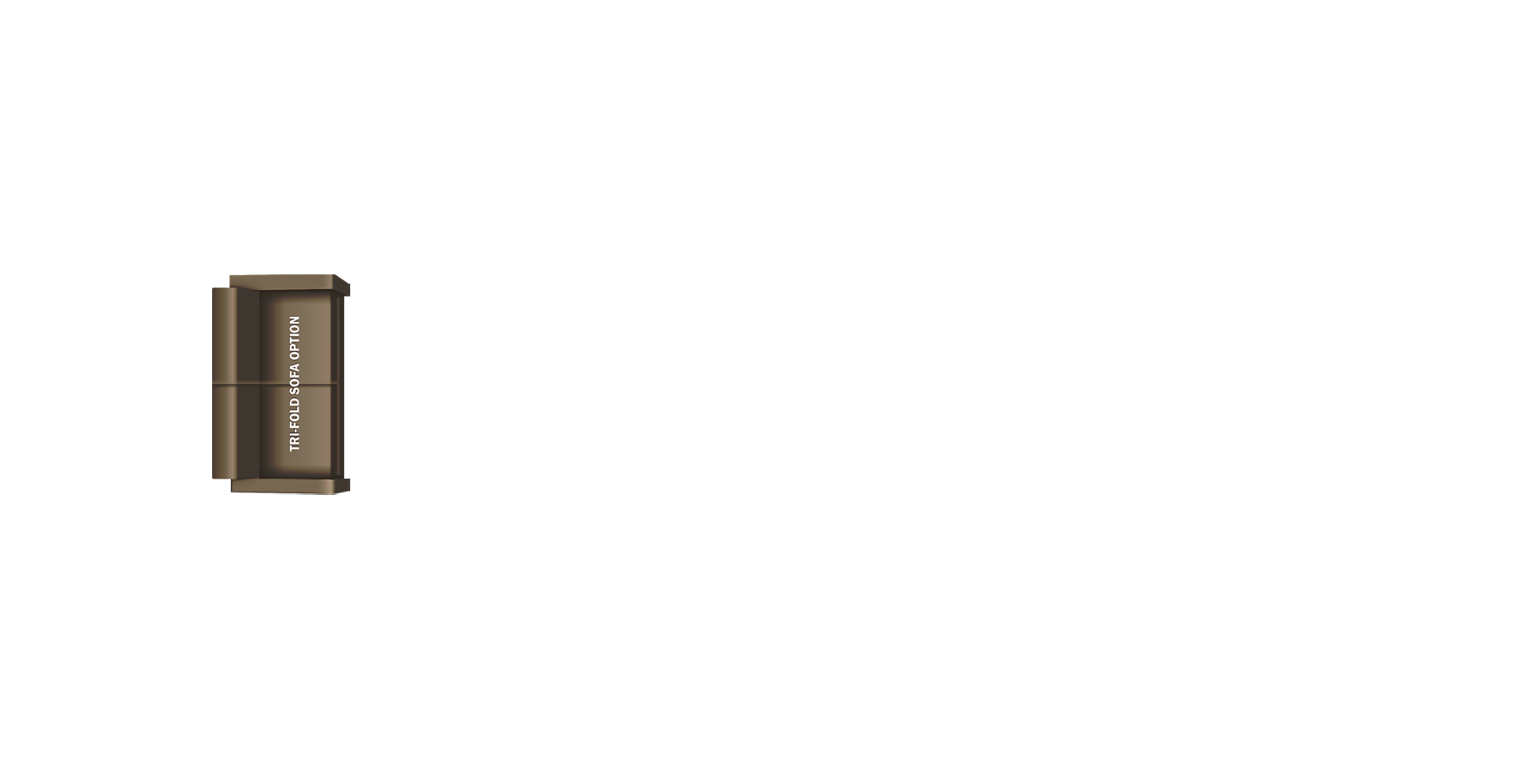

![Tri-fold sofa](/uploads/rvs/overlays/87-overlay-24RL-tri-fold.png)
Dry Hitch Weight (lbs) | 650 |
Unloaded Vehicle Weight (lbs) | 5,280 |
Cargo Carrying Capacity (lbs) | 1,320 |
Gross Vehicle Weight Rating (lbs) | 6,600 |
Exterior Length (overall) | 28' 7" |
Exterior Height | 10' 2" |
Exterior Height (with A/C) | 10' 8" |
Exterior Width | 8' 0" |
Exterior Width (with slides out) | 11' 0" |
Interior Height (main) | 6' 6" |
Awning Length | 20' 0" |
Fresh Water Capacity (gals) | 55.0 |
Gray Water Capacity (gals) | 30.5 |
Black Tank Capacity (gals) | 30.5 |
Propane Unit (lbs) | 40 |
Propane Unit (lbs) (Optional) | 60 |
Sleeps | up to 6 |
Water Heater | 6 |
# of outside storage compartments | 3 |
Furnace BTU | 32767 |
Tire Size | ST205/75R14'D |
The 2022 Jay Feather’s lightweight, rock-solid fiberglass construction features two distinct interior design concepts to choose from with new fixtures and flooring throughout. Whether you’re looking for a smaller camper with lots of sleeping space or luxurious amenities in an easy-to-tow trailer, there’s a Jay Feather for you.
