2023 Jay Flight | 240RBSW
2023 Jay Flight
Previous model years are dealer stock only.

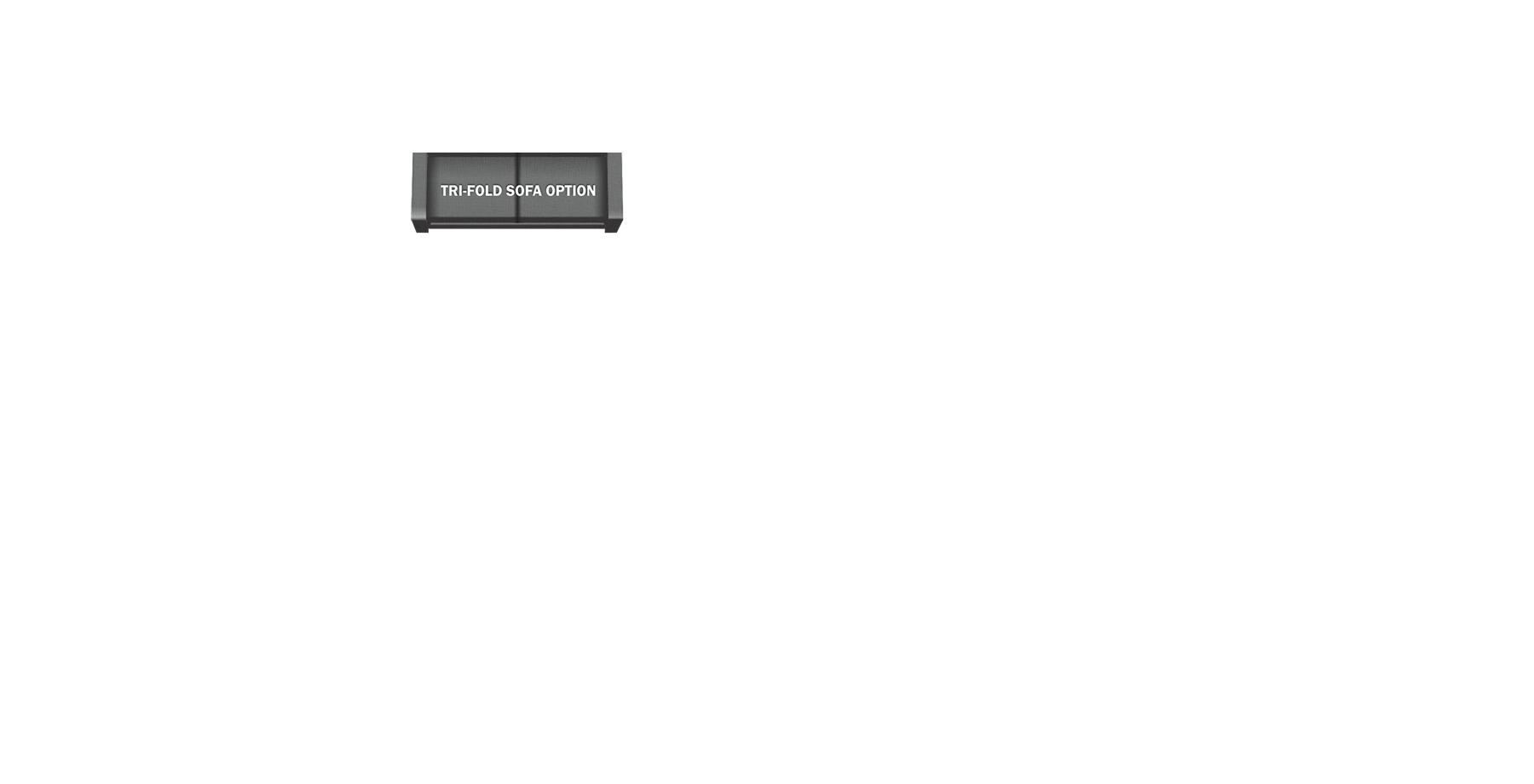

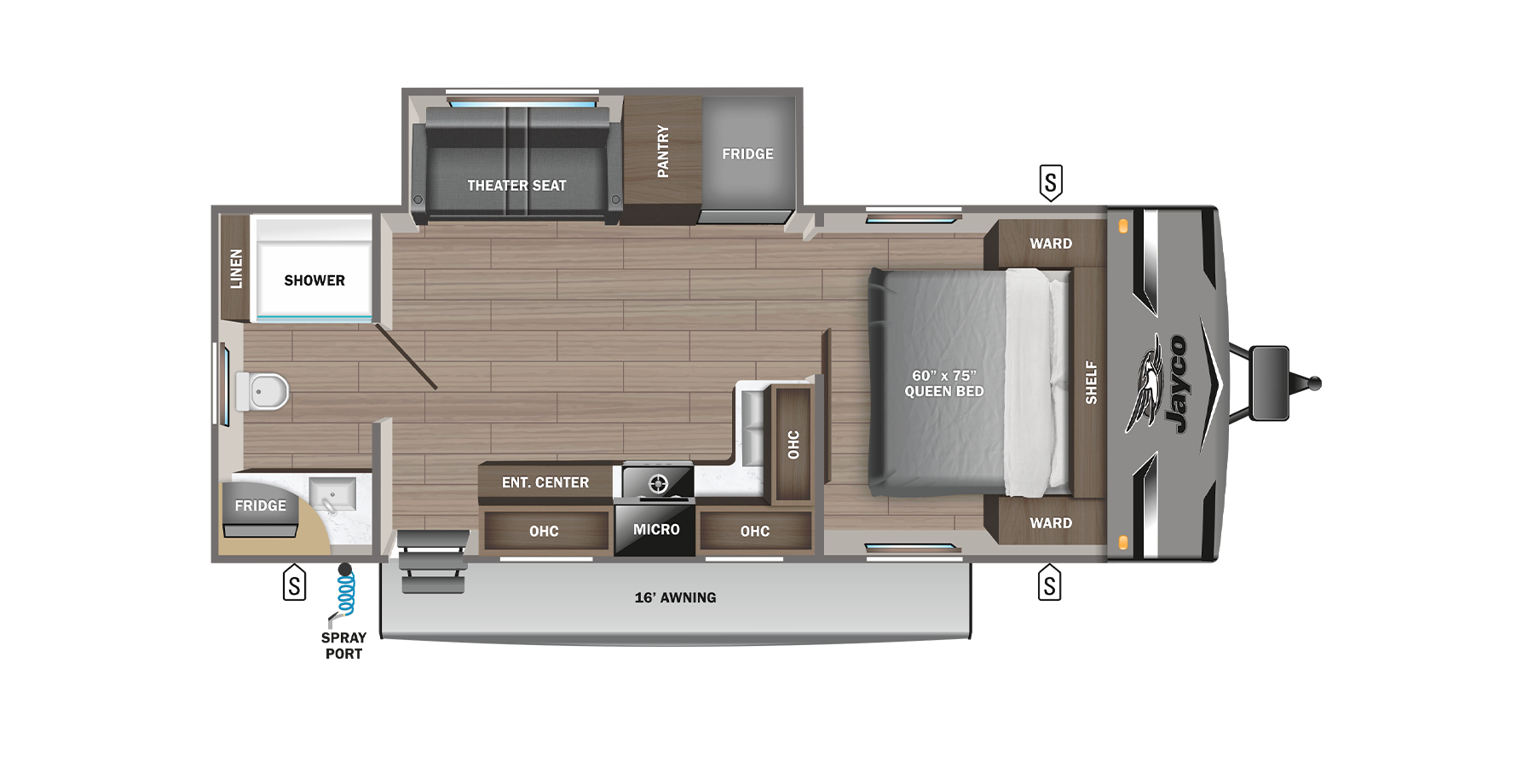

See Floorplan with
an Option Added:
See Floorplan with
Interior Design
Modern Farmhouse
Classic Cottage
Specifications
Weights
| Dry Hitch Weight (lbs) | 655 |
| Unloaded Vehicle Weight (lbs) | 5,676 |
| Cargo Carrying Capacity (lbs) | 1,665 |
| Gross Vehicle Weight Rating (lbs) | 7,250 |
Measurements
| Exterior Length (overall) | 27' 4" |
| Exterior Height | 10' 5" |
| Exterior Height (with A/C) | 11' 0" |
| Exterior Width | 8' 0" |
| Exterior Width (with slides out) | 11' 0" |
| Interior Height (main) | 6' 9" |
| Awning Length | 16' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 76.0 |
| Gray Water Capacity (gals) | 78.0 |
| Black Tank Capacity (gals) | 39.0 |
| Propane Unit (lbs) | 40 |
| Propane Unit (lbs) (Optional) | 60 |
Miscellaneous
| Sleeps | up to 5 |
| Water Heater | Tankless |
| # of outside storage compartments | 3 |
| Furnace BTU | 20000 |
| Tire Size | ST205/75R14'D' |
2023 Jay Flight
Starting at $31,640
One of our longest running brands, the Jay Flight has been a family favorite for years. Part of Jay Flight’s lasting power is its superior construction. For example, the integrated A-frame and magnum truss roof system on all models. Unlike our competitors, it’s not just the bottom of the trailer being towed, but the entire frame, creating more stability and safety on the road. We also offer dark-tinted windows for your privacy and added safety.
