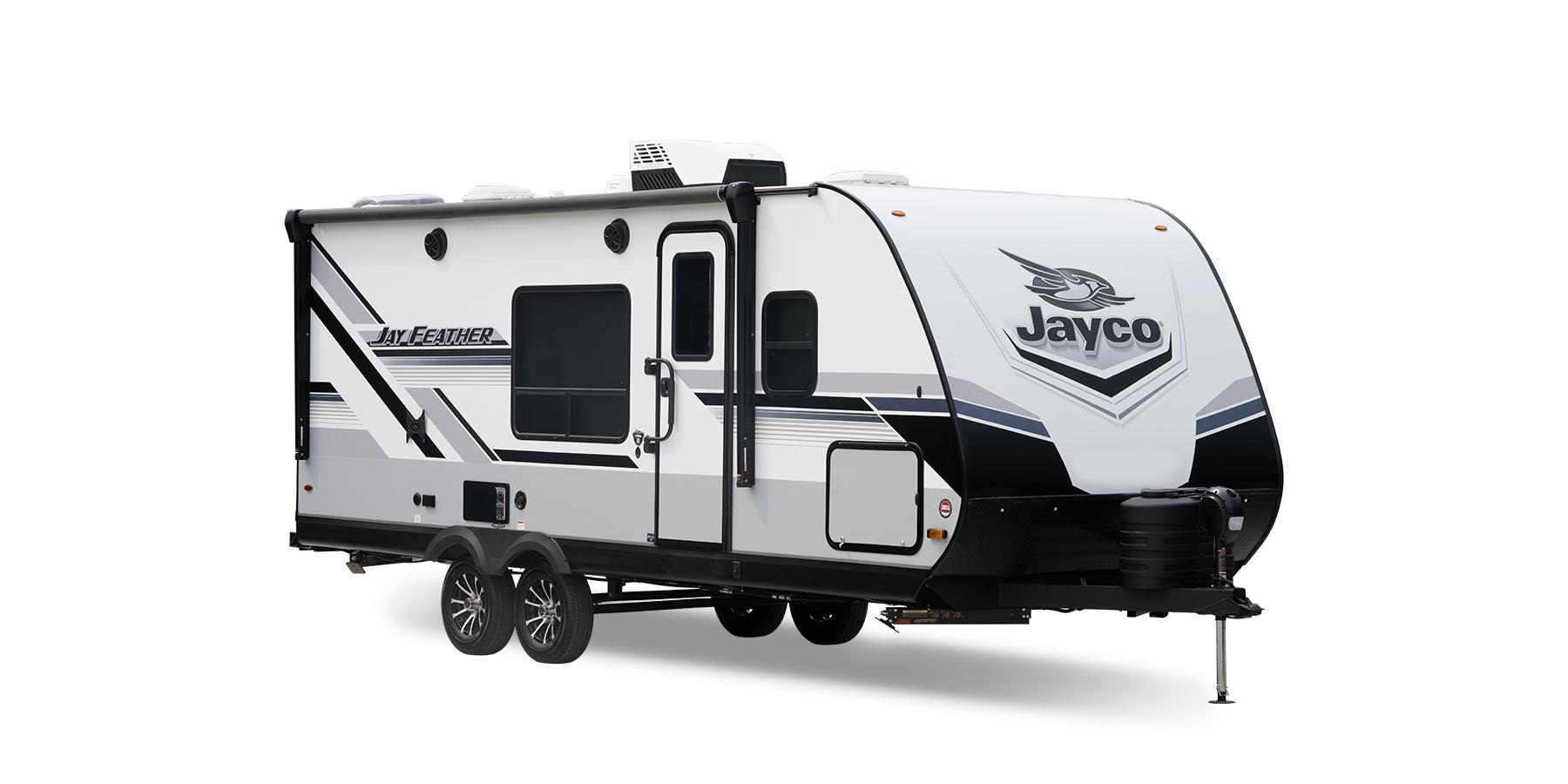

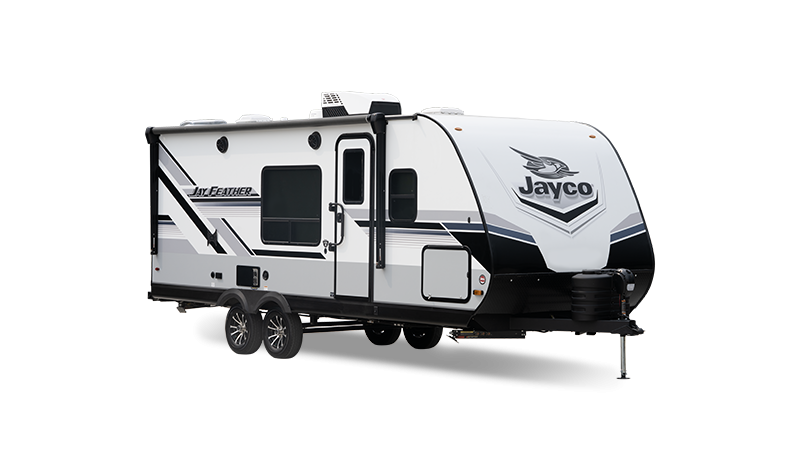

Jay Feather

2024 Jay Feather

The Jayco Jay Feather is up for adventure with Climate Shield ultimate weather protection tested from 0 -100° F. The Jay Feather is constructed with stronghold VBL™ with double-sided Azdel perimeter walls and a 2-inch vacuum-bond laminated floor. Beyond superior exterior construction, the Jay Feather offers excellent interior amenities, too. Inside you’ll find a 10-cubic-foot 12V fridge, a 32 or 39-inch smart LED TV, a 60- by 80-inch queen bed and a MaxxAir power roof vent.

Jay Feather

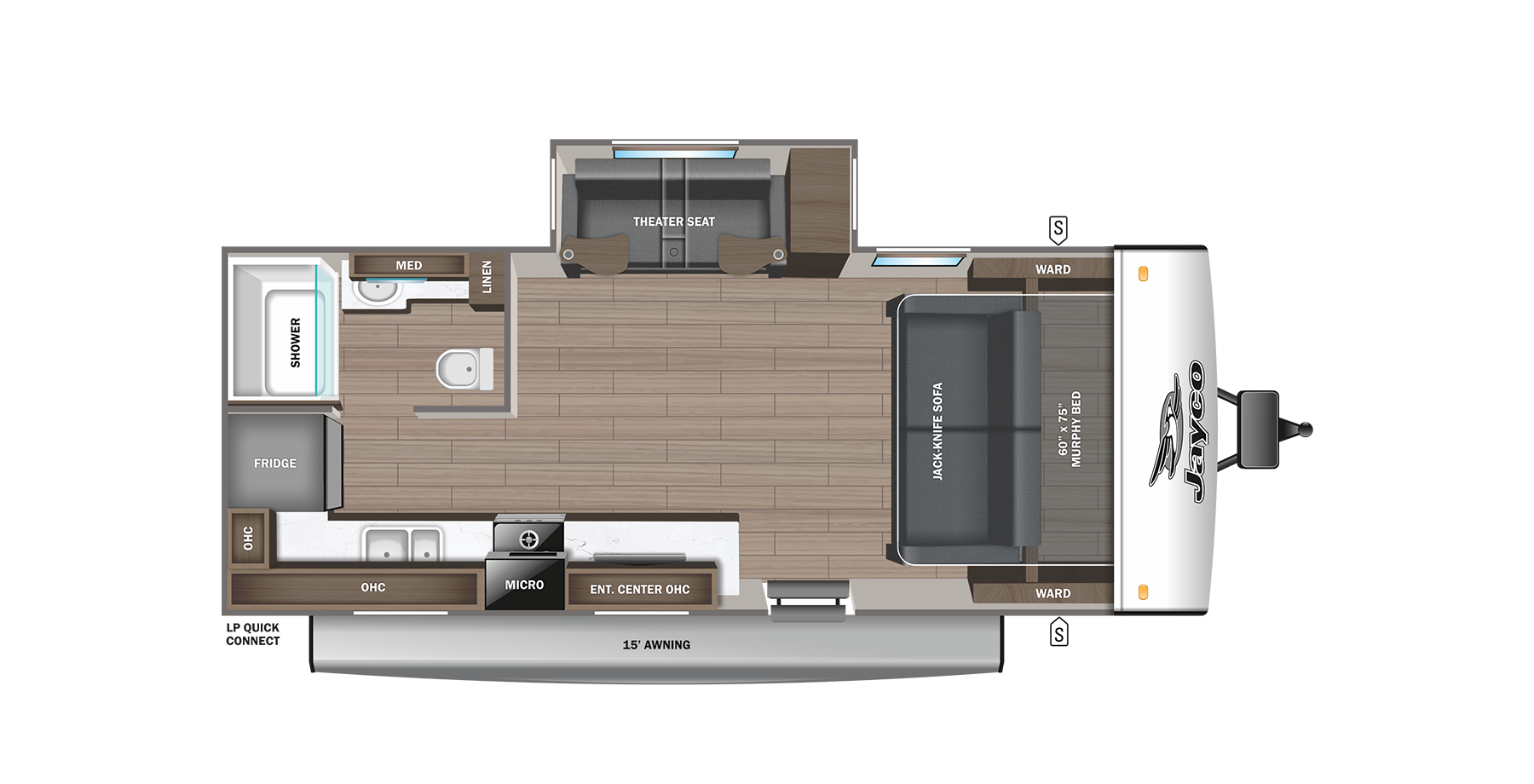

Jay Feather Floorplans and Prices

Sleeps up to 10
Length 24' 0" - 36' 1"
Weight 4,775 - 6,970 lbs.

Standard Features and Options

Standard Exterior Equipment

  • 1.5 in. fresh water drain valve
  • 2 in. Stronghold VBL™ floor with 2 lb. density foam
  • Aerodynamic, rounded front profile with aluminum framing
  • American-made Norco Z-frame with integrated A-frame
  • Automotive-style aluminum rims
  • Battery quick-disconnect
  • Bumper-mount bracket for 17 in. griddle (Select models)
  • Dark-tinted safety-glass windows
  • Exterior TV bracket with 120V and cable hook-ups
  • Factory installed rear roof ladder
  • Front molded decorative cap (select models)
  • Galvanized steel and impact resistant wheel wells
  • Keyed-Alike™ locking system
  • Magnum Truss™ Roof System
  • Marine grade exterior speakers with blue LED accent lighting
  • Mounted camera bracket for pre-wired side and rear back-up prep
  • Outdoor camp kitchen with galvanized steel bases (select models)
  • PVC roofing membrane (limited lifetime warranty)
  • Stronghold VBL™ walls with double-sided Azdel composite (sidewalls, rear walls and slide out boxes)
  • Swing-out entry door assist handle

Standard Interior Equipment

  • 4 in. high-density dinette cushions with vinyl backing
  • 4 in. Teddy Bear soft-touch bunk mats (select models)

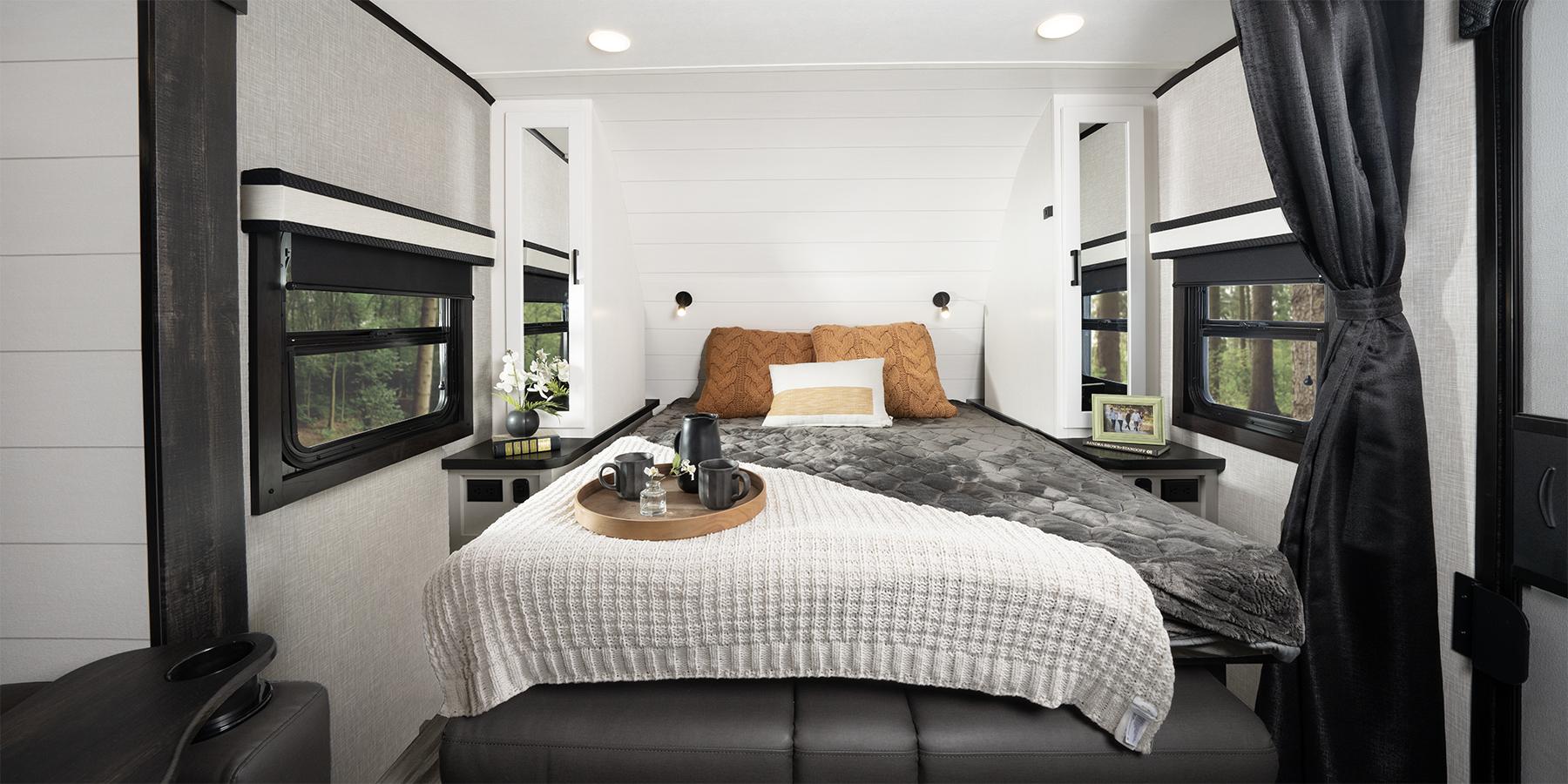

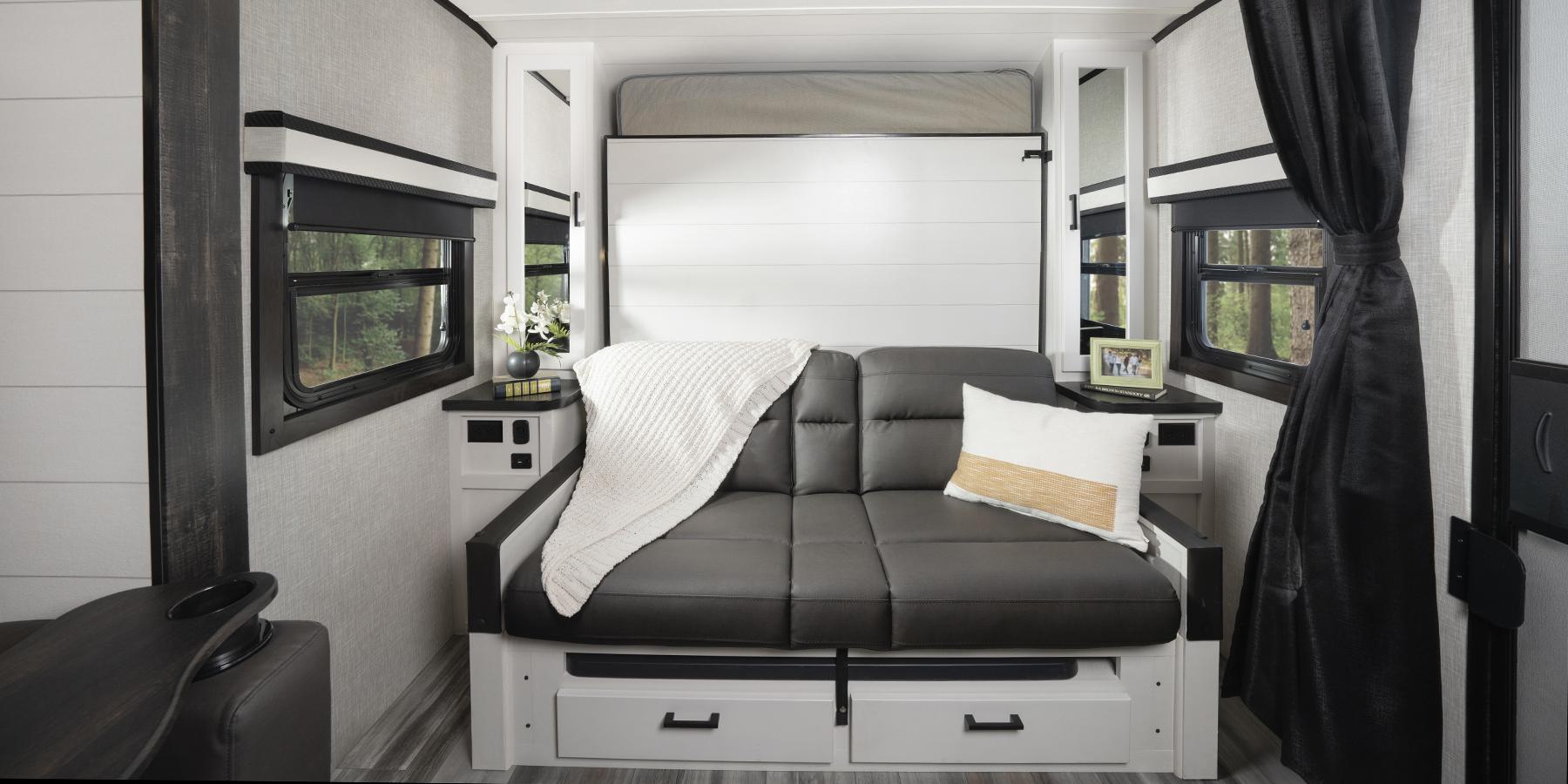

  • 60 x 80 in. residential queen beds (60 x 76 in. in Murphy bed models)
  • 75 lb. full extension drawer guides

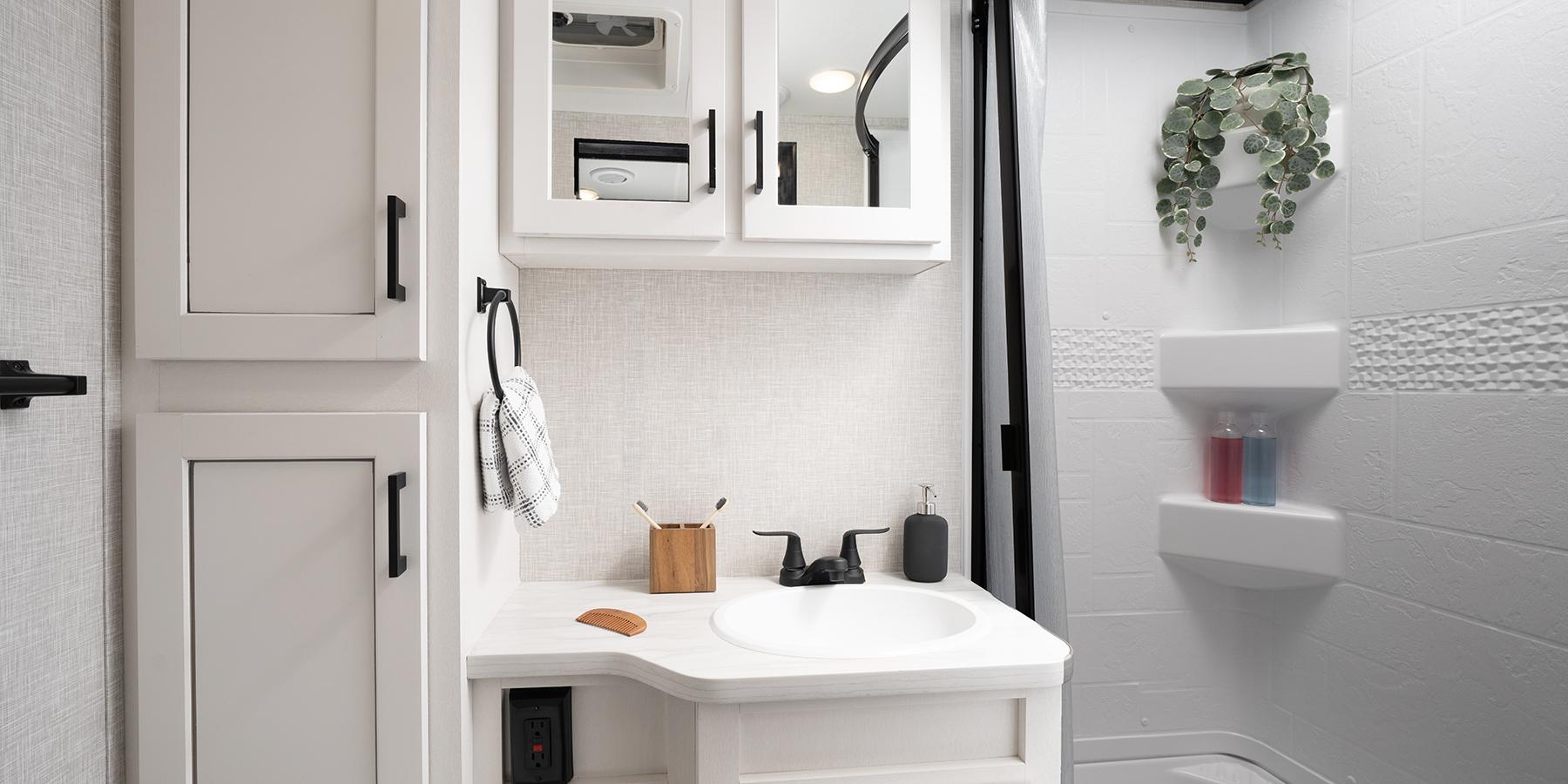

  • Bathroom skylight
  • Decorative backsplash
  • Decorative roller shades with reflective barrier
  • Directional and closeable A/C vents
  • Gas-strutted under bed storage (most models)
  • Handcrafted, hardwood door/drawer fronts
  • Hidden-hinged cabinet doors
  • High output auto-ignition LP gas furnace
  • LED lighting throughout
  • Plywood dinette, bed, bunk and shower/tub bases
  • Powered roof vents in bathroom and main bedroom (most models)

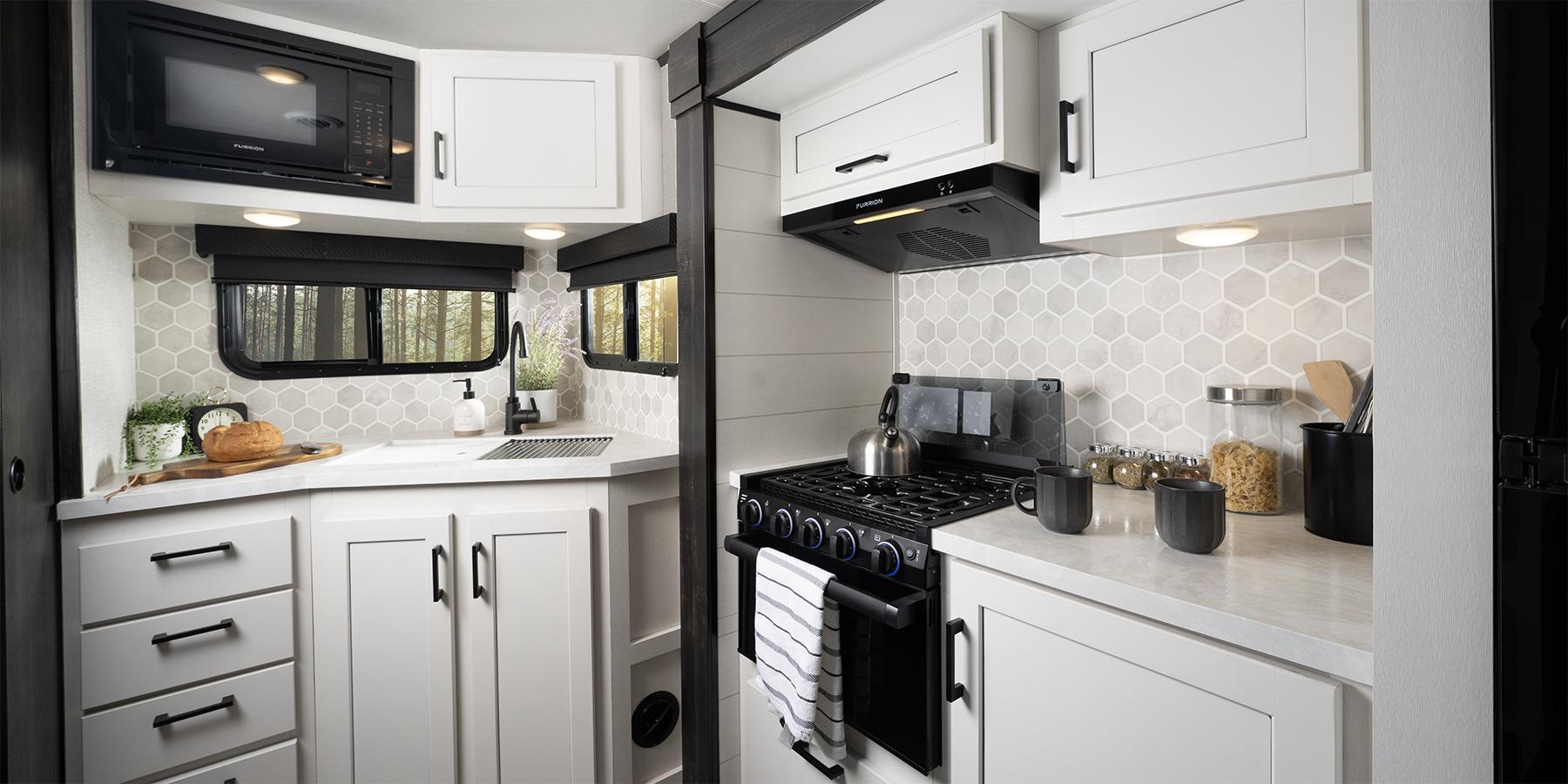

  • Residential style kitchen countertops
  • Residential vinyl flooring throughout
  • Screwed and glued cabinet stiles
  • USB charging ports (multiple locations throughout)

Customer Value Package (Mandatory)

  • 13,500 BTU roof-mounted A/C
  • 20 lb. LP gas bottles with auto-regulator and ABS cover
  • 55 gallon fresh water tank
  • AM/FM/Bluetooth stereo with roof-mounted speakers
  • Radial tires with self-adjusting electric brakes
  • Automotive-style aluminum rims
  • Black tank flush
  • Detachable power cord
  • Inverter pre-wire (2 bedroom nightstand outlets, main TV and outlet for outside kitchen fridge)
  • Max-length power awning with LED light
  • On-demand 60,000 BTU water heater
  • Outside shower
  • Power tongue jack
  • Rock Solid Stabilizer System
  • Side and rear back-up camera prep
  • Spare tire

Jay Sport Package (Mandatory)

  • 32 or 39 in. LED Smart TV
  • Climate Shield (zero to 100 degree tested weather insulation package)
  • Drying rack/sink cover
  • Dual-hinge 10 cu. ft. 12V fridge
  • LCI Solid Step fold-down aluminum tread steps on main entry door
  • MAXXAIR® power roof vent (main living area)
  • Modern graphics package with dual-colored sidewall
  • Overlander 1 Solar Package: (1) 200W solar panel and 30-amp digital controller

Options

  • 120V heated tank pads
  • 15,000 BTU A/C in place of 13,500 BTU A/C
  • 17 in. outside griddle (select models)
  • 30 lb. LP gas bottles with auto-regulator and ABS cover
  • 50-amp service with 2nd A/C prep
  • Electric fireplace (select models)
  • JAYCOMMAND® Smart RV System with TPMS
  • Overlander 2 Solar Package: (2) 200W solar panels, 30-amp digital controller and 1,800W inverter
  • Second 15,000 BTU A/C (select models, must have 50-amp service)



Standard Features
and Options

Jay Feather Videos

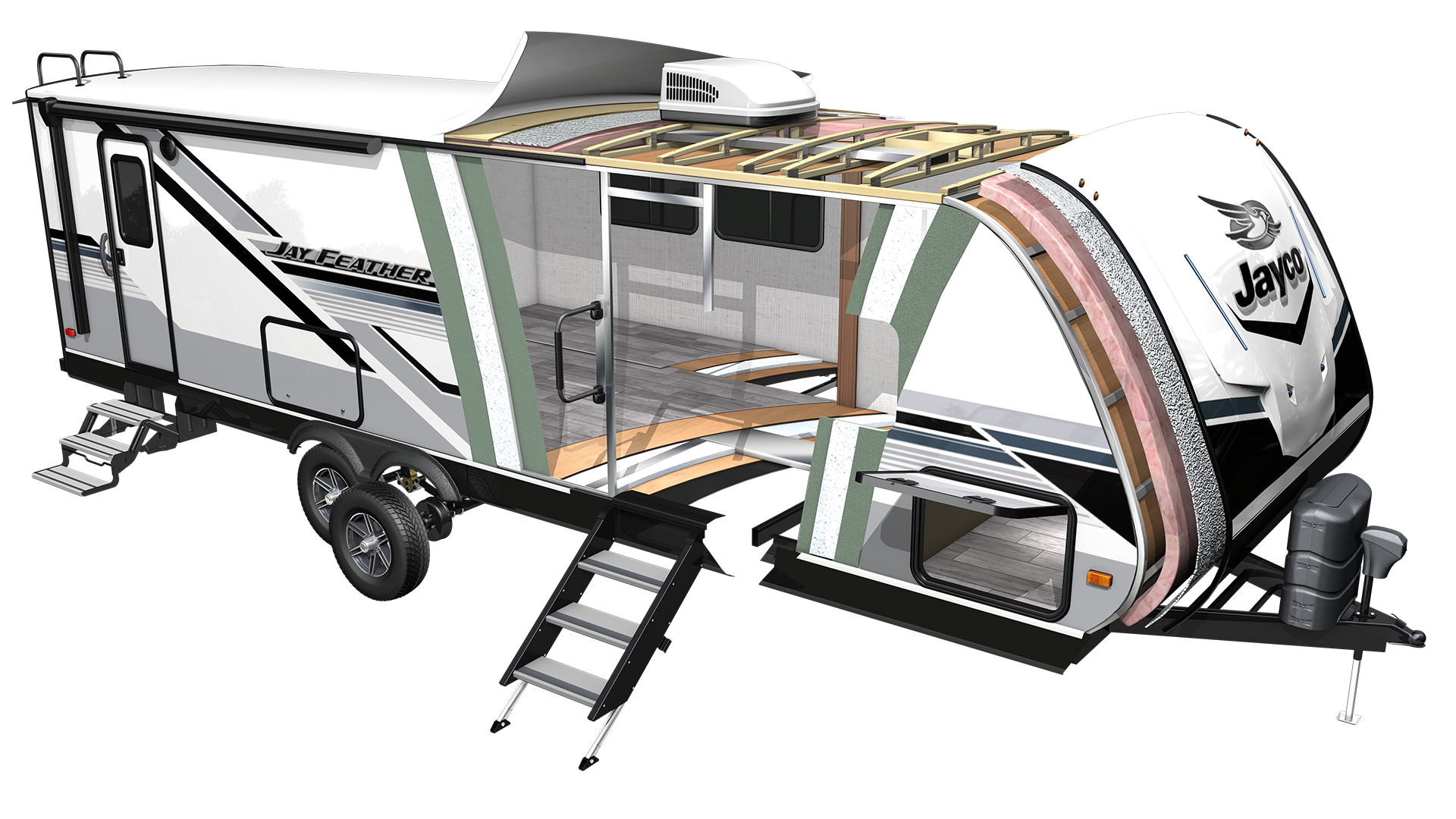

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention

The Magnum Truss™ Roof system is one of the strongest roofs in the industry. It's capable of withstanding 50 percent more weight- up to 4,500 lbs.- than the competition so that you can safely perform maintenance and avoid costly structure damage from debris, branches or snow.

Azdel composite material is vacuum-bond laminated to the interior and exterior side walls, rear walls and all slide room walls.

Jayco's exclusive Stronghold VBL™ (vacuum-bond lamination) wall construction process uses vacuum bonding to combine laminated fiberglass with welded aluminum framing, metal backers, decorative interior wall panels and fiberglass exterior siding. This super-durable structure was designed specifically for heavy use and travel while  still reducing weight.

Your RV needs a strong foundation built specifically for your floorplan. We build each trailer on a frame that has been specifically designed by our skilled team of engineers for its size and shape to better endure the wear and tear of the road. Our frames also include more outriggers and cross members for better support and structural integrity.

An integrated A-frame runs through the main frame, preventing the hitch from buckling like competing tack-welded frames can.
