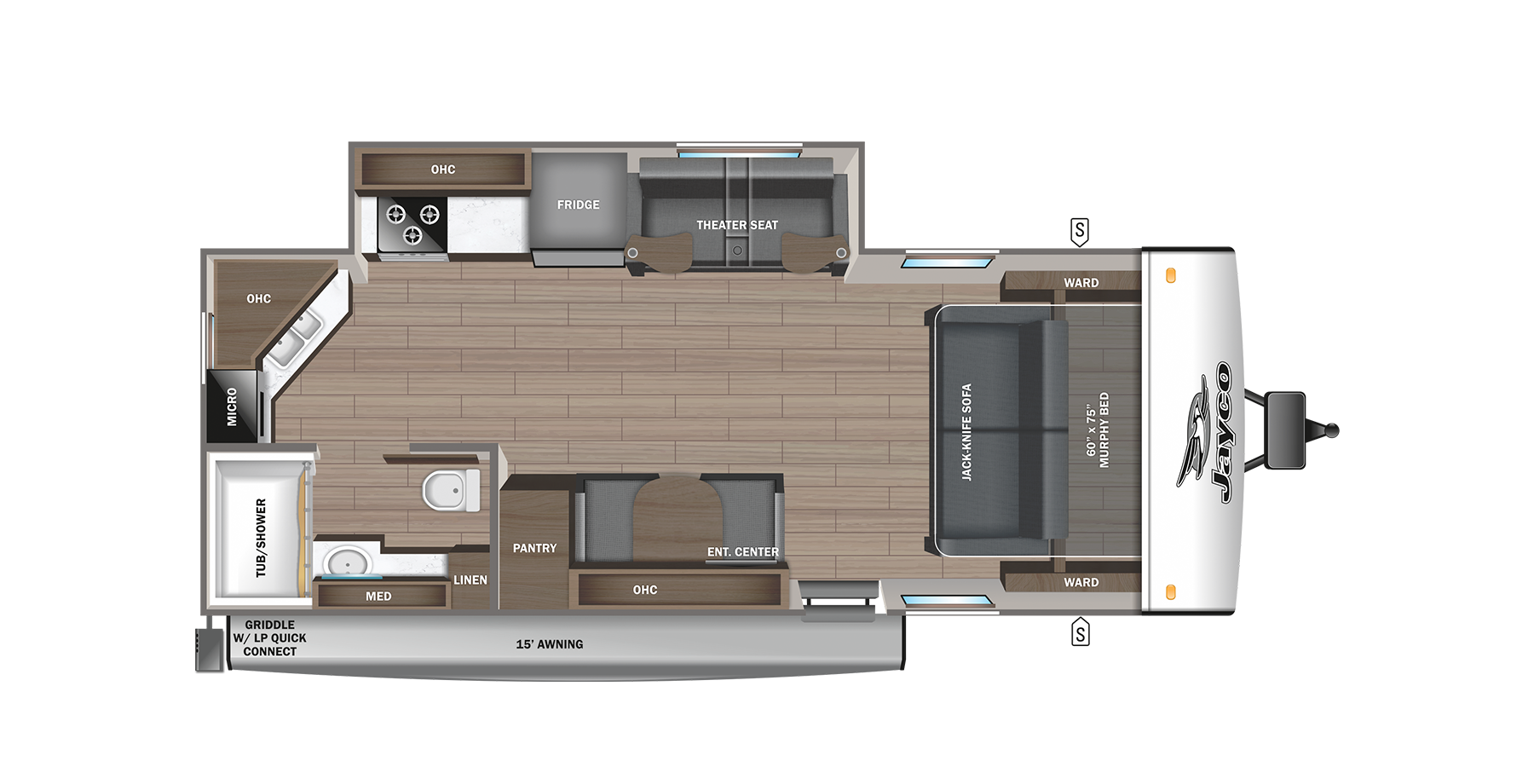

Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Specifications
Weights
| Dry Hitch Weight (lbs) | 535 |
| Unloaded Vehicle Weight (lbs) | 5,110 |
| Cargo Carrying Capacity (lbs) | 1,390 |
| Gross Vehicle Weight Rating (lbs) | 6,500 |
Measurements
| Exterior Length (overall) | 26' 0" |
| Exterior Height | 10' 1" |
| Exterior Height (with A/C) | 10' 8" |
| Exterior Width | 8' 0" |
| Exterior Width (with slides out) | 9' 10" |
| Interior Height (main) | 6' 6" |
| Awning Length | 15' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 55.0 |
| Gray Water Capacity (gals) | 30.5 |
| Black Tank Capacity (gals) | 30.5 |
| Propane Unit (lbs) | 40 |
| Propane Unit (lbs) (Optional) | 60 |
Miscellaneous
| Sleeps | up to 3 |
| Water Heater | Tankless |
| # of outside storage compartments | 2 |
| Furnace BTU | 35000 |
| Tire Size | ST205/75R14'D' |
2024 Jay Feather
Starting at $41,078
The Jayco Jay Feather is up for adventure with Climate Shield ultimate weather protection tested from 0 -100° F. The Jay Feather is constructed with stronghold VBL™ with double-sided Azdel perimeter walls and a 2-inch vacuum-bond laminated floor. Beyond superior exterior construction, the Jay Feather offers excellent interior amenities, too. Inside you’ll find a 10-cubic-foot 12V fridge, a 32 or 39-inch smart LED TV, a 60- by 80-inch queen bed and a MaxxAir power roof vent.
