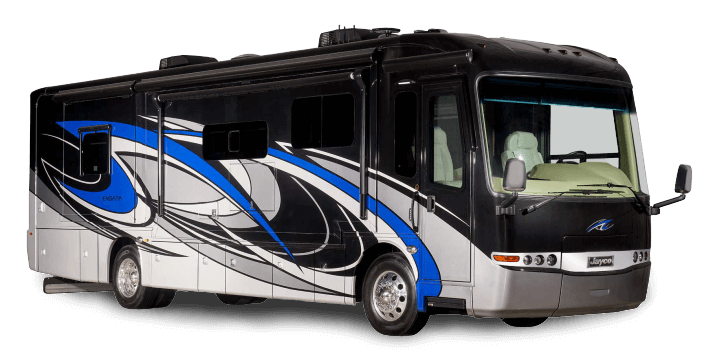

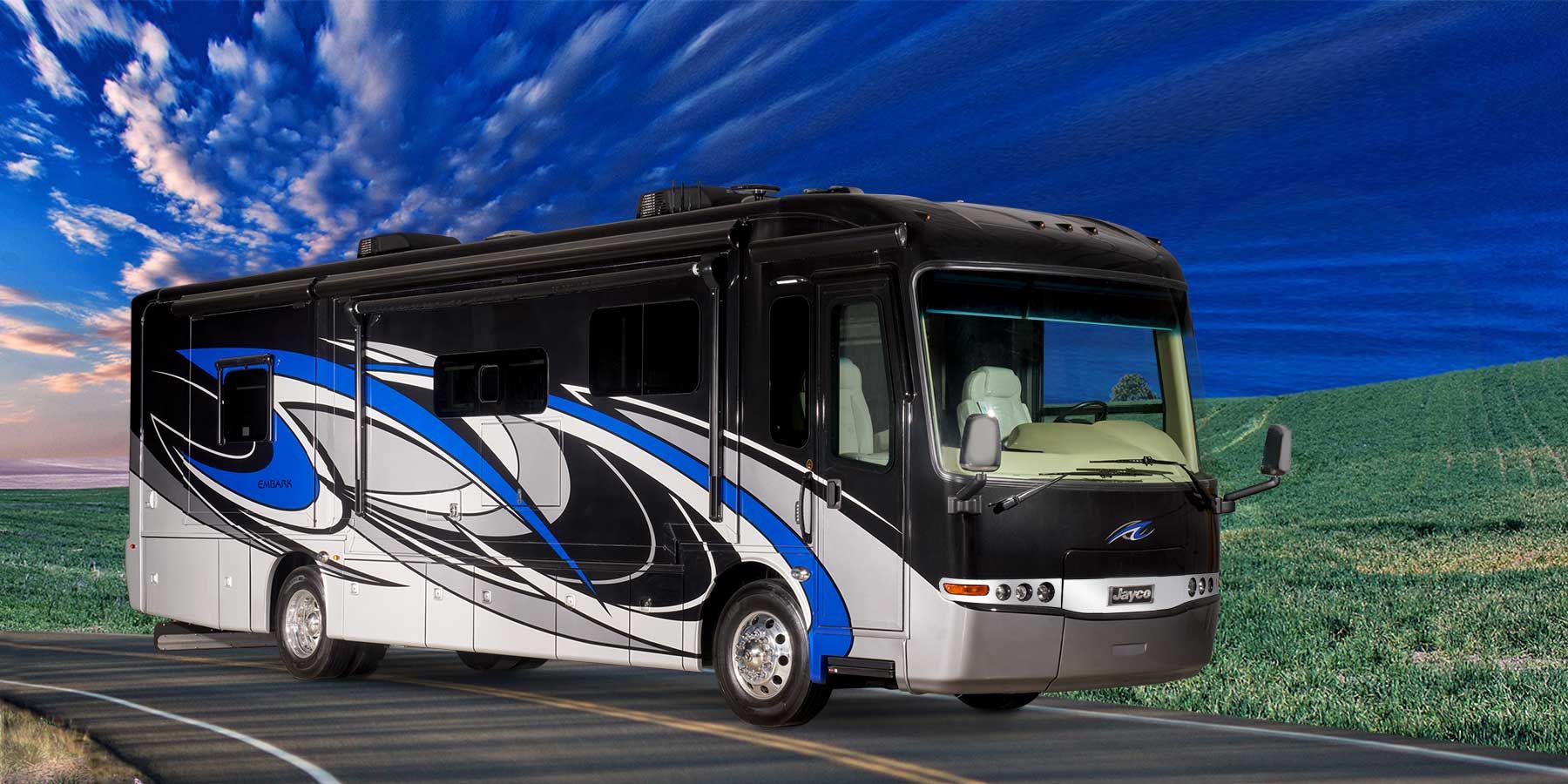

2021 Embark

Customer Value Package

• JRide® Premium: Full air brakes, full air suspension, independent front suspension (IFS), Bilstein^® shocks, Michelin^® XZE tires
• 8 KW diesel generator
• 2,000-watt inverter
• 15,000 BTU air conditioner with heat pump (2)
• Automatic leveling jacks
• Backup and side-view cameras
• Power awning with LED lights
• Exterior entertainment center with LED TV
• Solar shades

Standard Driving Equipment

• Spartan^® K1 raised-rail chassis
• Cummins^® B6.7 turbocharged 360 HP engine 800 lb. ft. torque at 1,800 RPM
• Allison^® 3000 MH 6-speed transmission
• Rear-mounted radiator
• 170-amp alternator
• 750-watt engine block heater
• Variable geometry turbo (VGT) engine brake
• Independent front air suspension (IFS) front axle- 12,600 lb. (37K) 14,320 lb. (39BH/39T2)
• Rear axle- 20,000 lb. (37K) 22,000 lb. (39BH/39T2)
• 4.88 rear axle ratio
• Michelin^®  275/80R 22.5” tires
• Tire pressure monitoring system (TPMS) with temperature monitoring
• Bilstein^® 46mm shocks
• Equalizer hydraulic automatic coach leveling
• Remote air connection
• (2) 12V chassis batteries
• 100-gal. fuel tank, driver side fill
• 10-gal. DEF tank, driver side fill
• 55-degree turning radius
• Spartan® Safehaul tow vehicle air brake system
• 10,000-lb. hitch with 7/4-pin plug

Standard Construction Equipment

• Roof- One-piece fiberglass with 3/8" plywood decking, 4" arched aluminum trusses, insulation and reflective Flexfoil^® (R-24)
• Sidewalls- Vacuum-bonded, high-gloss Gelcoat with R-8 bead-foam insulation
• Floors- Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurewood^® and 1/4" plywood
• X-Bridge™ bracing welded into chassis frame
• Heated basement storage
• Insulated front and rear caps (R-24)
• Electric-powered slideout rooms
• Steel-reinforced front cap and windshield frame

Heat, A/C, Power and Water Equipment

• Onan^® 8,000 watt diesel generator, with automatic start, on slide-out tray
• 2,000-watt pure sine wave inverter with 100 amp battery charger
• (2) L16 AGM batteries (6V/390 amp hrs. ea.)
• 50 amp power cord
• Surge protector transfer switch
• (3) 15,000 BTU A/C units with heat pumps [(2)15,000 BTU units with heat pumps on 37K]
• 35,000 BTU furnace (37K)/ (1) 20,000 and (1) 30,000 (39BH, 39T2)
• 10 gal. gas/electric water heater
• Fireplace (37K only)
• 24.5 gal. propane tank
• Sani-Con^® Macerator holding tank dump system with manual gate valves and manual backup
• Black holding tank sprayer
• City and tank water filtration system
• Winterizing drain system

Standard Exterior Equipment

• Power patio awning with LED lights
• Power entrance door awning with LED lights
• Slideout awnings
• Window awnings
• Frameless, dual-pane, tinted, safety-glass windows
• Grab handle with keypad system for keyless entry
• Exterior 39” LED TV on adjustable TV bracket
• Heated, remote control, side-view mirrors with integrated cameras
• Diamond Shield™ front protective film mask
• Halogen high/low beam headlights and fog lights
• Daytime running lights
• LED marker lights, turn lights, license plate light, accent lights, & docking lights
• Full-width rear mudflap
• Winegard^® TRAV'LER satellite dish DIRECTV^®- standard with USA option
• Winegard^® TRAV'LER satellite dish Shaw TV- standard with CSA option
• Winegard^® Rayzar Z1 TV antenna
• Winegard^® WIFI extender with 4G/LTE
• Slideout basement storage tray
• Solar power prep
• Exterior utility center
• Sikkens custom full body paint
• LED third brake light

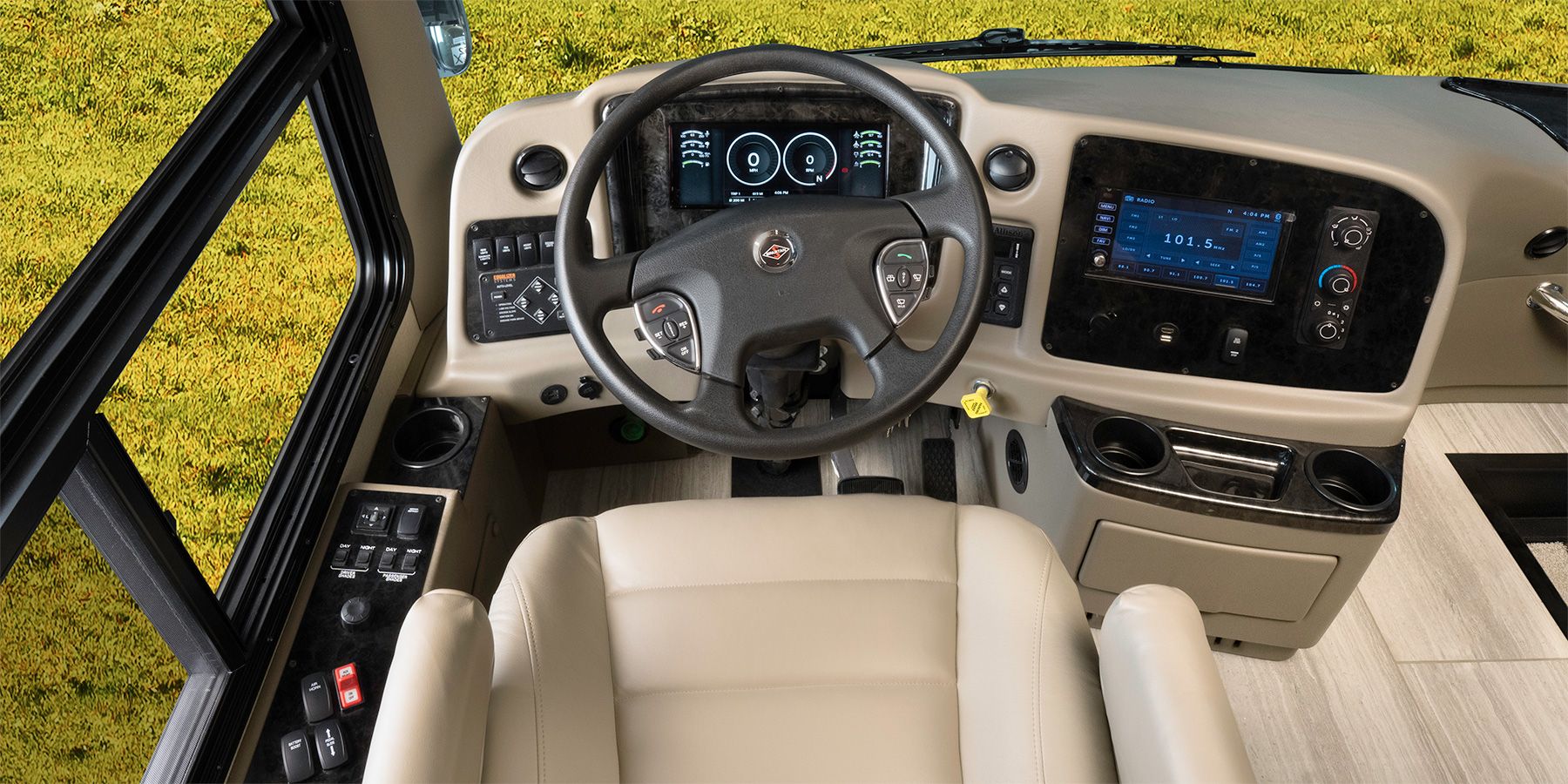

Standard Cockpit Amenities

• Xite™ 360° camera system that displays on digital dash screen
• Valid 12.3" digital dash with quad-core graphics processor with the ability to display onboard diagnostics, traditional instrument cluster, 360° camera system or Rand McNally™ GPS navigation.
• Xite™ XSG3 infotainment system with navigation, Bluetooth, Sirius XM and AM/FM tuner
• Ultra-Vision^® one-piece wrap-around tinted windshield
• Tilt and telescoping steering wheel with integrated controls for cruise, wipers, radio controls and Bluetooth phone functionality
• Power adjustable driver and passenger seats
• Powered flush stepwell cover
• Powered front sun visors and privacy shade
• Power adjustable brake and accelerator pedals
• Wrapped dash with molded side consoles
• (2) dual USB ports and (2) 12V socket for charging

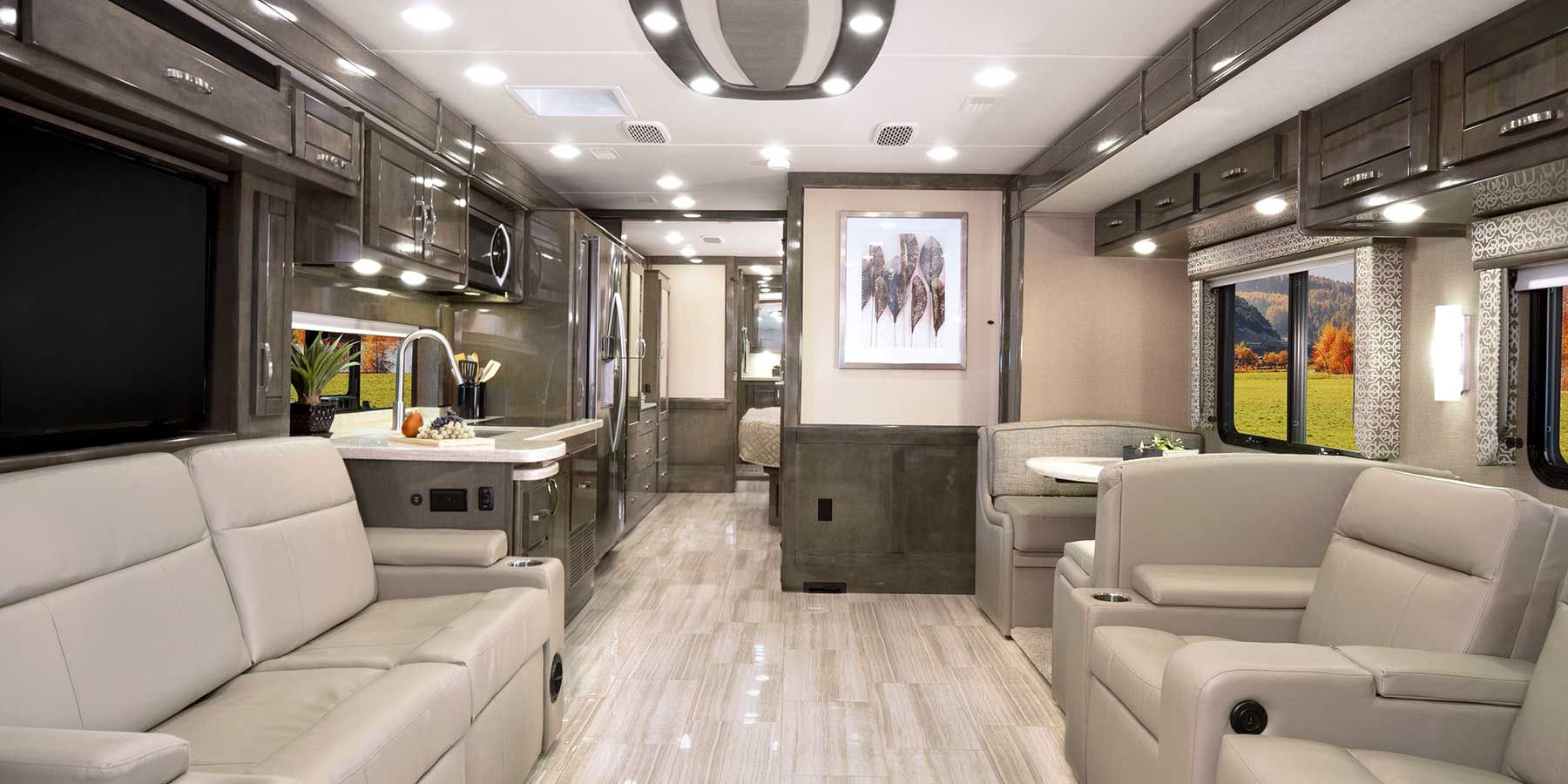

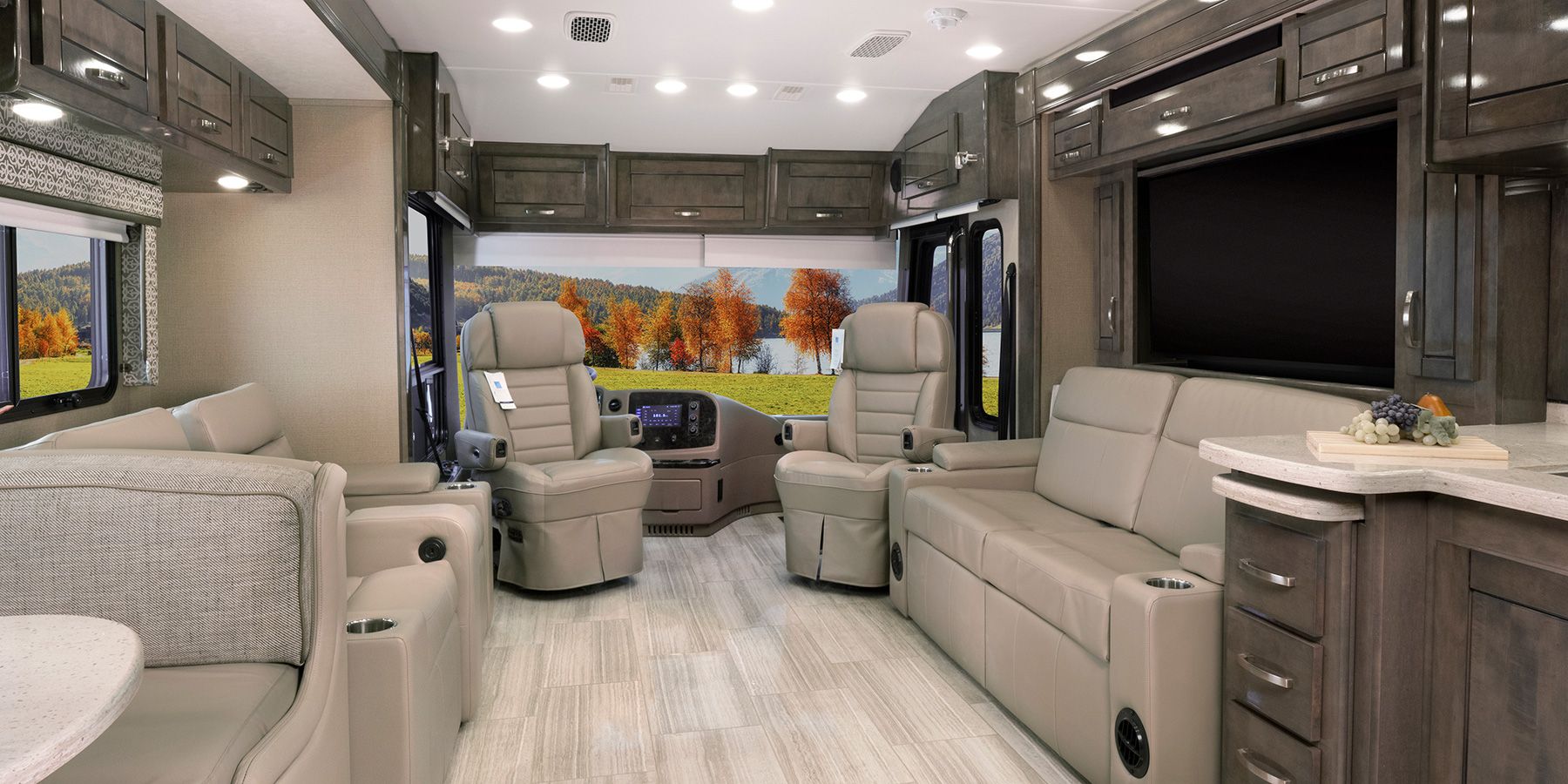

Standard Interior Equipment

• JAYCOMMAND™ powered by VegaTouch (mobile app available)
• Sony^® Blu-Ray^® player
• 50” Insignia™ LED TV
• Insignia™ soundbar

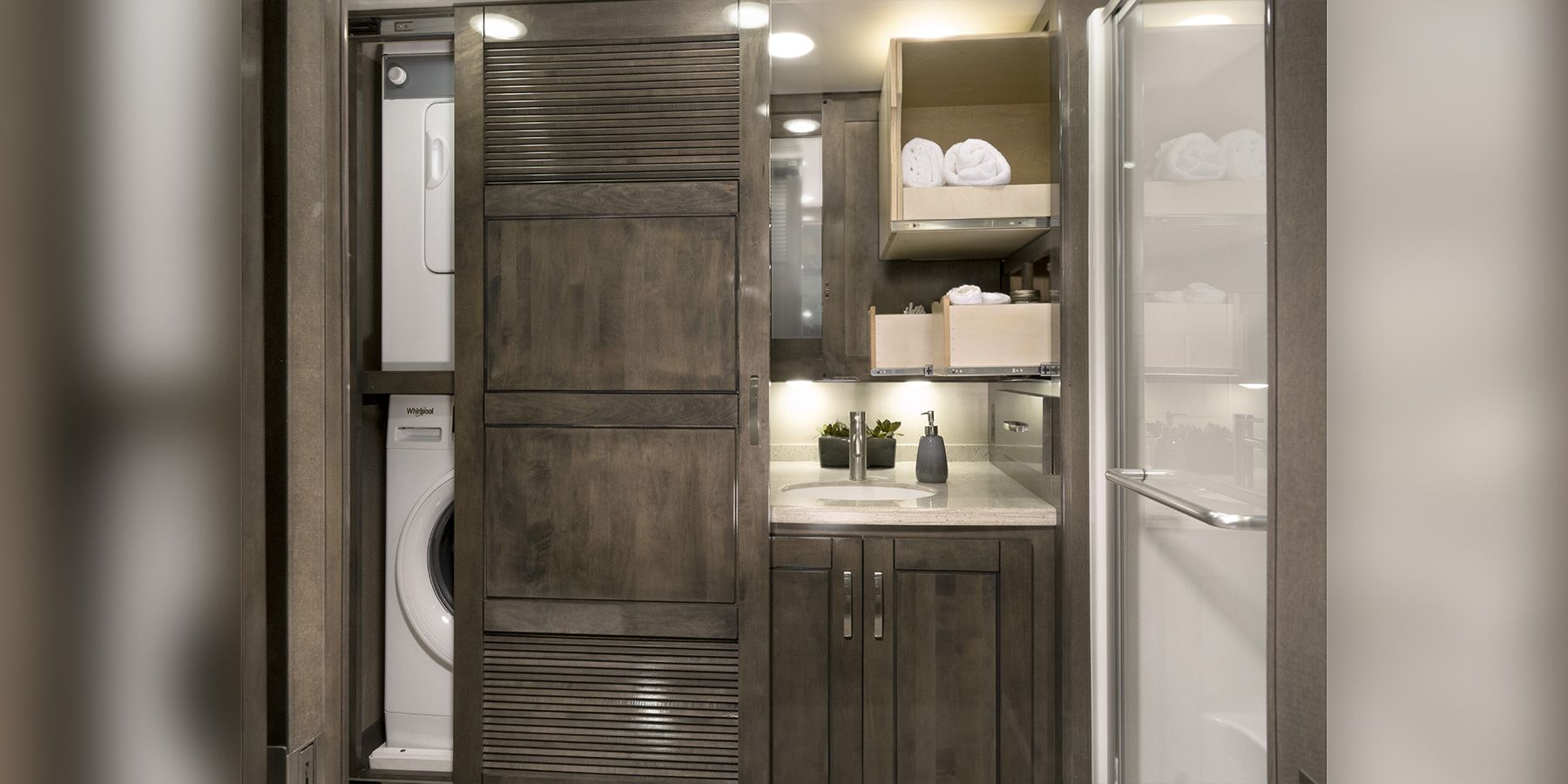

• Whirlpool^® stacked washer and dryer
• Flexsteel^® furniture
• Hand-laid  polished porcelain floor tiles
• Recessed, 12V, LED lighting
• Decorative ceiling feature with integrated accent lighting
• Manual solar day shades and blackout nightshades
• Central vacuum system
• Removable screen on entry door

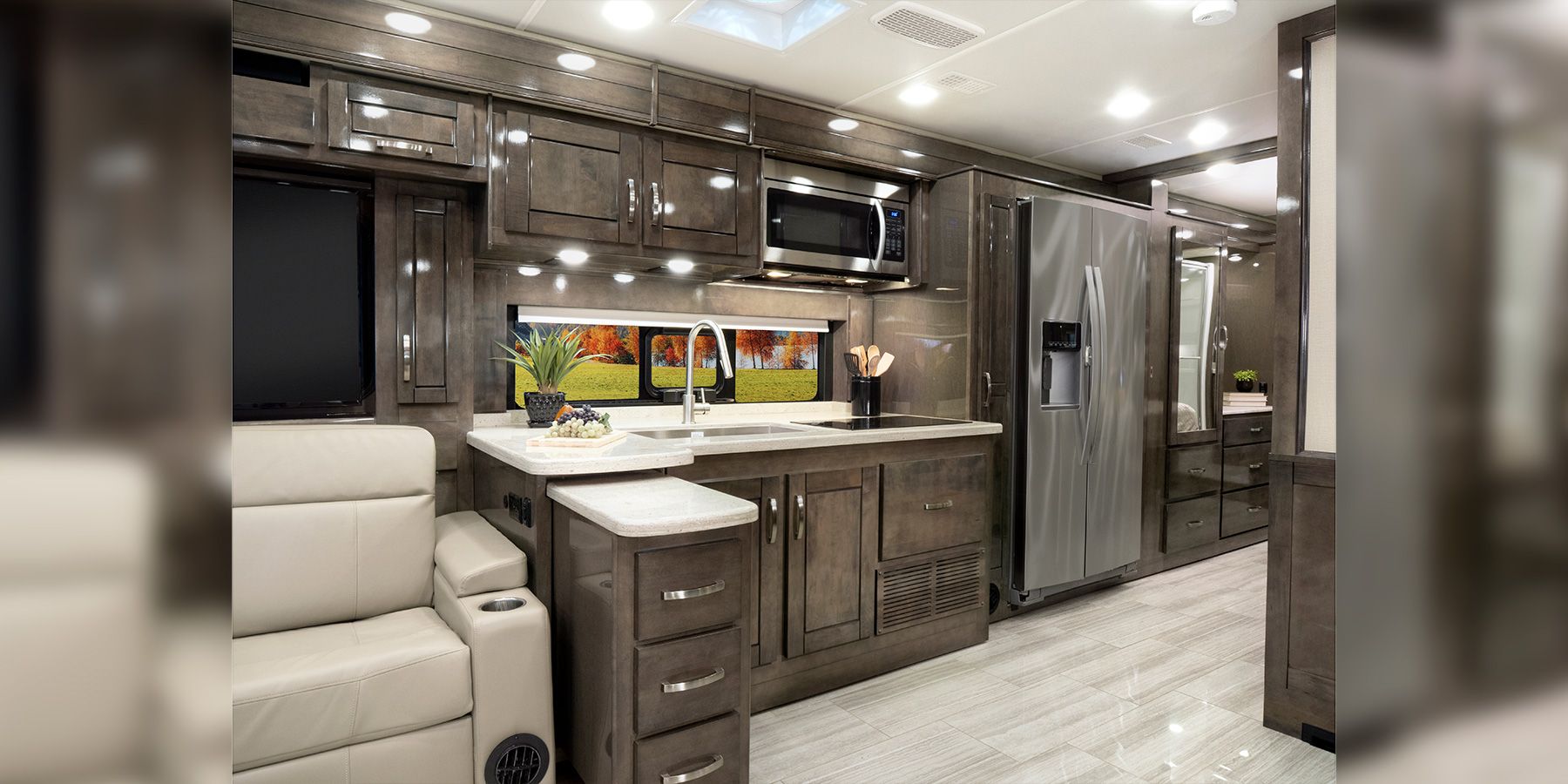

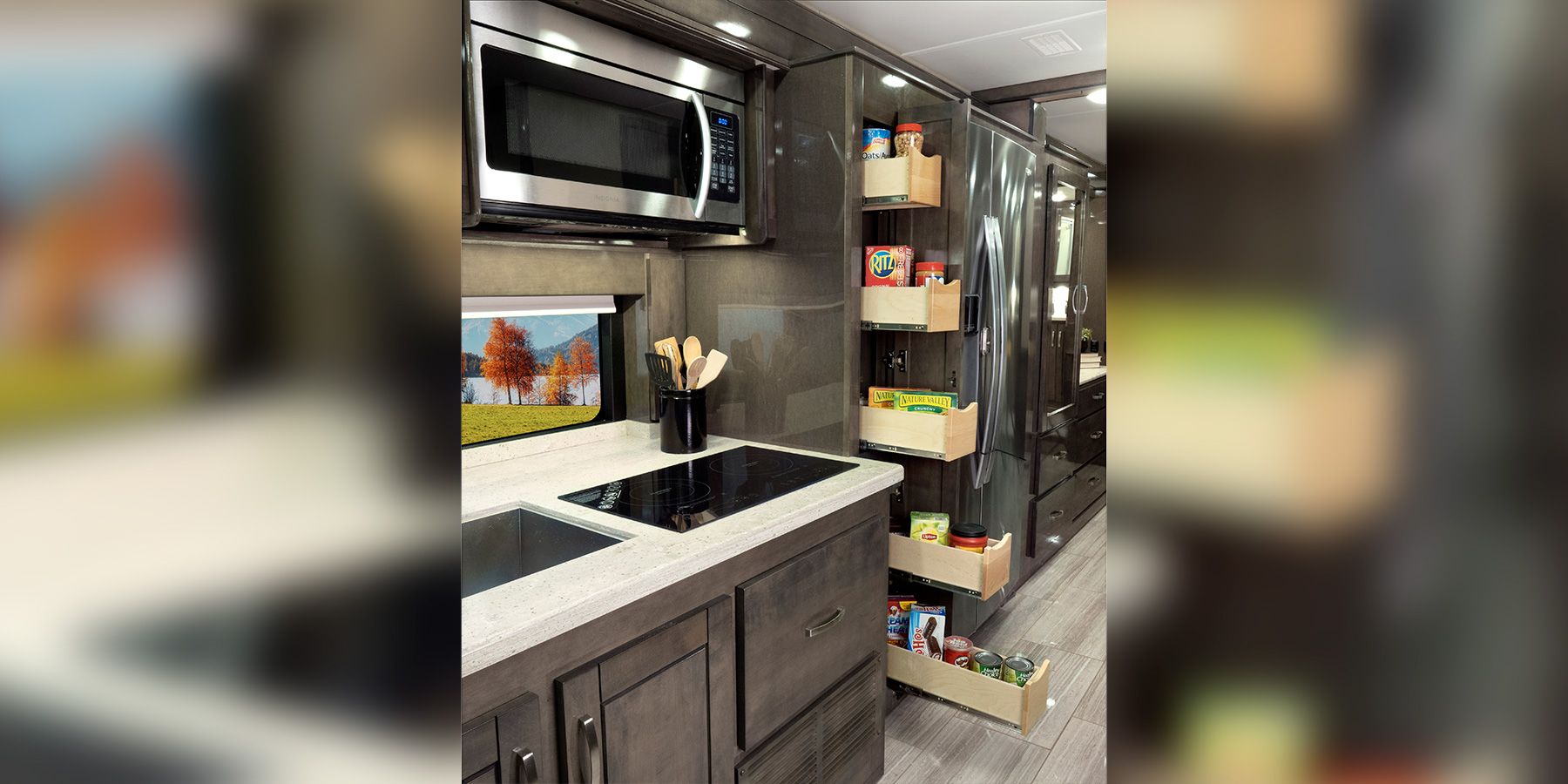

Standard Kitchen Equipment

• Window with slider and screen
• Whirlpool^® stainless steel residential refrigerator with ice maker and water dispenser
• Induction cooktop
• 1.5 cu. ft. convection microwave oven
• Solid surface countertops with stainless steel sink
• Fan-Tastic power exhaust fan with intake

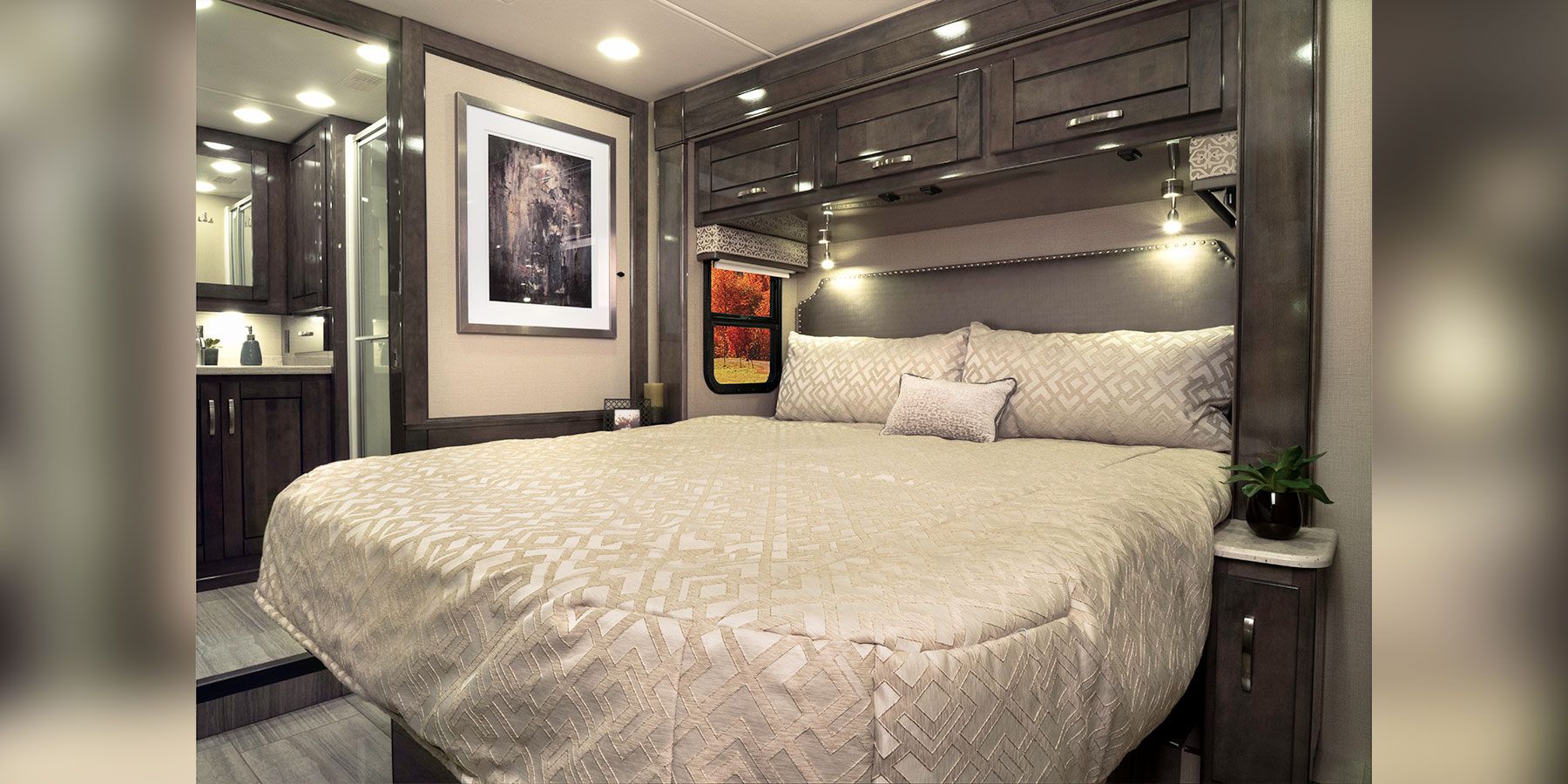

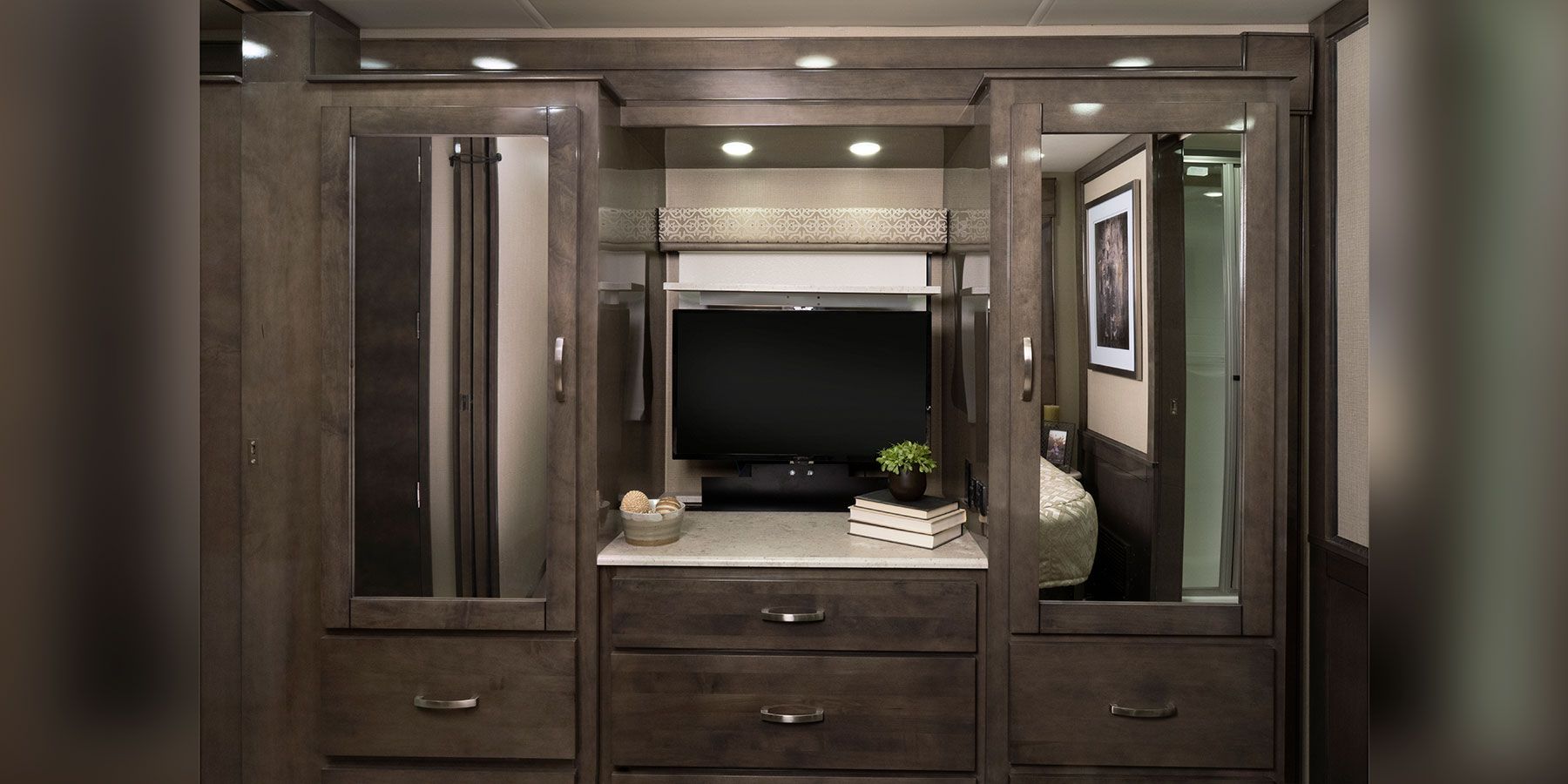

Standard Bedroom Equipment

• King-sized pillow top mattress on tilt bed
• 32” Insignia™ LED TV
• Sony^® Blu-Ray^® player

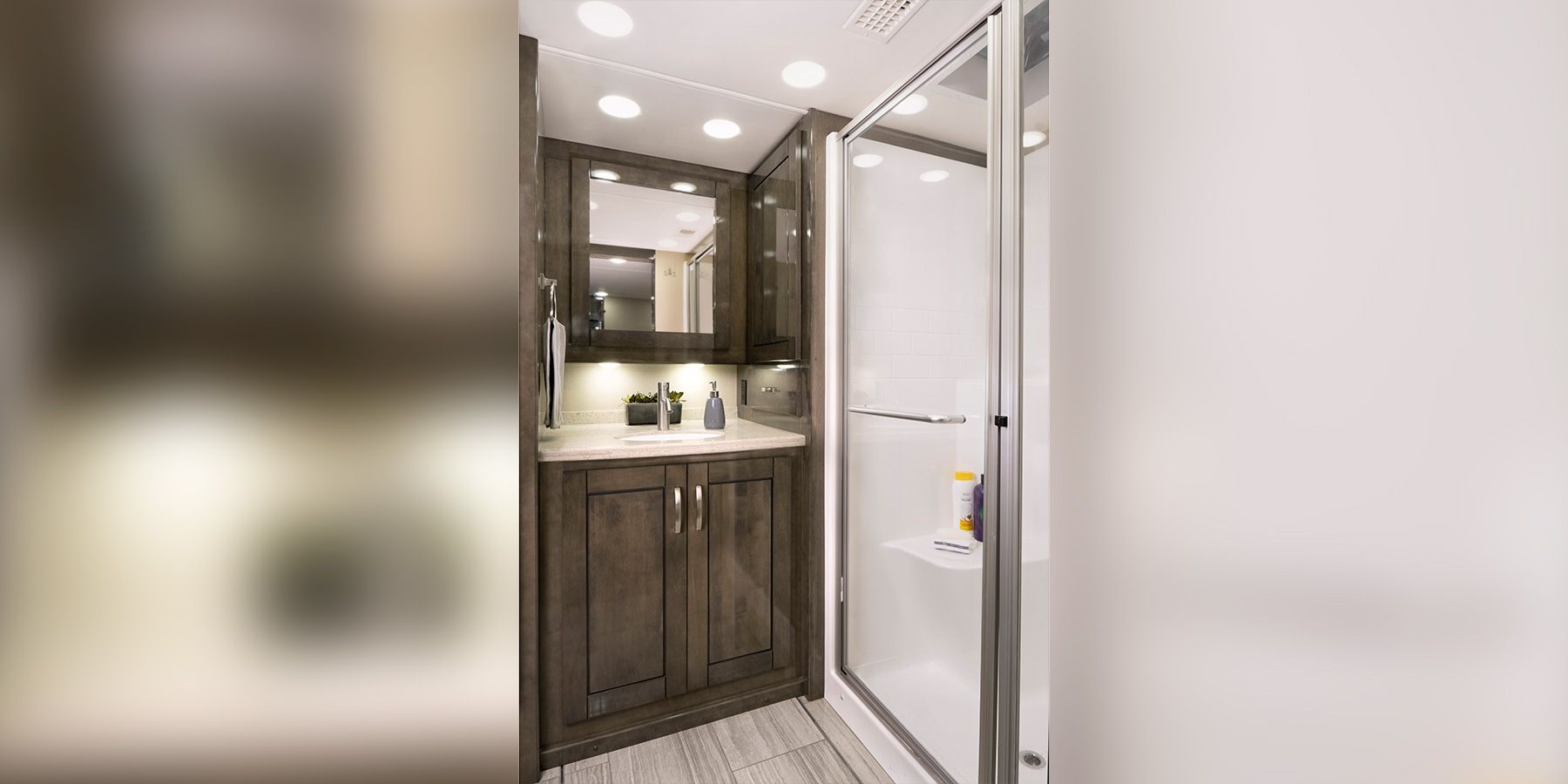

Standard Bathroom Equipment

• Solid surface countertops with integrated sink
• One-piece fiberglass shower with skylight
• Aqua View Showermiser water-saving system
• Thetford^® Aqua Magic toilet with foot flush
• Fan-Tastic power exhaust fan with intake

Standard Safety Equipment

• Combination carbon monoxide detector and LP gas alarm
• Porchlight
• Smoke alarm
