2022 Embark

Standard Driving Equipment

• Spartan® K1 raised-rail chassis
• Cummins® B6.7 turbocharged 360-HP engine with 800-lb. ft. torque at 1,800 RPM
• Allison® 3,000 MH 6-speed transmission
• Rear-mounted radiator
• 170-amp alternator
• 750-watt engine block heater
• Variable geometry turbo (VGT) engine brake
• Independent front air suspension (IFS) front axle- 12,600 lb. (37K) 14,320 lb. (39BH/39T2)
• Rear axle - 20,000 lb. (37K) 22,000 lb (39BH/39T2)
• 4.88 rear axle ratio
• Michelin® 275/80R 22.5” tires
• Bilstein® 46mm shocks
• Tire pressure monitoring system (TPMS) with temperature monitoring
• Equalizer™ hydraulic automatic coach leveling
• Remote air connection
• (2) 12V chassis batteries
• 100-gal. fuel tank
• 10-gal. DEF tank
• Spartan® Safehaul tow vehicle air brake system
• 10,000-lb. hitch with 7-pin plug
• Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door
• Black holding tank sprayer
• City and tank water filtration system
• Winterizing drain system

Standard Exterior Equipment

• Roof: One-piece fiberglass with 3/8" plywood decking, 4" arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
• Sidewalls: Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
• Floors: Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurwood® and 1/4" plywood
• X-Bridge™ bracing welded into chassis frame
• Heated basement storage
• Insulated front and rear caps (R-24)
• Steel-reinforced front cap and windshield frame
• Electric-powered slideout rooms
• Carefree® power patio awning with LED lights
• Carefree® power entrance door awning with LED lights
• Carefree® slideout awnings
• Carefree® window awnings
• Frameless, dual-pane, tinted, safety-glass windows
• Grab handle and keypad system for keyless entry
• 43” Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment
• JBL radio and speakers with USB port and receptacle
• Heated, remote-control, side-view mirrors with integrated cameras
• Diamond Shield™ front protective film mask
• Halogen high and low beam headlights and fog lights
• Daytime running lights
• LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
• Porch light
• Mudflap with chrome “Entegra” nameplate
• Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
• Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
• Winegard® Rayzar Z1 TV antenna
• Winegard® WiFi extender with 4G/LTE
• Solar power prep
• Exterior utility center
• Slideout basement storage tray
• Sikkens custom full-body paint
• Onan® 8,000-watt diesel generator, with automatic start, on slide-out tray
• 2,000-watt pure sine wave inverter with 100-amp battery charger
• (2) L16 AGM batteries (6V/390 amp hrs. ea.)
• 50-amp power cord
• Automatic transfer switch with surge protection
• 24.5-gal. propane tank
• Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door
• Black holding tank sprayer
• City and tank water filtration system
• Winterizing drain system

Standard Interior Equipment

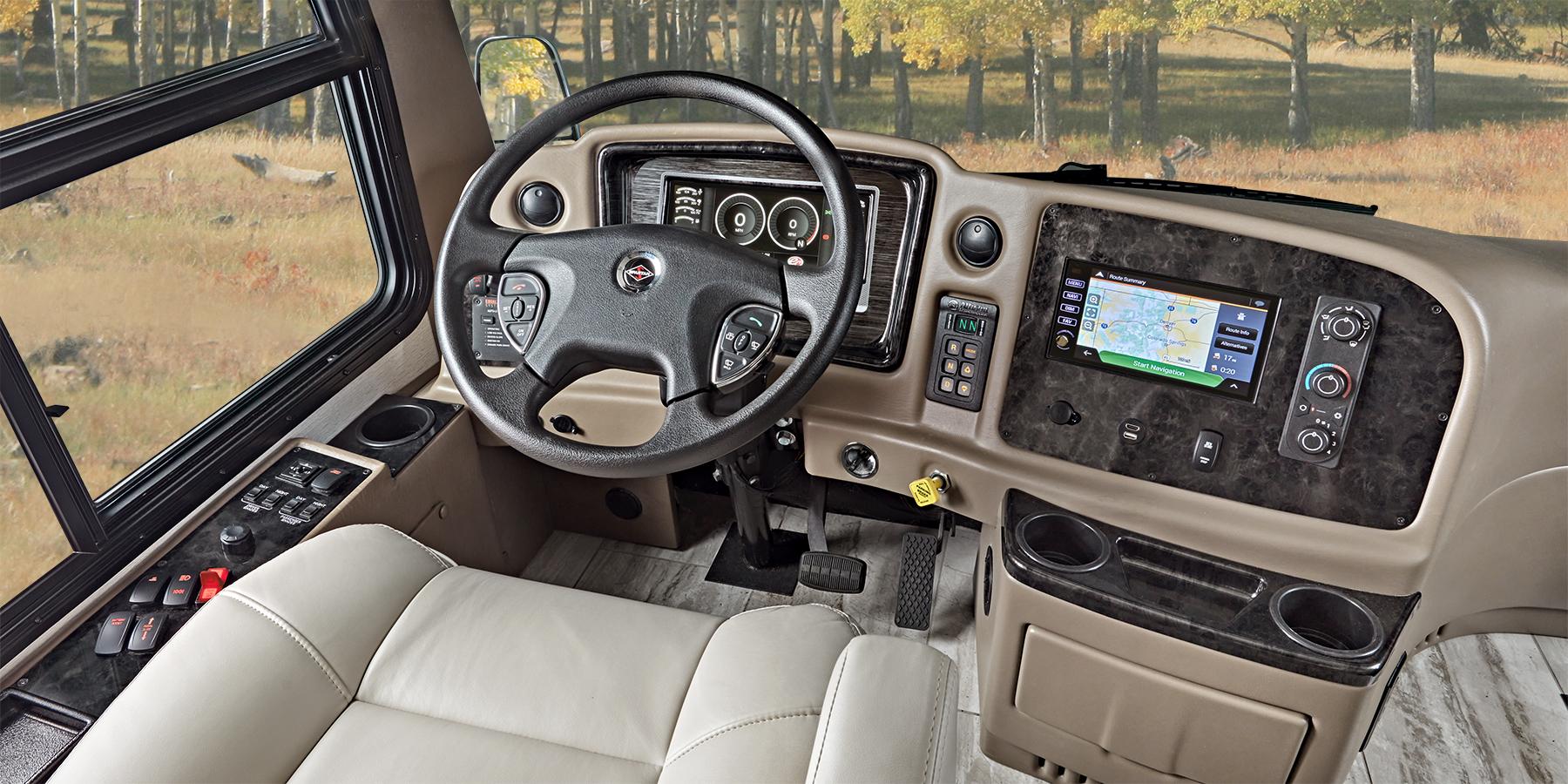

• Valid 12.3" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instument cluster, 360° camera system or GPS navigation
• Xite™ 360° HD digital camera system
• Xite™ XSG4 infotainment system with 9" touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
• Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality
• Manual tilt and telescoping steering column
• Ultra-Vision® one-piece wrap-around tinted windshield
• 6-way power adjustable driver and passenger seats
• Powered flush stepwell cover
• Powered adjustable brake and accelerator pedals
• Powered front sun visors and privacy shades
• (2) dual USB ports and (2) 12V sockets for charging
• JAYCOMMAND® powered by Firefly with 7” VegaTouch touchscreen for complete integration of coach controls (mobile app available)
• (3) 15,000-BTU A/C units with heat pumps [(2) 15,000-BTU units with heat pumps on 37K]
• 35,000-BTU furnace (37K) / (1) 20,000 and (1) 30,000 (39BH, 39T2)
• Tankless gas water heater
• LED-lit fireplace with 5,000-BTU heating element (37K only)
• 50” Samsung® 4K UHD Smart TV
• Samsung® sound bar with subwoofer
• Sony® Blu-ray™ player
• Premium furniture
• Hand-laid porcelain tiled floors
• LED interior lighting
• Decorative ceiling feature with integrated accent lighting
• Manual solar day shades and blackout night shades
• Central vacuum system
• Removable screen on entry door
• Window with slider and screen

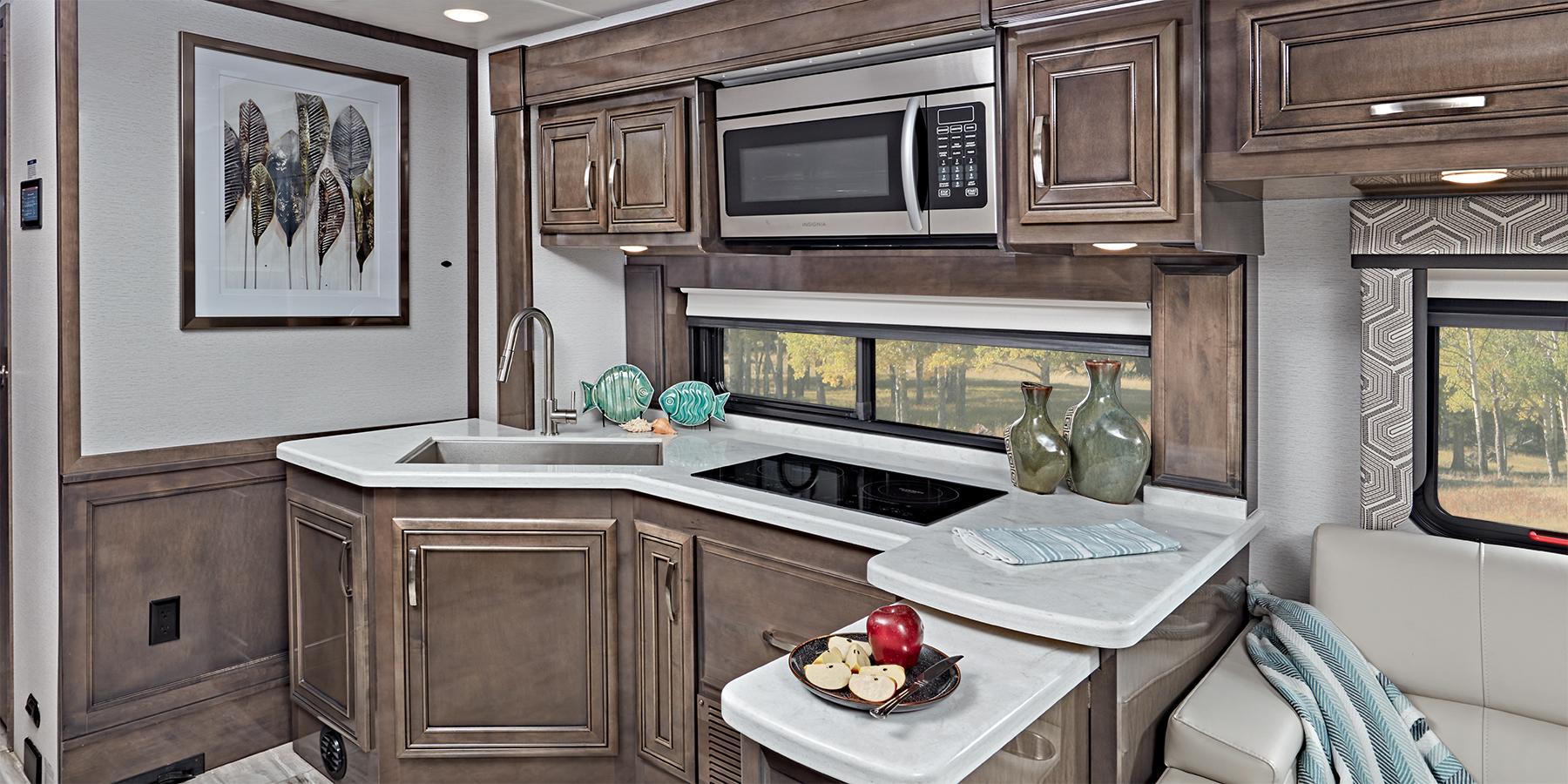

• Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser
• Induction cooktop
• 1.5-cu. ft. convection microwave oven
• Solid-surface countertops with stainless steel sink
• Fan-Tastic power exhaust fan with intake

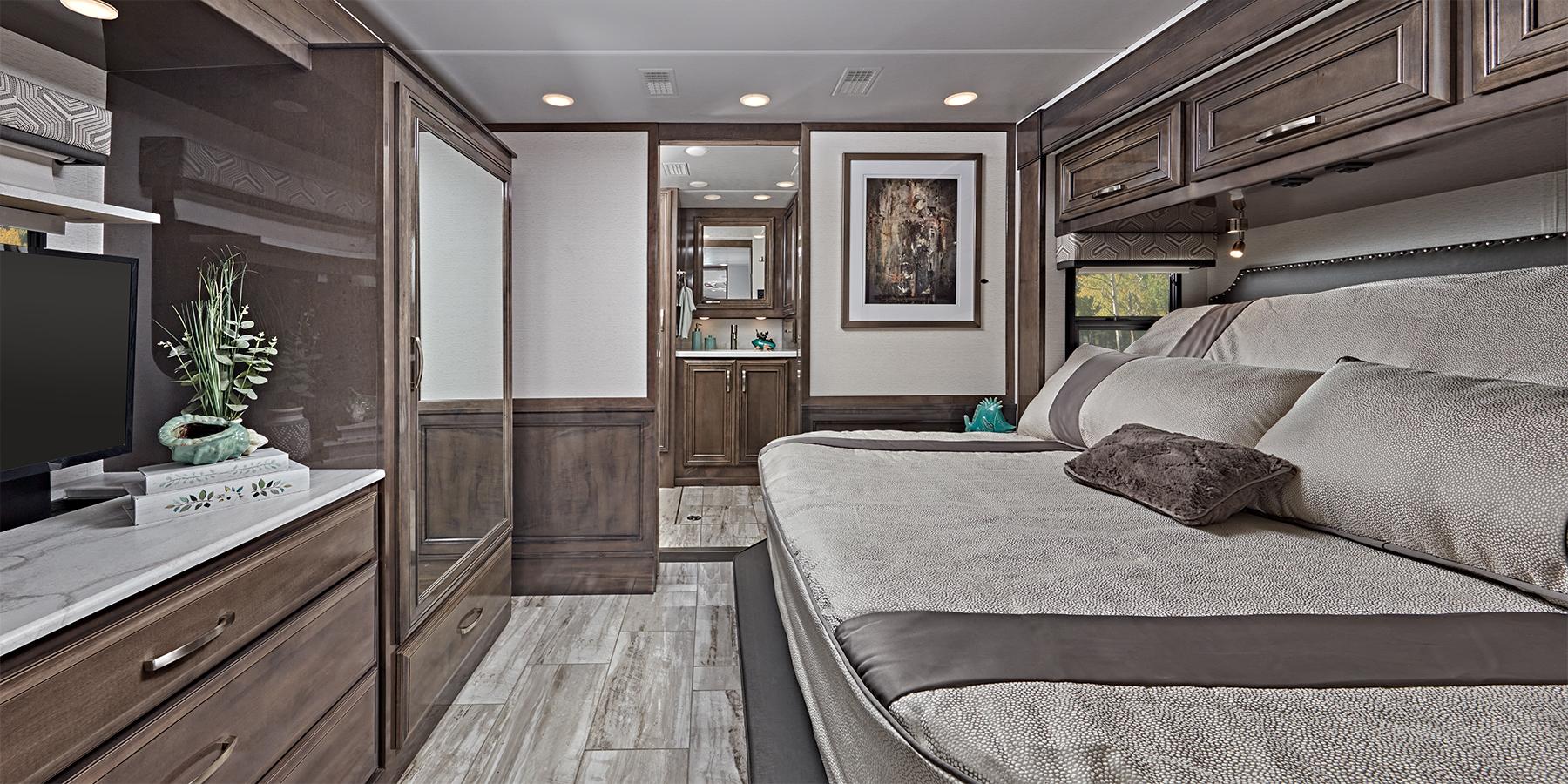

• King-size pillow-top mattress on tilt bed
• 32" Samsung® LED 1080P Smart TV
• Sony® Blu-ray™ player
• Solid-surface countertops with integrated sink

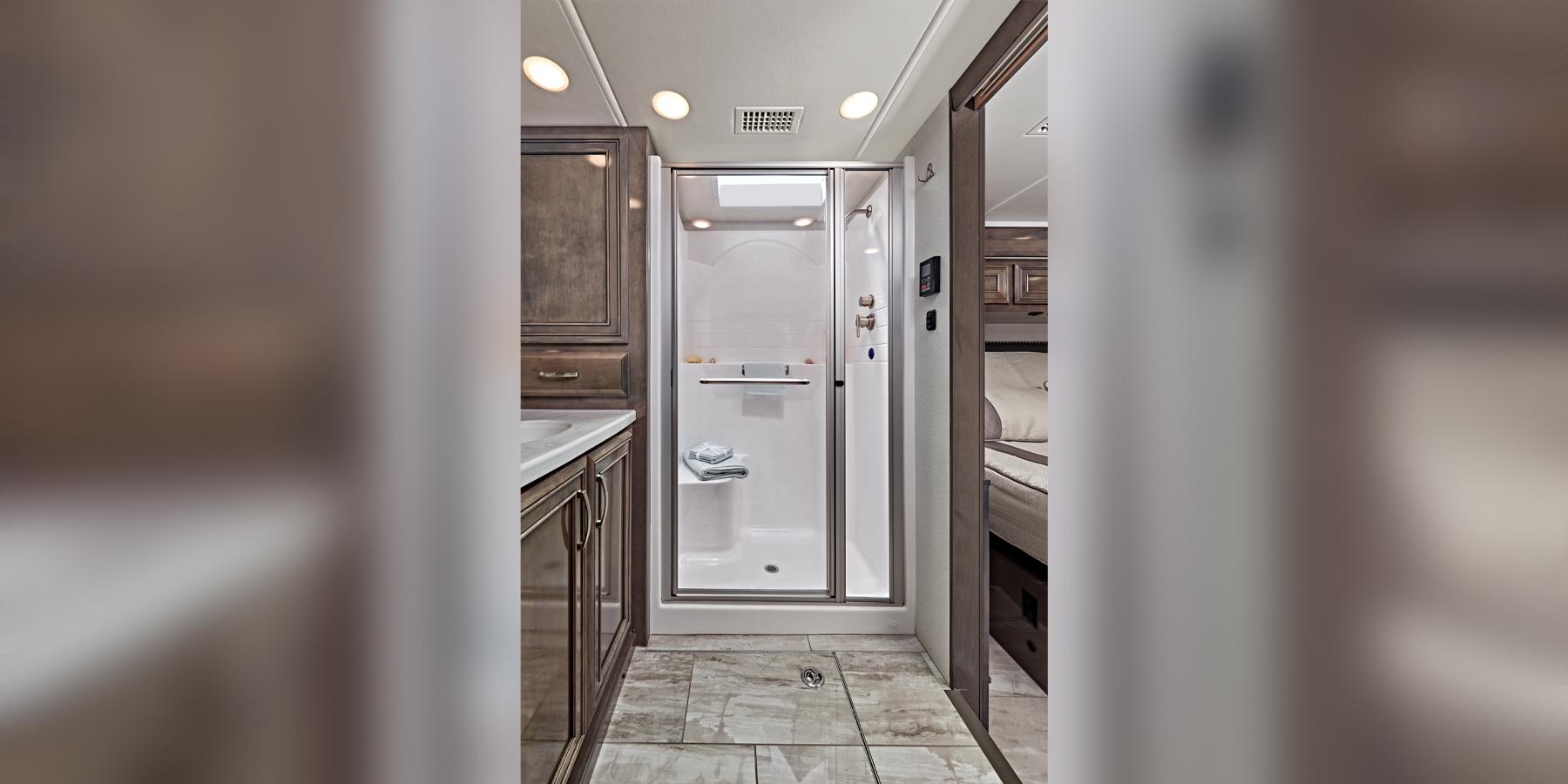

• One-piece fiberglass shower with skylight
• Aqua View SHOWERMI$ER™ water saving system
• Thetford® Aqua Magic toilet with foot flush
• Fan-Tastic power exhaust fan with intake

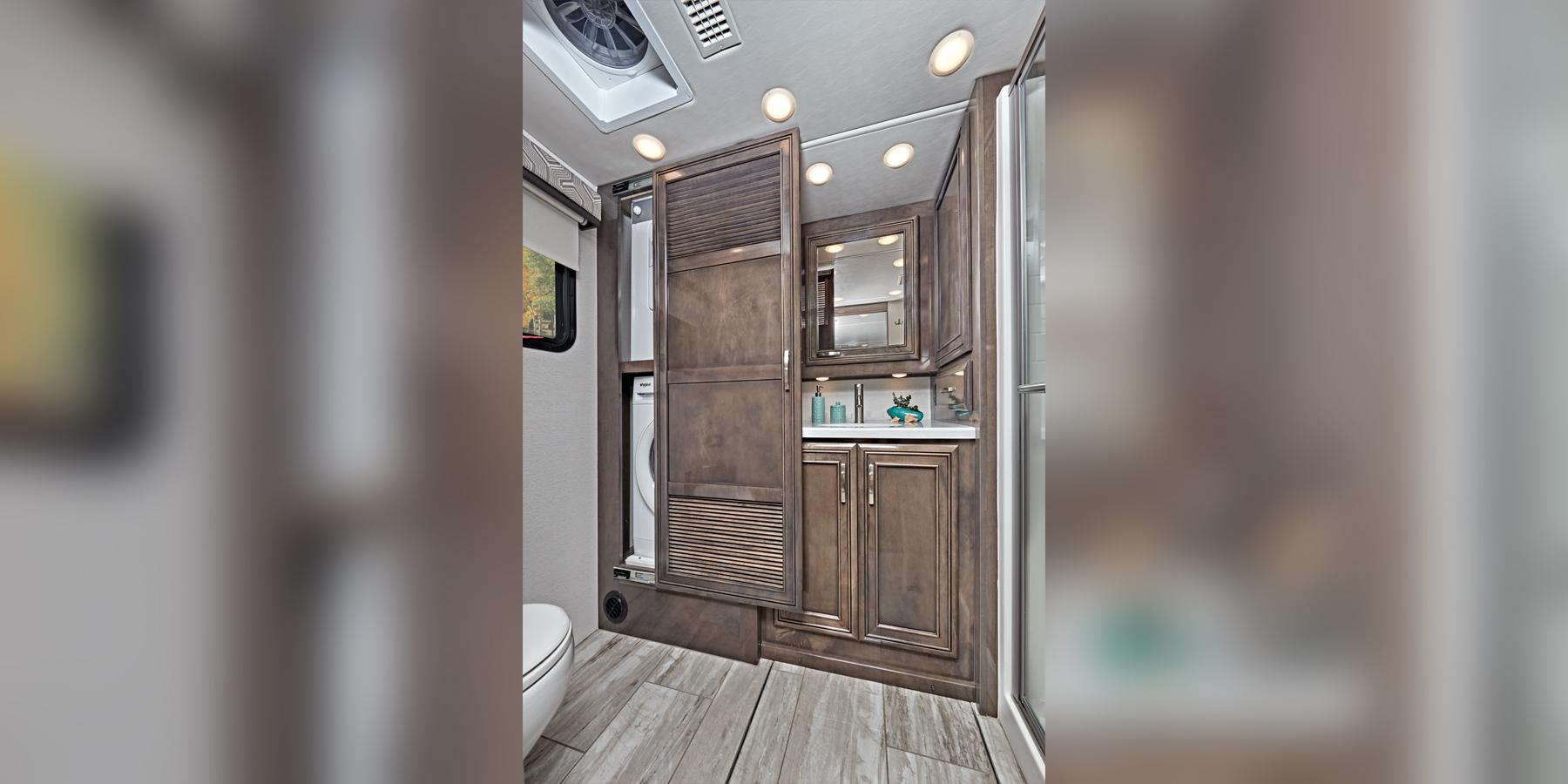

• Whirlpool® stacked washer and dryer
• Combination carbon monoxide detector and LP gas alarm
• Smoke alarm

Customer Value Package (Mandatory)

• Onan® 8,000-watt diesel generator, with automatic start, on slide-out tray
• 2,000-watt pure sine wave inverter with 100-amp battery charger
• (3) 15,000-BTU A/C units with heat pumps [(2) 15,000-BTU units with heat pumps on 37K]
• Equalizer™ hydraulic automatic coach leveling
• Xite™ 360° HD digital camera system
• Carefree® power patio awning with LED lights
• 43” Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment
• Manual solar day shades and blackout night shades

Options

• Canadian standards (CSA)
• Theater seating with power recliners
• Winegard® in-motion satellite dome
• Winegard® TRAV’LER satellite dish Dish Network®
