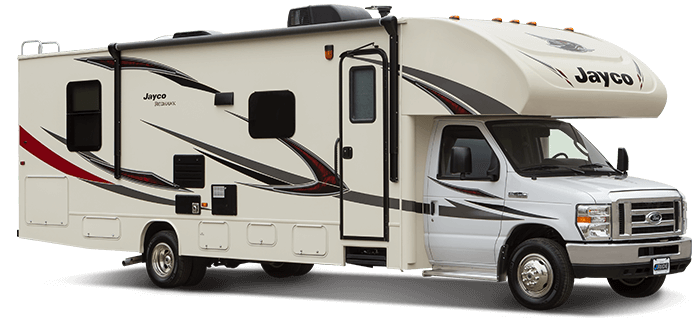

2017 Redhawk

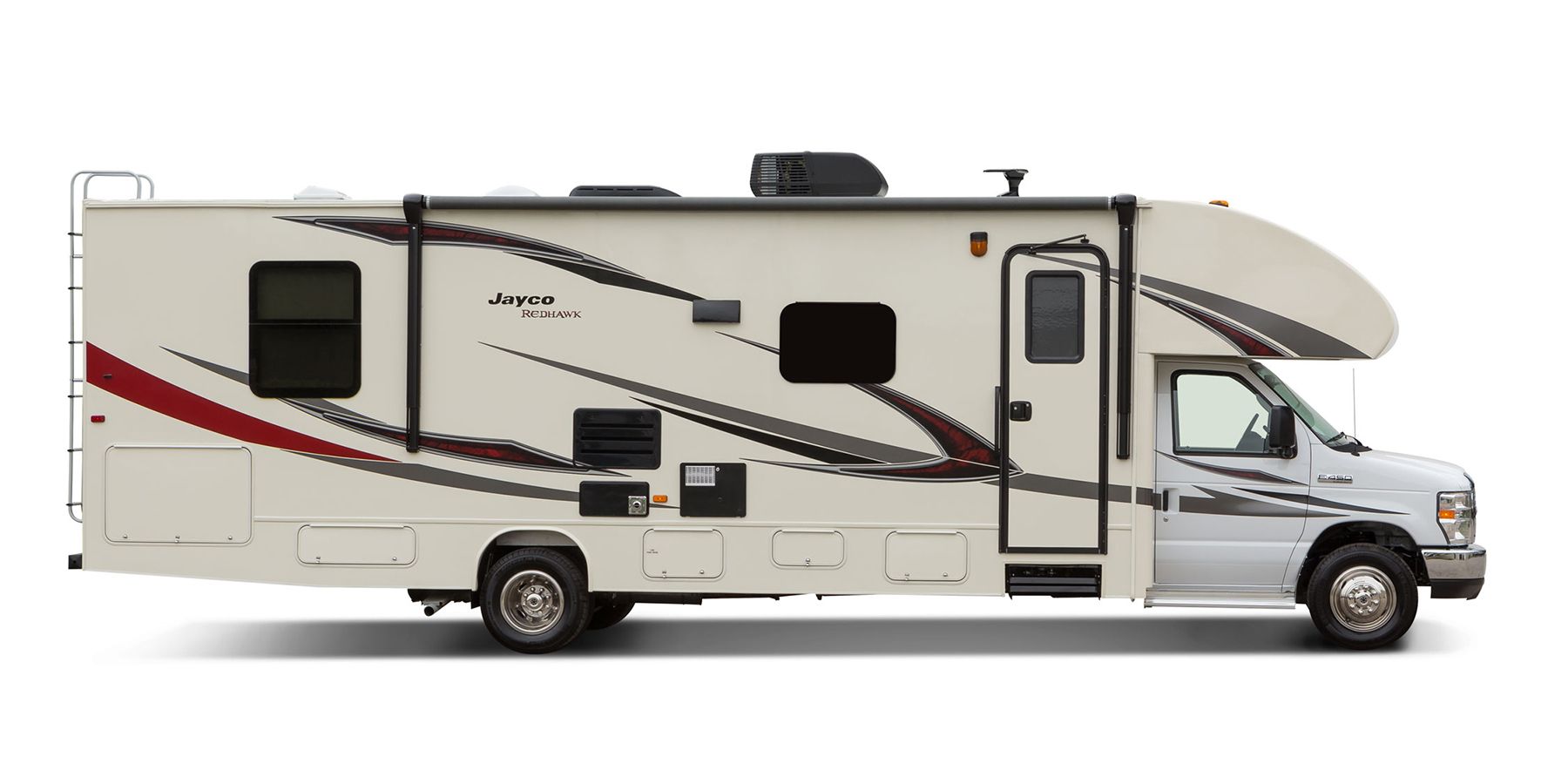

The 2017 Redhawk offers one of the best values in its category—without skimping on superior handling and solid construction. It features JRide®, a powerful blend of precise handling and renowned stability. When the ride is this smooth, the fun is easier to find.

Redhawk

Redhawk Floorplans and Prices

Length 26' 8" - 32' 5"

Standard Features and Options

Customer Value Package (Mandatory)

  • J-Ride® Package: Computer-balanced driveshaft, standard front and rear stabilizer bars, Hellwig helper springs, rubber isolation mounts
  • 32" TV LED
  • 8 cu. ft. Refrigerator w/Manual Controls
  • 1000W Inverter
  • Back-up Camera & Monitor
  • Black Tank Flush
  • Cream Fiberglass Sidewalls
  • Frameless Windows

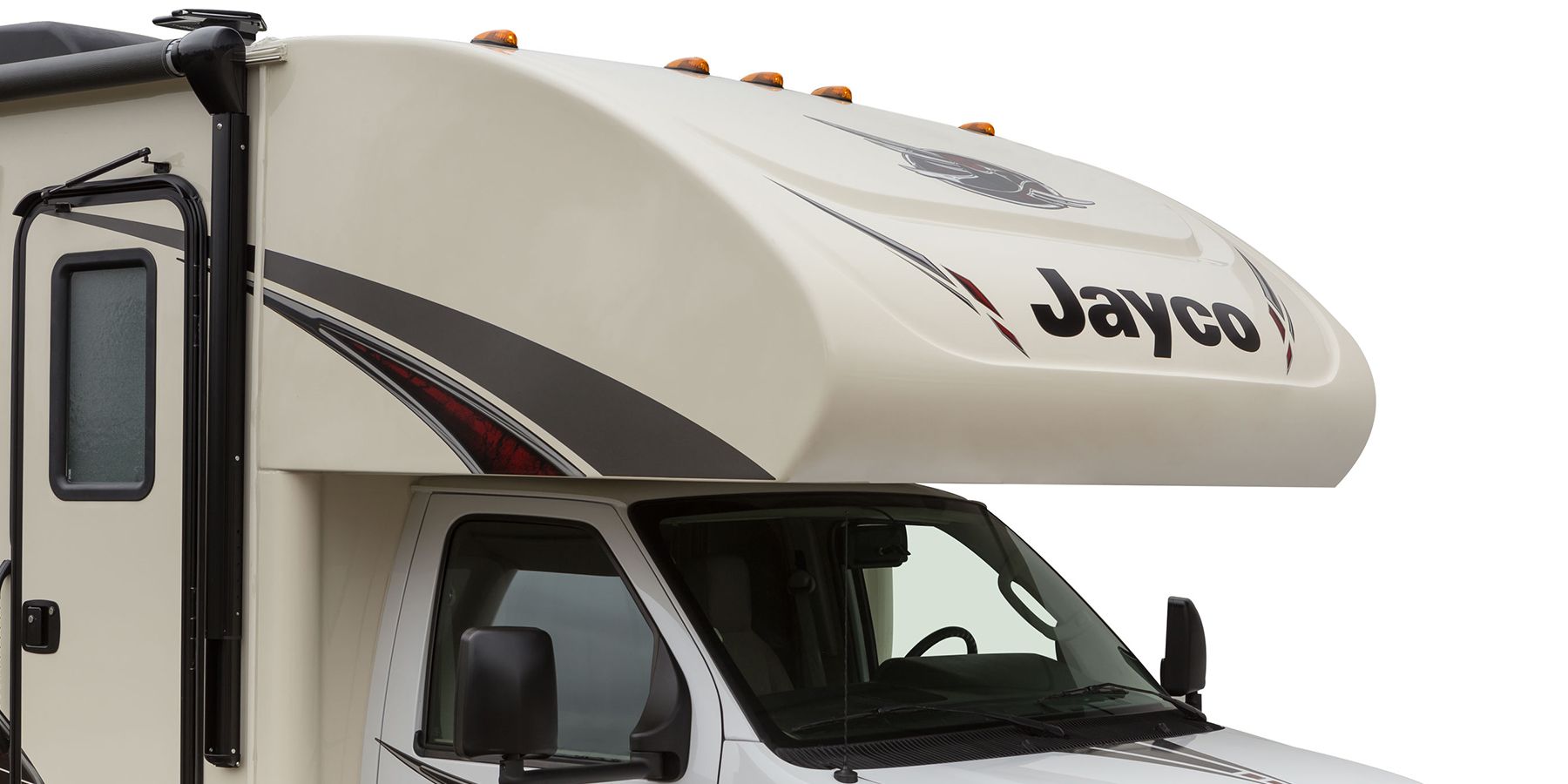

  • Front Fiberglass Cap
  • Auxiliary Input Jack
  • Power Awning, Tank Heating Pads

Standard Driving Equipment

  • Ford E-450 chassis
  • -     Triton 6.8L EFI V-10 305 HP engine with 420 lbs./ft. torque
  • -     6-speed automatic TorqShift series transmission with overdrive
  • -     14,500-pound GVWR
  • -     22,000-pound GCWR
  • -     7,500-pound hitch with 7-pin plug
  • Chevrolet 4500 Chassis
  • -     6L Vortec V8 342HP engine with 373 pound-feet torque
  • -     Hydra-matic 6-speed automatic transmission with overdrive
  • -     14,200-pound GVWR
  • -     20,000-pound GCWR
  • -     5,000-pound hitch with 7-pin plug
  • JRide
  • 120-amp alternator
  • 55-gallon fuel tank
  • Driver and passenger air bags
  • Power anti-lock brakes with power steering

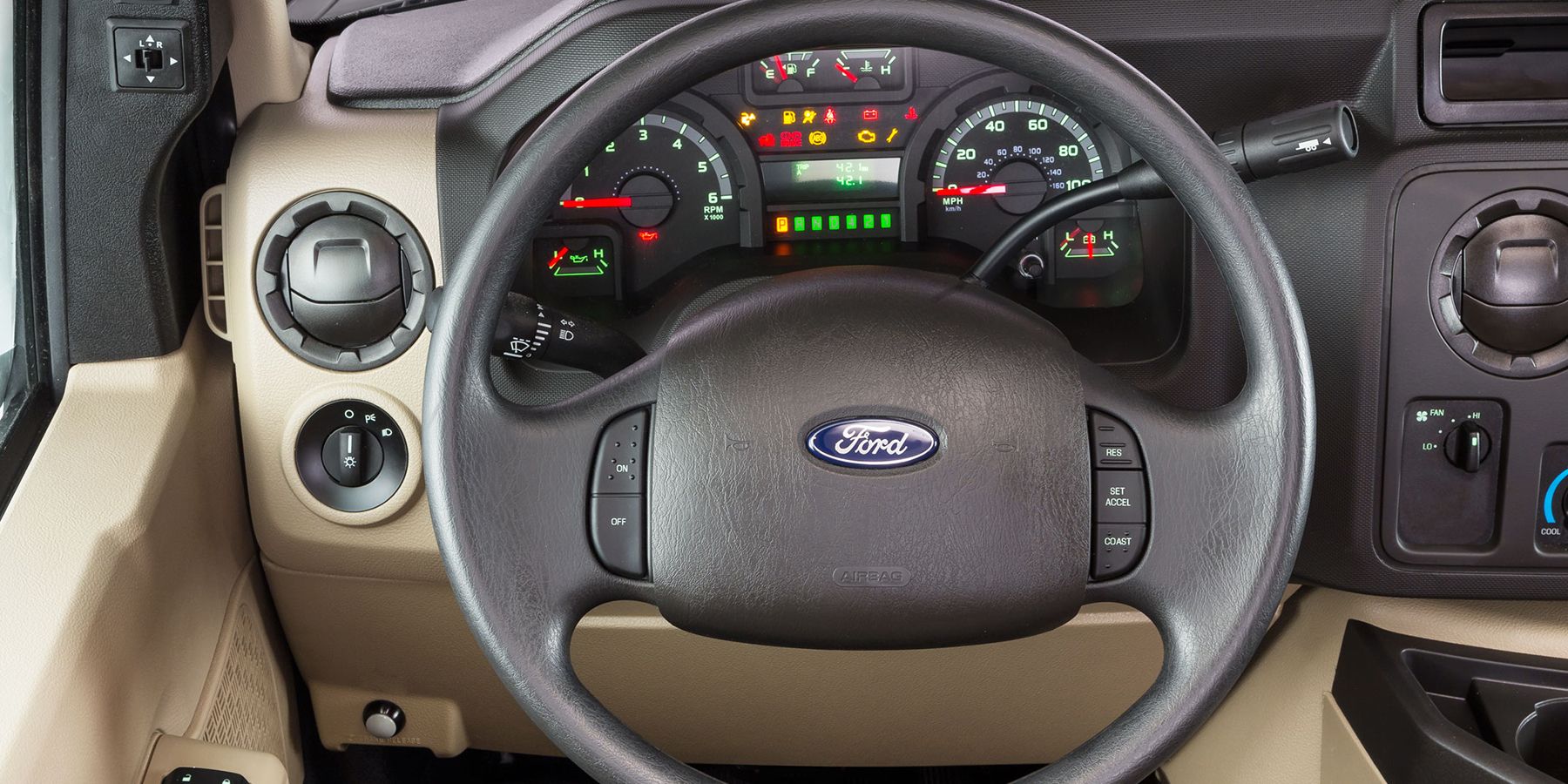

  • Tilt steering wheel
  • Auxiliary start switch

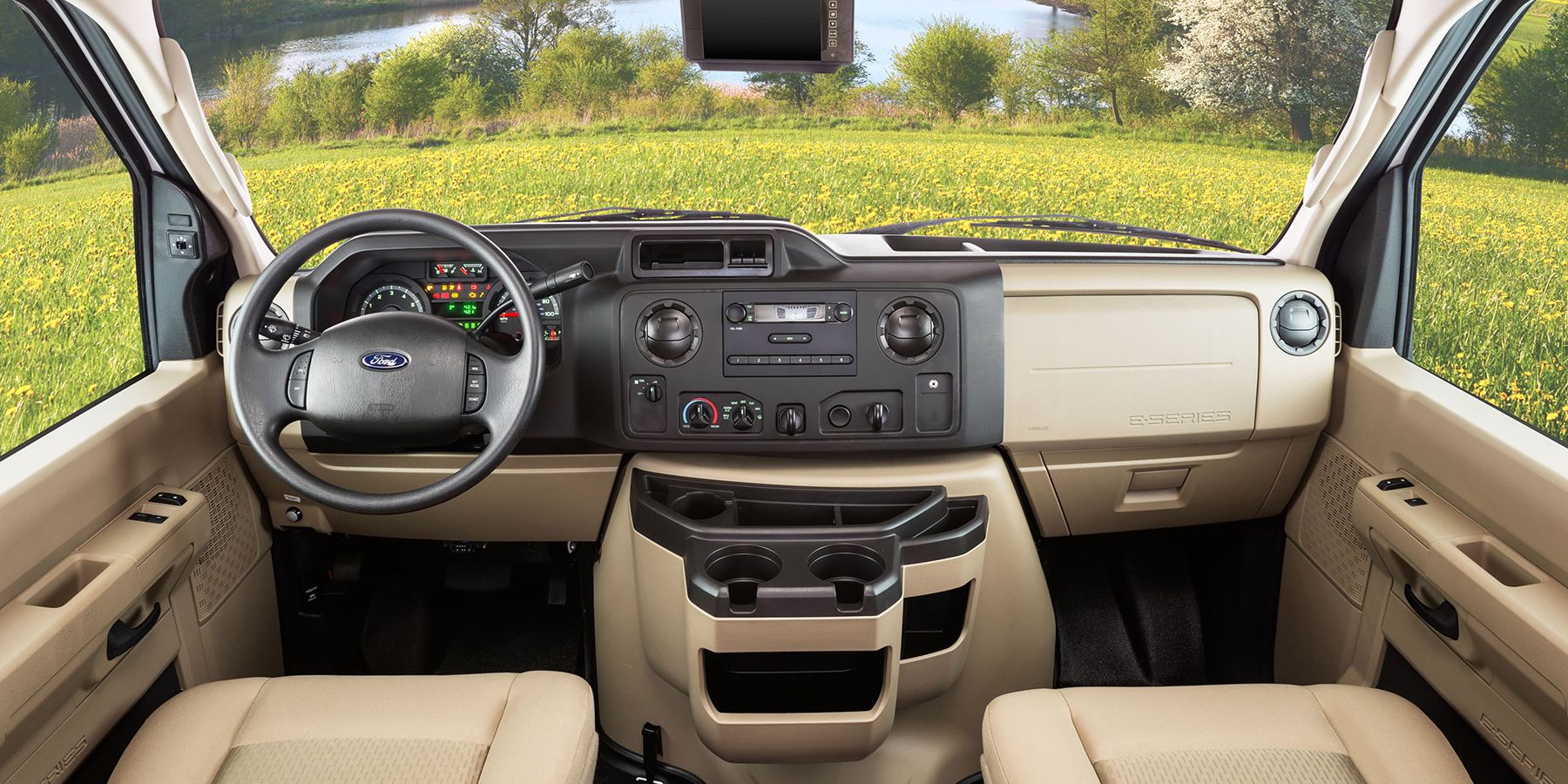

  • A/C and cruise control

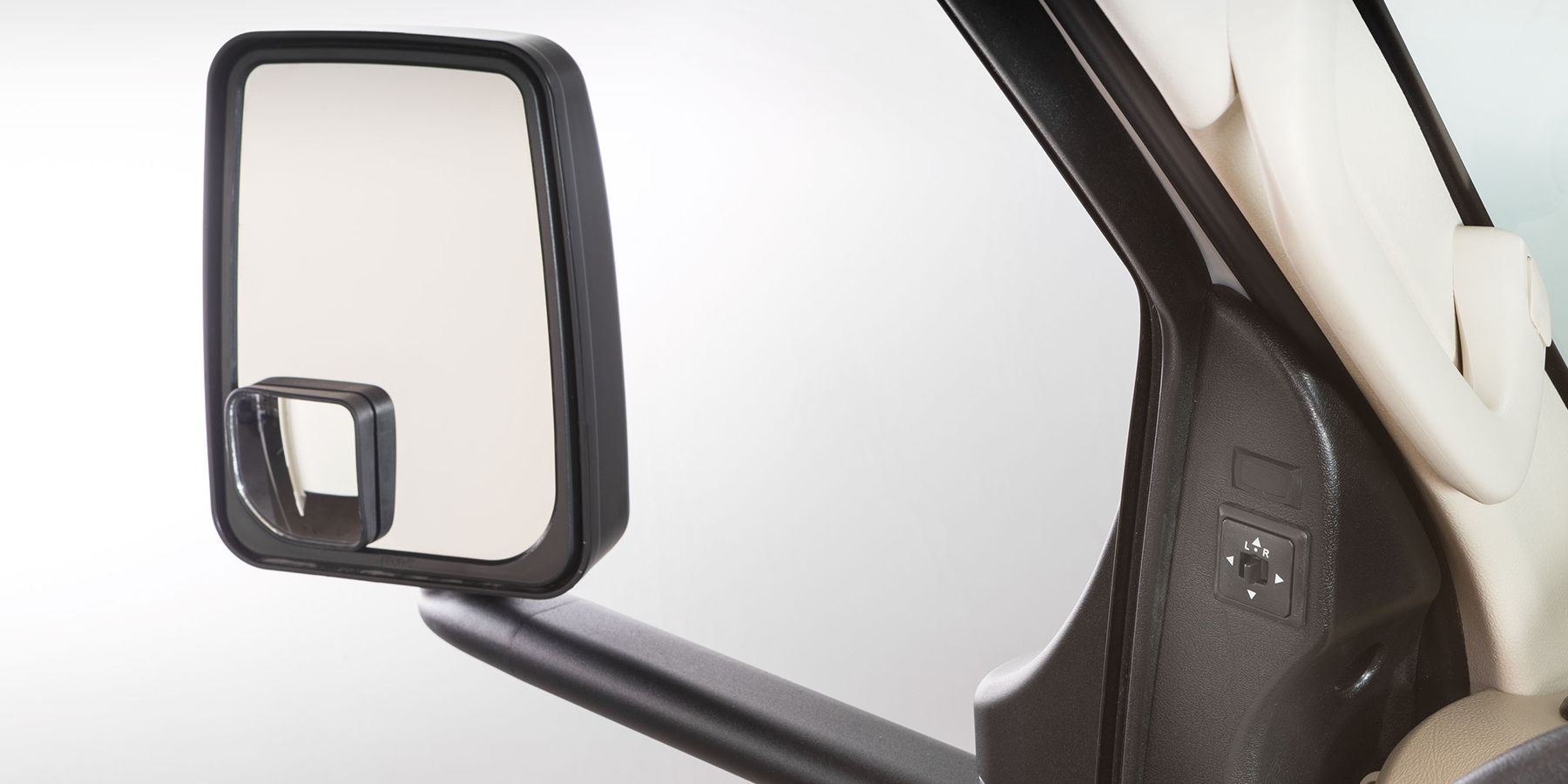

  • Remote-controlled, side-view mirrors
  • Power windows and door locks

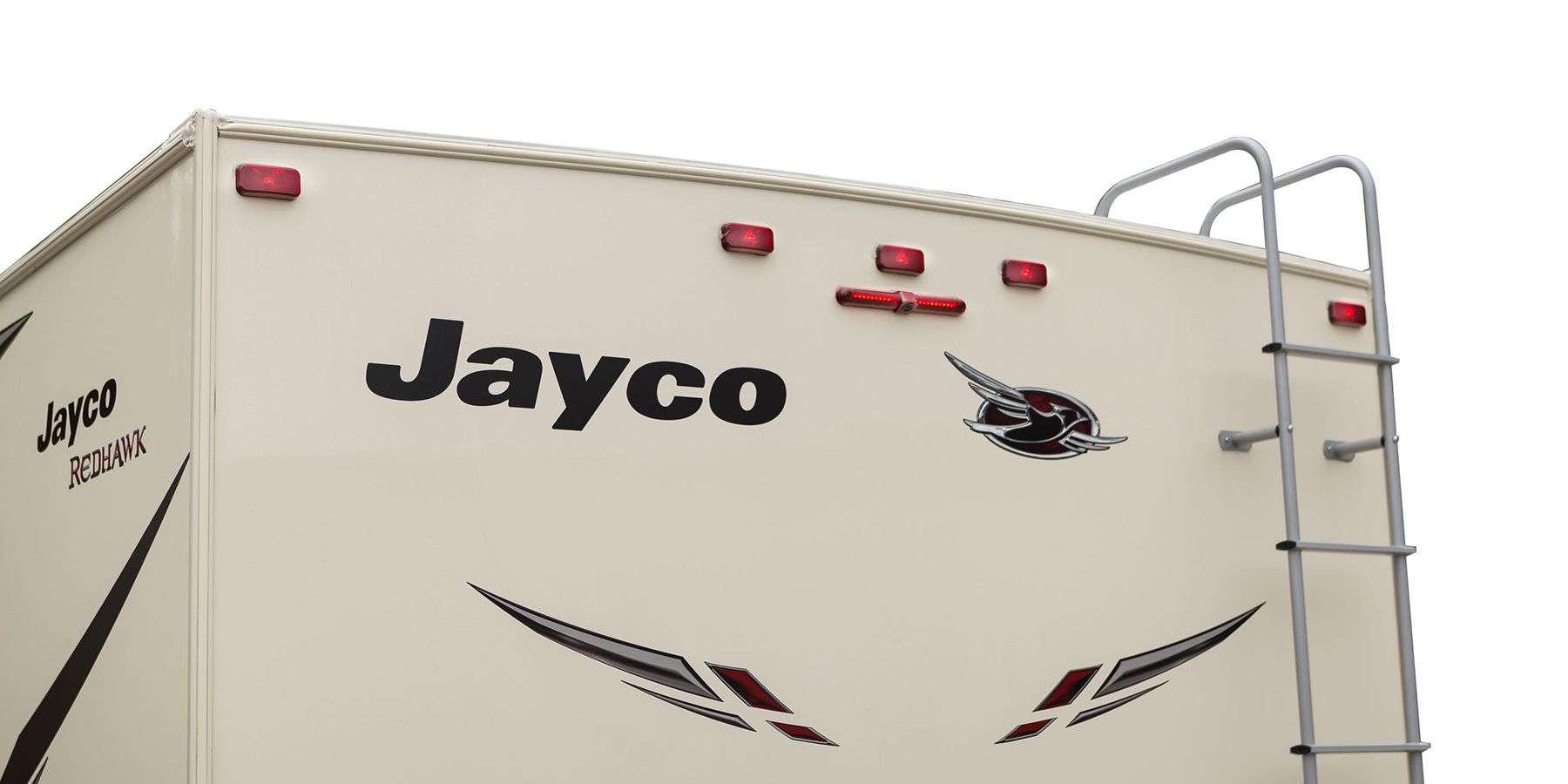

  • Third brake light

Standard Exterior Equipment

  • Vacuum-bonded, laminated roof, floor and sidewalls
  • Bead-foam insulation (R-15 max roof, R-9 max floor, R-5 max walls)
  • Aluminum running boards
  • Fiberglass, radius-cornered entrance door with screen door
  • Electric-powered entrance step

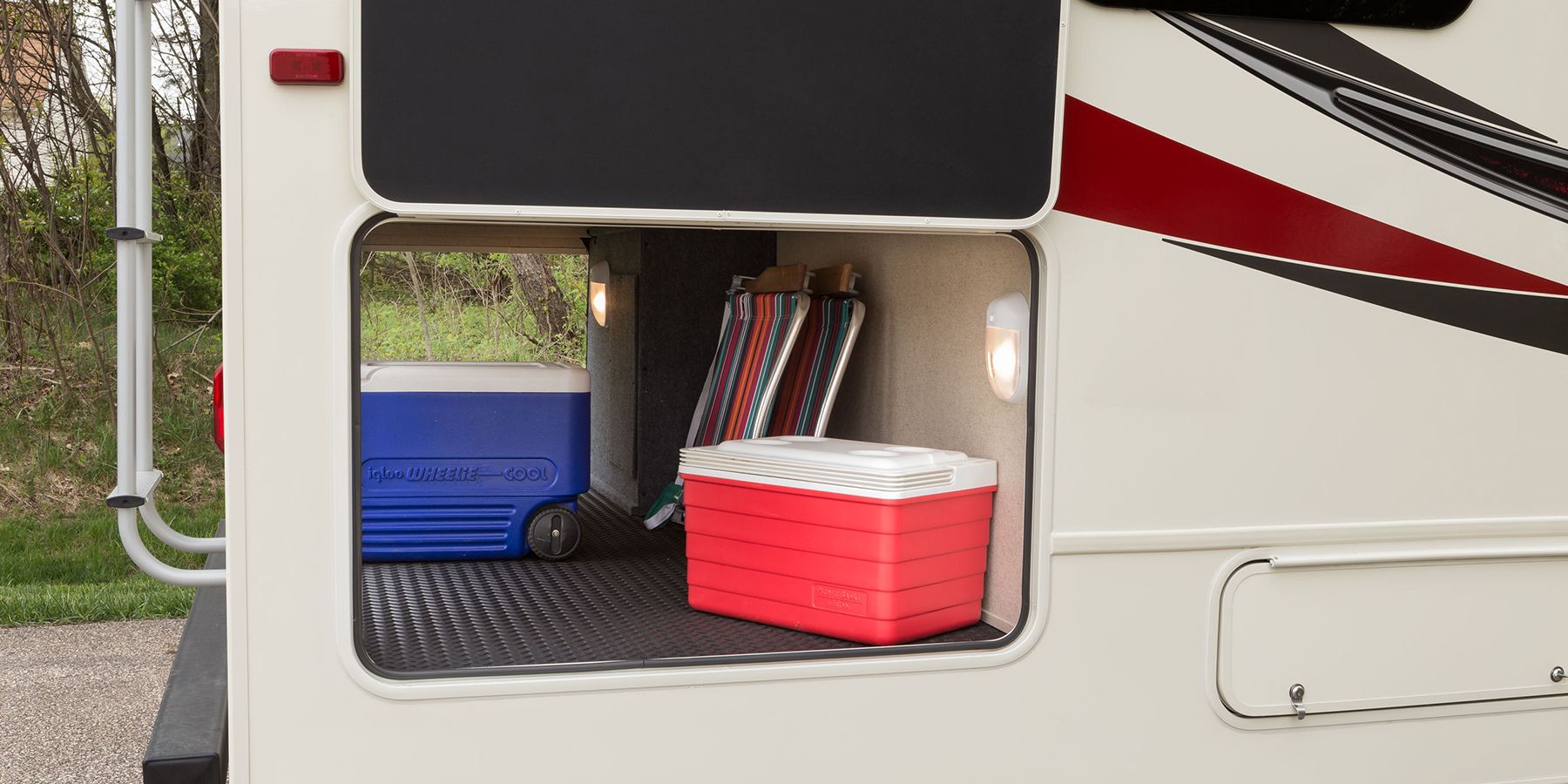

  • Pass-through storage compartment with light (select models)
  • Onan 4,000-watt MicroQuiet generator
  • 42-lb. propane tank
  • 120V G.F.C.I.-protected exterior receptacle
  • 12V electrical system with 120V, 60-amp power converter
  • 30-amp power cord
  • Slide out battery tray with 12V house battery
  • Outside shower
  • 4" bumper-tube sewer hose storage
  • Roof ladder (based on floorplan)
  • Leveling jack prep

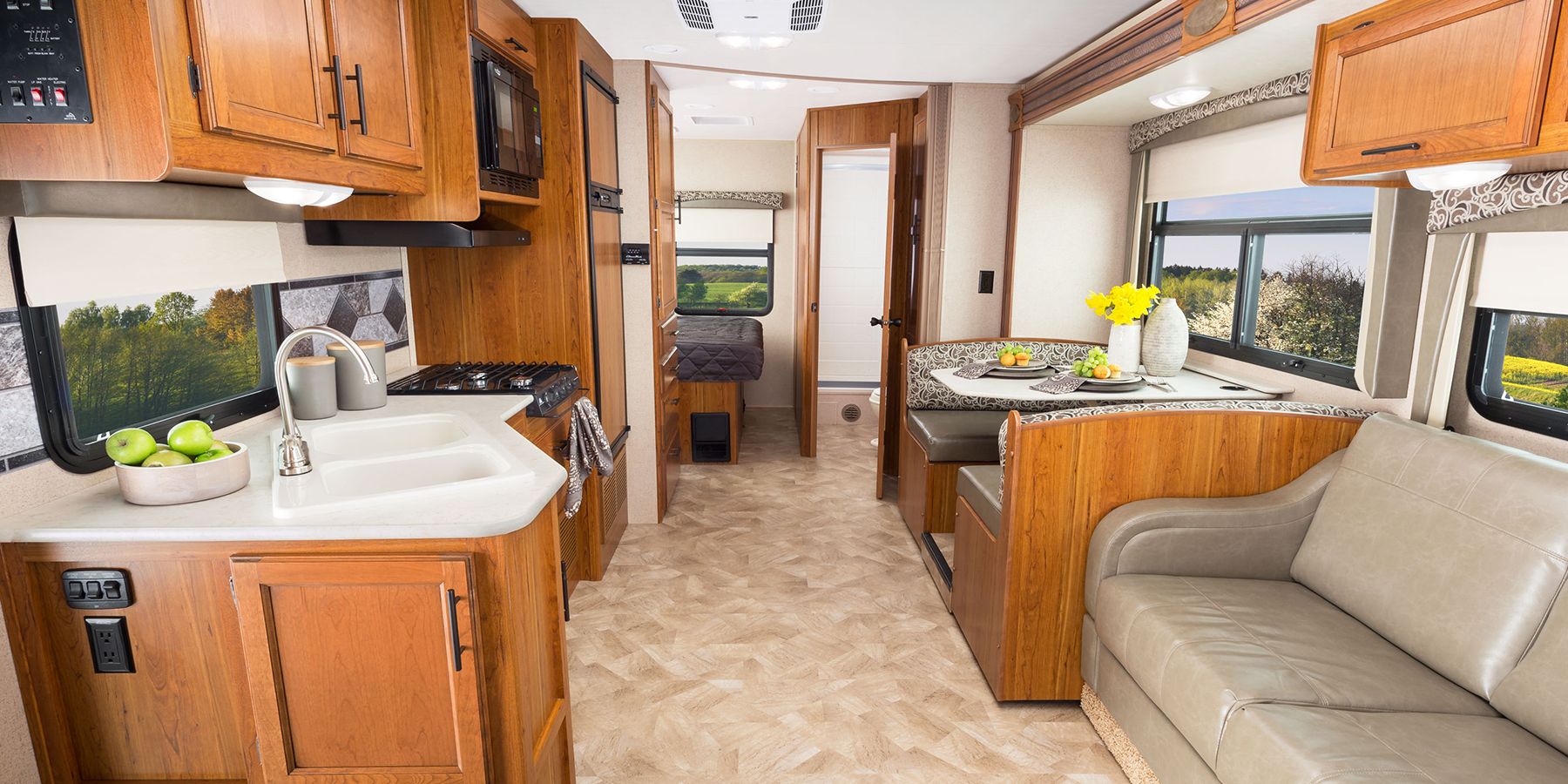

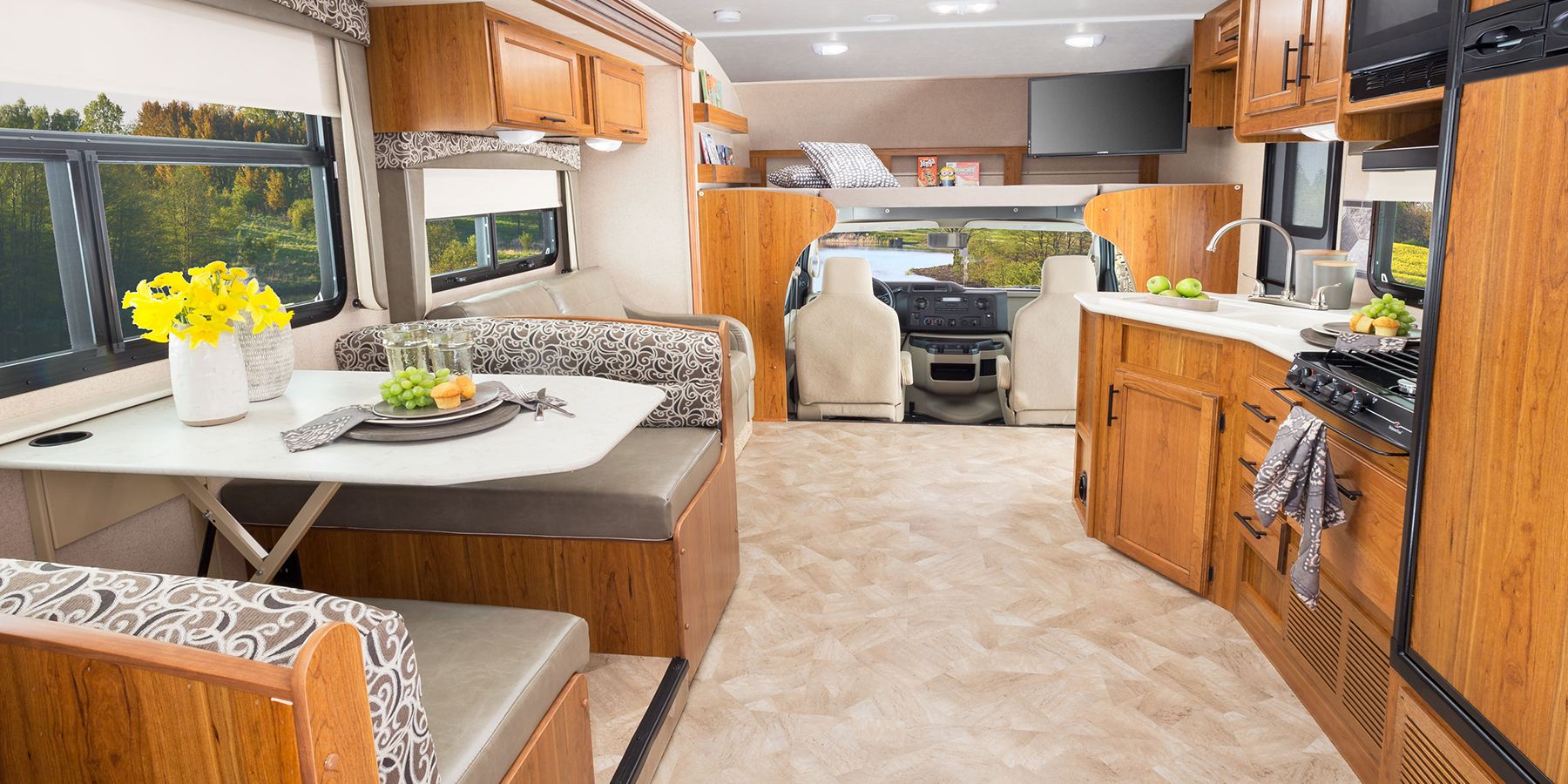

Standard Interior Equipment

  • 84" ceiling height
  • Honey Cherry cabinetry and doors with oil-rubbed bronze cabinet hardware
  • Ball bearing drawer guides

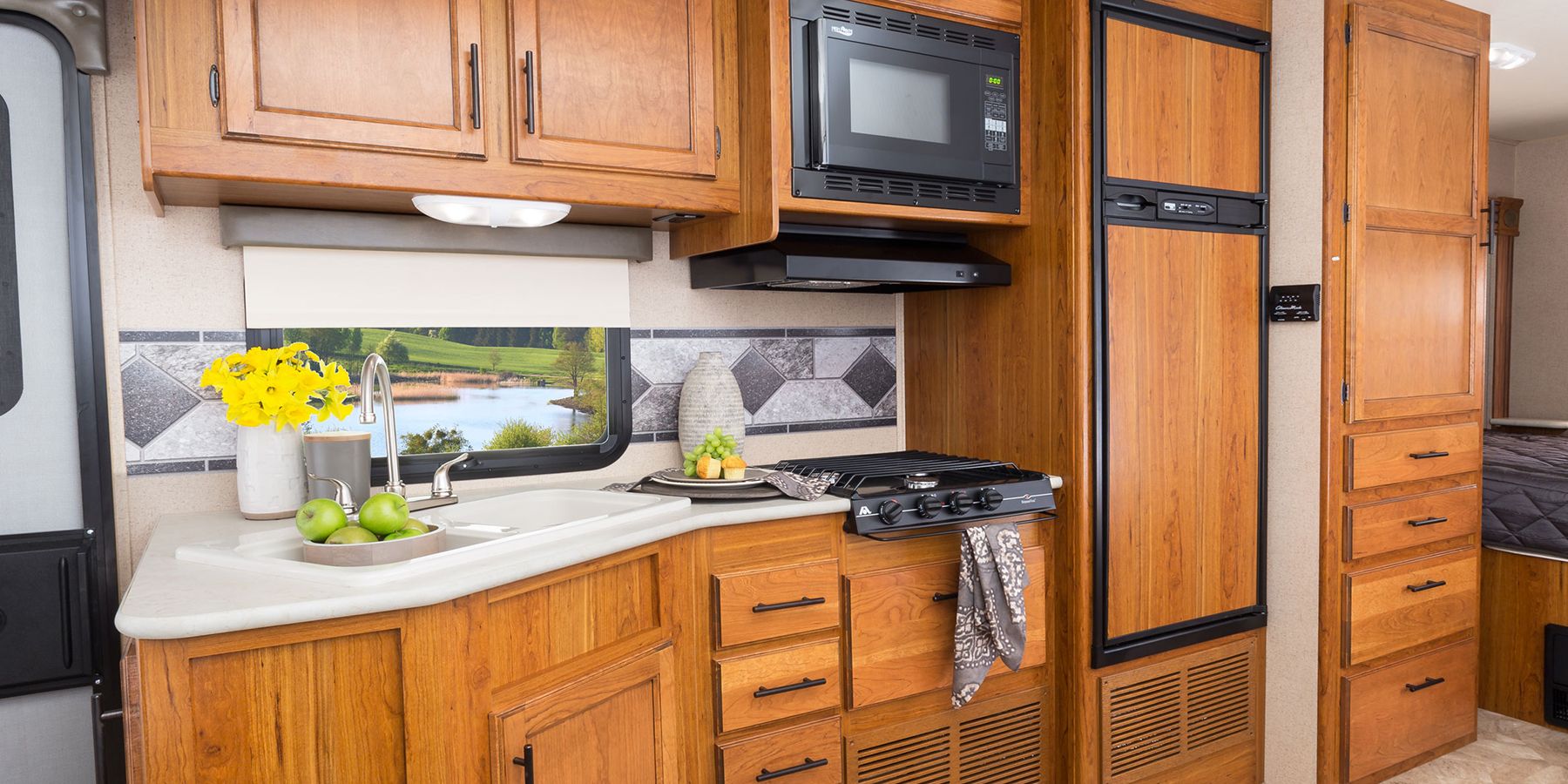

  • 3-burner range with 9,000-BTU SuperBurner and piezo igniter
  • Convection microwave oven (23XM, 26XD, 29XK, 23X2, 26X1)
  • 12V demand water pump
  • 6 gallon gas/electric DSI auto-ignition water heater
  • Water filtration system
  • Dream Dinette™ mechanism, easily raises and lowers dinette tabletop (23XM, 26XD, 31XL, 23X2, 26X1)

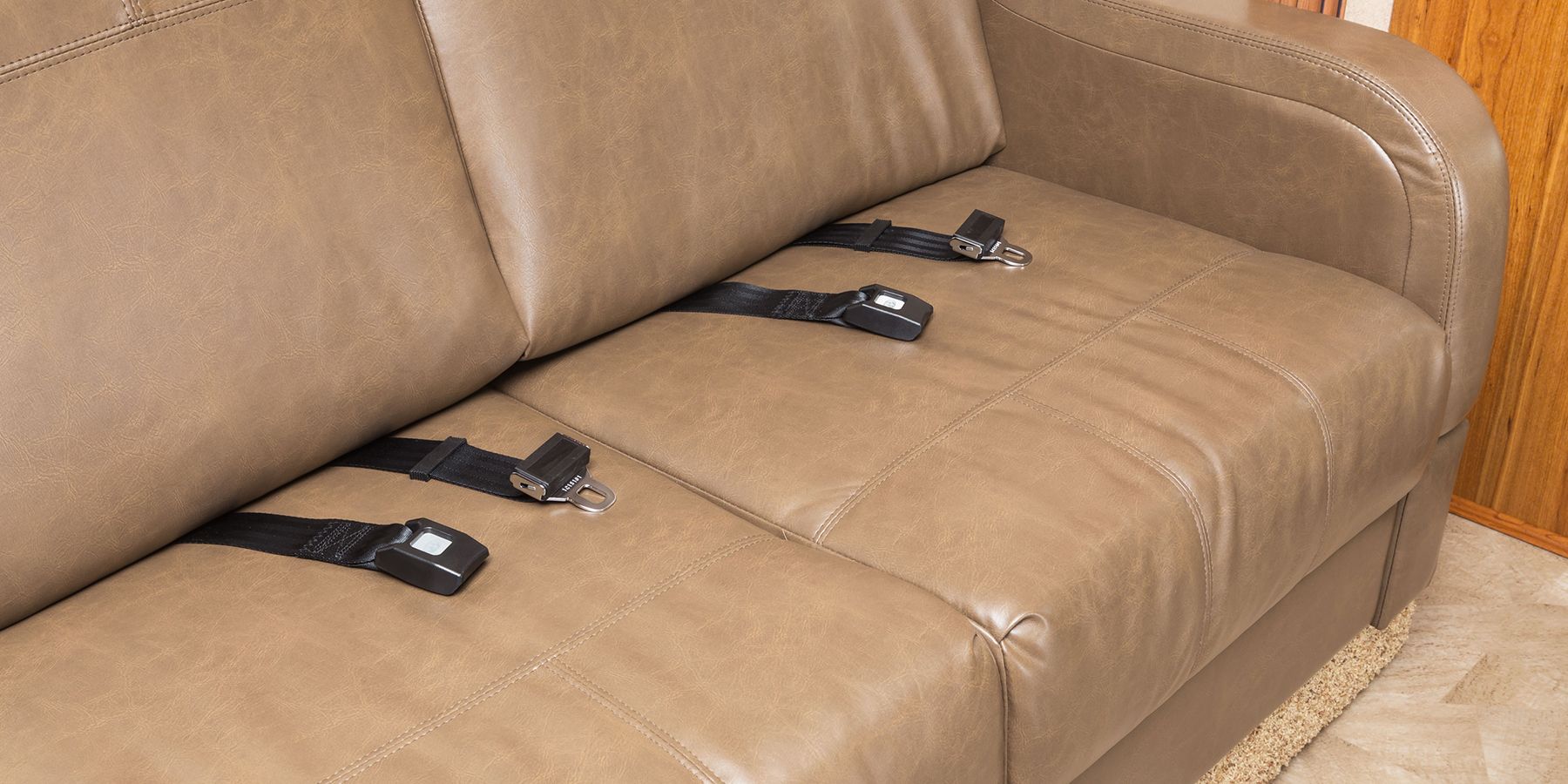

  • Lap safety belts on all living area seats
  • Linoleum flooring
  • Interior command center
  • Cable TV hookup with RG-6 coax
  • Digital antenna with signal booster
  • 15,000-BTU ducted air conditioner
  • 31,000-BTU auto-ignition furnace with wall thermostat
  • ABS shower with decorative surround
  • Removable clothing rod in shower
  • Skylight in shower
  • Toilet with foot flush

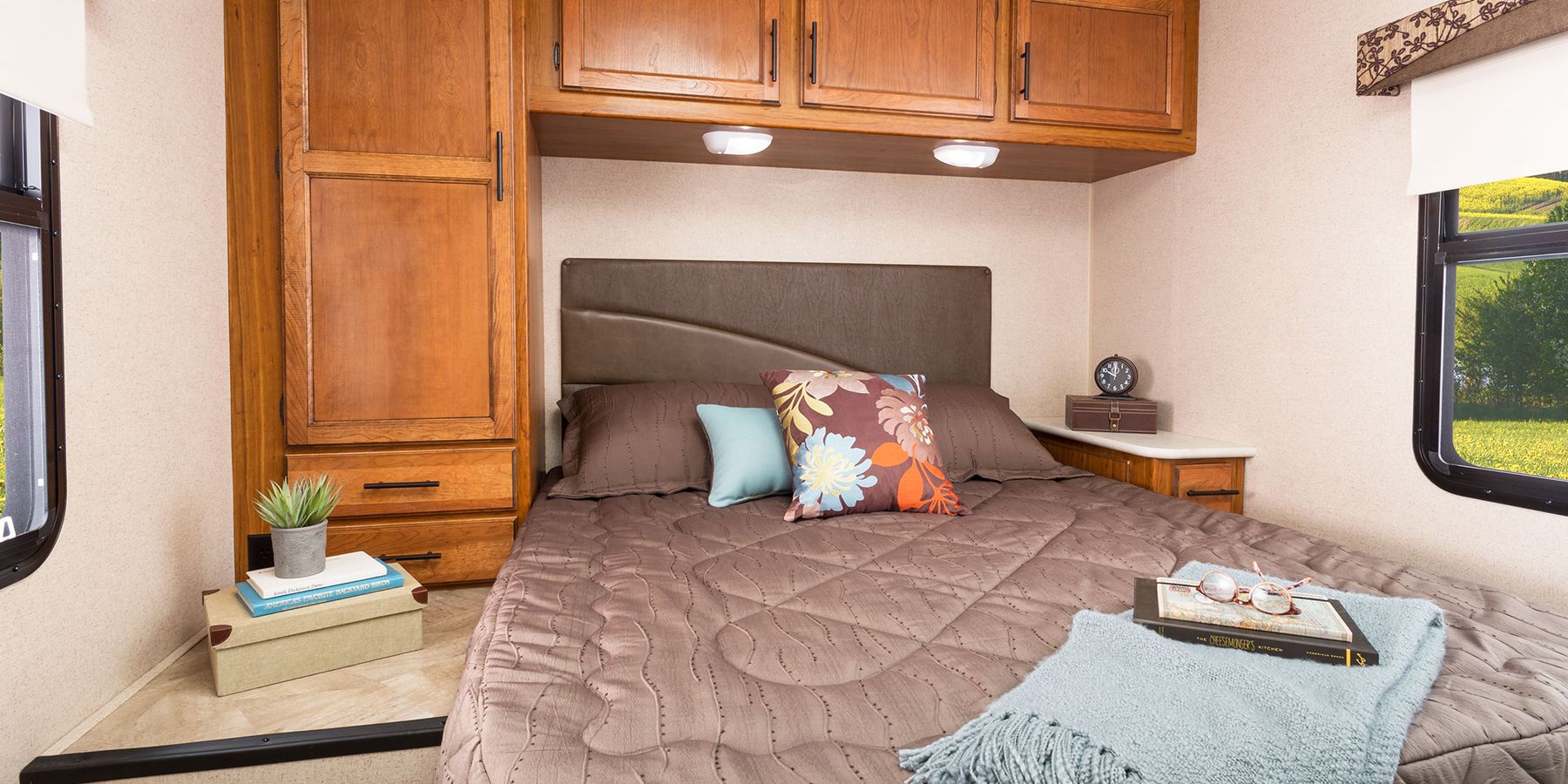

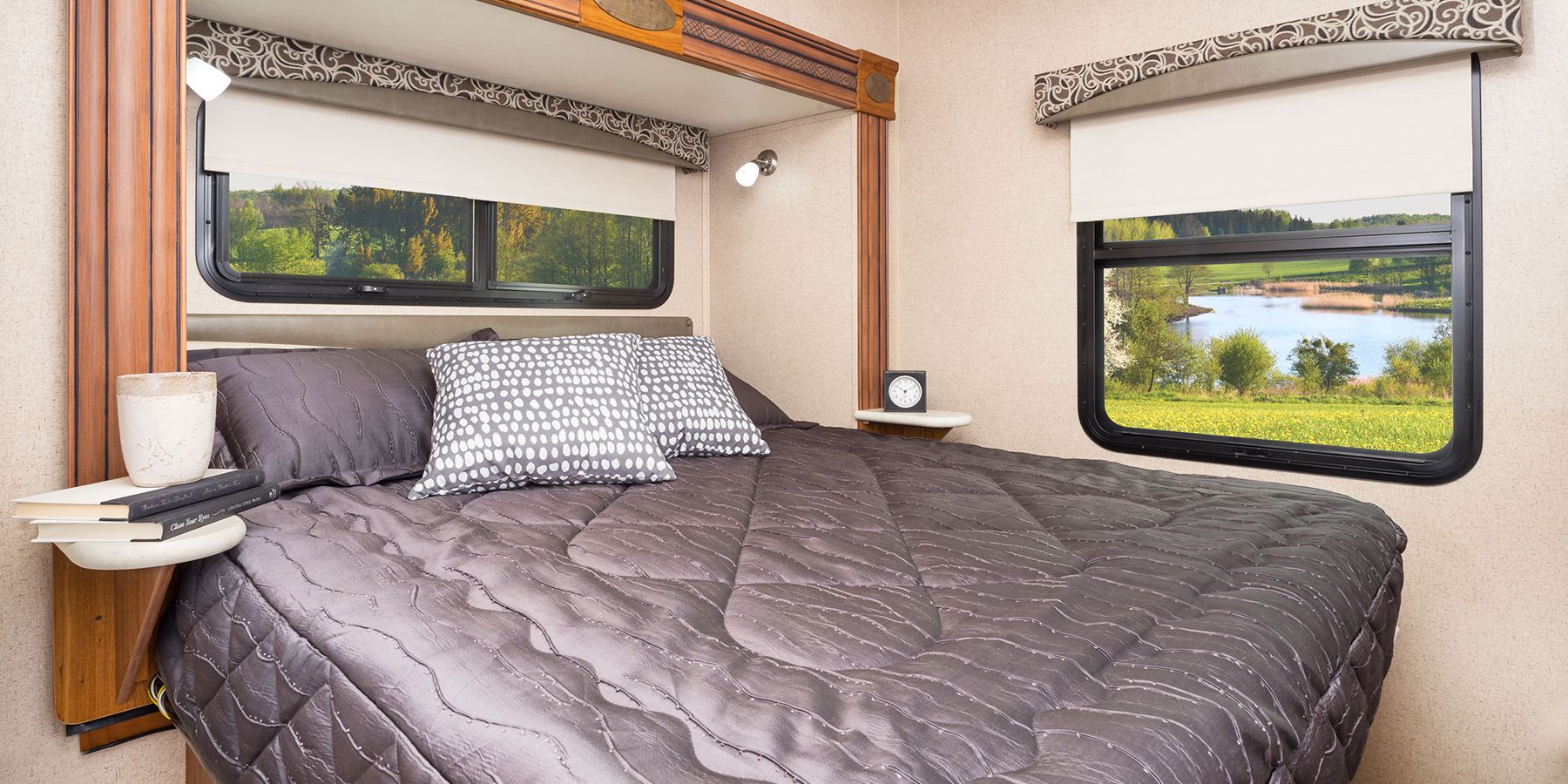

  • Queen-sized bed with bedspread
  • Under-bed storage
  • Large wardrobes

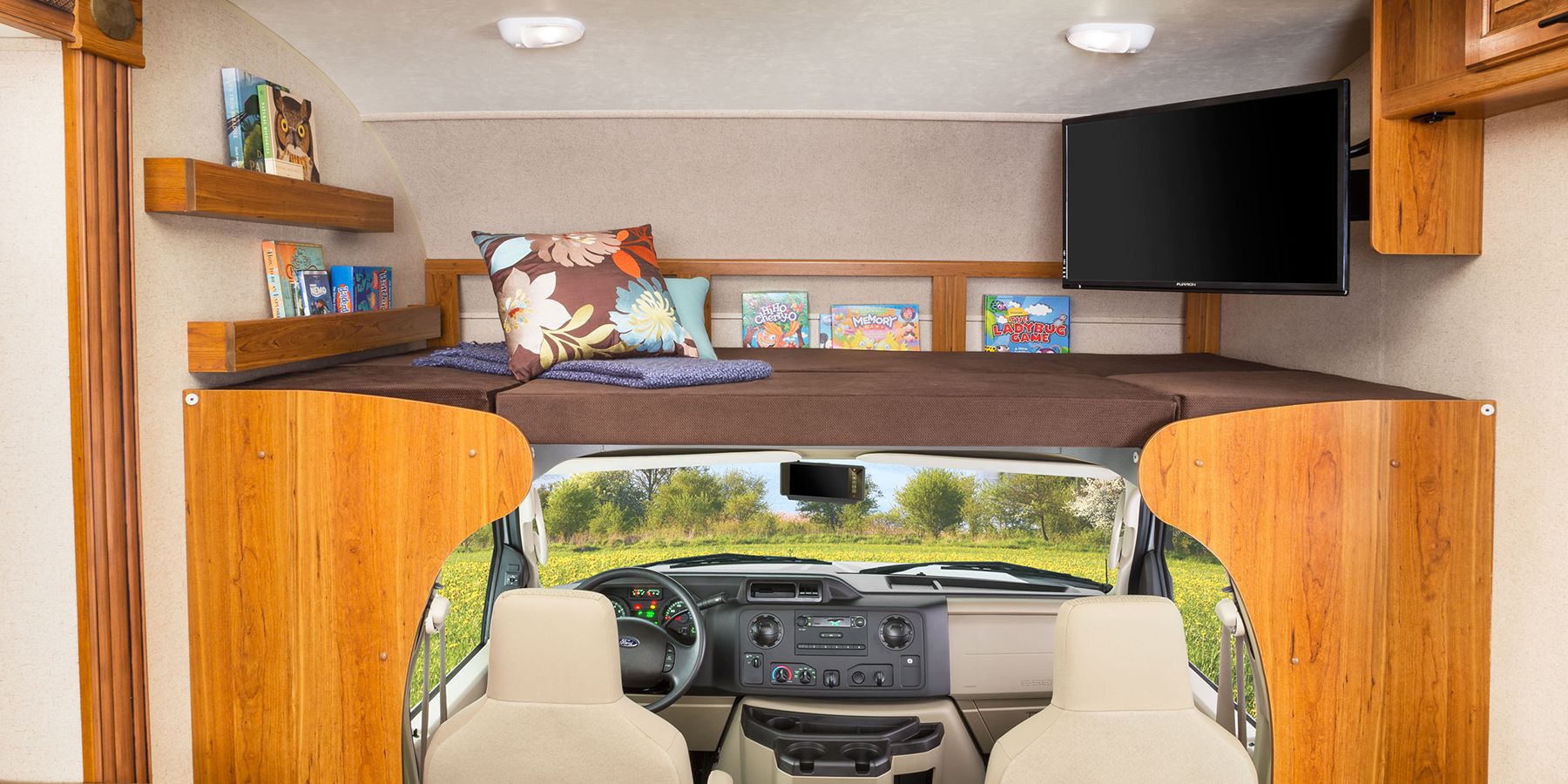

  • Full cab-over bunk with headboard (750-lb. rating)
  • Bunk beds (300-lb. rating) (31XL)
