2025 Granite Ridge

Starting at $218,550

The Granite Ridge Class C is built for rugged exploration and adventure with an all-wheel drive chassis and lift kit that allows you to travel with confidence. Two-inch walls, enclosed holding tanks and dual-pane acrylic windows extend your trips in weather other coaches can’t handle. Conquer tough terrain and take less traveled roads thanks to the Ford® Transit 350HD AWD chassis with the 3.5L EcoBoost V6 310 HP engine with 400 ft-lb of torque. Advanced safety features like intelligent adaptive cruise control, lane-keeping assist, forward collision warning, post-collision braking, driver/passenger airbags, and tire pressure monitoring will give you peace of mind. The JRide® ride and handling package features Hellwig® helper springs and a rear stabilizer to deliver a quiet, comfortable ride, so you can travel further without fatigue. Hellwig® Helper Springs maintain proper ride height, increase overall safety, minimize body roll and provide a quiet ride. The rear stabilizer bar transfers power faster for extra support, improved durability, and enhanced stability. The Van Compass™ two-inch front and rear lift kit and all-terrain tires with custom matte black wheels, improve ground clearance and make the Granite Ridge capable of taking on terrain other motorhomes can't.

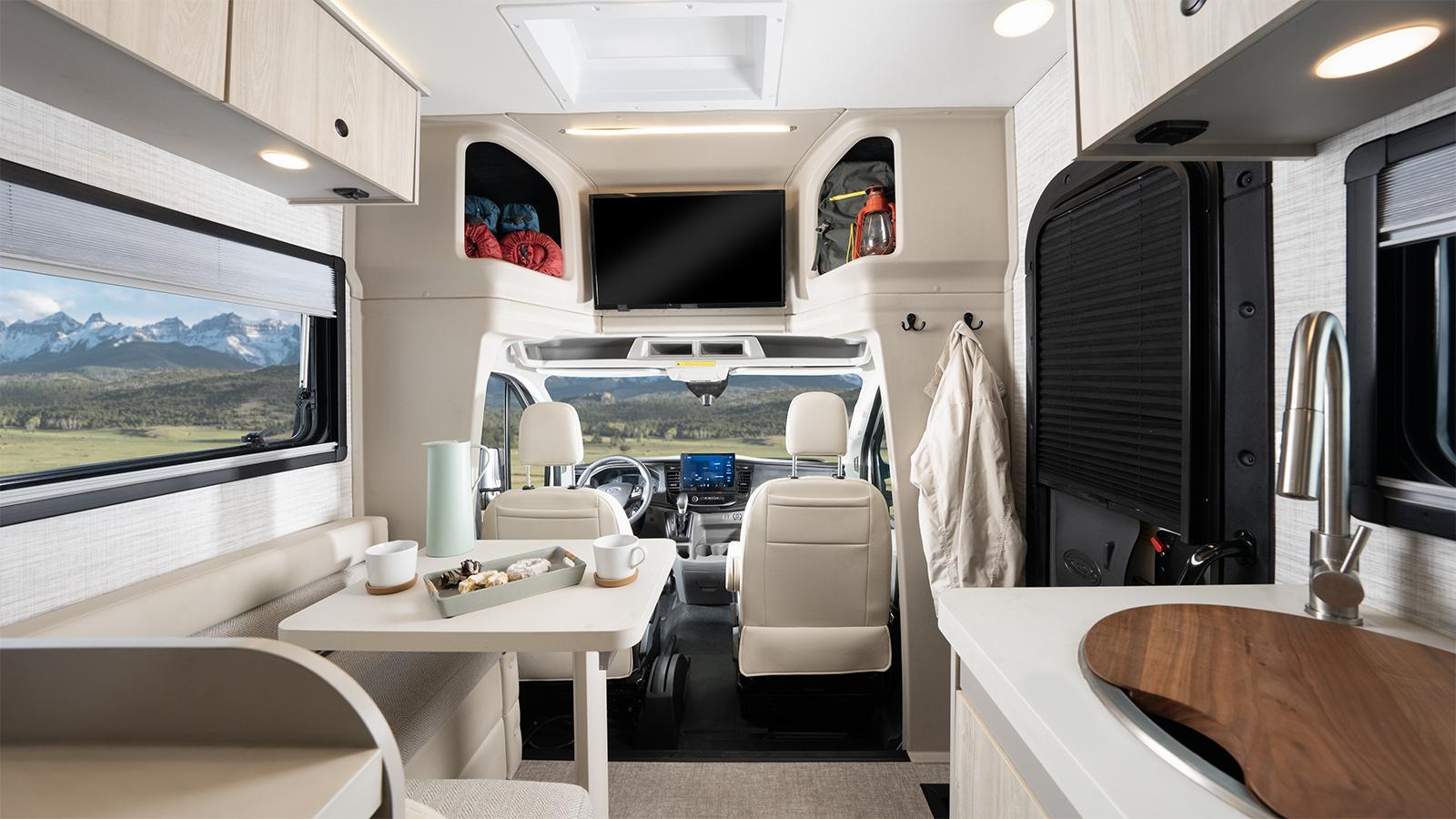

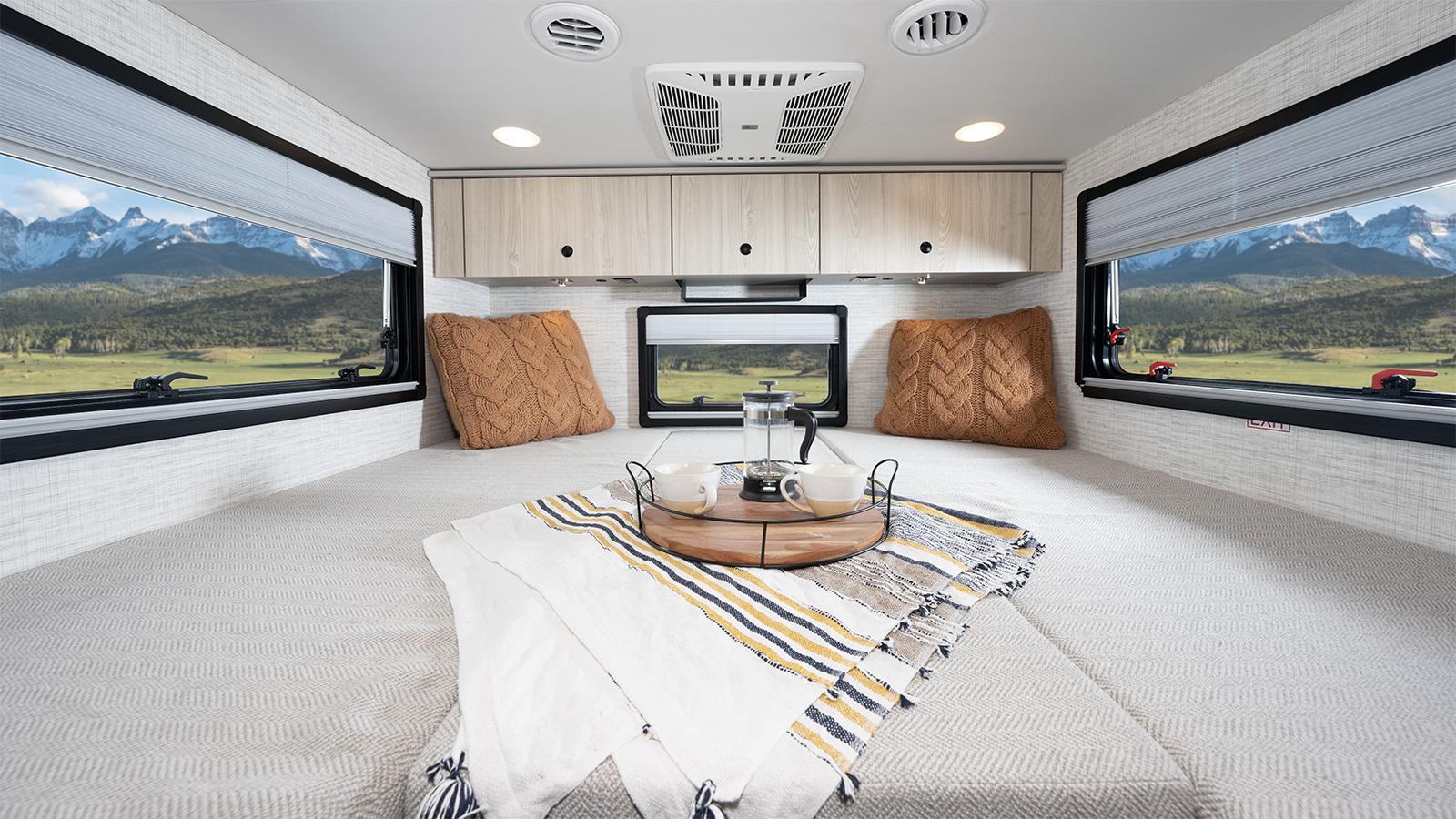

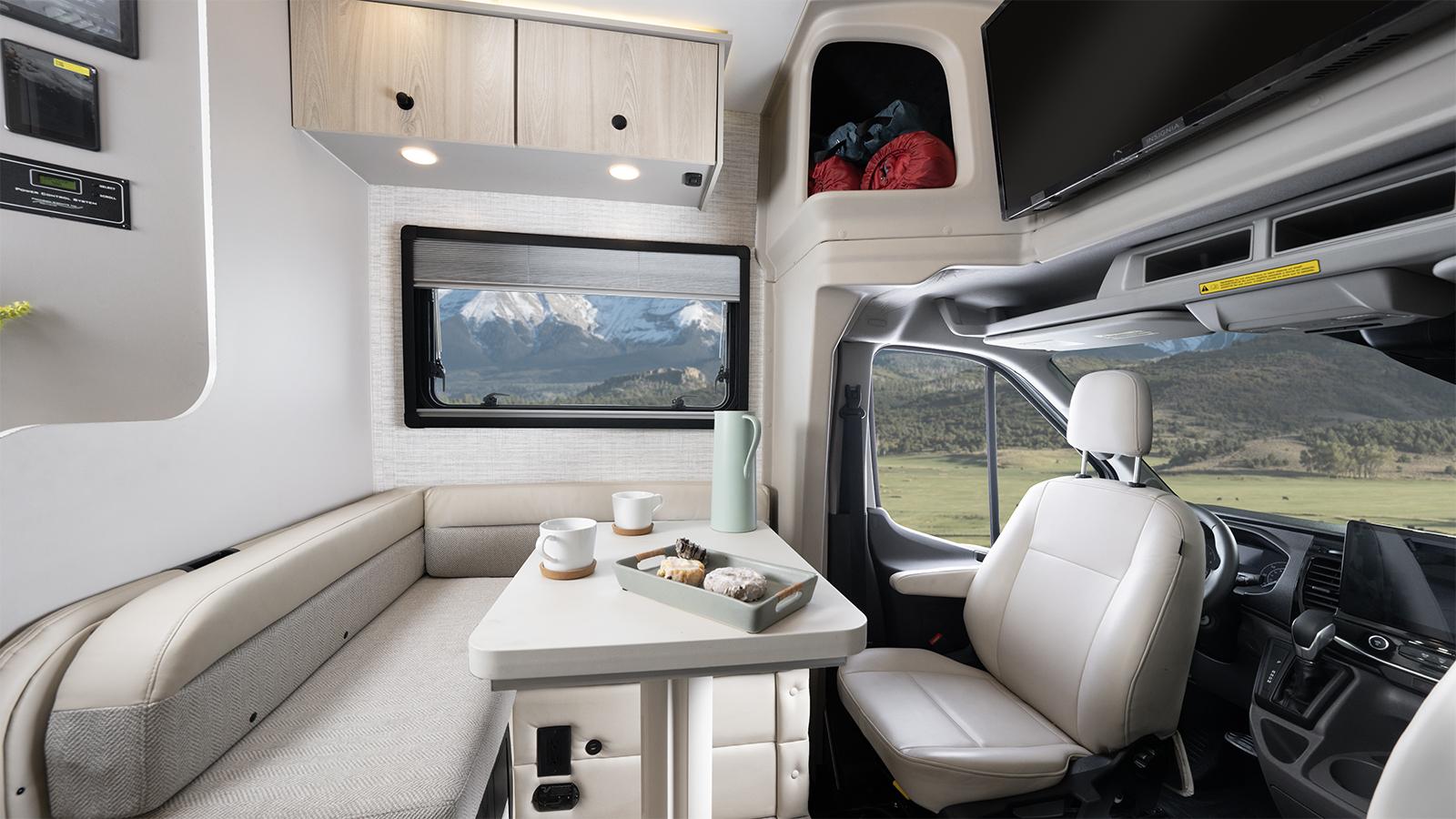

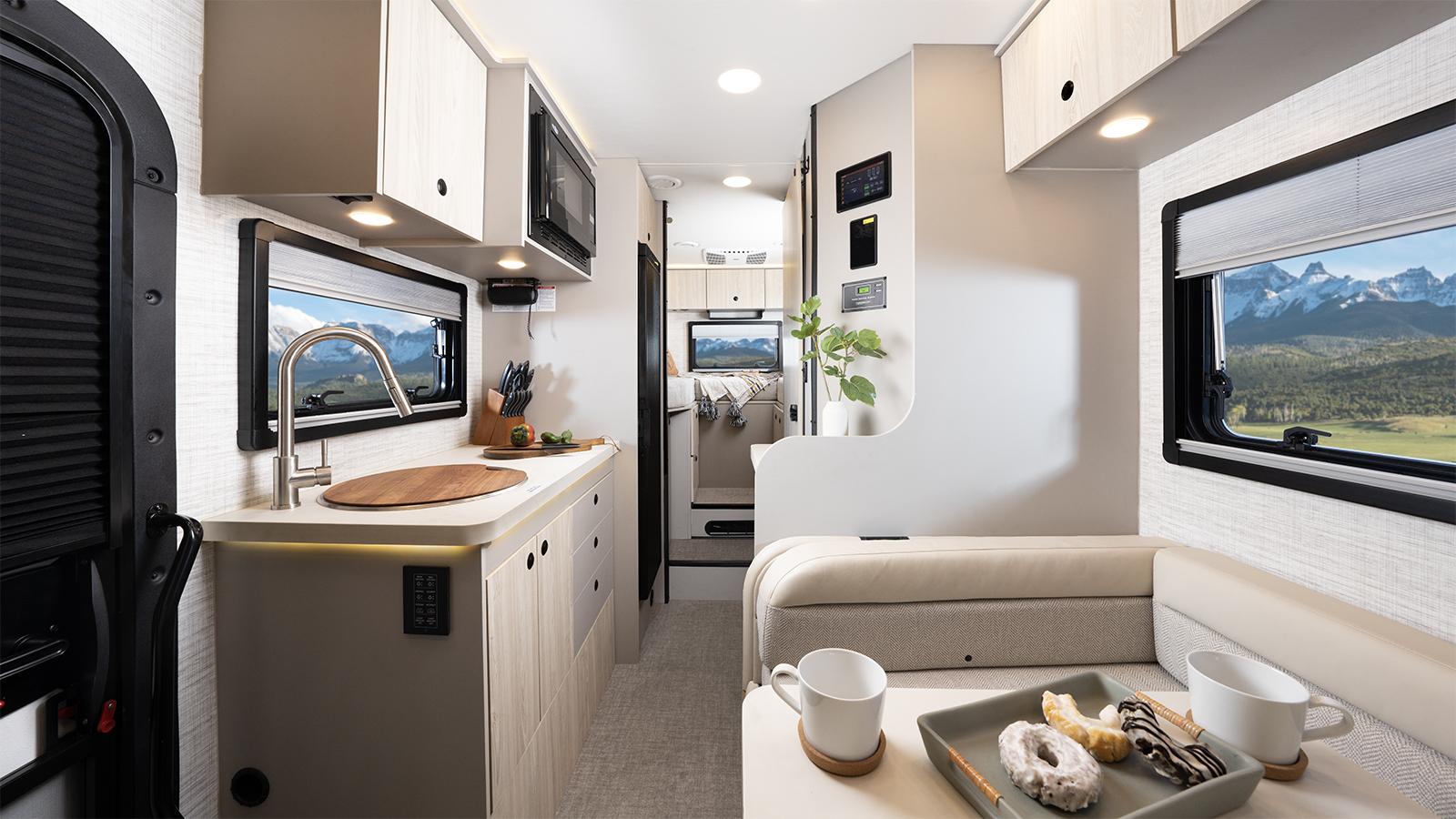

Once you get where you’re going, relax in the 38- by 48-inch dinette lounge, where you can enjoy group dinners with the adjustable table. Swivel your driver/passenger seats to create even more room and adapt to your needs, whether it is mealtime or game time. Two twin size beds with filler cushions convert to a king-size bed, so you can sleep two people separately or easily make a large bed.

There are plenty of options for the Granite Ridge to help you travel your way. Choose from a 7-foot rear awning, pull-out kitchen, Starlink satellite internet system, a pop-top for additional sleeping space or a 32-inch smart LED TV, with cab and bedroom mounts. These options ensure you can travel your way, enjoying the comforts of home wherever you go in the Granite Ridge Class C.

Granite Ridge

Granite Ridge Floorplans and Prices

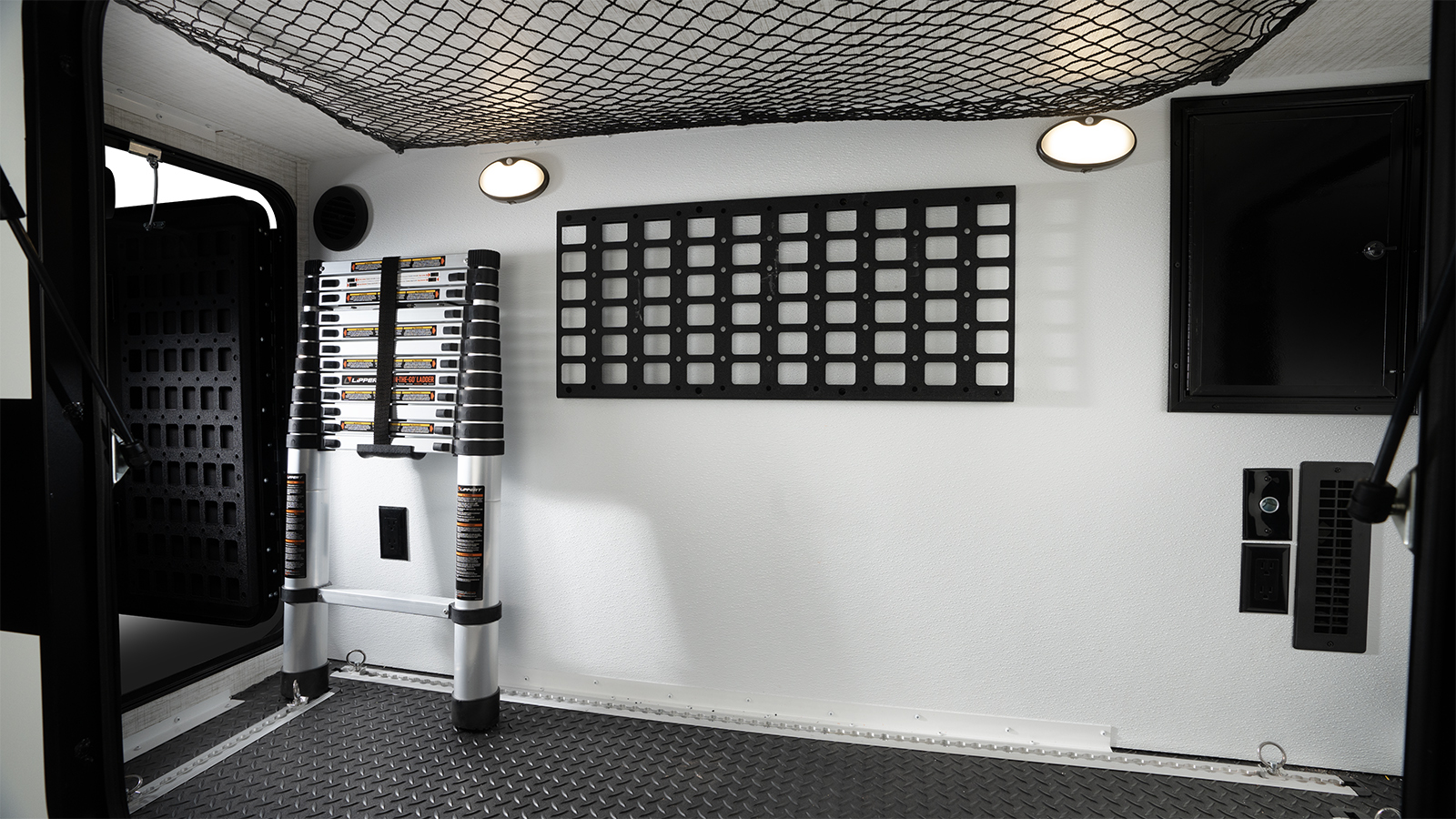

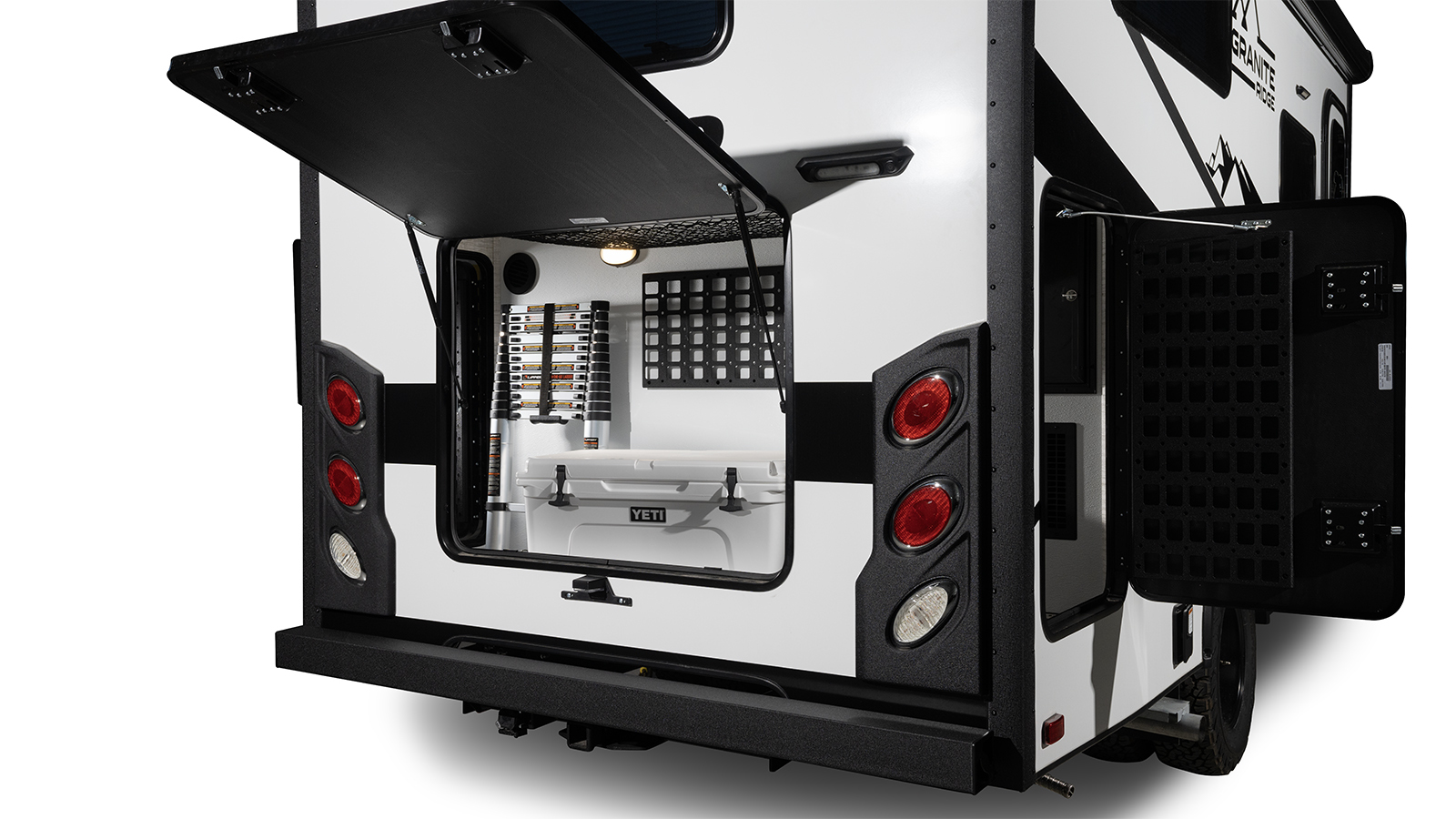

Built for off-road exploration, the Class C Granite Ridge’s large heated garage is big enough for bikes, coolers or any other gear you need for your next adventure. Three large compartment doors make accessing anything you need easy, without having to unpack to get to it. Securing that gear is also a breeze with the L-track and Molle panels. Two 120V charging ports are conveniently placed in the garage. The roof rack and collapsible exterior ladder allow you to safely and securely store your gear on top of your coach and easily access it. The 17,000 BTU Timber Binar 5D hydronic heating system with LED touchscreen control is a 2-in-1 water heater and furnace that consistently delivers hot water and even, moist heat. It’s great for those who want to be off-grid and save LP.

Starting at $218,550
Sleeps up to 2
Length 23' 5" - 24' 8"

Standard Features and Options

Standard Driving Equipment

Chassis Equipment for 22T

  • Ford® Transit 350HD AWD chassis
  • 156 in. wheelbase
  • GVWR - 11,000 lb.
  • GCWR- 15,000 lb.
  • 5L EcoBoost V6 310 HP engine with 400 ft-lb. torque
  • 10-speed transmission
  • 73 limited slip axle
  • (2) 12V AGM chassis batteries (70 amp-hr)
  • 31 gal. fuel tank (gas)
  • 12 in. SYNC 4 HD/NAV/IACC multi-function display
  • 4-way swivel driver and passenger seats
  • Tilt and telescoping steering wheel
  • Intelligent adaptive cruise control
  • Lane-keeping system
  • Forward collision warning
  • Pre-collision assist with automatic emergency braking (AEB)
  • Post-collision braking
  • SOS Post Crash Alert System™
  • Safety Canopy® side-curtain airbags
  • Ford® AdvanceTrac® with RSC® (roll stability control)
  • Side wind stabilization
  • SecuriLock® passive anti-theft system with engine immobilizer
  • Autolocking drive away with crash unlocking
  • Remote keyless entry
  • FordPass™ Connect
  • Tire pressure monitoring system (TPMS)
  • Daytime running headlamps
  • Wiper-activated headlights

Chassis Equipment for 23S

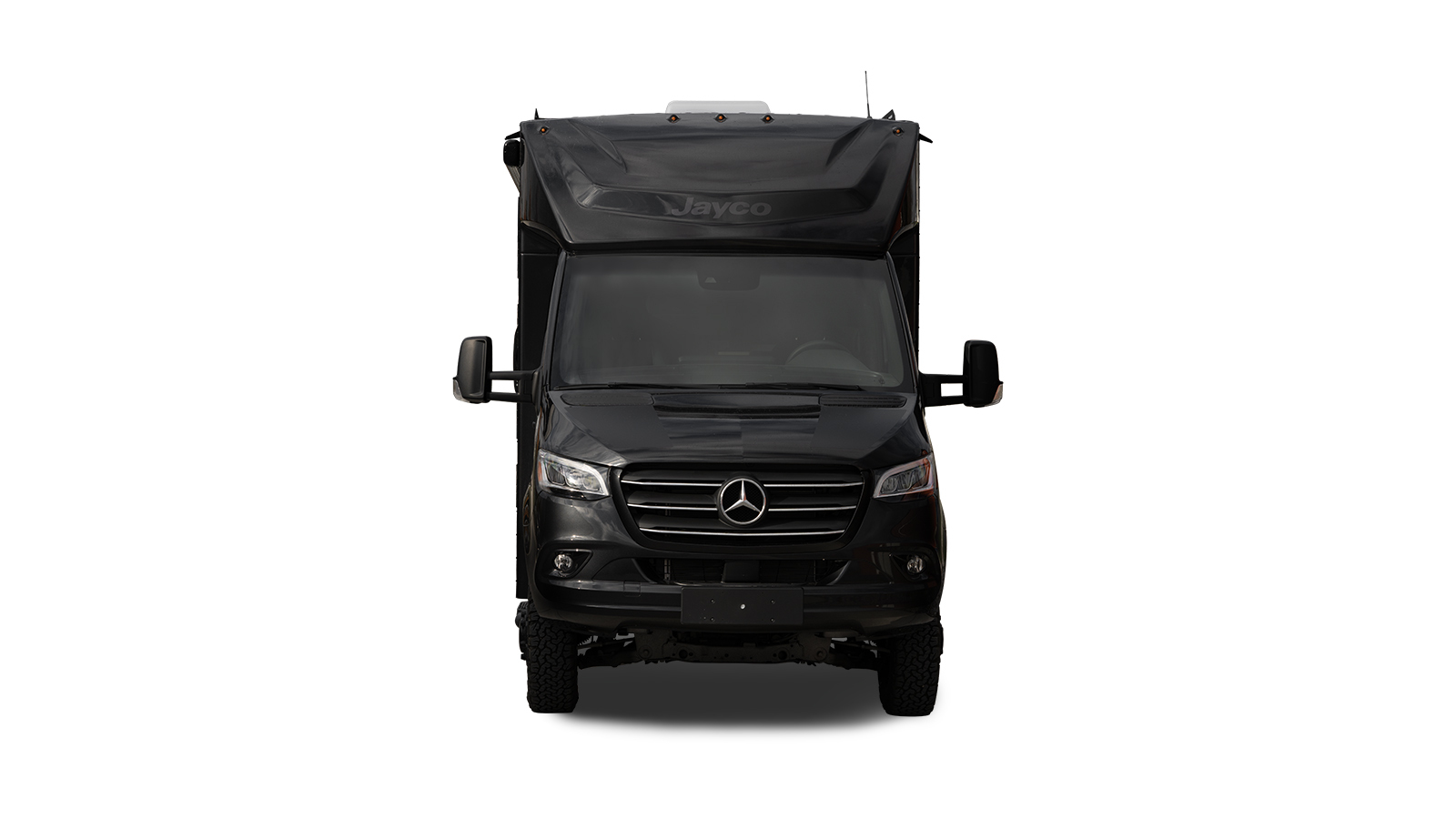

  • Premium Mercedes-Benz® 3500 AWD chassis
  • 170 in. wheelbase
  • GVWR - 11,030 lb.
  • GCWR- 15,250 lb.
  • 2.0 inline 4-cylinder Twin Turbo 211HP diesel engine with electronic fuel injection with 332 ft.-Ib. torque
  • injection with 332 ft.-lb. torque
  • 9-speed transmission
  • 12V AGM chassis batteries (70 amp-hr)
  • 4 gal. fuel tank (diesel)
  • 8 gal. DEF tank
  • 25 in. integrated Mercedes-Benz® MBUX infotainment center
  • Heated power swivel driver/passenger seats
  • Leather-wrapped tilt steering wheel with integrated controls
  • Smartphone tray with wireless charging
  • Active Distance Assist DISTRONIC®
  • Active lane keeping assist
  • Crosswind assist
  • Active brake assist
  • Traffic sign assist
  • Attention assist
  • Breakdown management
  • Emergency call system

Driving Equipment on All Floorplans

  • 250-amp alternator
  • Power anti-lock brakes with power steering
  • Power-adjusting, heated side-view mirrors
  • Driver and passenger airbags
  • Hill start assist
  • Rain-sensing wiper system
  • Automatic high-beam headlights
  • Power windows and door locks
  • Privacy shades for cab windows

Standard Exterior Equipment

  • StrongholdVBL™ roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
  • One-piece, seamless, fiberglass roof
  • Fiberglass exterior walls with partial paint and vinyl graphics

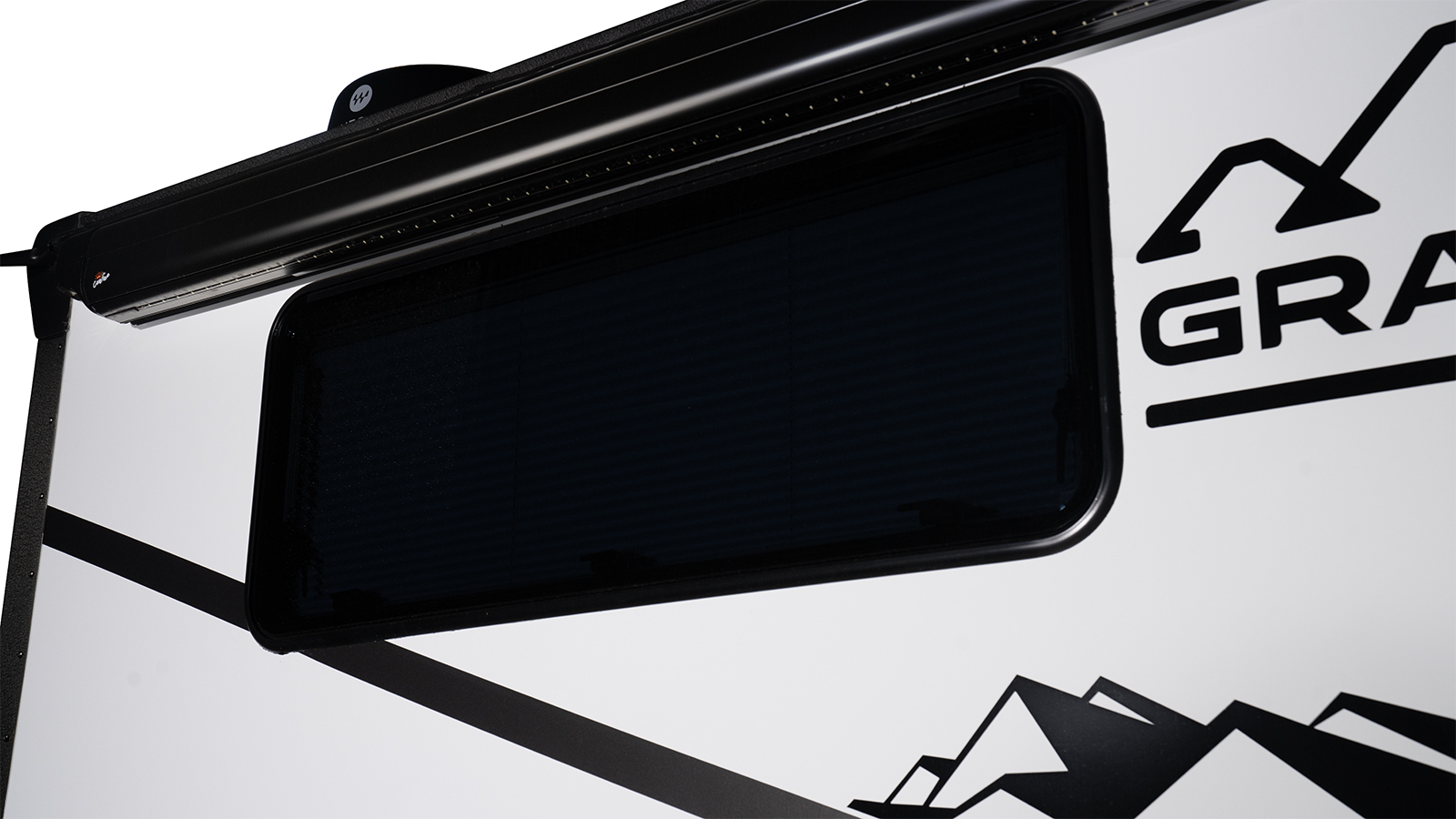

  • Dual-pane acrylic windows
  • Heated garage with L-track and (2) 120V charging ports
  • Electric patio awning with auto-retract and LED lights

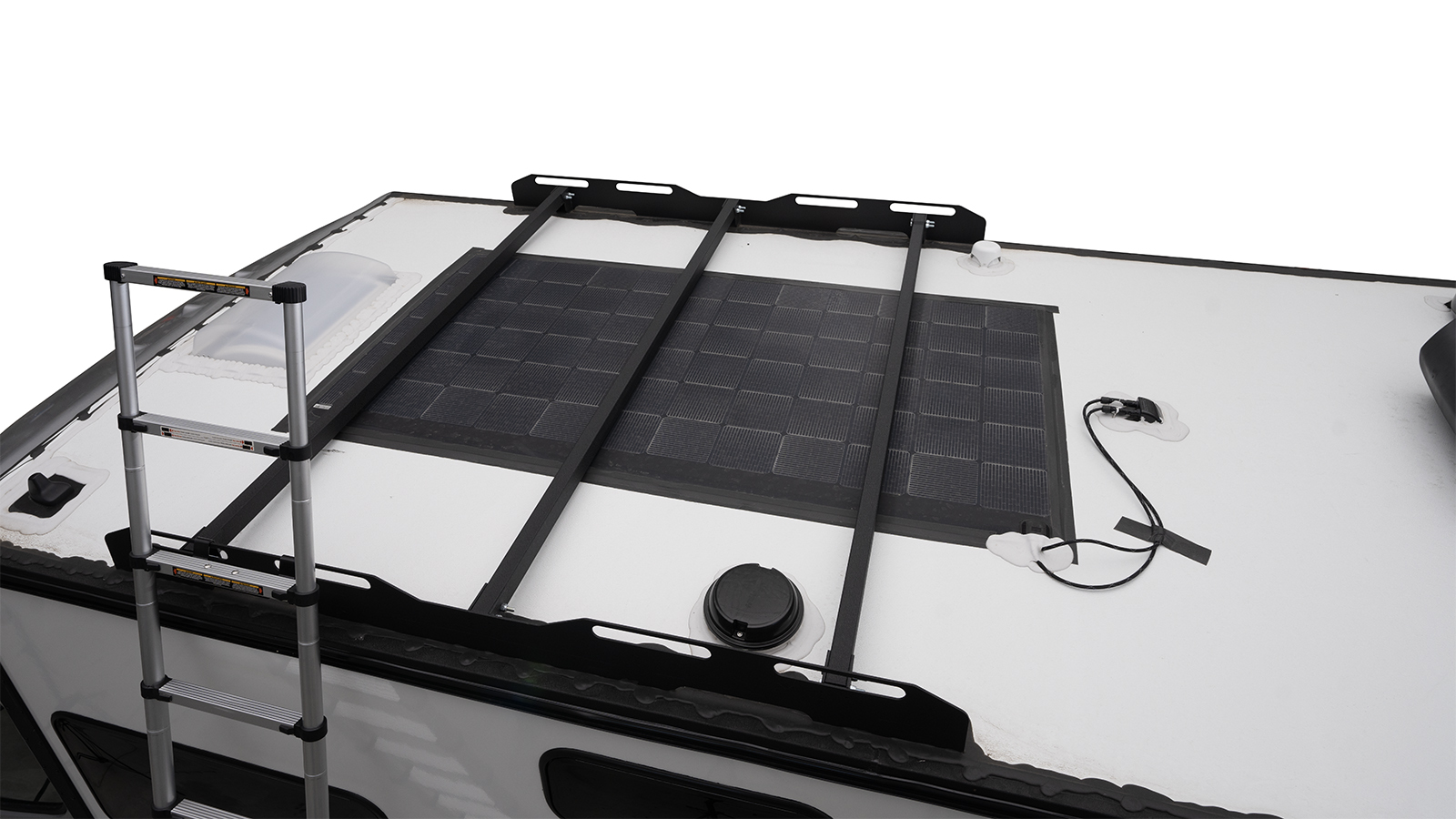

  • Roof rack (N/A with pop-top option)
  • Collapsible exterior ladder
  • Daytime running headlamps
  • Cable TV hookup with RG-6 coax
  • Winegard® Connect 2.0 4G/Wi-Fi/digital TV antenna
  • 2,800W gas generator with auto-gen start (22T)
  • 2,500W LP generator with auto-gen start (23S)
  • Portable solar plug
  • 30-amp electrical service with detachable power cord
  • 120V exterior outlet
  • 6 gal. propane tank (20 lb.) (22T)
  • 6 gal. (20 lb.) and 12.2 gal. (41 lb.) propane tanks (23S)
  • LP quick-connect hookup
  • LED-lit holding tank valves
  • Winterization drain system
  • 12V demand water pump
  • Water filtration system
  • Outside shower

Standard Interior Equipment

  • Custom-molded ABS cab-over with storage
  • Soft-touch vinyl ceiling
  • High-intensity LED ceiling lights
  • Residential vinyl flooring
  • Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control
  • Starlink satellite internet system
  • 13,500 BTU air conditioner
  • 17,000 BTU Timberline Binar 5D hydronic heating system with LED touchscreen control
  • Cassette screens and night shades
  • JBL® Flip 6 removable wireless Bluetooth speaker
  • Adjustable table with multiple mounts
  • 5.3 cu. ft. 12V refrigerator
  • Induction cooktop
  • Convection microwave
  • Stainless steel sink
  • Pressed countertops
  • (2) twin-size beds with filler cushion converts to king-size bed

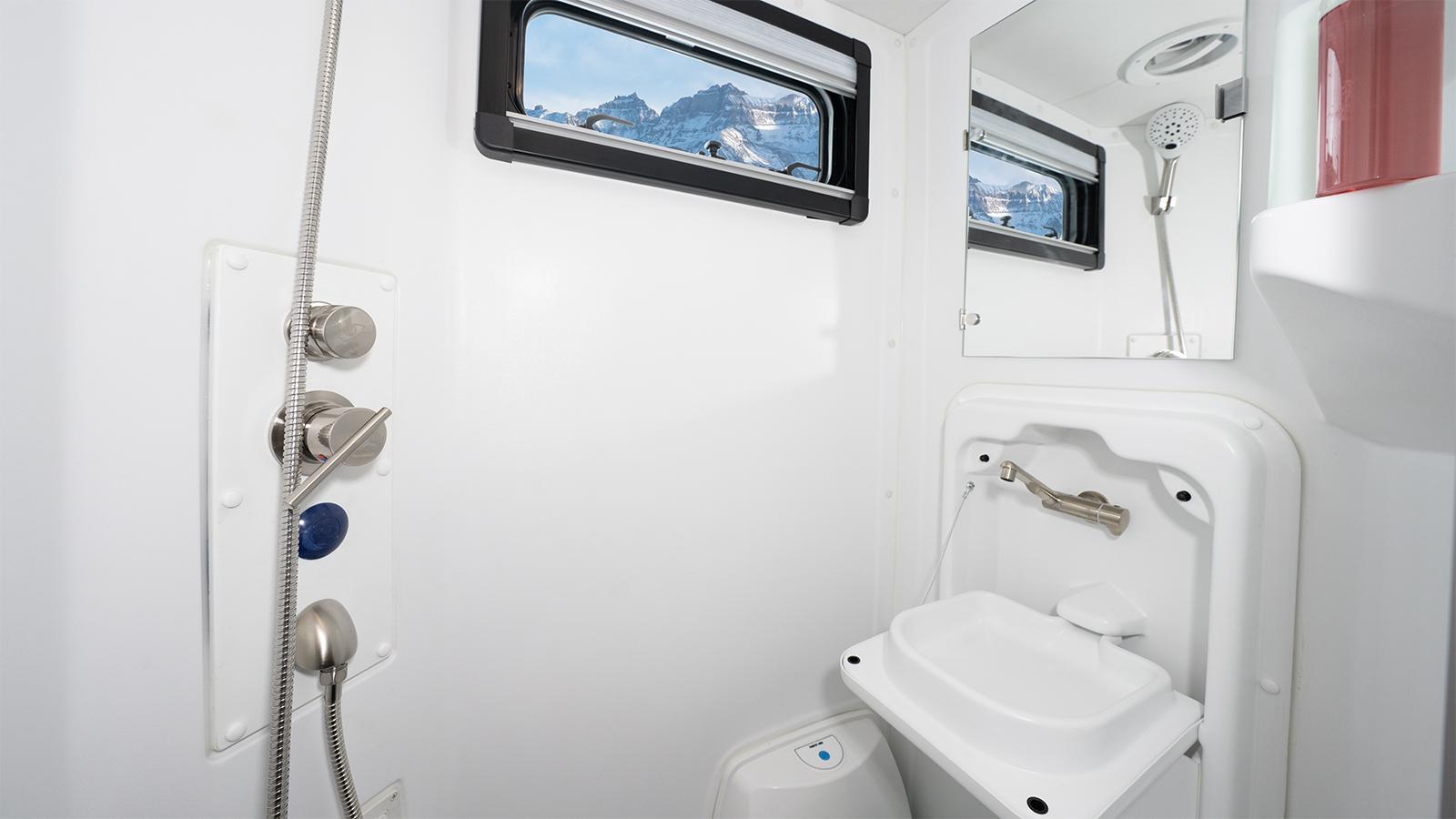

  • All-in-one wet bath with shower and cassette toilet
  • Shower with curtain surround
  • Powered roof vent in wet bath (N/A with pop-top option)
  • Medicine cabinet with mirror
  • Seatbelts for driver/passenger seats and select cab locations
  • Smoke alarm
  • Carbon monoxide detector
  • Fire extinguisher

Customer Value Package (Mandatory)

  • JRide®: Computer-balanced driveshaft, heavy-duty rear stabilizer bar, standard front stabilizer bar, and Hellwig® helper springs (22T)
  • One-piece, seamless, fiberglass front cap
  • Van Compass™ front and rear lift kit (22T)
  • 3.9kWh 12V lithium battery
  • 2,000W inverter
  • 360W roof mounted solar panel with dual controller
  • Expandable side port with second dual bank controller for solar

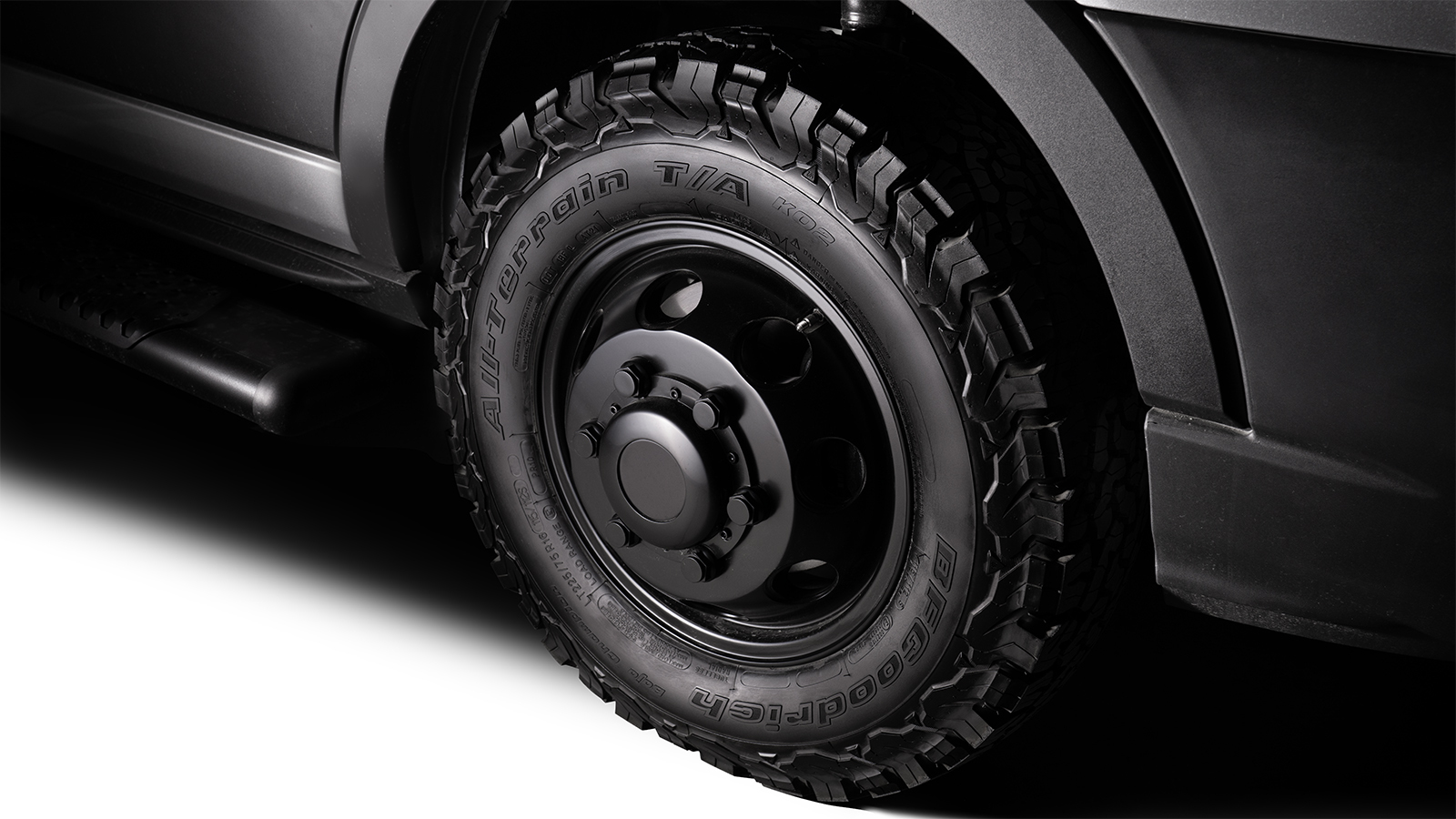

  • All-terrain tires
  • Backup camera
  • Aqua View® SHOWERMI$ER™ water management system
  • Internal holding tanks

Options

  • 32 in. Smart LED HD TV with cab and bedroom mounts
  • Starlink satellite internet system
  • 7 ft. rear awning
  • Pull-out exterior kitchen
  • Pop-top

Standard Features
and Options

JRide<sup>®</sup>
Stronghold VBL™ Lamination
Solar Power
One-Piece Seamless Front Cap
Seatbelts in All Designated Seating Locations

JRide®

We engineer each motorhome with several specific enhancements for a powerful blend of precise handling and renowned stability on the road. Because the journey should be as exciting as the destination.

Learn more »

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single motorhome.  With sidewall or roof-mounted prep kits, you have the option to easily install solar panels, or additional panels if already solar equipped, for extra power at your camp.

Learn more »

One-Piece Seamless Front Cap

An RVs front cap bears a lot of the brunt of the road. The one-piece, seamless front cap resists wear and tear like fading or moisture damage over the years.

Learn more »

Seatbelts in All Designated Seating Locations

To help you keep you most precious cargo safe as you roll on down the road, we install seatbelts in every designated seating location.

Learn more »
