2025 Greyhawk XL | NEW 30M
2025 Greyhawk XL
See Floorplan with
an Option Added:
See Floorplan with
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Interior Design
Stillwater
Exterior

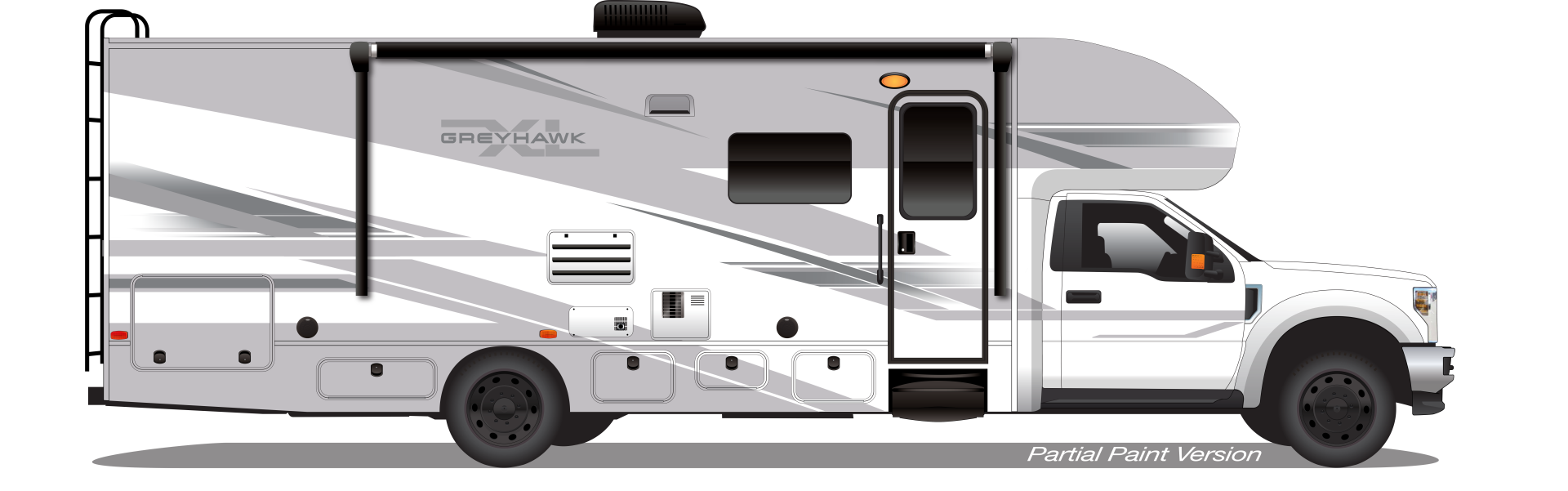

Partial Paint Package
Harvest Moon Full-Body Paint

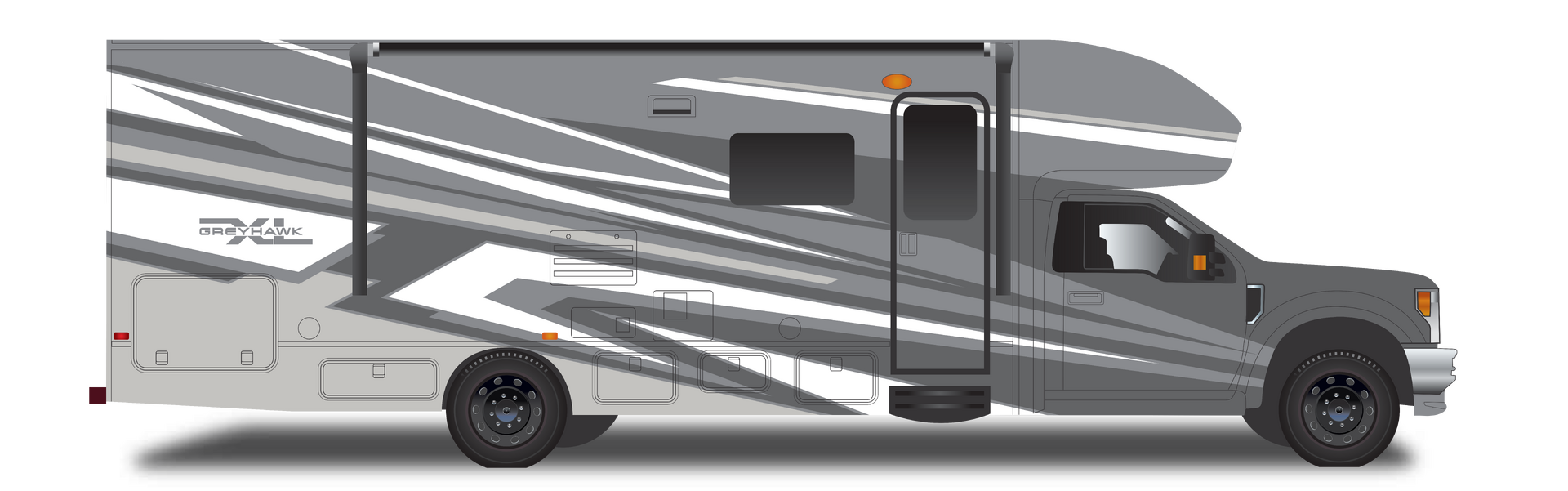

Icy Blast Full-Body Paint

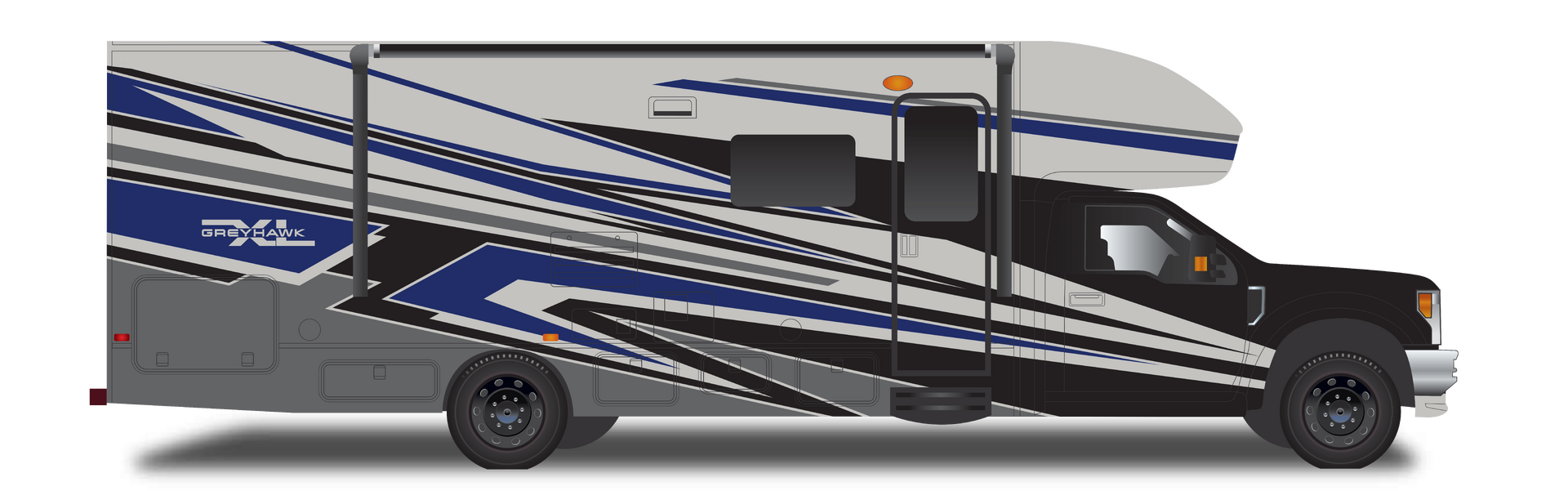

Summer Solstice Full-Body Paint

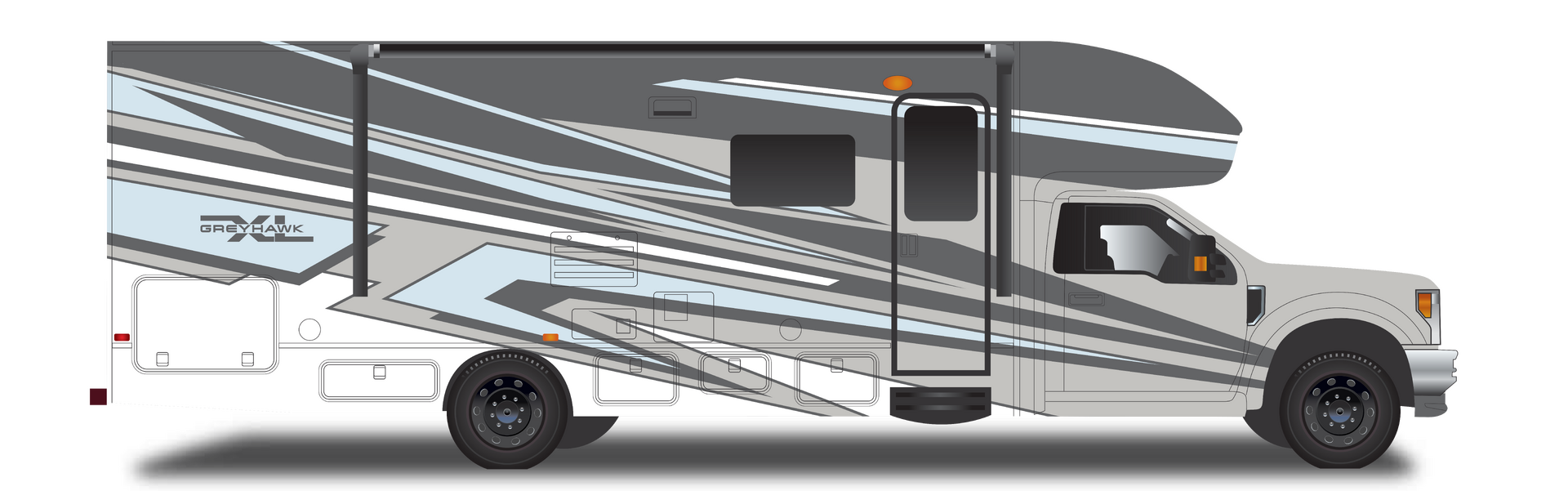

Winter Equinox Full-Body Paint
Build and Price Your Jayco
Choose your customizations below and receive a price estimate.
Specifications
Weights
| Gross Vehicle Weight Rating (lbs) | 19,500 |
| Gross Combined Weight Rating (lbs) | 31,500 |
Measurements
| Exterior Length (overall) | 31' 4" |
| Exterior Height (with A/C) | 12' 6" |
| Exterior Width | 8' 5" |
| Exterior Width (with slides out) | 10' 8" |
| Interior Height (main) | 7' 0" |
| Awning Length | 1' 7" |
Tank Capacities
| Fresh Water Capacity (gals) | 53.0 |
| Gray Water Capacity (gals) | 31.0 |
| Black Tank Capacity (gals) | 31.0 |
| Propane Unit (lbs) | 24 |
| Fuel Tank Capacity (gals) | 67 |
Miscellaneous
| Sleeps | up to 4 |
| Tire Size | 225/70R19.5G |
| Engine Size | 6.7L Power Stroke V8 Turbo Diesel |
2025 Greyhawk XL
Starting at $266,550
Go where others can’t in the Jayco Greyhawk XL Super Class C. This motorhome offers a combination of luxury and capability, perfect for your adventures.
Built on the Ford® F-550 with a 6.7L Power Stroke V8 Turbo diesel engine, the Greyhawk XL is designed for reliability and performance. Its one-piece fiberglass front cap with an automotive-bonded panoramic window eliminates seams found on competitors' caps, a notorious leak point on a Class C motorhome. At the campground, level quicker and start enjoying your time sooner thanks to automatic hydraulic leveling jacks. These jacks allow for less set-up time by automatically leveling the coach with the touch of a button. Be the envy of the campground with Greyhawk XL’s stunning partial paint package and frameless windows, which give a clean, automotive look while protecting the window seals for longevity. The Greyhawk XL's durable fiberglass roof ensures you don’t have to worry about catching a low-hanging branch; a common worry for those with rubber roofs.
Inside the Greyhawk XL, enjoy a consistently comfortable climate with the 15,000 BTU ducted A/C with heat pump and the 30,000 BTU auto-ignition furnace. The 10-gallon gas/electric DSI auto-ignition water heater is more reliable than tankless heaters and replenishes three times per hour, providing consistently hot water for long showers. The Greyhawk XL is also equipped with an Onan® 6,000W generator with auto-gen start and a 2,000W inverter to provide power during your travels. The 200W solar panel with dual controller and second house battery support your off-grid adventures. Enjoy the convenience and safety of modern features, including a Ford® SYNC® 4 infotainment center with Apple CarPlay® and Android Auto™, backup and side-view cameras and heated, remote-controlled, chrome side-view mirrors. The Firefly total coach control system with wall-mounted touchscreen and mobile app integration provides remote access to control your coach’s functions, ensuring your travels are as smooth and enjoyable as possible.
Standard Features
and Options
Similar Floorplans
.png)
29XK
Starting at $158,055
Sleeps up to 6
Length 32' 6"

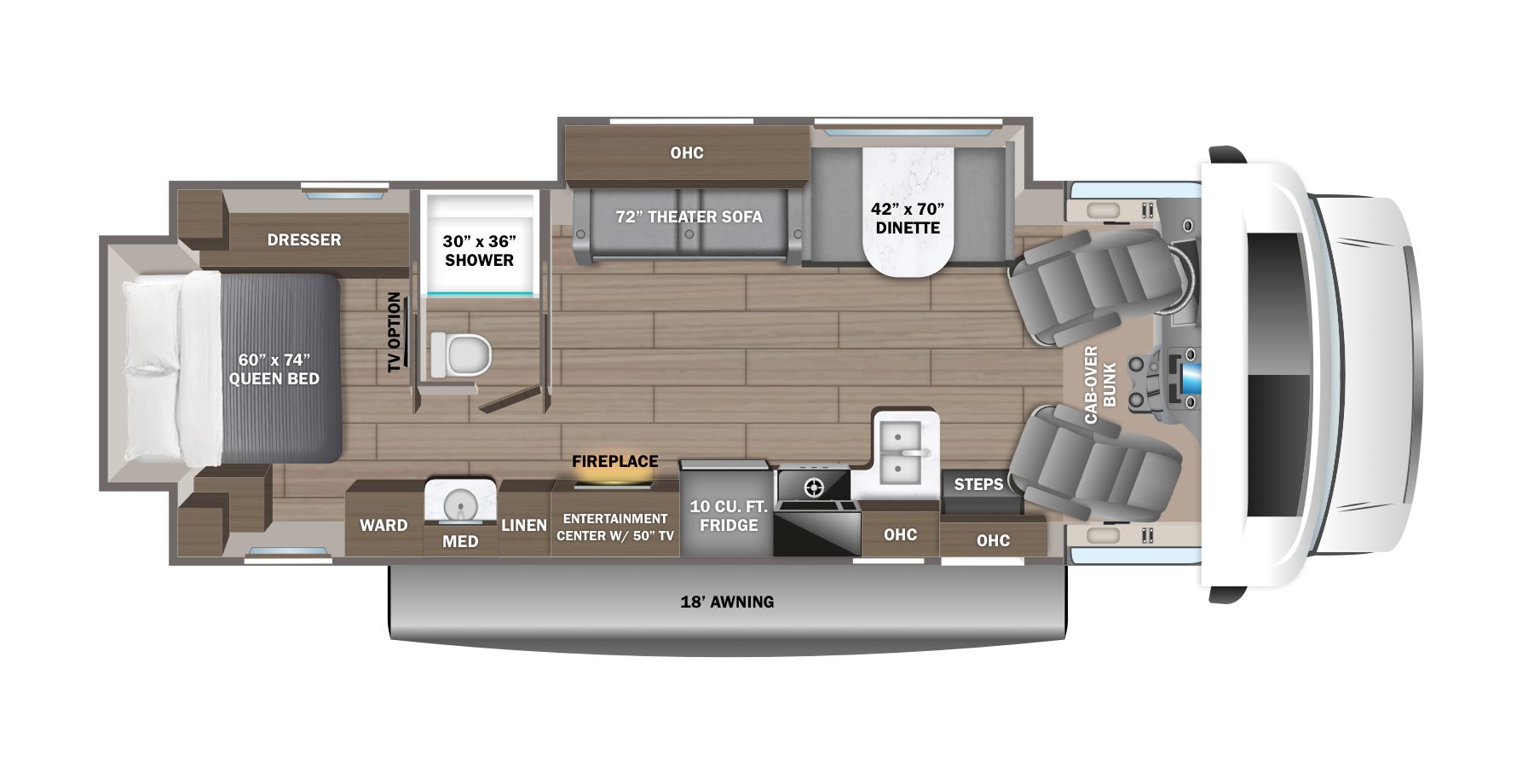

30Z
