Melbourne

2025 Melbourne

Starting at $164,093

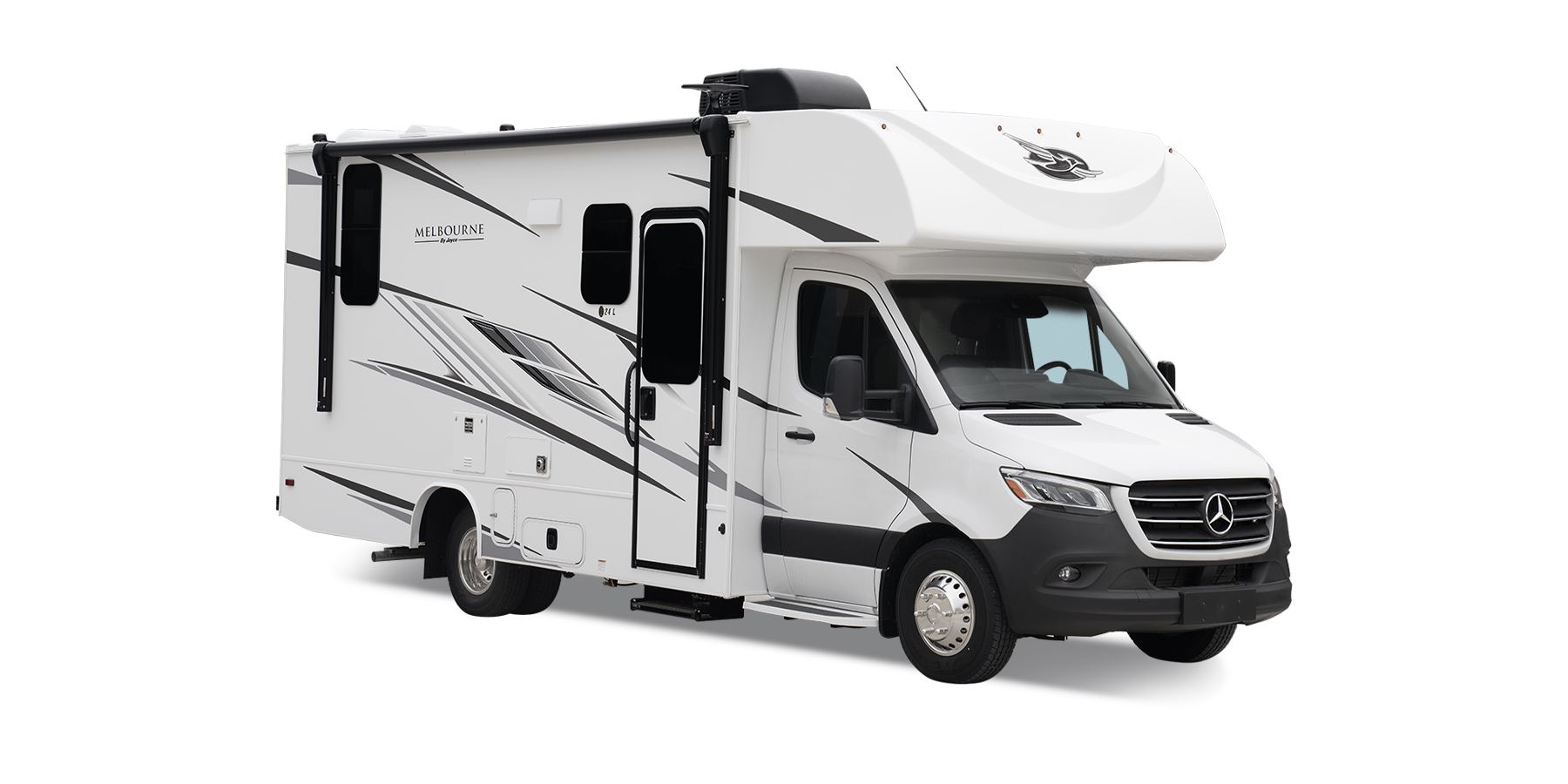

The Jayco Melbourne Class C Motorhome is a great choice for those who want a smaller coach, with a diesel engine, and all the convenient necessities for camping trips. Slightly more basic than the Melbourne Prestige, but no less equipped, the Melbourne is still built on a Mercedes-Benz® chassis. And there’s always the option to upgrade the Sprinter chassis with a V4 Twin Turbo 211HP diesel engine on an optional premium chassis. Navigating and cruising is fun in the Melbourne with an integrated Mercedes-Benz® MBUX infotainment center with GPS, Apple® CarPlay™ and Android Auto™. Don’t underestimate the power of the diesel engine and chassis. It’s ready to tow what you want to bring along, while still including safety features like cruise control, crosswind assist, hill start assist, attention assist, Brake Assist Plus, breakdown management, emergency call system and driver and passenger airbags. The MBUX display easily connects to your phone for navigation with a large, bright display, that is easy to read and navigate, while keeping your eyes on the road. The backup and side-view cameras make navigating and backing into spaces much easier and allow you to view the sides and rear of your coach when turning, changing lanes and reversing. You can tell your partner they don’t need to guide you into the camping spot anymore. On the exterior, the Mercedes Sprinter comes standard with graphics, but can be upgraded to a partial paint package. Frameless windows provide a clean, automotive look and protect the window seals for longevity. Inside, the JBL® audio system delivers incredible sound quality, whether you're listening to music or watching a movie. Need more seating? The Jayco-exclusive, easy-operation legless dinette table with safety belts and car seat tethers, moves easily from the dinette to bed position and does not sag under pressure. If we haven't convinced you yet, this coach has a six-gallon gas/electric water heater and water heater bypass that provides consistent, hot water every time and replenishes three times per hour. Cold-weather camping isn’t a problem, either. The 30,000 BTU auto-ignition ducted furnace allows for even heating throughout the coach, and the robust furnace size ensures you can keep the coach as warm as you’d like in cold weather. Make your diesel dreams come true with the Melbourne Class C.

Melbourne

Melbourne Floorplans and Prices

The Melbourne Class C Motorhome is powerful, but demure. It's not showy with it's power and amenities, but one look and you'll have no doubt. The Melbourne comes standard with an overhead bunk, which may not seem like a big deal, until you understand how seriously Jayco takes their bunks. Regardless of the use, overhead bunk areas can be extremely convenient for the additional space they offer. If you own a Melbourne, you might use your bunk as added sleeping space or storage. Knowing that your bunk measures up to the task at hand is vital. Jayco bunks are rated to hold 300 pounds more than the industry standard, giving our motorhomes a 750-pound bunk capacity. If that much attention is given to the bunk, just imagine how innovative the Melbourne is throughout.

Starting at $164,093
Sleeps up to 5
Length 25' 2" - 25' 2"

Standard Features and Options

Standard Driving Equipment

  • Mercedes-Benz® 3500 chassis with 170 in. wheelbase
  • GVWR- 11,030 lb.
  • GCWR- 15,250 lb.
  • 2.0L inline 4-cylinder Twin Turbo 211HP diesel engine with electronic fuel injection with 332 ft.-lb. torque
  • 9-speed automatic transmission
  • 220-amp alternator
  • E-rated highway tires- 215/85R16
  • Front and rear disc, 4-wheel anti-lock brakes
  • 5,000 lb. rear hitch receiver with dual connector 7-pin plug
  • 12V chassis battery
  • 12.4 gal. fuel tank
  • 5.8 gal. DEF tank
  • Tilt steering wheel
  • Power windows and door locks
  • Cruise control
  • Crosswind assist
  • Hill start assist
  • Attention assist
  • Brake Assist Plus
  • Breakdown management
  • Emergency call system
  • Headlight assistant
  • Auxiliary start switch
  • Driver and passenger airbags
  • Privacy curtain for cab area

Standard Exterior Equipment

  • StrongholdVBL™ roof, floor and sidewalls
  • Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
  • Tufflex™ PVC laminated roof
  • Fiberglass running boards
  • Fiberglass exterior walls with vinyl graphics
  • Electric stabilizer jacks
  • Slideout awning(s)
  • Entrance door with industry’s largest travel-view window
  • Electric-powered entrance step with integrated house battery compartment
  • Third brake light
  • 4 in. bumper tube with sewer hose storage
  • Prep for satellite dish
  • Cable TV hookup with RG-6 coax
  • Digital antenna with signal booster
  • 3,600W LP generator with (4,000W on select models)
  • Solar prep
  • 12V house battery
  • Transfer switch with reverse polarity protection
  • 30-amp electrical service
  • 12.2 gal. propane tank (41 lb.)
  • LP quick-connect hookup
  • Exterior utility center
  • Winterization drain system
  • Black tank flush
  • Outside shower
  • 12V demand water pump
  • Water filtration system

Standard Interior Equipment

  • Overhead bunk with 750 lb. capacity
  • 83 in. interior ceiling height with padded vinyl ceiling
  • High-intensity, LED ceiling lights
  • LED-lit slideout fascia
  • Hardwood cabinet doors and drawer fronts
  • Ball-bearing drawer guides
  • Pleated blackout shades
  • 13,500 BTU A/C
  • 30,000 BTU auto-ignition ducted furnace
  • 6 gal. gas/electric water heater and water heater bypass
  • Powered roof vent in living area with wall switch
  • Jayco-exclusive, easy-operation legless dinette table (24R)

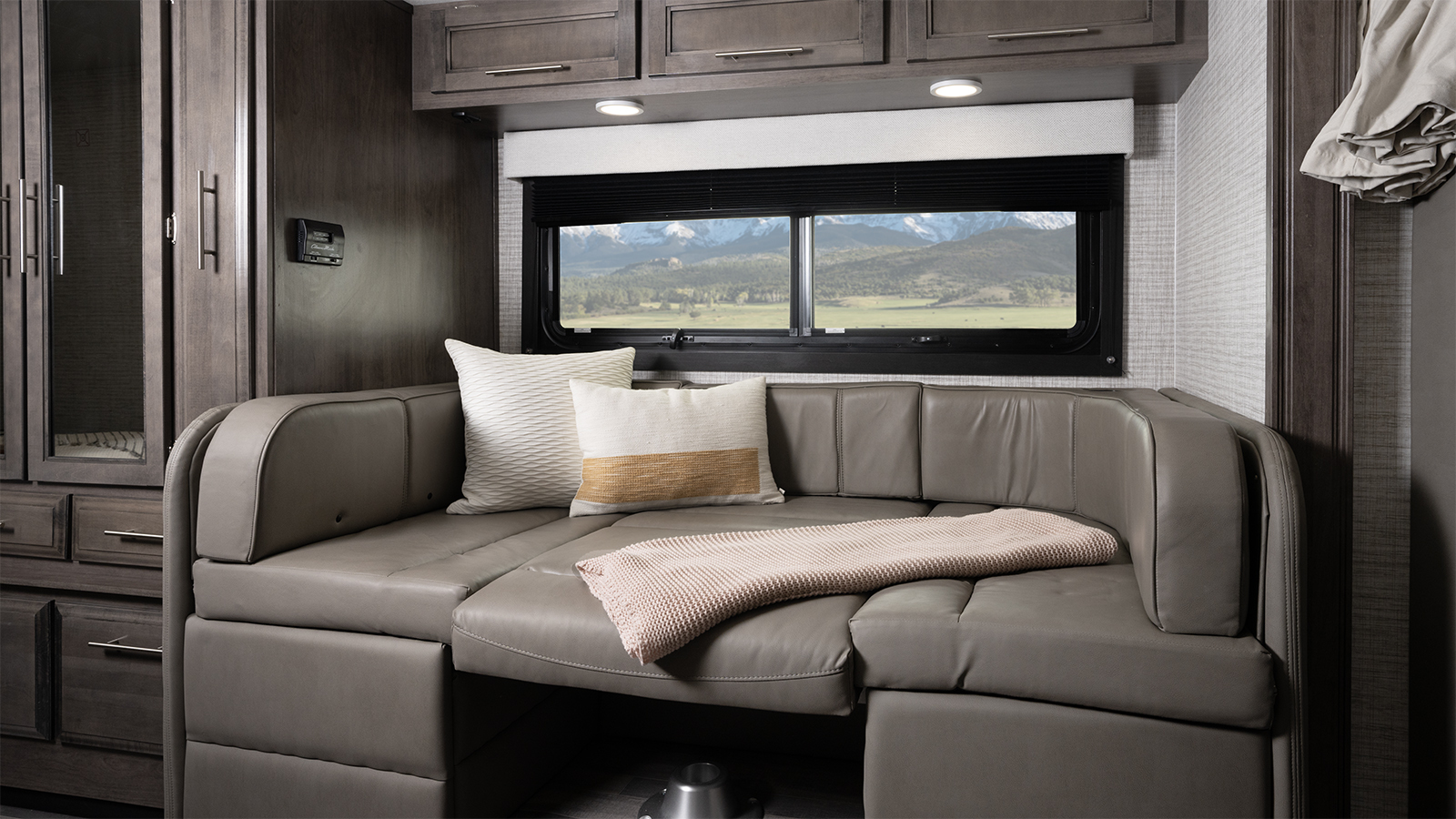

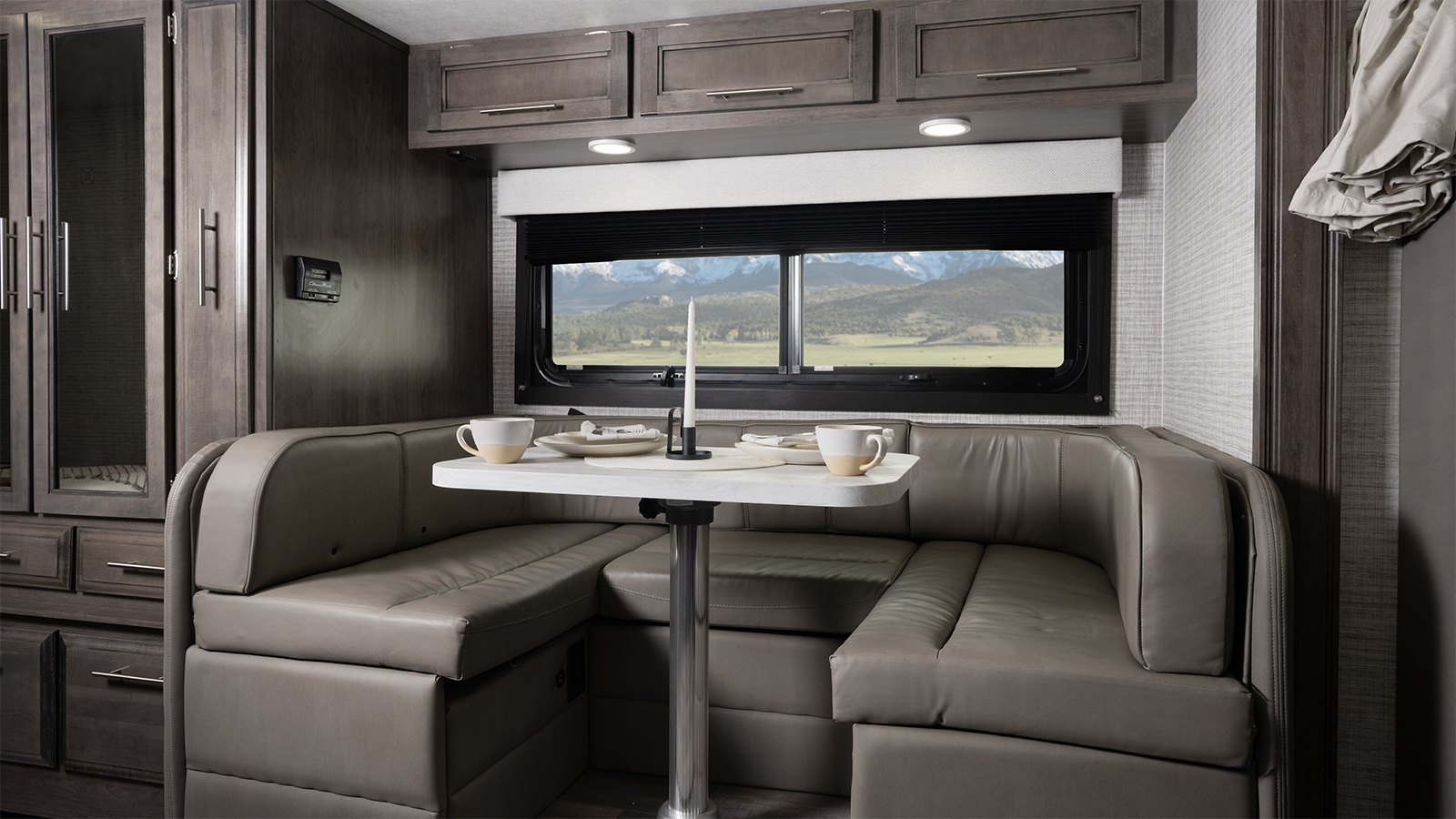

  • U-shaped dinette with stow away pedestal legs (24L)
  • 12V USB charging station in dinette area
  • 2-point lap safety belts in all designated seating locations
  • Car seat tethers (select floorplans)
  • LED HD Smart TV

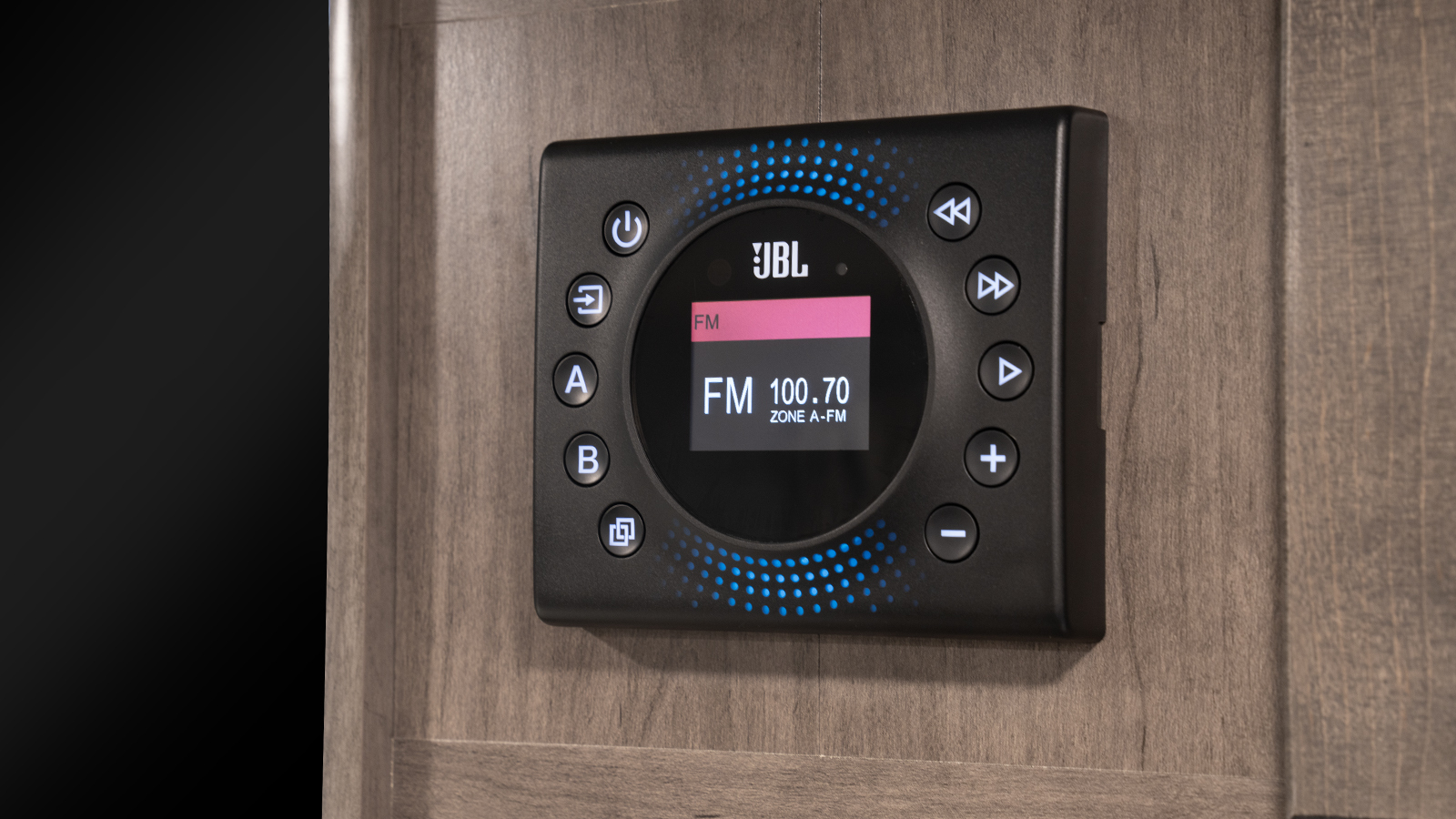

  • JBL® audio system
  • 10 cu. ft. 12V refrigerator

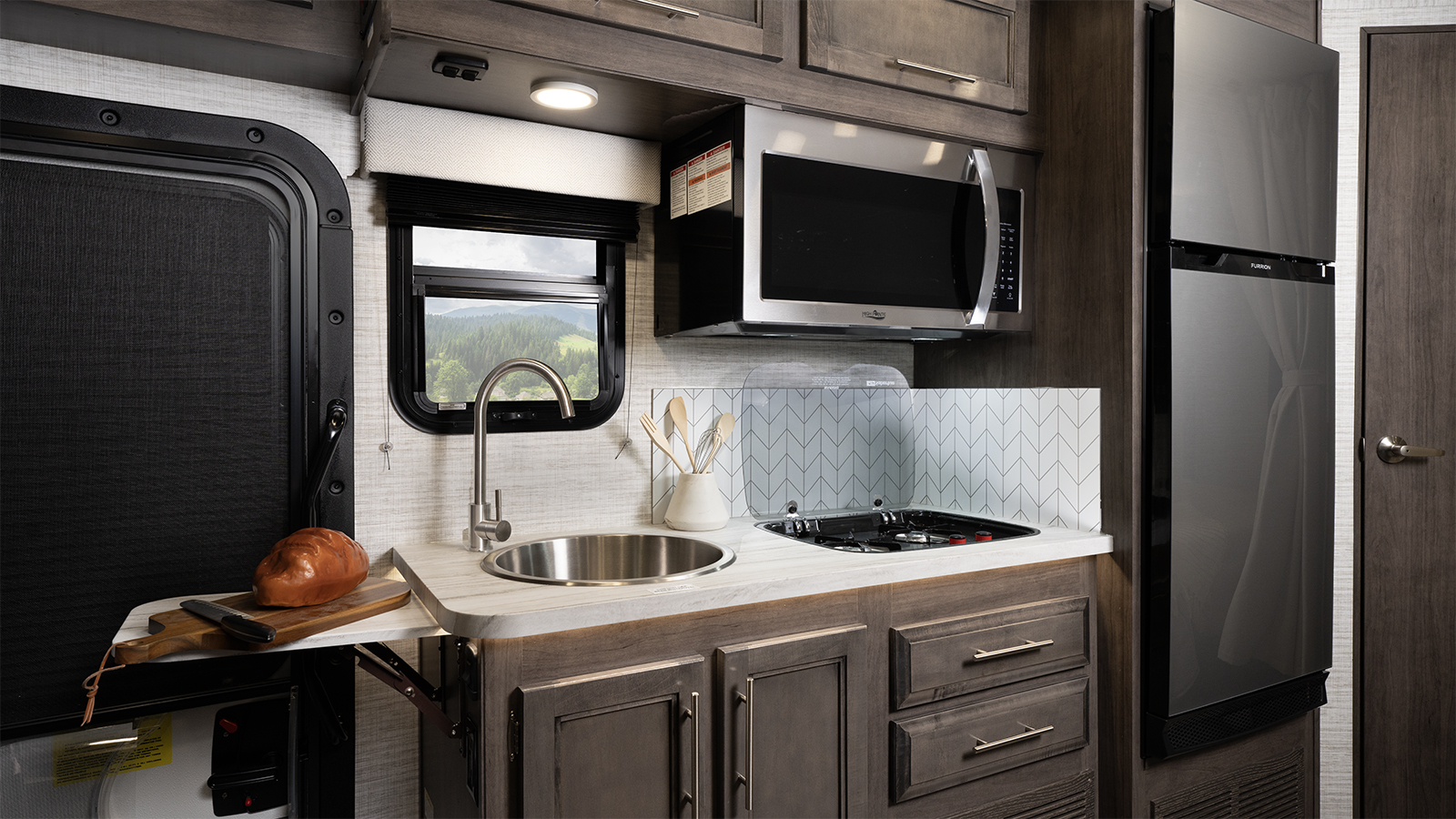

  • 2-burner, drop-in cooktop with flush cover

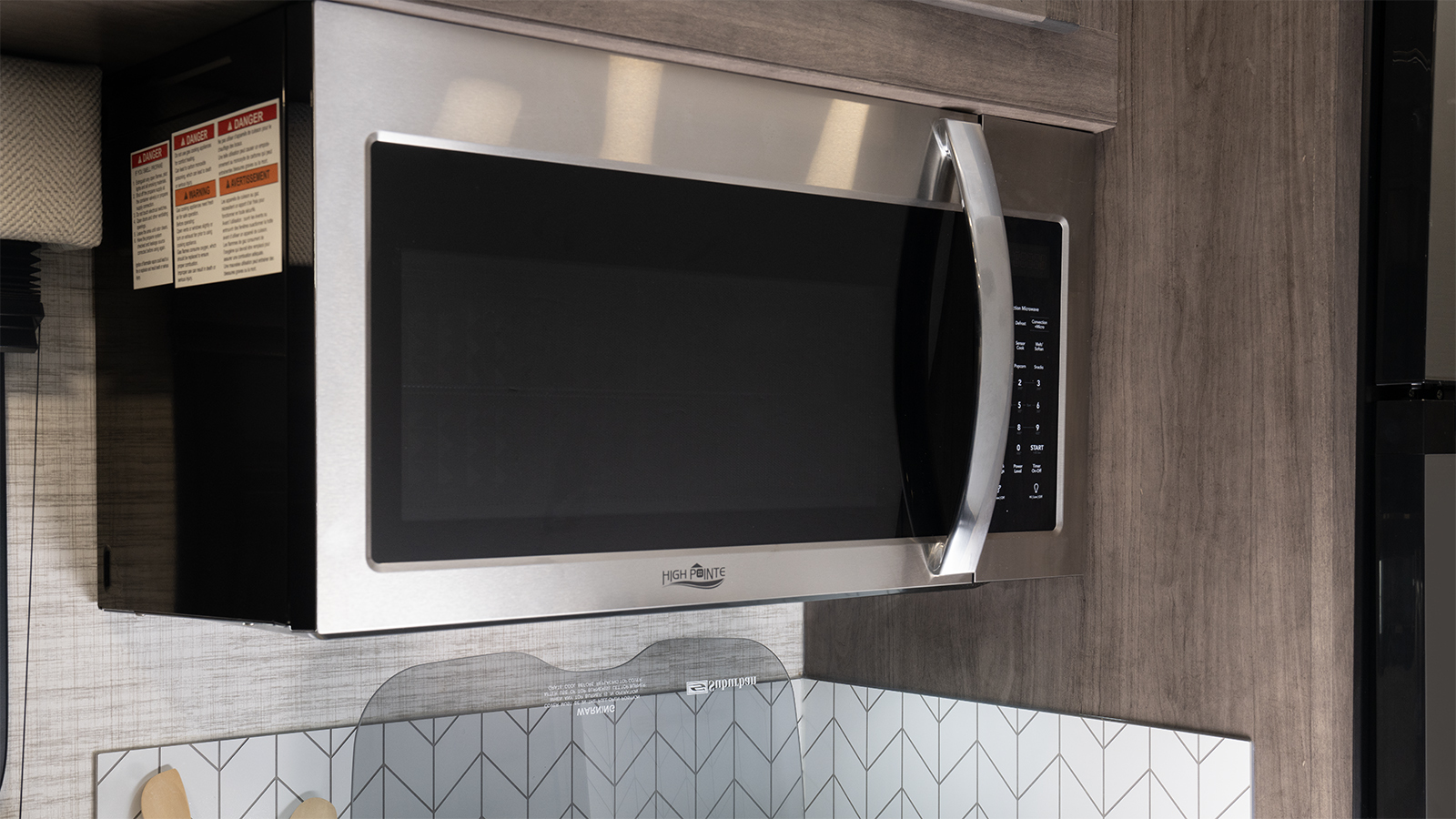

  • Convection microwave
  • Stainless steel sink with wooden cover/cutting board
  • LED-lit pressed countertops
  • Flip-up countertop extension (select models)
  • Decorative kitchen backsplash

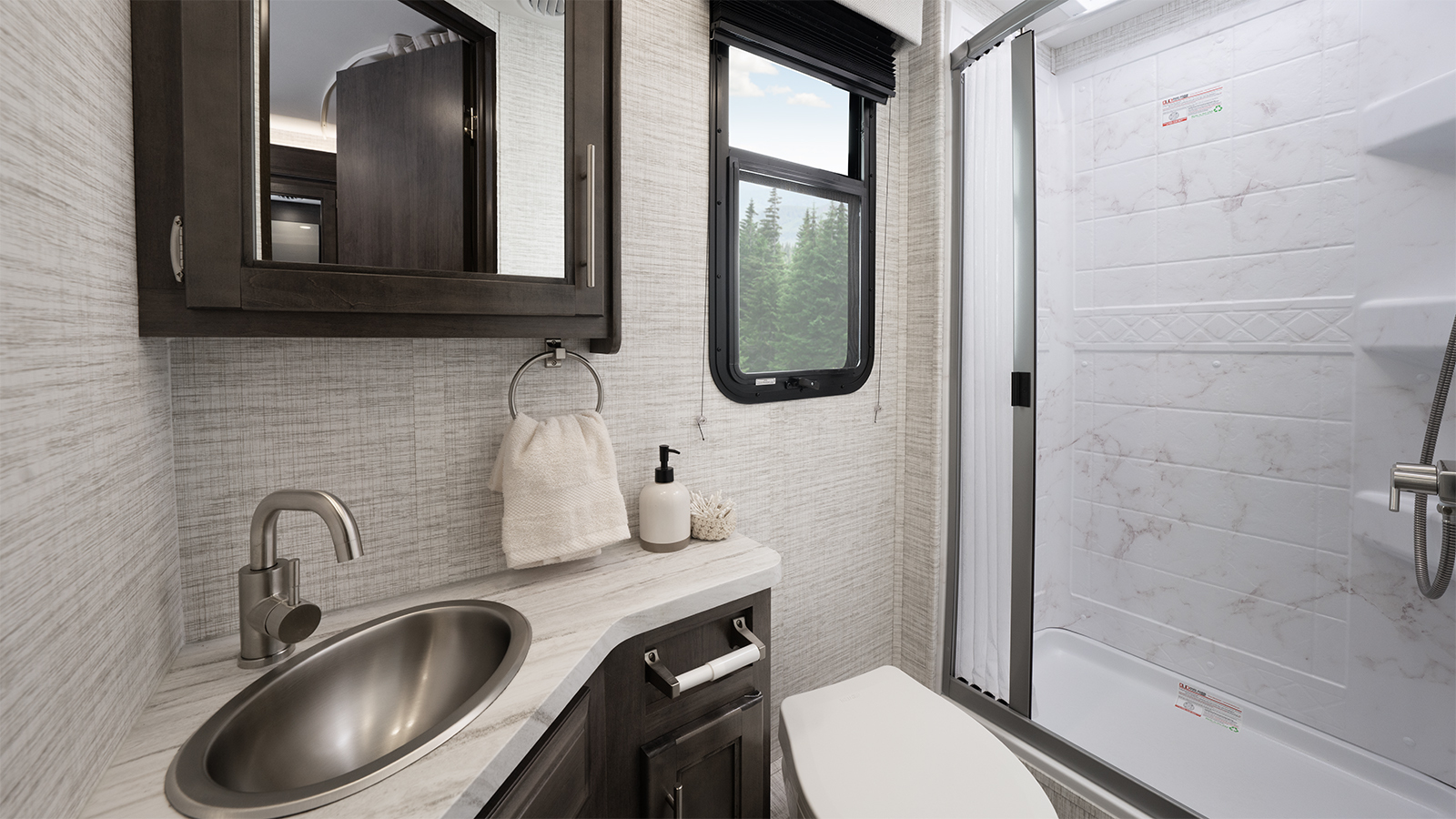

  • Shower with decorative surround and skylight
  • Stainless steel bathroom sink
  • Toilet with foot flush
  • Powered roof vent in bathroom with wall switch

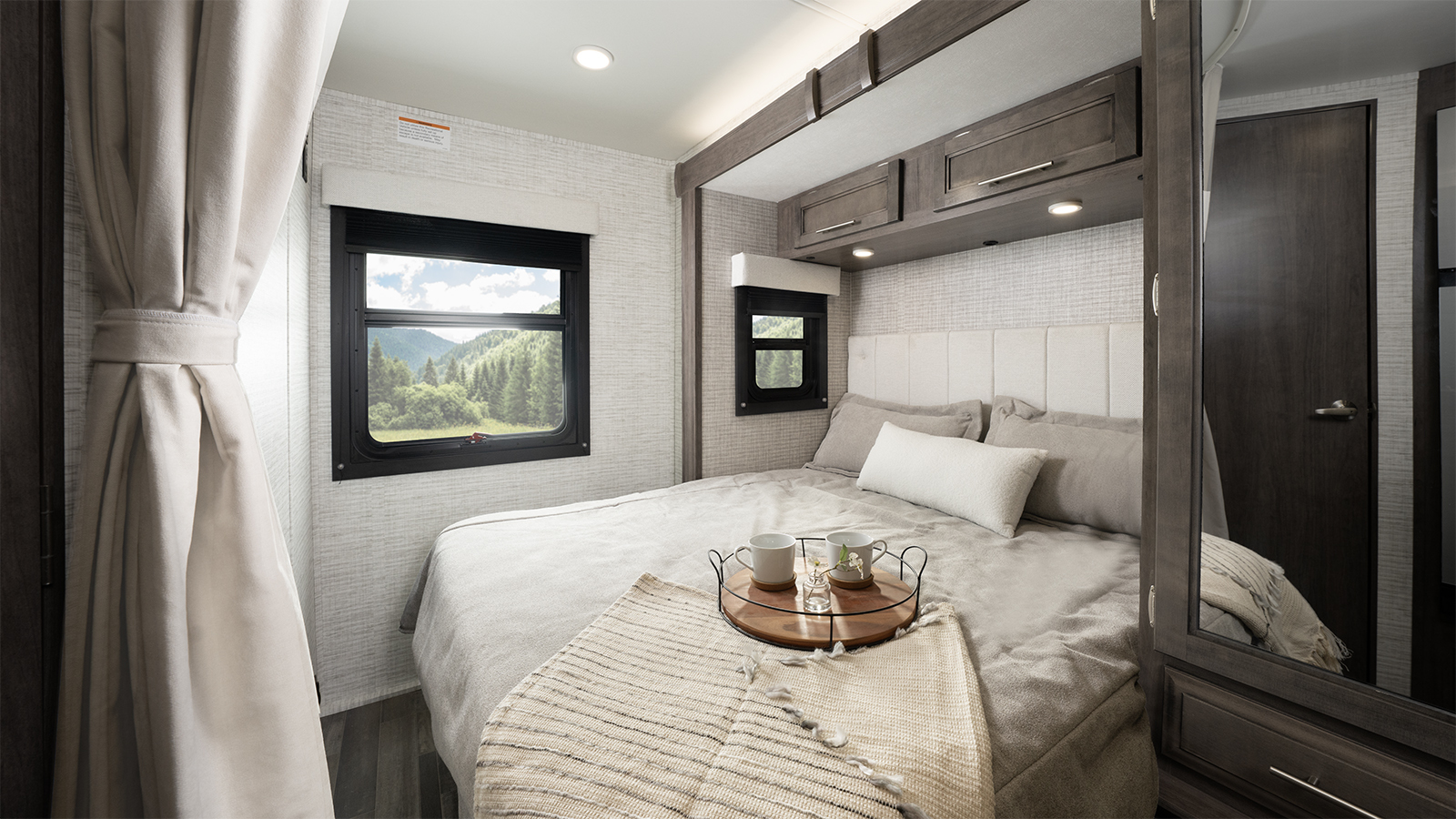

  • Queen-size bed with bedspread (24L)
  • Queen-size power Murphy bed (24R)
  • USB port(s) in bedroom
  • Bedroom TV prep
  • Large wardrobes
  • Smoke alarm
  • Carbon monoxide detector
  • Fire extinguisher

Customer Value Package (Mandatory)

  • One-piece, seamless, fiberglass front cap
  • Frameless windows
  • Heated holding tanks (12V pads)
  • Heated, remote-controlled, side-view mirrors
  • Electric patio awning with LED lights
  • Backup and side-view cameras
  • Keyless cab entry

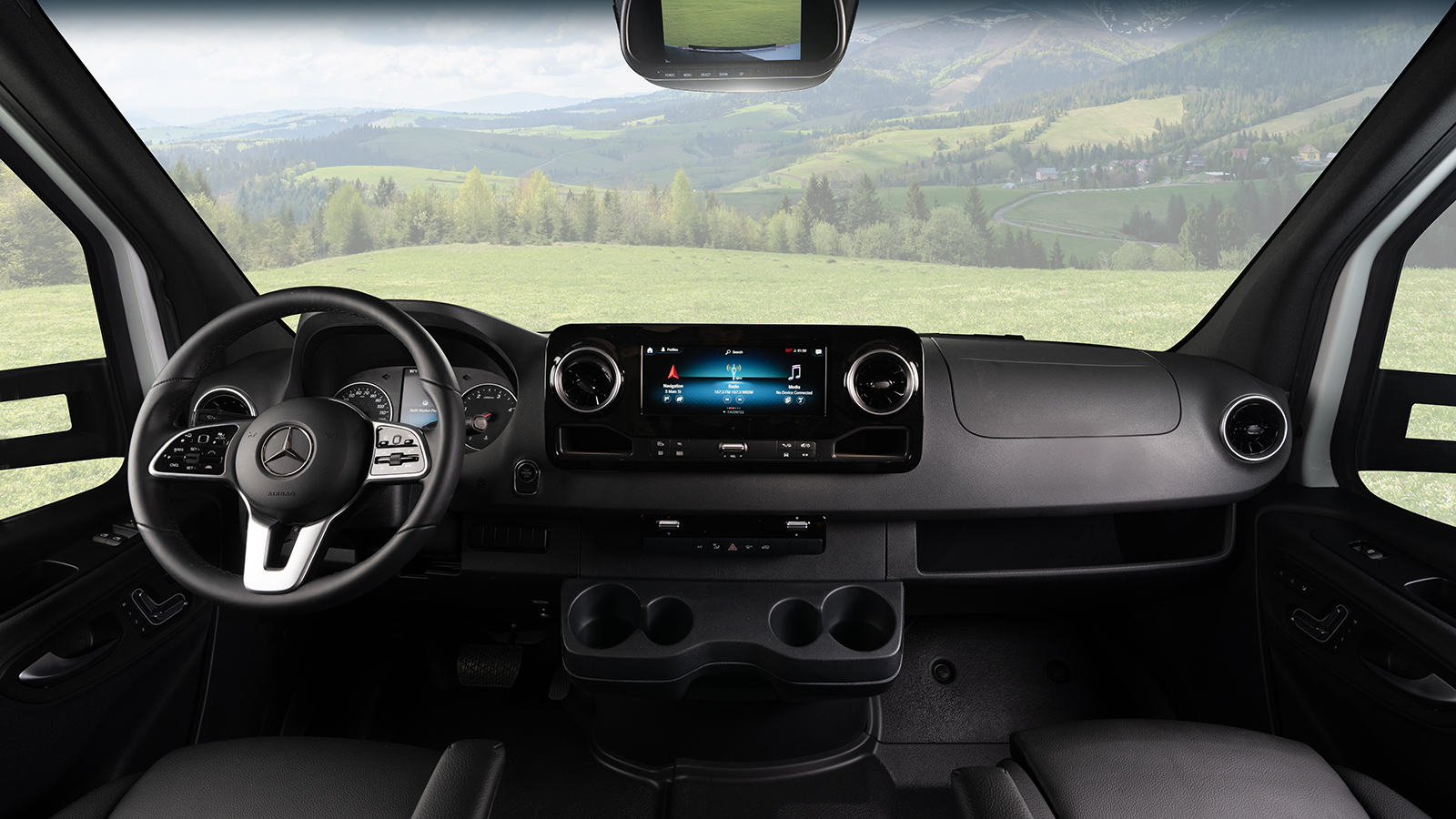

  • 7 in. integrated Mercedes-Benz® MBUX infotainment center with Apple® CarPlay™ and Android Auto™
  • Swivel driver and passenger seats

Options

  • Premium Mercedes chassis - includes active brake assist, chrome grill package, adaptive cruise control, heated captain's seats, smartphone tray with wireless charging, upgraded lighting package, rain-sensing wiper system, leather steering wheel, lane-keeping assist and traffic sign assist.
  • Front entertainment center with 32 in. LED HD Smart TV
  • Folding windshield sun shade
  • 4-point hydraulic leveling jacks
  • Theater seating ILO dinette
  • 200W solar panel with dual controller and second house battery

Standard Features
and Options

Stronghold VBL™ Lamination
Solar Power
One-Piece Seamless Front Cap
Incredible Bunk Ratings
Seatbelts in All Designated Seating Locations

Stronghold VBL™ Lamination

Every sidewall, rear wall and slide room wall is bonded together for a minimum of 16 minutes under 144 tons of pressure to create the lightest, yet strongest, construction available in the RV industry.

Learn more »

Solar Power

Jayco is one of the first companies to offer solar prep, or solar panels, on every single motorhome.  With sidewall or roof-mounted prep kits, you have the option to easily install solar panels, or additional panels if already solar equipped, for extra power at your camp.

Learn more »

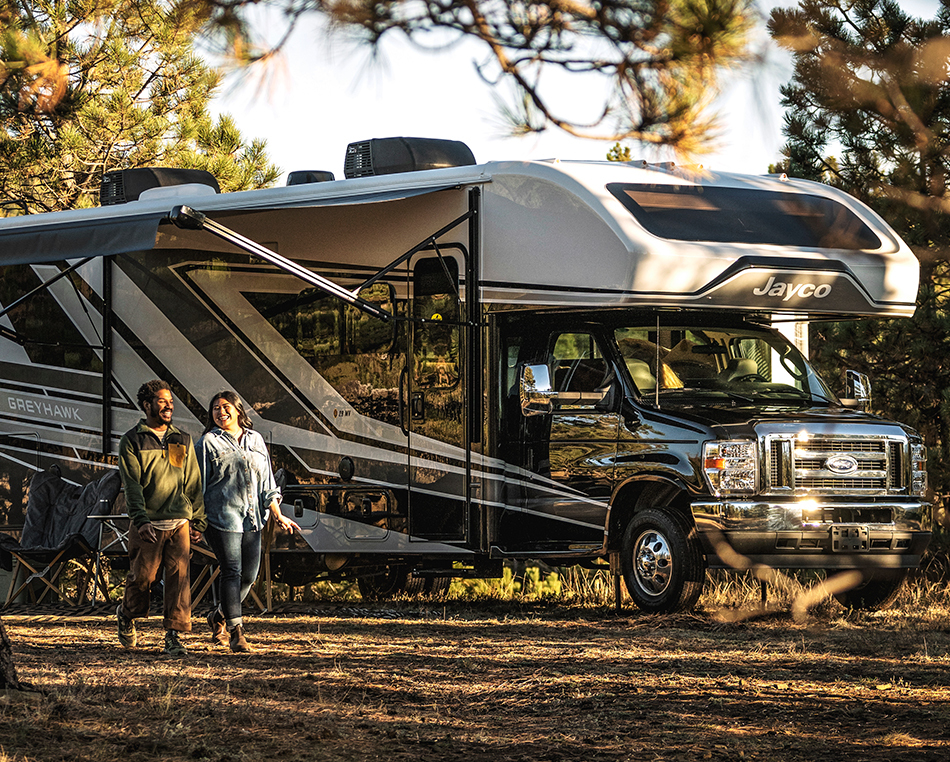

One-Piece Seamless Front Cap

An RVs front cap bears a lot of the brunt of the road. The one-piece, seamless front cap resists wear and tear like fading or moisture damage over the years.

Learn more »

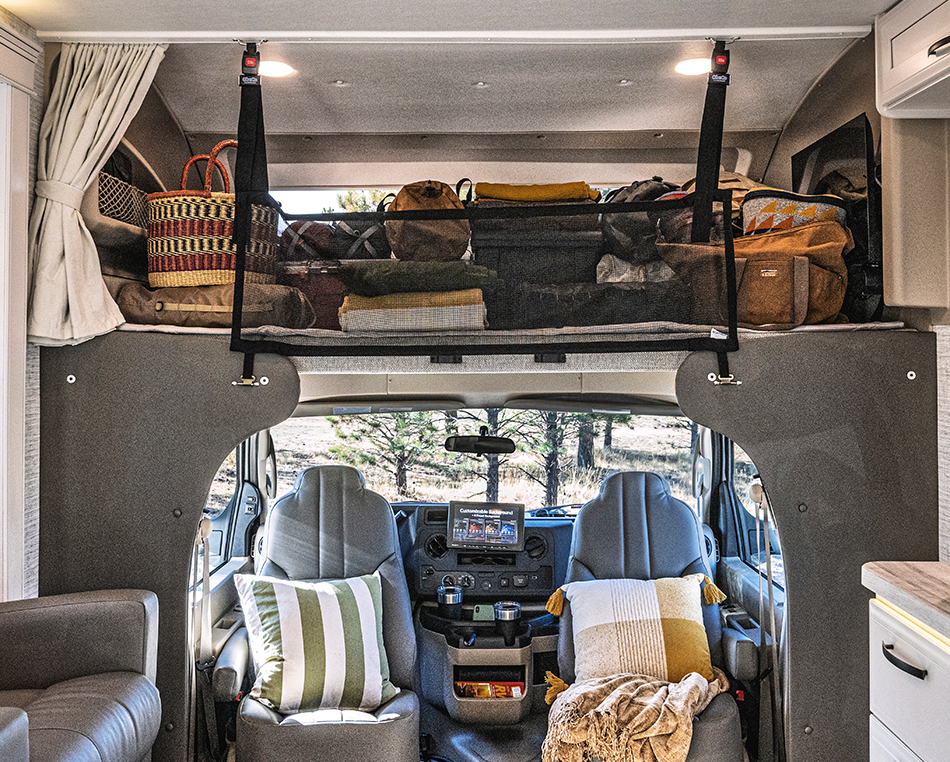

Incredible Bunk Ratings

Go ahead and bring another traveler or some extra gear. With an overhead bunk capacity of 750 lbs., Jayco beats the industry standard by 300lbs. On top of that, Jayco offers a 300 lb. capacity in each standard bunk.

Learn more »

Seatbelts in All Designated Seating Locations

To help you keep you most precious cargo safe as you roll on down the road, we install seatbelts in every designated seating location.

Learn more »

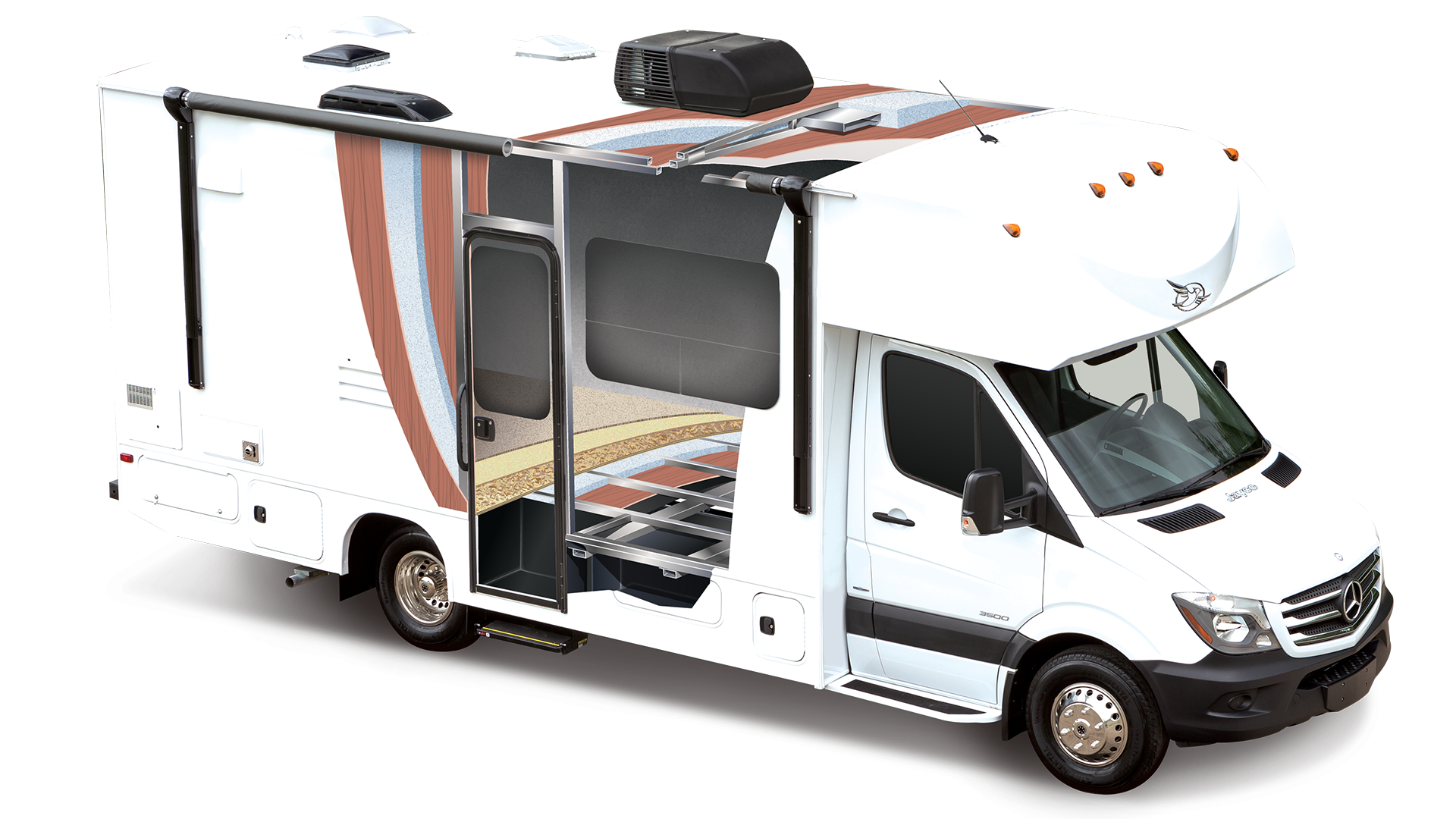

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6

Jayco RV's StrongholdVBL® vacuum-bond process applies 144 tons of pressure to wall components (fiberglass exterior siding, welded aluminum framing, block foam insulation, metal backers and interior wall panels) for 16 to 18 minutes for an incredibly strong and durable product. All sidewalls, floors and roofs are built by Jayco RV in a temperature and humidity-controlled facility.

The Melbourne's one-piece, seamless front cap resists wear and tear, such as fading or moisture damage, over the years.

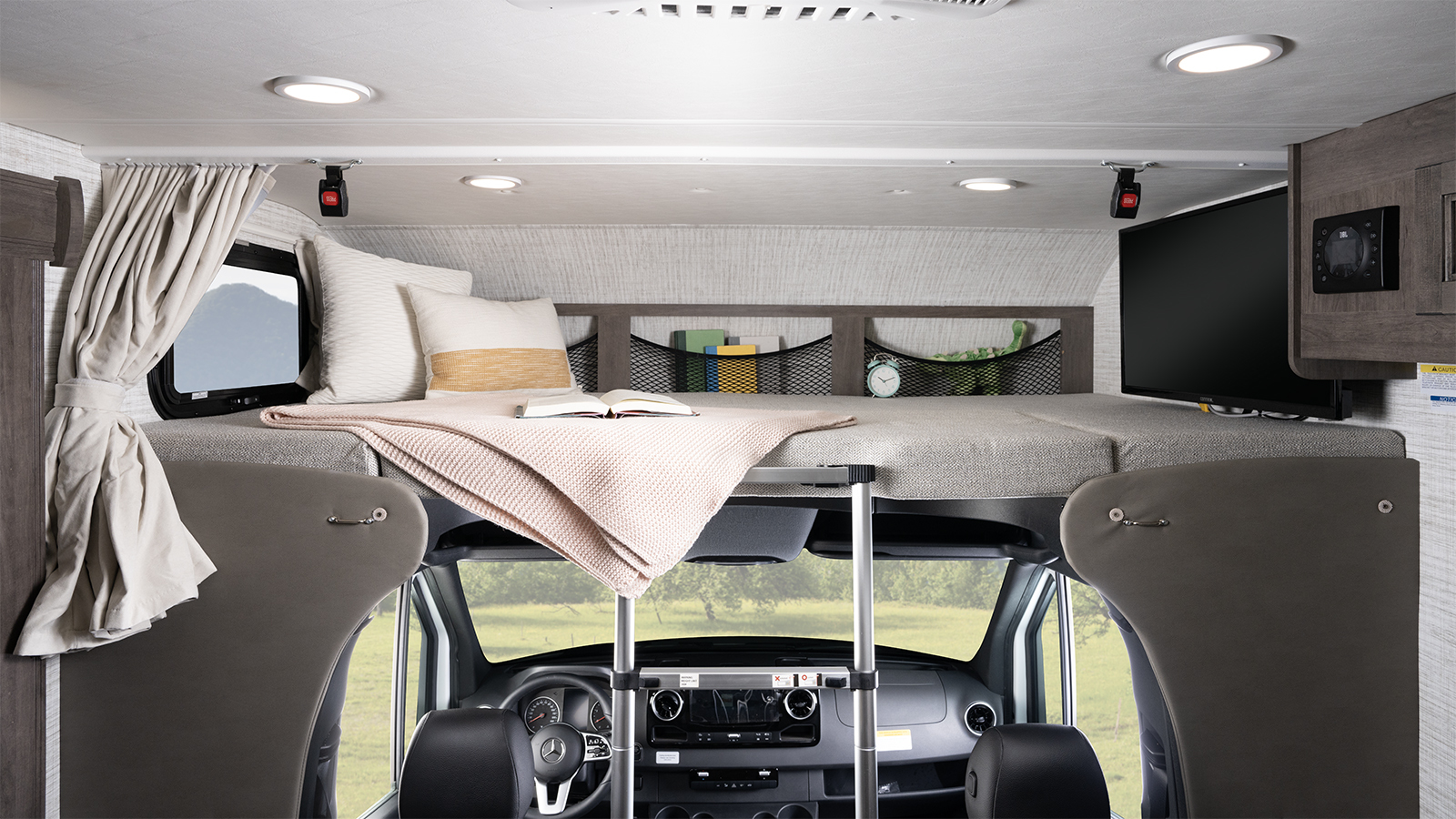

The overhead bunk in a Melbourne boasts a weight capacity of 750 lbs. This is 300 lbs. more than the industry standard and allows owners to sleep two full-sized adults or store extra gear while traveling.

Melbourne's frameless windows make exterior maintenance easier than ever and give the motorhome a sleek, modern look.

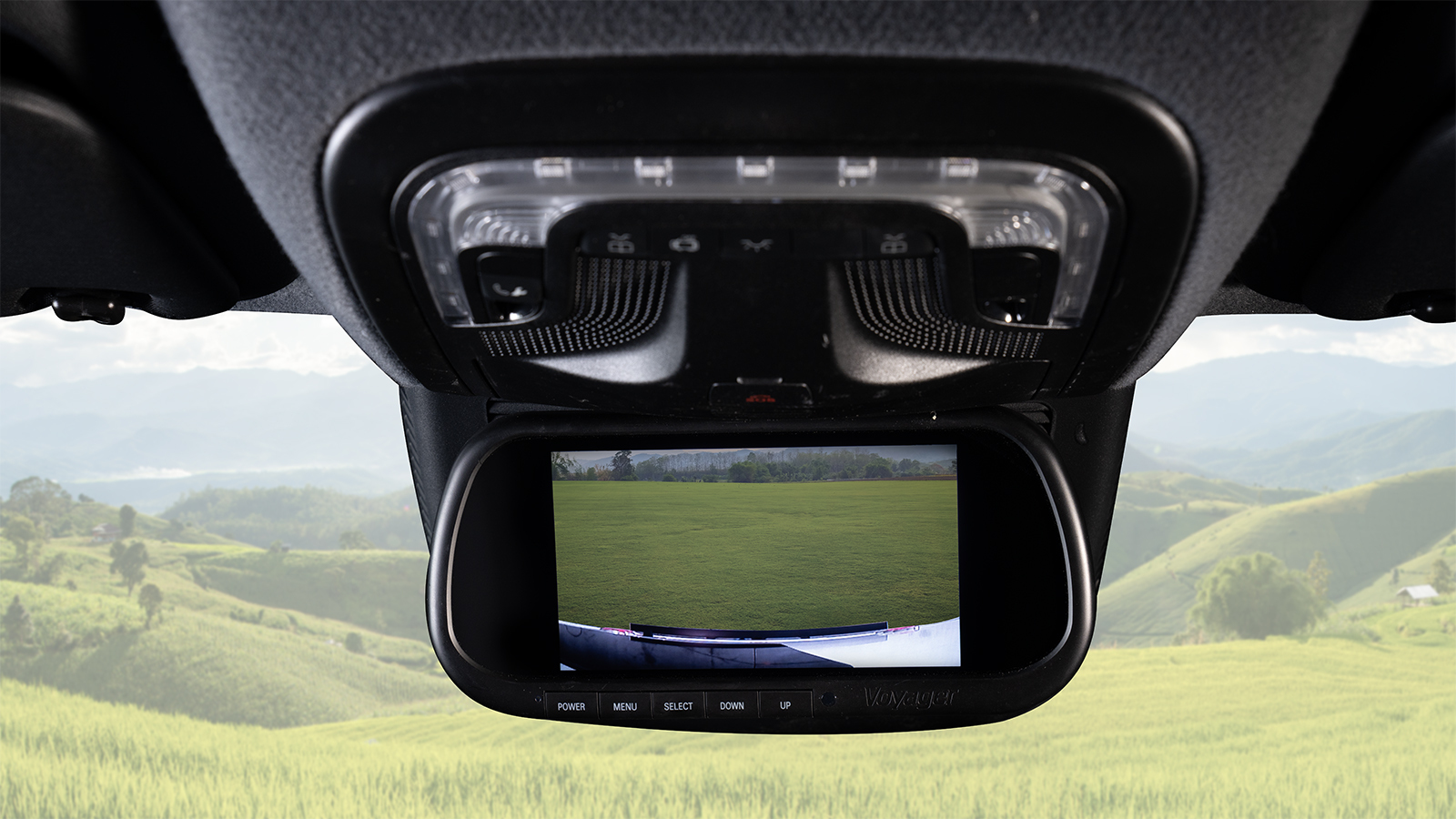

Safety is always top priority at Jayco RV, which is why each Melbourne is equipped with backup and side-view cameras as standard features.

Jayco RV installs stress-tested seatbelts in every designated seating position to ensure the safety of your entire family.
