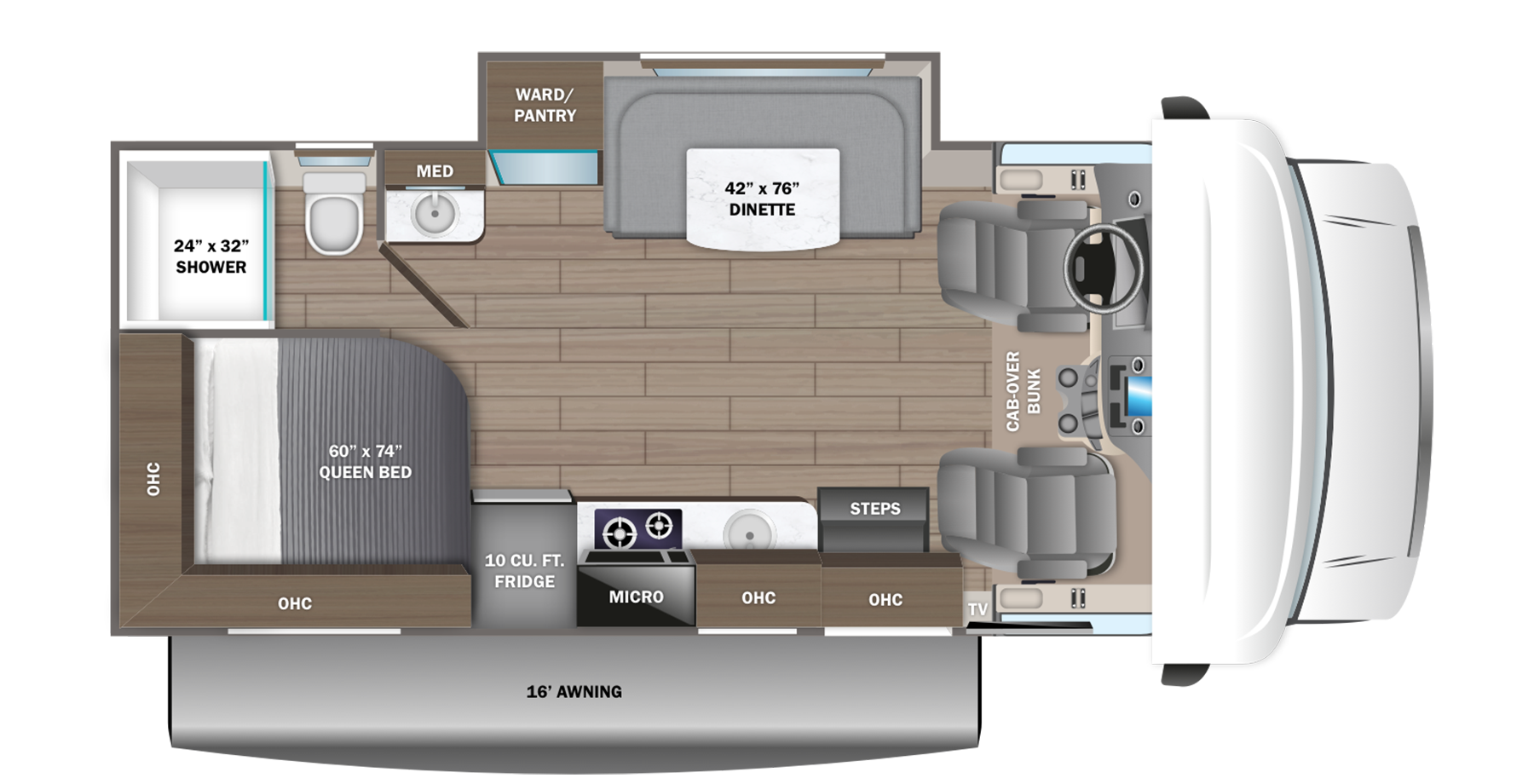

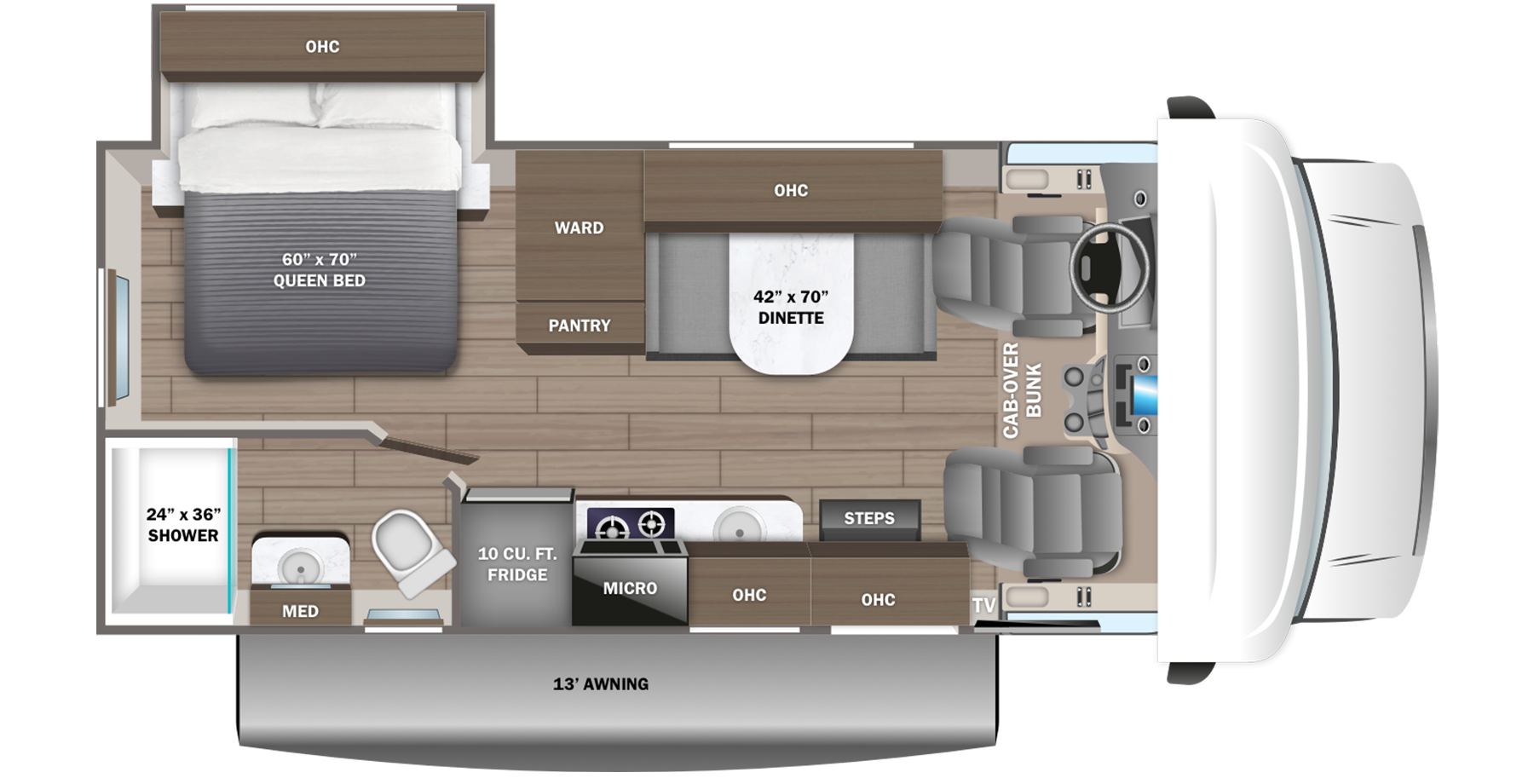

2025 Redhawk SE Floorplans

Standard Driving Equipment

Chassis Equipment for 22A, 22C, 22E, 22T

• Chevy® 4500 chassis
• GVWR- 14,200 lb.
• GCWR- 20,000 lb.
• 6.6L Vortec V8 401 HP engine with 464 ft.-lb. torque
• Hydra-matic 6-speed automatic transmission with overdrive
• 150-amp alternator
• 57 gal. fuel tank
• StabiliTrak stability control system
• OnStar with 4G LTE

Chassis Equipment for 22AF, 22CF, 22EF, 22TF

• Ford® E-350 chassis
• GVWR- 12,500 lb.
• GCWR- 18,500 lb.
• 7.3L V-8 325 HP engine with 450 ft.-lb. torque
• 6-speed TorqShift® series transmission with overdrive
• 210-amp alternator
• 55 gal. fuel tank
• Tire pressure monitoring system (TPMS)
• Catalytic converter theft deterrent
• Electronic stability control
• Traction control

Driving Equipment on All Floorplans

• 5,000 lb. hitch with 500 lb. tongue capacity and 7-pin plug
• E-rated highway tires- LT225/75R16
• 12V chassis battery
• Power anti-lock brakes with power steering
• Remote-controlled, side-view mirrors
• Hill start assist
• Tilt steering wheel
• Cruise control
• Power windows and door locks
• Auxiliary start switch
• Driver and passenger airbags
• Privacy curtain for cab area

Standard Exterior Equipment

• StrongholdVBL™ roof, floor and sidewalls
• Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
• Tufflex™ PVC laminated roof
• Aluminum running boards
• Fiberglass exterior walls with vinyl graphics
• Entrance door with industry’s largest travel-view window
• Electric-powered entrance step with integrated house battery compartment
• Third brake light
• 4 in. bumper tube sewer hose storage
• Cable TV hookup with RG-6 coax
• Digital antenna with signal booster
• 4,000W generator
• Solar prep
• 12V house battery
• Transfer switch with reverse polarity protection
• 30-amp electrical service
• 12.2 gal. propane tank (41 lb.)
• LP quick-connect hookup
• Exterior utility center
• Winterization drain system
• Outside shower
• 12V demand water pump
• Water filtration system

Standard Interior Equipment

• Overhead bunk with 750 lb. capacity
• 84 in. ceiling height
• High-intensity, recessed LED ceiling lights
• Hardwood cabinet doors
• Ball-bearing drawer guides
• Interior entrance door grab handle
• Interior command center
• Pleated blackout shades
• 13,500 BTU ducted A/C
• 30,000 BTU auto-ignition furnace
• 6 gal. gas/electric DSI auto-ignition water heater
• 42 in. x 78 in. U-shaped dinette (22AF, 22EF)
• Jayco-exclusive, easy-operation legless dinette table (22CF, 22C)
• 48 in. dinette bench with removable table (22TF, 22T)
• 2-point lap safety belts in all designated seating locations
• 10 cu. ft. 12V refrigerator
• 2-burner cooktop with flush cover
• Convection microwave oven
• Stainless steel kitchen sink
• Decorative kitchen backsplash
• Shower with decorative ABS surround and skylight
• Stainless steel bathroom sink
• Toilet with foot flush
• Queen-size bed with bedspread (22AF, 22CF, 22EF, 22A, 22C, 22E)
• (2) twin-size beds with filler cushion convert to king-size bed (22TF, 22T)
• Large wardrobes (select models)
• Smoke alarm
• Carbon monoxide detector
• Fire extinguisher

Customer Value Package (Mandatory)

• One-piece, seamless, fiberglass front cap
• Heated holding tanks (12V pads)
• Electric patio awning
• Black holding tank sprayer
• Backup camera
• LED HD Smart TV

Options

• Automatic hydraulic leveling jacks
• 200W solar panel with dual controller and second house battery
