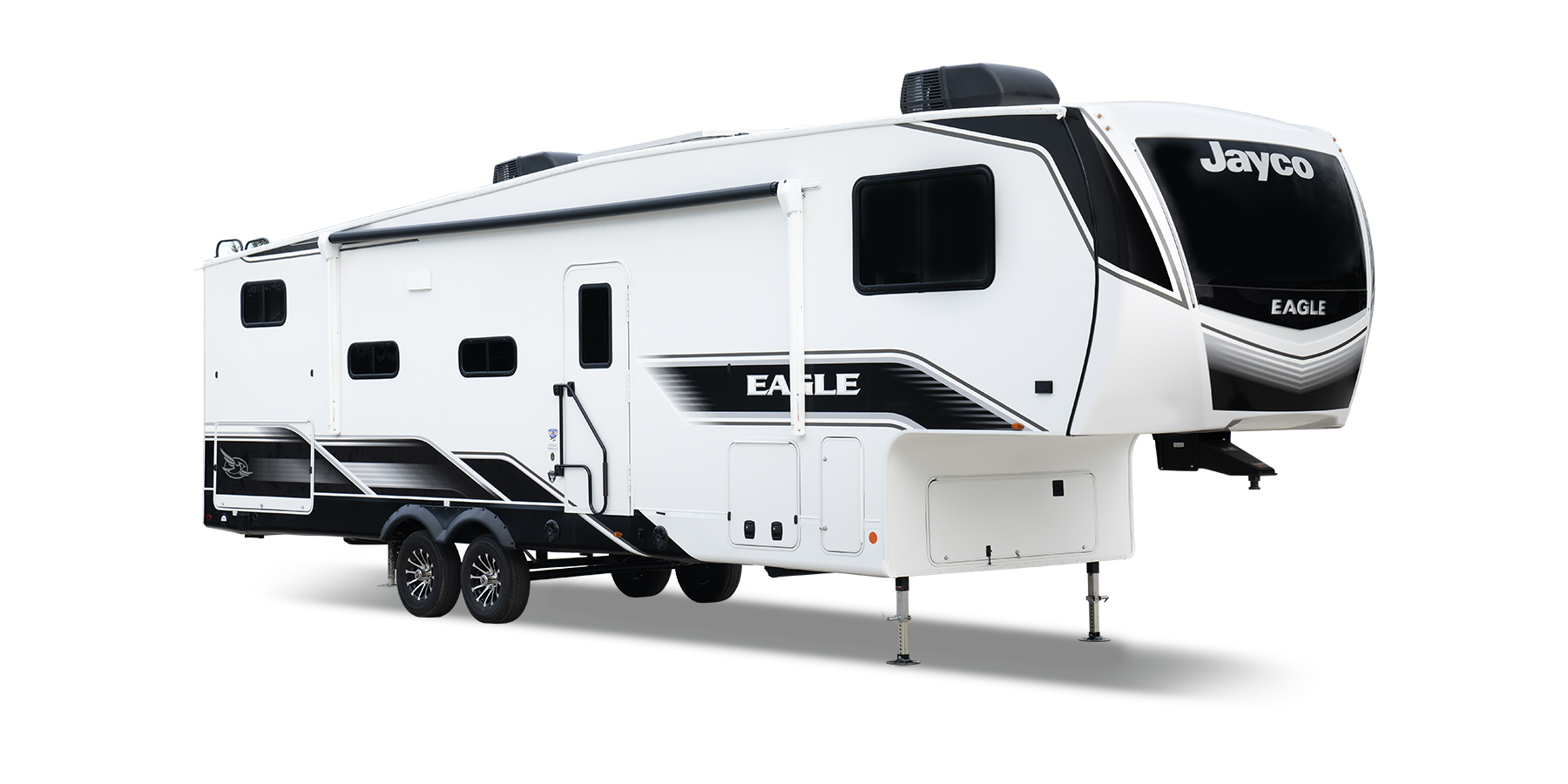

Eagle HT Fifth Wheels

2025 Eagle HT Fifth Wheels

Starting at $48,750

The Jayco Eagle HT Fifth Wheel is an excellent introduction to fifth wheel RVing without the full commitment. Because it can be towed by a half-ton truck, there’s no need to invest in a large tow vehicle with a powerful engine and high towing capacity. You’ll likely be able to tow it with what you already have in the garage, and at a lower price point, lower weight and smaller size, the Eagle HT Fifth Wheel is the perfect option for someone dipping their toe into fifth wheel ownership. In addition to being easy to tow, the Eagle HT Fifth Wheel allows you to to tow up to 3,000 lbs., so you can bring your toys along for the ride. Chain hookup and break harness hookups are already set up for your convenience.

Just like its bigger fifth wheel siblings, the Eagle Half-ton Fifth Wheel has HELIX ducting with Whisper Quiet technology. This improved vent design, a curved, helix-shaped system, maximizes air flow and efficiency, while Whisper Quiet technology provides a quieter cool than traditional RV A/C systems. Additionally, the Eagle HT Fifth Wheel has GE Appliances, including a 12V refrigerator that cools quicker, is 10-13% more efficient on battery, and has a freezer that is five degrees colder freezer than the competition. Finding larger, brand name appliances with an edge-to-edge grates and easy-to-clean oven in a smaller fifth wheel speaks to the luxury found in every Jayco product.

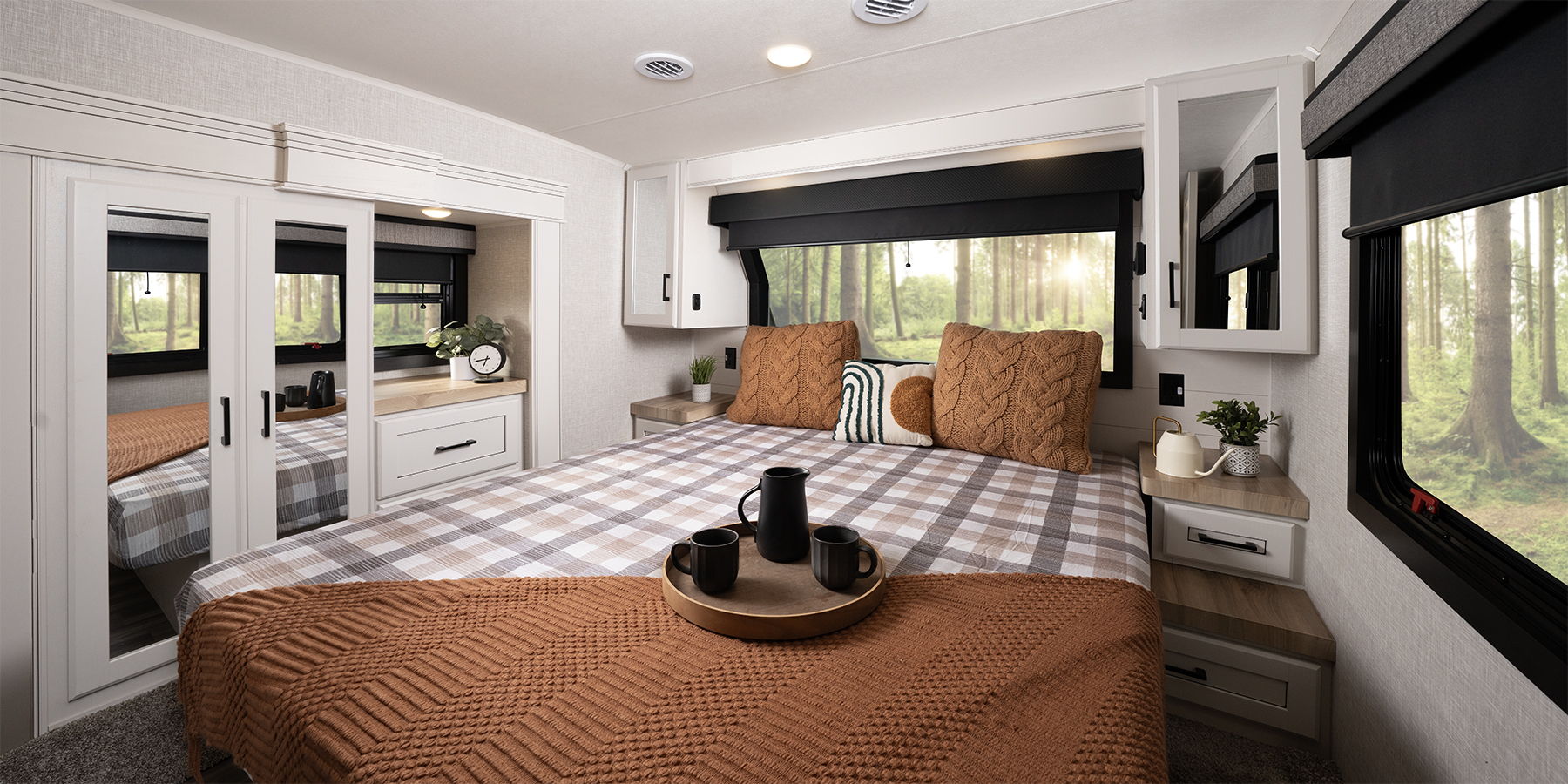

In the bedroom, you'll find Olympic beds that are 6” wider and 8” thicker than standard options and the Cooling Tech allows for a more comfortable and cooler sleep on a larger sleep surface. Go ahead, drift off to dreamland.

Thanks to inverter pre-wiring, USB ports are always 12V powered, making dry camping easy and reducing power outages. Other amenities that make life in the RV easier include flush floor linoleum flooring throughout the entire fifth wheel. There’s no need to step up or down and it allows for a lower bed height. This user-friendly layout will prevent you from tripping over raises or dips in the floor during the night. Speaking of which, with more overall windows used in the bedroom, more natural lights floods the space, creating a cross breeze, and an open, airy feel; making you feel almost outdoors while enjoying the indoors. Outside, the JayPort hot/cold quick connect and sink provide an excellent space for preparing meals.

Embrace the day in the Eagle HT Fifth Wheel.

Eagle HT Fifth Wheels

Eagle HT Fifth Wheels Floorplans and Prices

As our entry level offering into fifth wheel ownership, Jayco doesn’t overwhelm you with tons of floorplans to choose from. We keep it simple with options that sleep between four to 10 people, and have all the features you need for an enjoyable camping trip. Regardless of which floorplan you choose, every single one of them includes an option for an outside kitchen. These floorplans range from 29' - 34' and weigh up to 9,205lbs. With Jayco's entry-level HT fifth wheels are where simplicity meets quality and versatility.

Starting at $48,750
Sleeps up to 10
Length 29' 4" - 37' 6"
Weight 8,000 - 10,685 lbs.

Standard Features and Options

Standard Exterior Equipment

  • 5 in. fresh water drain valve
  • 5 in. Magnum Truss™ with plywood roof decking
  • 50-amp detachable power cord
  • Additional dump valve at termination
  • Alpha Ply TPO roof membrane (thickest roof membrane with limited lifetime warranty)
  • Auto-grade vinyl graphics
  • Automotive style front cap with max turn radius (painted on select models)
  • Backup camera prep
  • Black tank flush
  • Climate Shield™ zero-degree tested weather protection:
  • Fully enclosed and heated underbelly (ducted)
  • 35,000 BTU furnace
  • Double layer fiberglass batt insulation in ceiling and floor
  • Double sided radiant barrier insulation (roof, floor and behind cap)
  • PEX plumbing
  • Commercial grade rubber flooring in pass through area
  • Dual 30 lb. LP bottles
  • Factory installed roof ladder
  • Galvanield steel coated outside kitchens
  • HELIX Cooling System™ (industry exclusive):
  • Jayco exclusive insulated dual duct design
  • Directional and closeable A/C vents
  • Larger return air vents with user accessible filters
  • Independent satellite and cable hookups (outside kitchens and/or pass through storage areas)

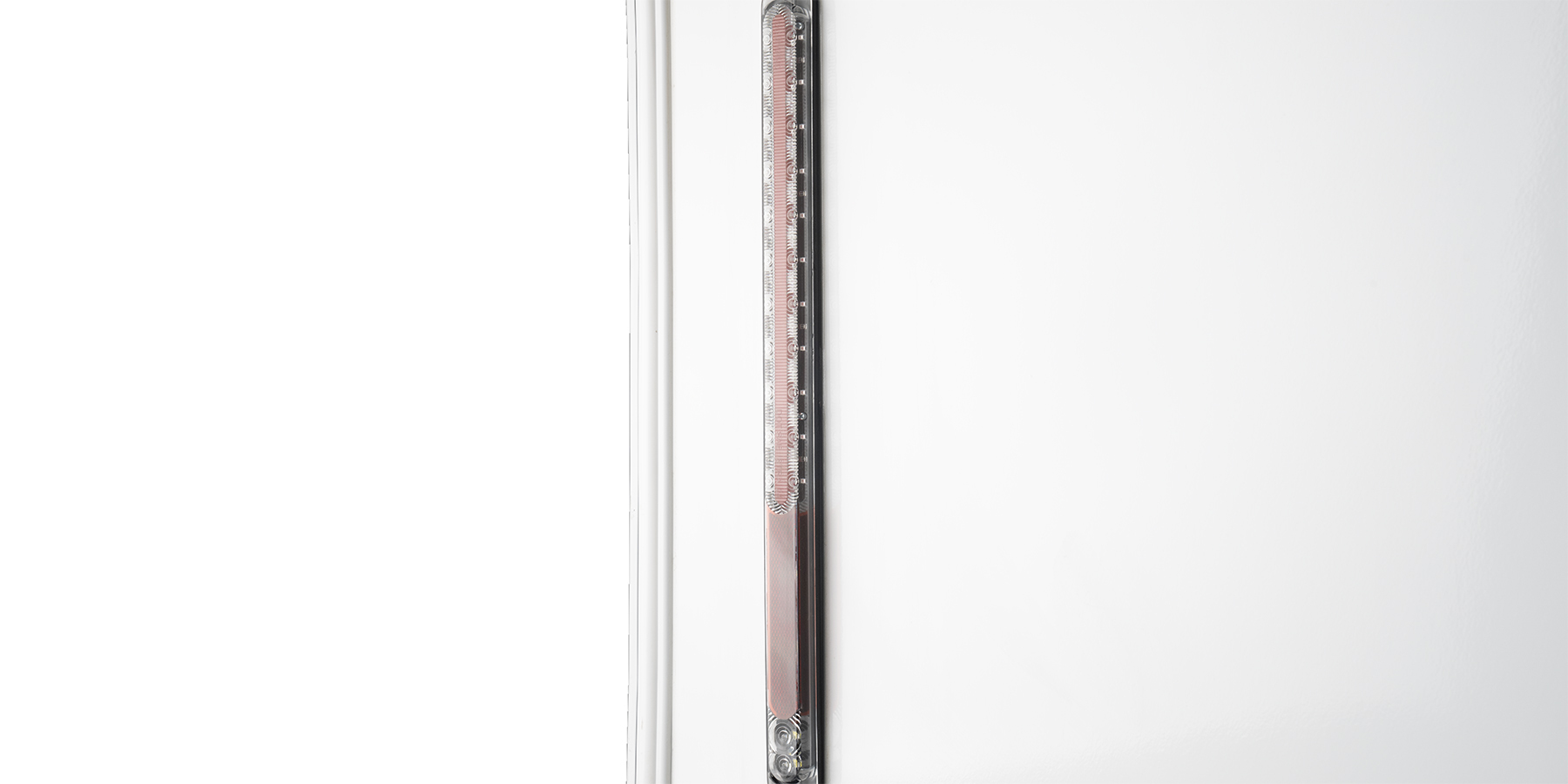

  • LED exterior lighting package
  • LED light and switch at termination
  • LED lighting in pass through area
  • LP quick connect for gas griddle (next to JayPort)
  • Metal slam latch baggage doors
  • Nautilus 2.5 water connections
  • Nitrogen filled under mount spare tire (model/option varies 15 in. or 16 in.)
  • Overlander Solar Prep (Roof)
  • Quick connect water connections (door side hot/cold and off door side cold only)
  • Slide topper/awning prep
  • Stronghold VBL™ walls (laminated sidewalls, rear walls and slide out walls)

Standard Interior Equipment

  • 100% No Floor Vents
  • 2-piece high gloss bathroom surround
  • 5/8 in. tongue-and-groove plywood flooring
  • 75 lb. full extension drawer guides
  • Bathroom skylight
  • Bedroom TV, satellite and cable prep
  • CPAP prepped bedroom (both sides)
  • Extra 120V power outlets in kitchen and slide rooms (where applicable)
  • Gas strutted under bed storage
  • Handcrafted and glazed door/drawer fronts
  • Matte black kitchen faucet with pull-out sprayer
  • NuVo H20 Water Treatment System (filters included)
  • Porcelain foot flush toilet
  • Residential vinyl flooring throughout (NO CARPET)
  • Solid hardwood slide fascia
  • Teak seat shower prep (select models)
  • Theater seating (select models)
  • Tri-fold hide-a-bed sofa with residential memory foam sleep surface (select models)
  • USB 12V charging ports (multiple locations throughout)
  • Water shutoff at all faucet locations

Customer Value Package (Mandatory)

  • 15,000 BTU "Whisper Quiet" A/C and bedroom A/C prep
  • 40 in. 4K Ultra LED HD Smart TV in living room
  • 50-amp service with dual A/C ducts
  • 60,000 BTU on-demand tankless water heater
  • Custom machined aluminum rims
  • Electric patio awning

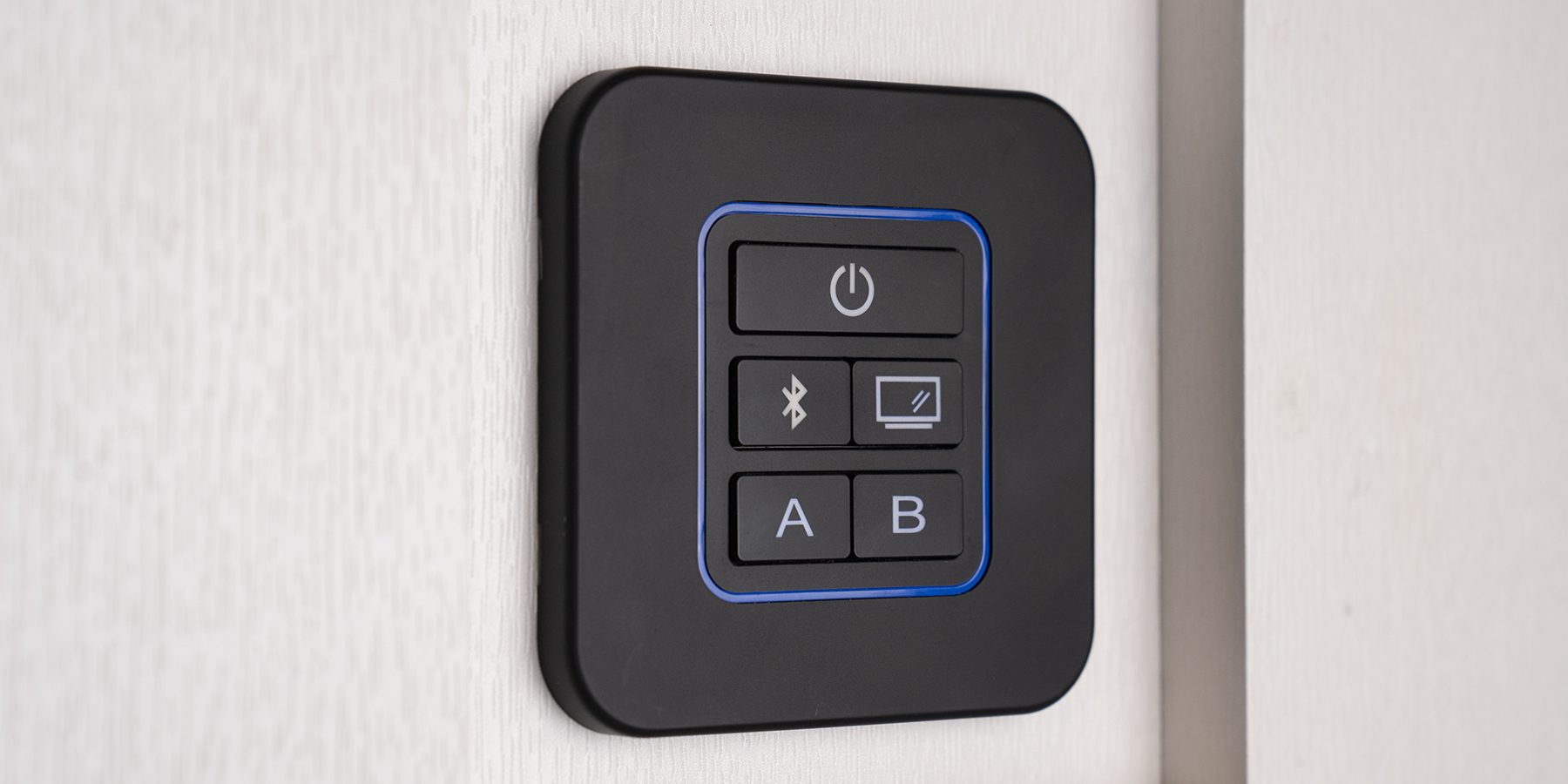

  • Exterior "Blue Sync" Audio Connect with MB Quart Sound (TV and phone)
  • Hidden hinges on cabinet doors
  • Interior "Blue Sync" Audio Connect with MB Quart Sound (TV and phone)
  • Keyed-Alike™ lock system

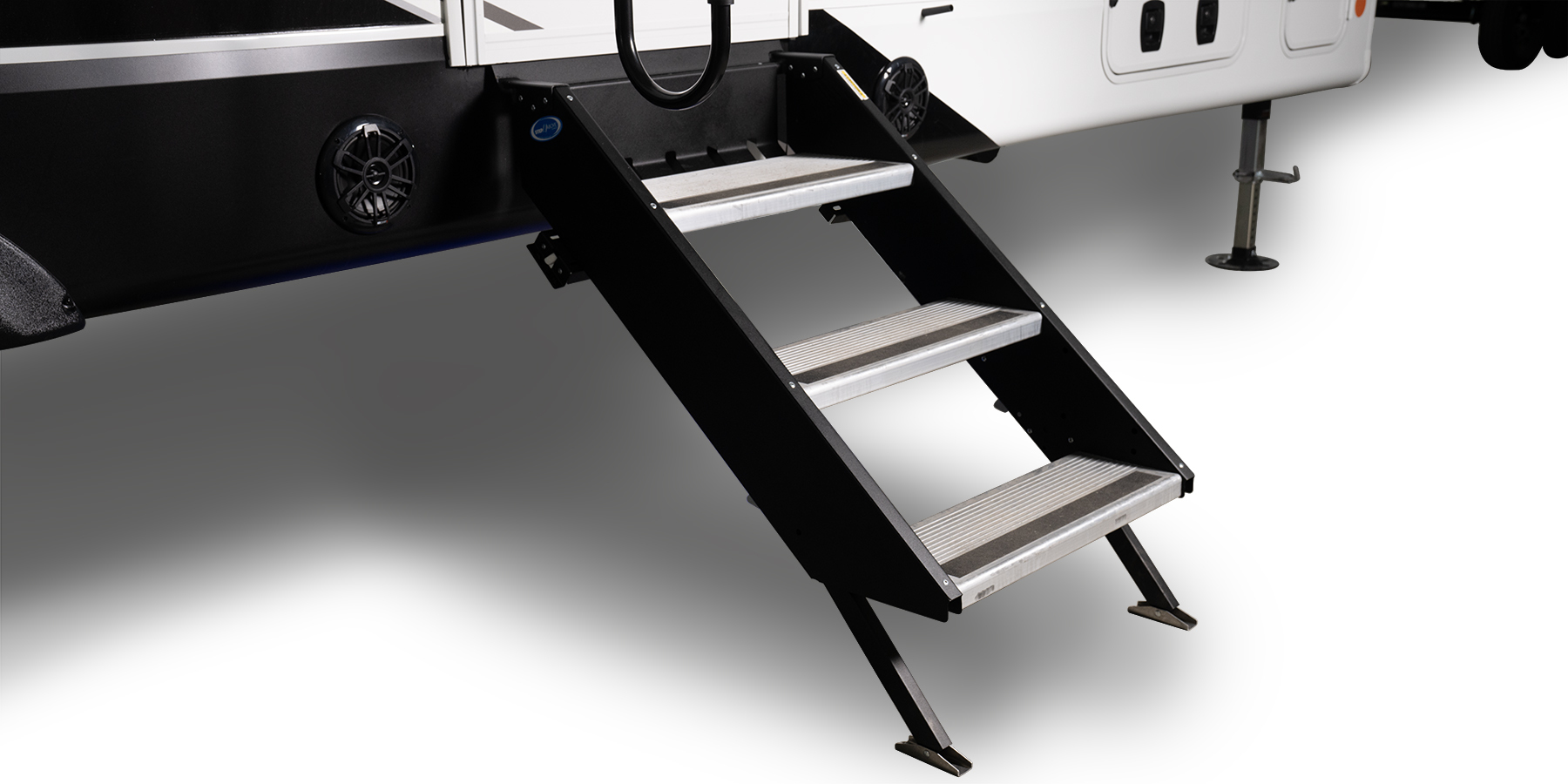

  • MORryde Step Above™ entrance steps (main entrance) with blue LED light
  • Rain proof bathroom power vent
  • Rear 2 in. towing receiver with 4-pin connector
  • Upgraded friction hinge entrance door
  • Winegard Air 360 + antenna and router prep (NOW 5G)



Luxury Package (Mandatory)

  • Blackout roller shades with reflective side throughout

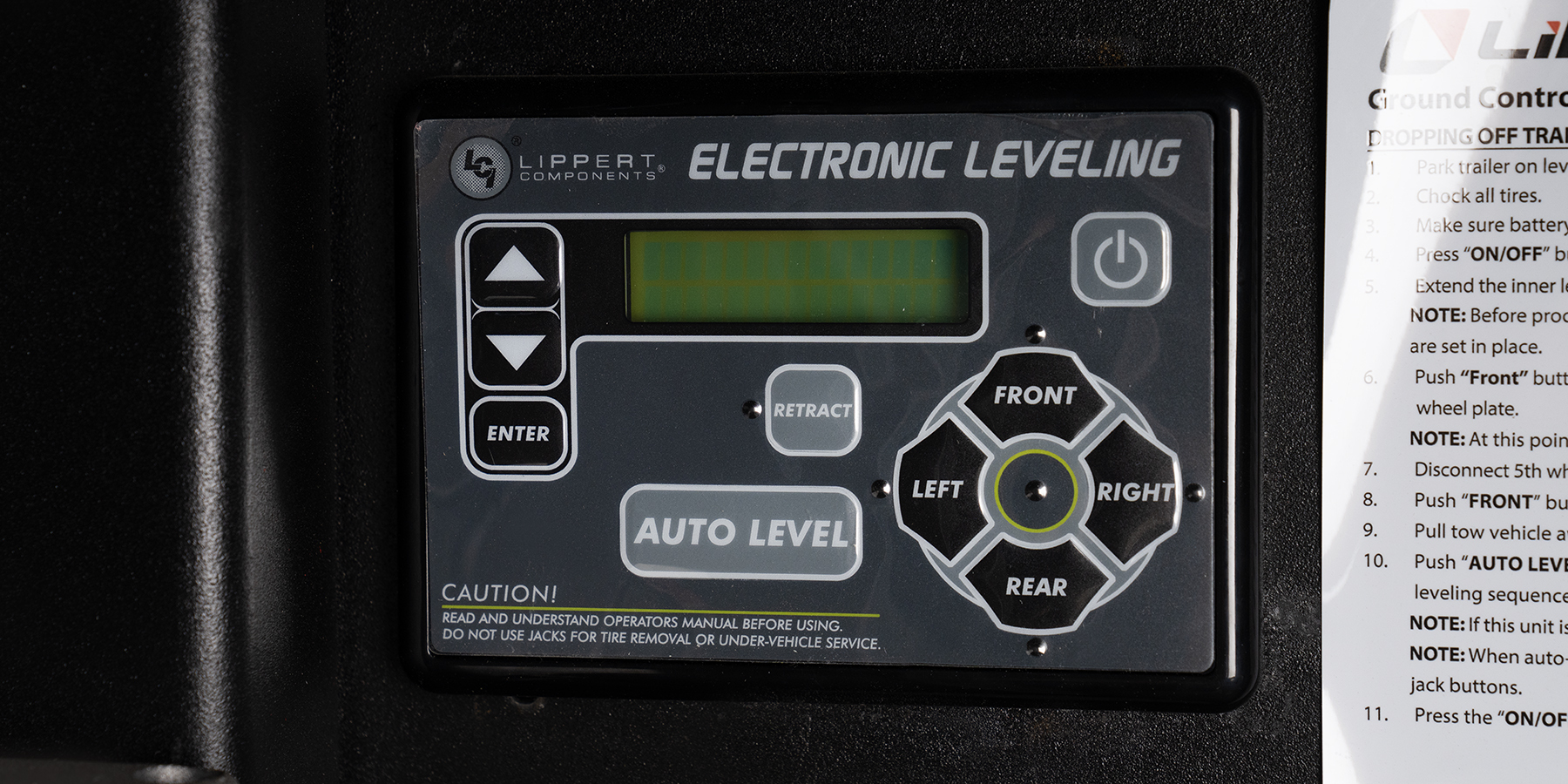

  • Electric auto-leveling

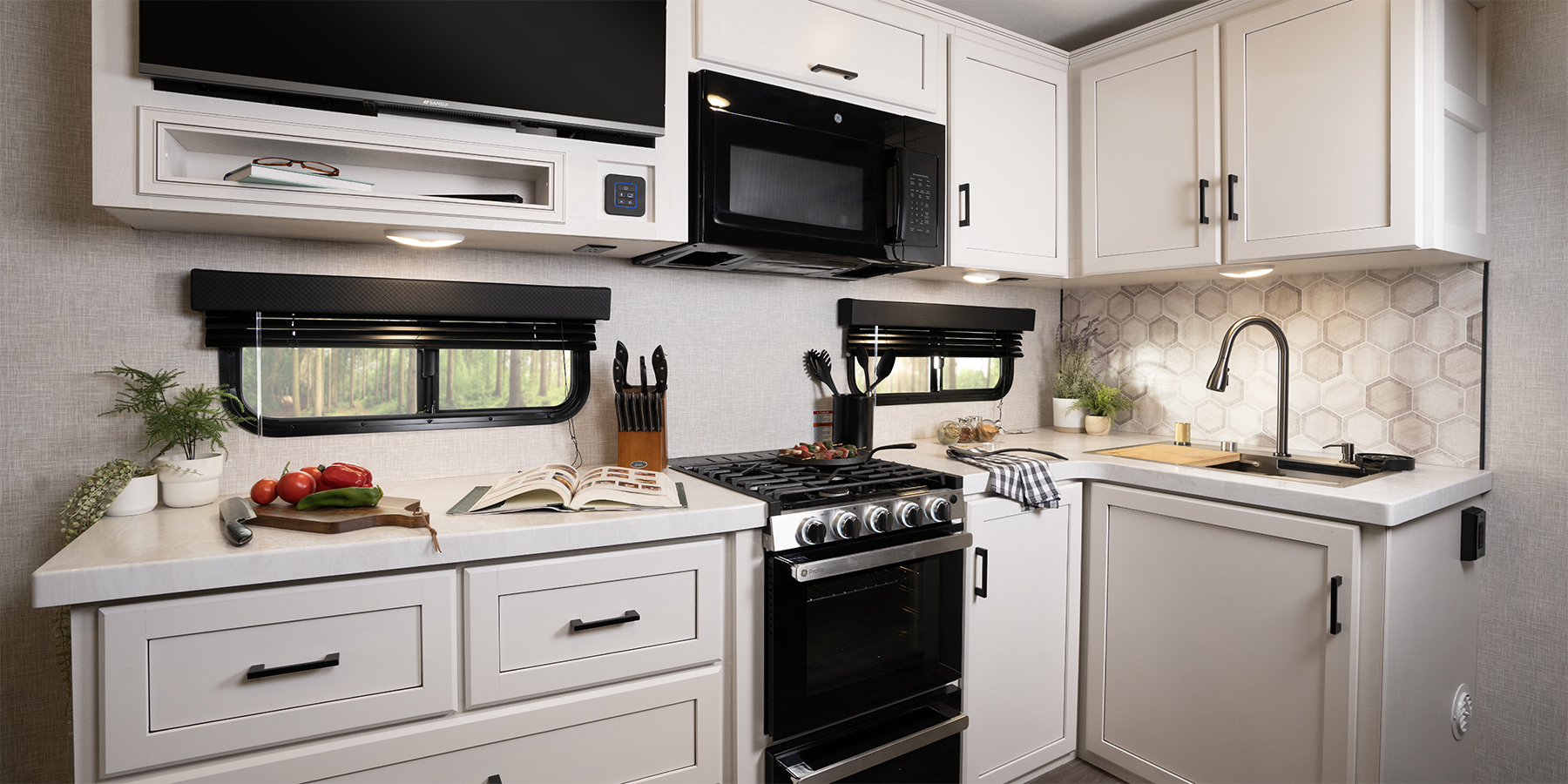

  • GE 10 cu. ft. 12V refrigerator
  • GE 30 in. over-the-range black and stainless microwave with exhaust fan
  • GE black and stainless 21 in. range with edge to edge grates
  • Inverter pre-wire (multiple locations) ((7) 110 outlets) (6 USBs 12V)
  • JayPort 2 in. mount (for outside accessories)
  • Magnetic catches for all drawers and doors
  • Multi-Function "ALL in ONE" Stainless steel kitchen sink
  • Residential 66 in. x 80 in. Olympic size mattress
  • Residential style glass shower door
  • Washer/dryer prep (select models)



4 Star Handling Package (Mandatory)

  • Dexter® Axles with NEV-R-Adjust® brakes and E-Z Lube® hubs
  • Goodyear® Endurance® tires (load range E)
  • MORryde® CRE-3000™ rubberized suspension
  • Wet bolt fasteners with bronze bushings

Options

  • 15,000 BTU bedroom A/C
  • 16 in. Endurance® Goodyear® wheels/tires (select models)
  • Dexter® ABS brake system with anti-sway
  • Dry camping package (generator prep) (Extra LP capacity)
  • Extreme Weather Package with 120 heat pads and 12V heat tape on fresh water line
  • Free standing table with leaf and bench seat and 2 foldable Dinette chairs
  • Furniture cup holder tables (1 pair)

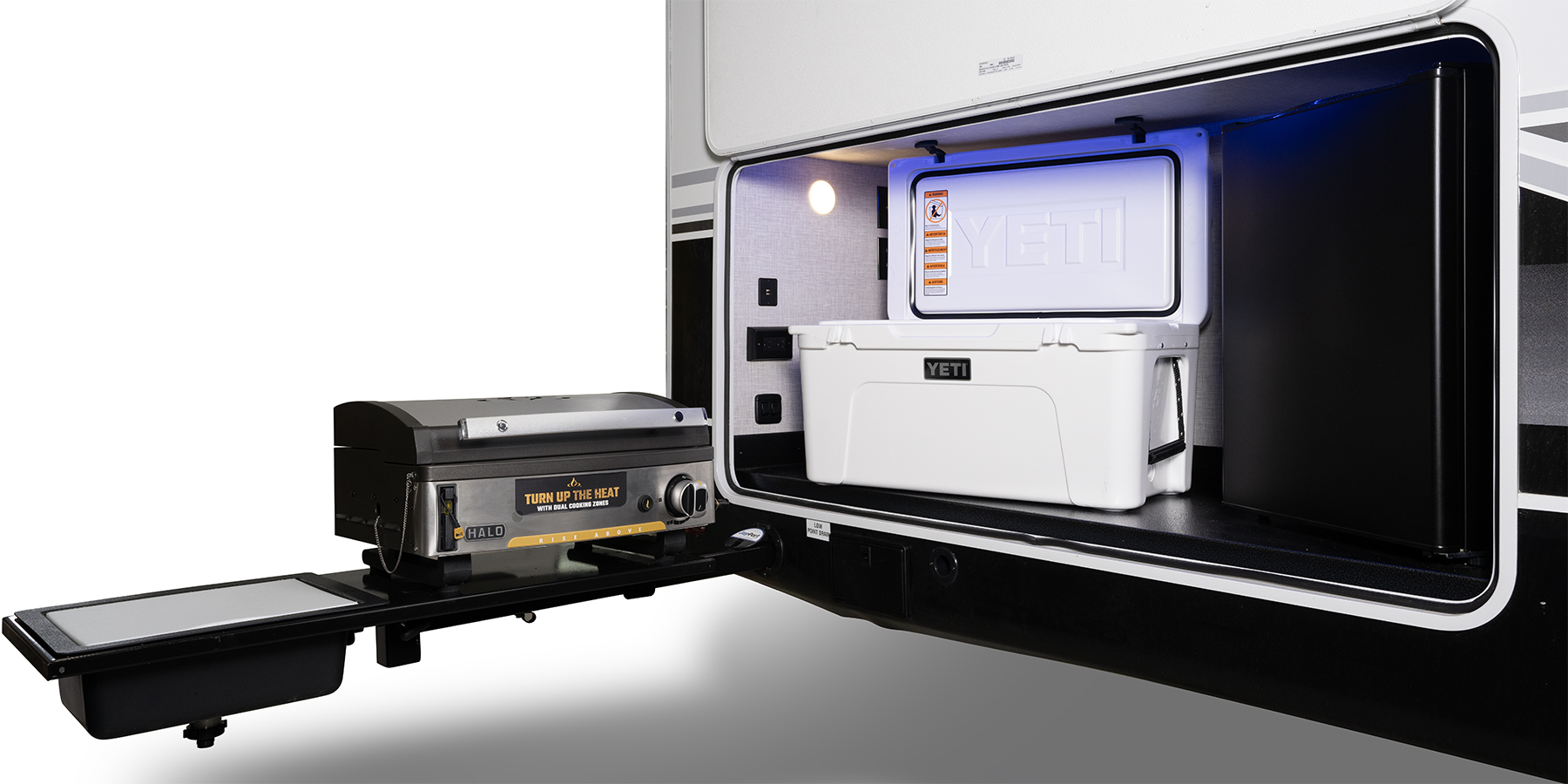

  • HALO 22 in. outside griddle with deep sink attachment for JayPort system (select models)
  • JAYCOMMAND® Smart RV System with TPMS monitoring
  • LED fireplace with 5,000 BTU electric space heater (select models)
  • Overlander 1 Solar Package (200W panel and 30-amp solar controller)
  • Overlander 2 Solar Package: (2) 200W panels, MPPT 30-amp solar controller and 1800W inverter)
  • Triple Reclining Sofa ipo Dinette

Standard Features
and Options

Overlander Packages
JAYCOMMAND<sup>®</sup>
4 Star Handling Package
American-made Goodyear<sup>®</sup> tires
Climate Shield
Strong foundations
The Magnum Truss™ Roof System

Overlander Packages

Solar Capabilities

Solar power offers RVers newfound freedom when it comes to their camping experiences by allowing users to break away from shore power constraints. Jayco RV now offers varying levels of optional solar packages on travel trailers, fifth wheels and toy haulers. Your next RV can come equipped with solar prep or optional solar packages.

Learn More »

JAYCOMMAND®

This system puts you in full control of your Jayco. Custom-built by our product development team and our partners, you can monitor and control key operations from just about anywhere on a phone or tablet.

Mini System Quick-Start Videos »Pro System Quick-Start Videos »

4 Star Handling Package

The 4 Star Handling package is a Jayco exclusive blend of four high-end components selected and installed to provide the most confident travel trailer towing experience.



Learn more »

American-made Goodyear® tires

Rugged fabric-steel Durawall® construction offers improved durability and carrying capacity, while remaining compatible with tire pressure monitoring systems and typical tire inflation stations. Tow with confidence.

Learn more »

Climate Shield

Extend your camping season with built-in protection against extreme heat and cold—even in temperatures as high as 100 degrees or as low as zero degrees (Fahrenheit).

Learn more »

Strong foundations

While other manufacturers often weld or modify stock frames, every Jayco RV is built on a custom frame, designed and sized specifically to best support each unit on and off the road for years to come.

Learn more »

The Magnum Truss™ Roof System

In testing, the creatively engineered system withstood 4,500 pounds—50 percent more than competitors’ roofs.  Walk confidently on top of your unit and feel safer in wind or snowstorms.

Learn more »

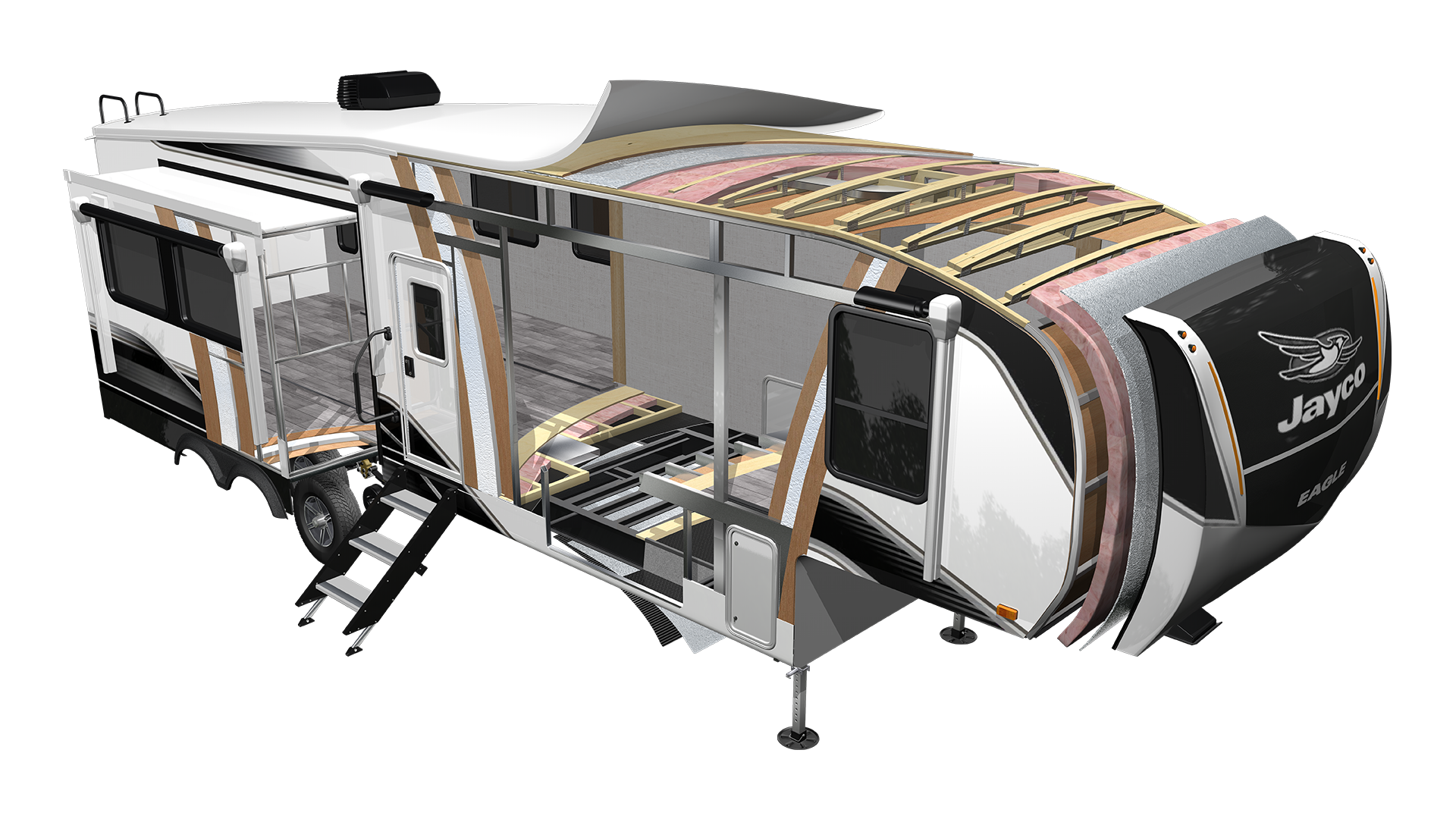

Superior Construction Elements

(Click on number for more information)

Cutouts
1
2
3
4
5
6
7
8

The Magnum Truss™ Roof system is one of the strongest roofs in the industry. It's capable of withstanding 50 percent more weight- up to 4,500 lbs.- than the competition so that you can safely perform maintenance and avoid costly structure damage from debris, branches or snow.

Our industry exclusive HELIX Cooling System™ includes an exterior-mounted 15,000 BTU "Whisper Quiet" A/C unit, our exclusive insulated dual duct design, directional and closeable A/C vents and larger return air vents with user accessible filters.

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

Axles are a key factor to a comfortable and stable towing experience. That's why we partner with a long-standing American company, Dexter.
