2025 Eagle HT Fifth Wheels | NEW 29CBD
2025 Eagle HT Fifth Wheels

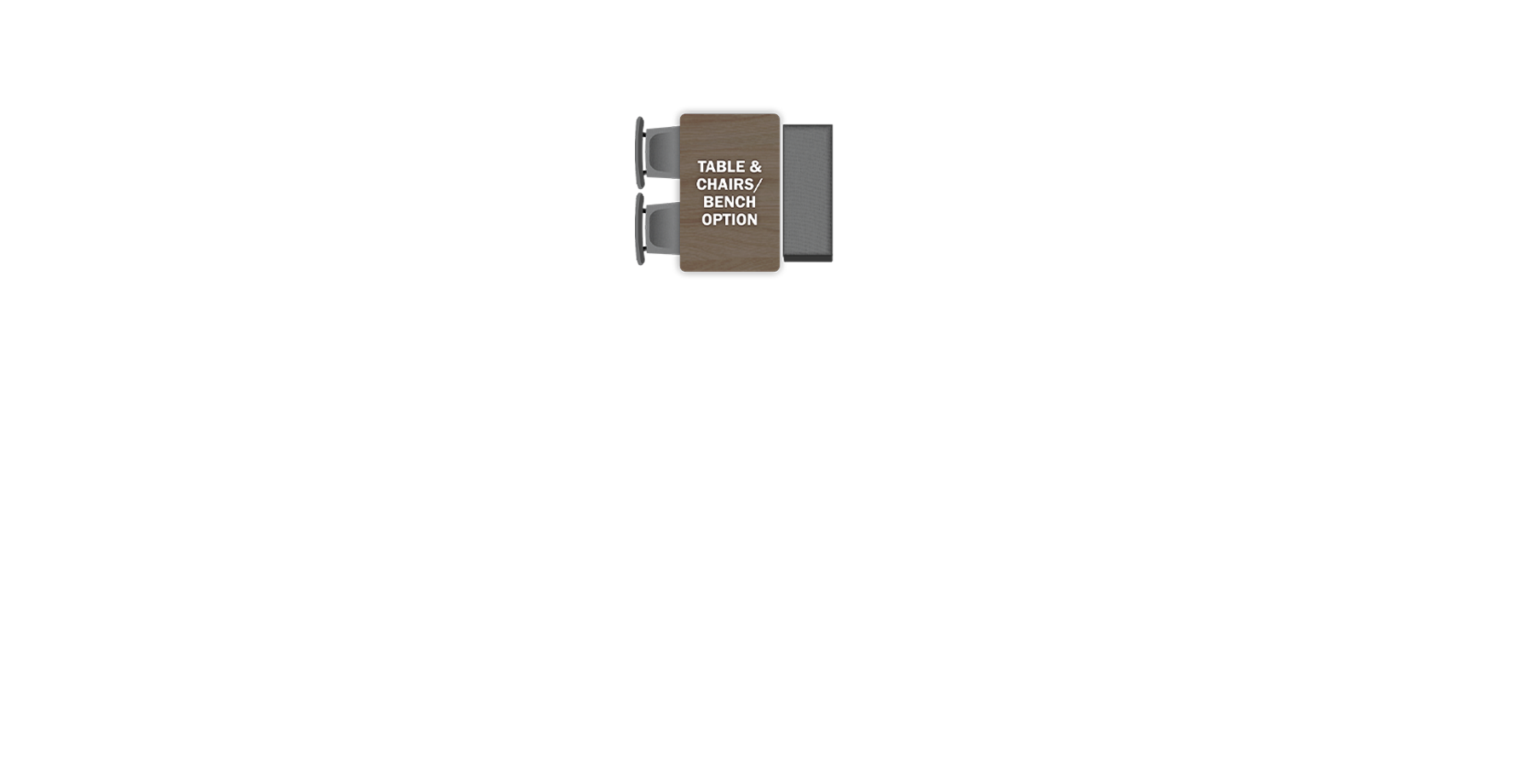

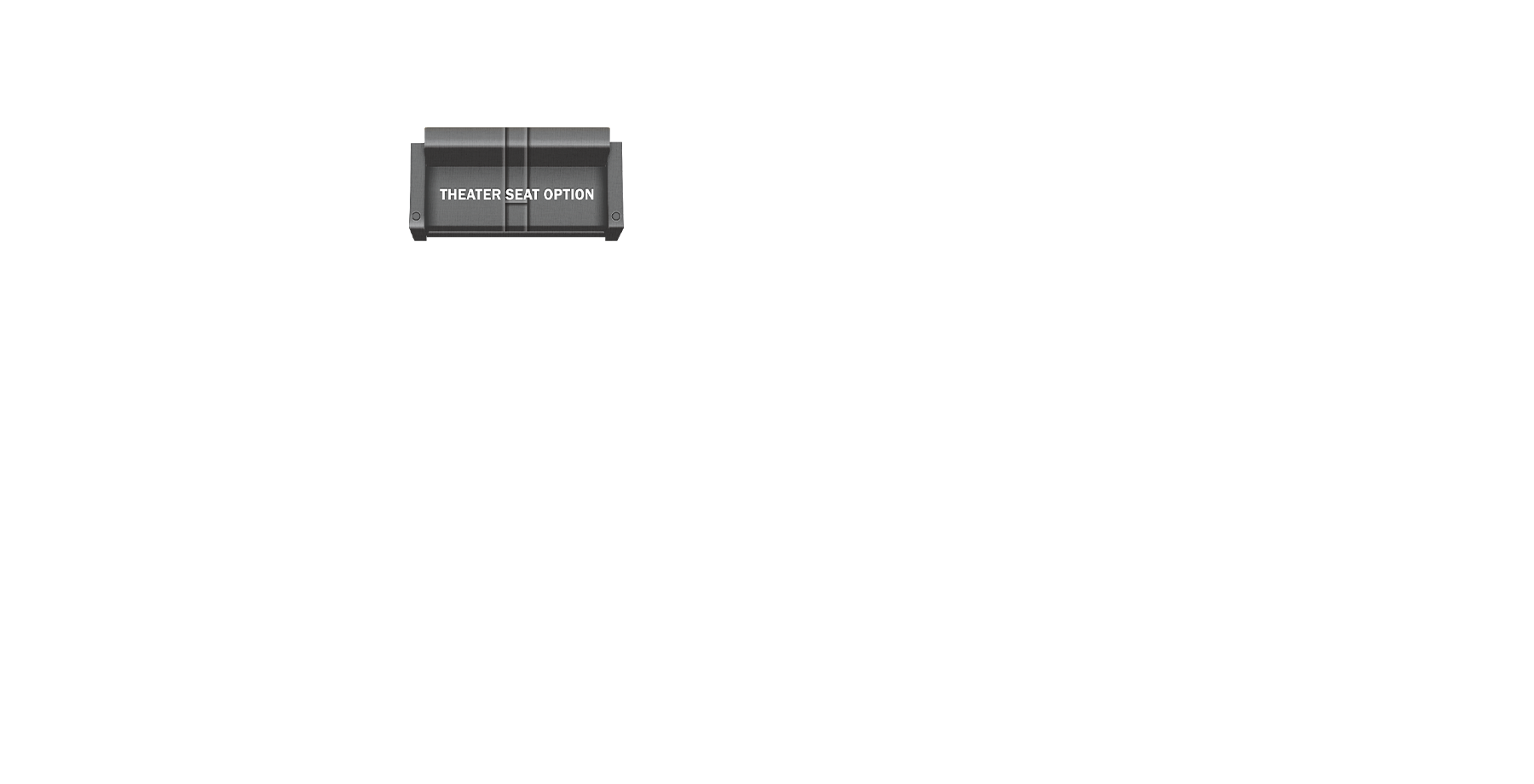

See Floorplan with
an Option Added:
See Floorplan with
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Interior Design
Classic Farmhouse
Top Feature Gallery
Eagle HT fifth wheel HALO griddle and sink
Eagle HT fifth wheel Bluetooth & TV control
Eagle HT fifth wheel Lippert Electric Leveling
Eagle HT fifth wheel Brake Light
Eagle HT fifth wheel MORryde Step Above™
Eagle HT fifth wheel HALO griddle and sink
Eagle HT fifth wheel Lippert Electric Leveling
Eagle HT fifth wheel Brake Light
Eagle HT fifth wheel MORryde Step Above™
Eagle HT fifth wheel Bluetooth & TV control
Build and Price Your Jayco
Choose your customizations below and receive a price estimate.
Specifications
Weights
| Dry Hitch Weight (lbs) | 2,075 |
| Unloaded Vehicle Weight (lbs) | 9,525 |
| Cargo Carrying Capacity (lbs) | 1,925 |
| Gross Vehicle Weight Rating (lbs) | 11,450 |
| Gross Combined Weight Rating (lbs) | 14,450 |
Measurements
| Exterior Length (overall) | 34' 8" |
| Exterior Length (pin to bumper) | 33' 6" |
| Exterior Height | 11' 10" |
| Exterior Height (with A/C) | 12' 11" |
| Exterior Width | 8' 0" |
| Exterior Width (with slides out) | 11' 4" |
| Interior Height (main) | 6' 2" |
| Awning Length | 19' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 52.0 |
| Gray Water Capacity (gals) | 82.0 |
| Black Tank Capacity (gals) | 45.0 |
| Propane Unit (lbs) | 80 |
Miscellaneous
| Sleeps | up to 9 |
| Water Heater | Tankless |
| # of outside storage compartments | 4 |
| Furnace BTU | 35000 |
| Tire Size | ST225/75R15'E' |
Interior Designs
Options
2025 Eagle HT Fifth Wheels
Starting at $48,750
The Jayco Eagle HT Fifth Wheel is an excellent introduction to fifth wheel RVing without the full commitment. Because it can be towed by a half-ton truck, there’s no need to invest in a large tow vehicle with a powerful engine and high towing capacity. You’ll likely be able to tow it with what you already have in the garage, and at a lower price point, lower weight and smaller size, the Eagle HT Fifth Wheel is the perfect option for someone dipping their toe into fifth wheel ownership. In addition to being easy to tow, the Eagle HT Fifth Wheel allows you to to tow up to 3,000 lbs., so you can bring your toys along for the ride. Chain hookup and break harness hookups are already set up for your convenience.
Just like its bigger fifth wheel siblings, the Eagle Half-ton Fifth Wheel has HELIX ducting with Whisper Quiet technology. This improved vent design, a curved, helix-shaped system, maximizes air flow and efficiency, while Whisper Quiet technology provides a quieter cool than traditional RV A/C systems. Additionally, the Eagle HT Fifth Wheel has GE Appliances, including a 12V refrigerator that cools quicker, is 10-13% more efficient on battery, and has a freezer that is five degrees colder freezer than the competition. Finding larger, brand name appliances with an edge-to-edge grates and easy-to-clean oven in a smaller fifth wheel speaks to the luxury found in every Jayco product.
In the bedroom, you'll find Olympic beds that are 6” wider and 8” thicker than standard options and the Cooling Tech allows for a more comfortable and cooler sleep on a larger sleep surface. Go ahead, drift off to dreamland.
Thanks to inverter pre-wiring, USB ports are always 12V powered, making dry camping easy and reducing power outages. Other amenities that make life in the RV easier include flush floor linoleum flooring throughout the entire fifth wheel. There’s no need to step up or down and it allows for a lower bed height. This user-friendly layout will prevent you from tripping over raises or dips in the floor during the night. Speaking of which, with more overall windows used in the bedroom, more natural lights floods the space, creating a cross breeze, and an open, airy feel; making you feel almost outdoors while enjoying the indoors. Outside, the JayPort hot/cold quick connect and sink provide an excellent space for preparing meals.
Embrace the day in the Eagle HT Fifth Wheel.
