2025 Jay Flight | 334RTS
2025 Jay Flight

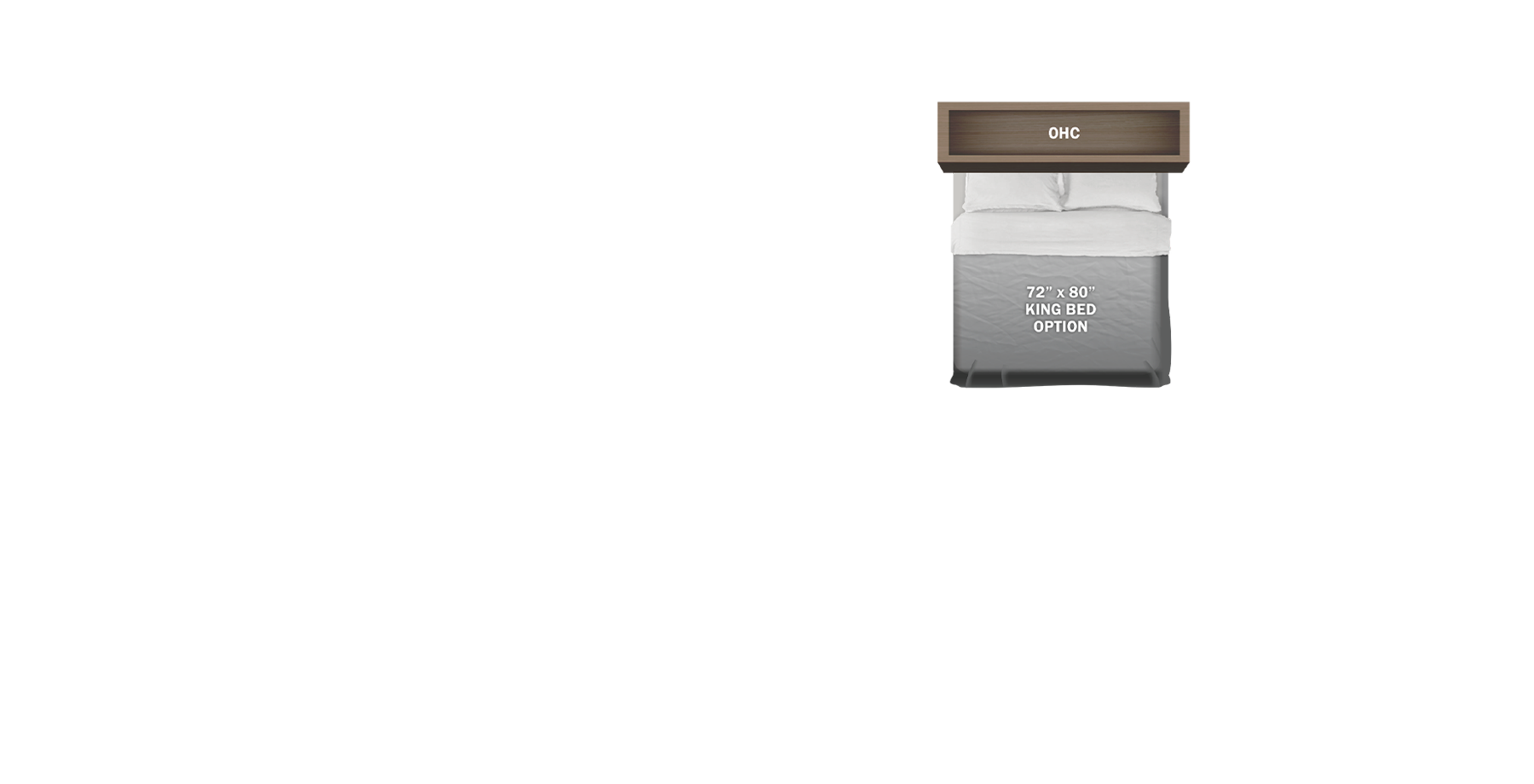

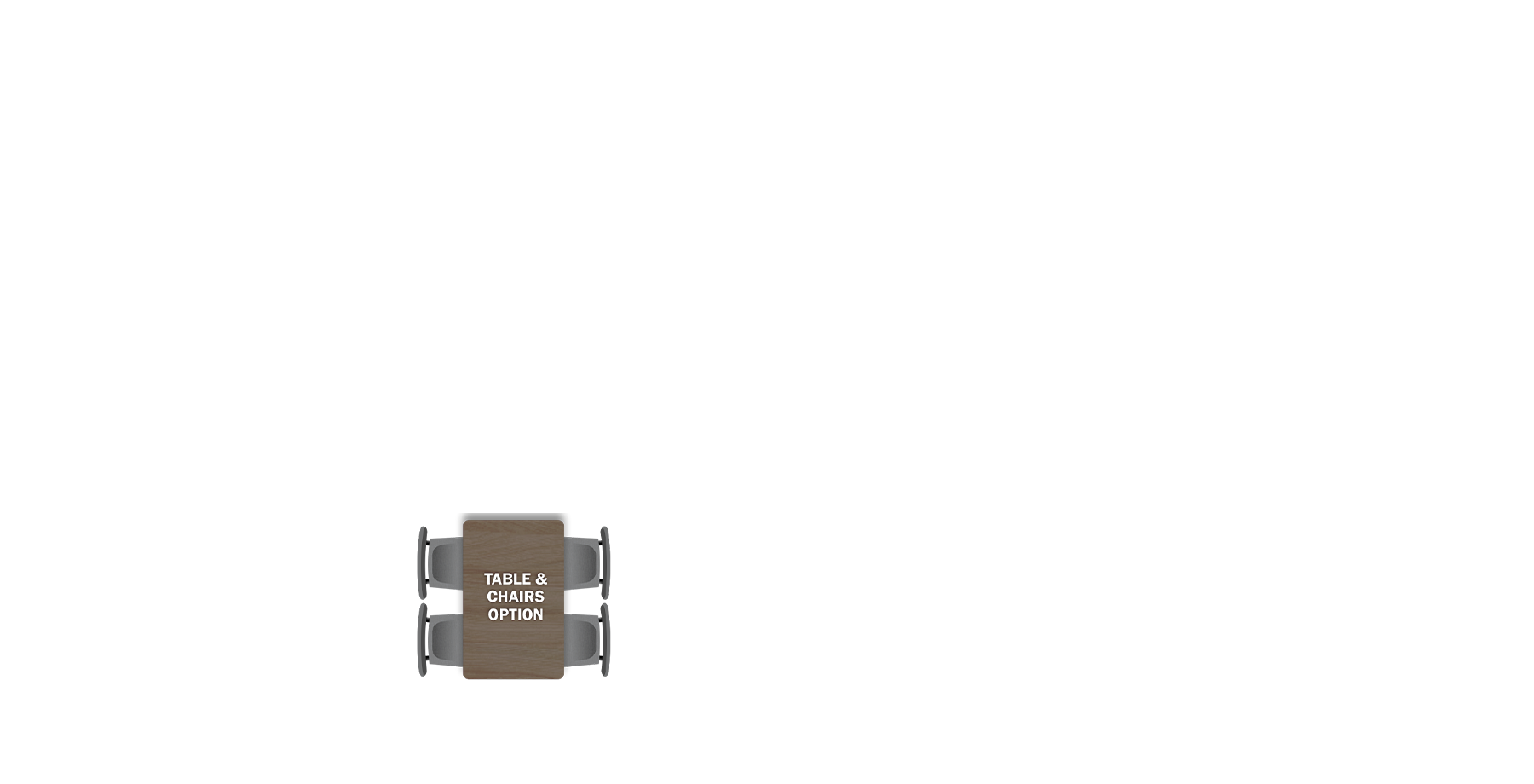

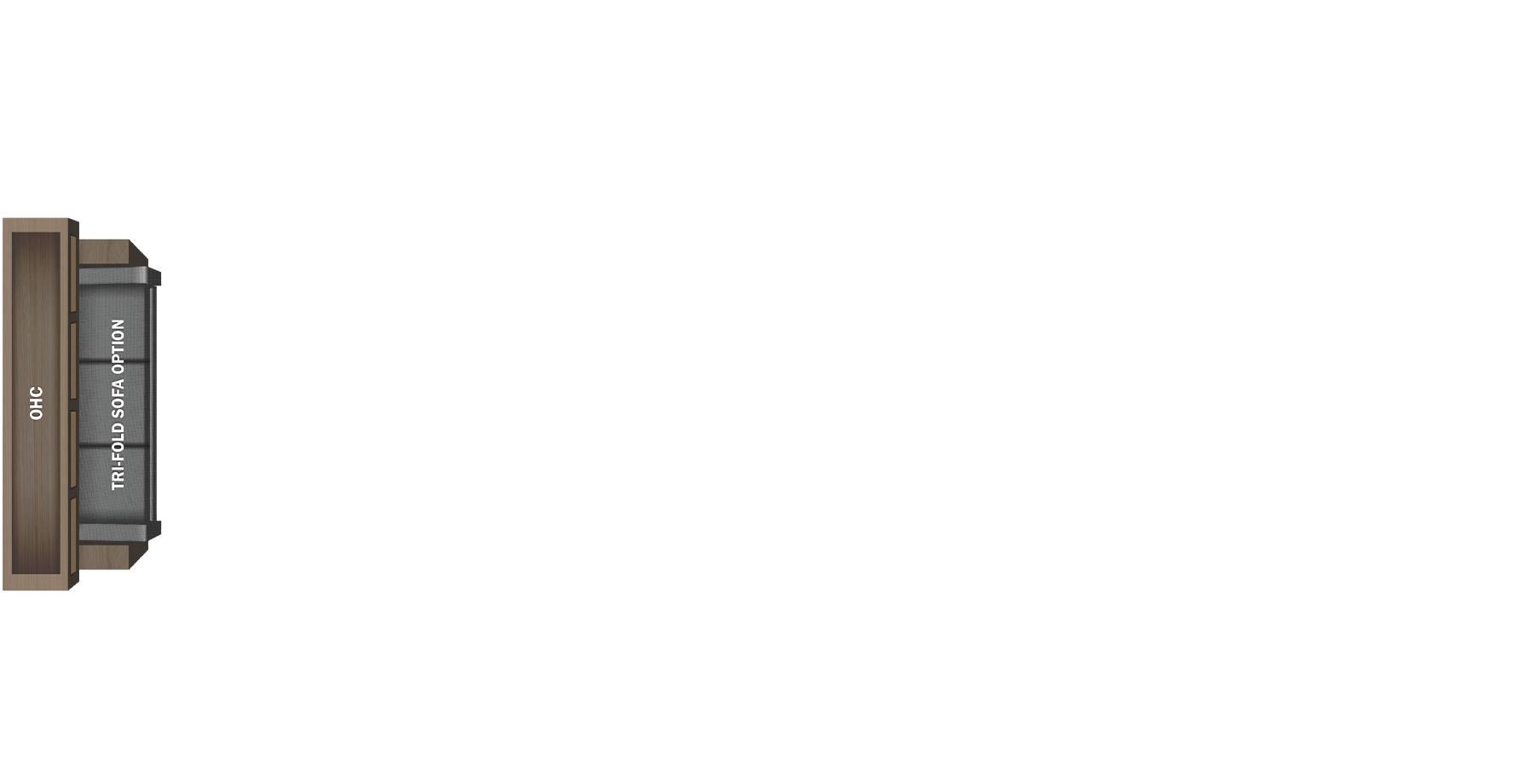

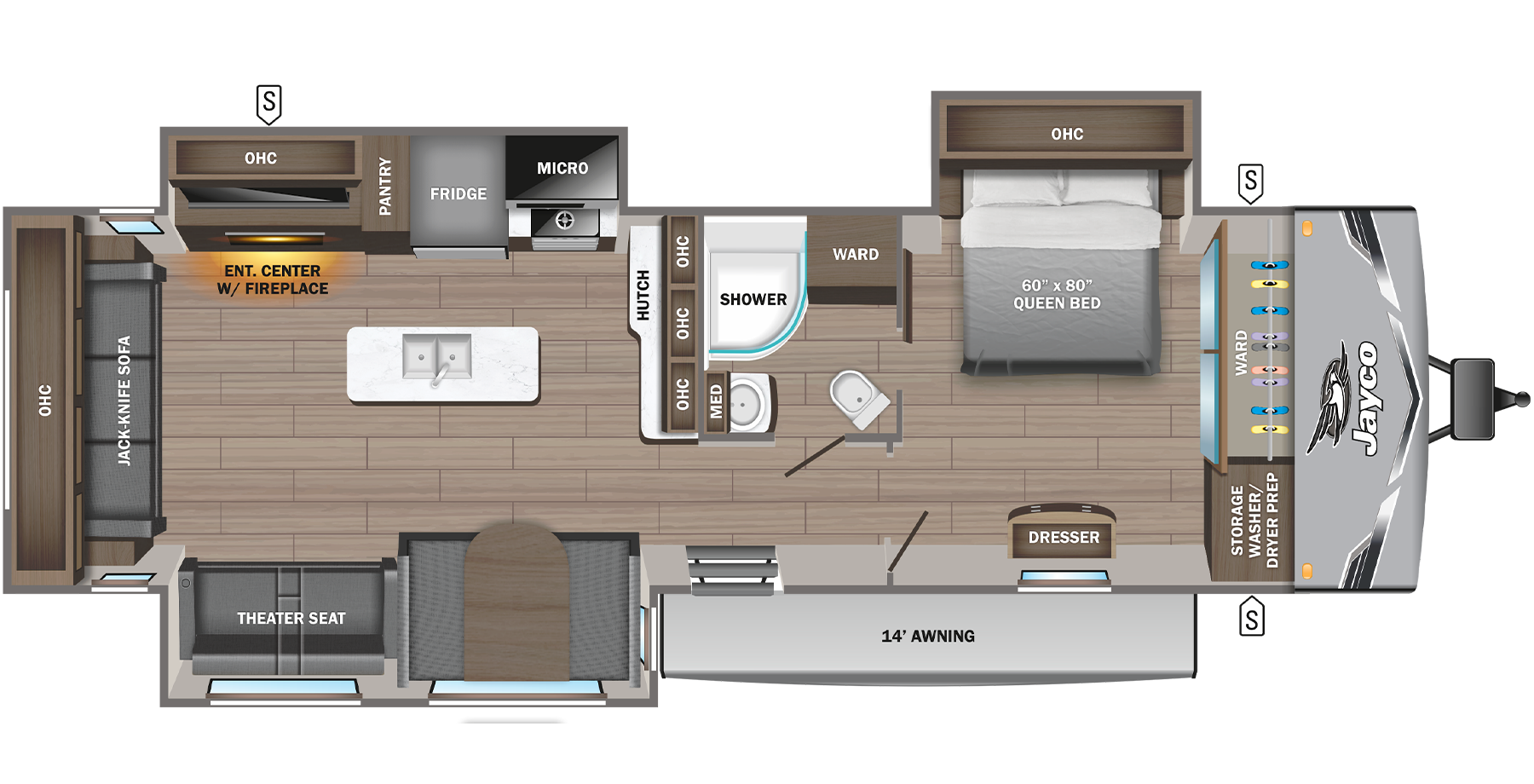

See Floorplan with
an Option Added:
See Floorplan with
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Interior Design
Classic Farmhouse
Build and Price Your Jayco
Choose your customizations below and receive a price estimate.
Specifications
Weights
| Dry Hitch Weight (lbs) | 1,185 |
| Unloaded Vehicle Weight (lbs) | 8,900 |
| Cargo Carrying Capacity (lbs) | 1,700 |
| Gross Vehicle Weight Rating (lbs) | 10,600 |
Measurements
| Exterior Length (overall) | 38' 0" |
| Exterior Height | 10' 8" |
| Exterior Height (with A/C) | 11' 2" |
| Exterior Height (with 2nd A/C) | 11' 2" |
| Exterior Width | 8' 0" |
| Exterior Width (with slides out) | 13' 10" |
| Interior Height (main) | 6' 9" |
| Awning Length | 14' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 52.0 |
| Gray Water Capacity (gals) | 39.0 |
| Black Tank Capacity (gals) | 32.5 |
| Propane Unit (lbs) | 40 |
| Propane Unit (lbs) (Optional) | 60 |
Miscellaneous
| Sleeps | up to 6 |
| Water Heater | Tankless |
| # of outside storage compartments | 3 |
| Furnace BTU | 35000 |
| Tire Size | ST225/75R15'E' |
2025 Jay Flight
Starting at $35,828
Jayco’s Jay Flight Travel Trailer lengths range from 25'4 to 40'6 for longer trips and roomier stays. Additionally, while most other manufacturers have an interior height of 6’6”, Jay Flight offers 6’9” interior heights, allowing for more head space. On the exterior, you’ll find a neatly finished and lighted exterior pass-thru storage space. The interior design also allows more storage space with its oversized, solid hardwood Maple cabinet doors and kitchen drawers. The hidden cabinet hinges give the Jay Flight a residential look and feel. Other places you’ll find maximized storage are underneath the bed or bunk beds, under the dinette, under the jack-knife sofas and behind a pull-down kickboard that accesses the storage.
On top of that storage space, are superior and professionally designed pieces of furniture. Jack-knife sofas come with arm bolsters and pull-down center armrests with cupholders. Many floorplans offer different furniture options such as a tri-fold sofas and theater seating. The new MY25 fabric is stain resistant with an added protectant to keep your Jay Flight furniture looking new. This fabric is thoroughly tested and must pass the 50,000 double rub tests. The 4” high-density foam dinette cushions are designed for comfort and won’t break down over time.
You’ll also notice the top-of-the-line InVision appliances that feature a 10-cubic-foot 12V refrigerator with a convenient bottom freezer and adjustable shelves. Matching is an overhead microwave, a three-burner stove top and an electronic temperature-controlled oven. Equally as impressive as the features previously listed, are the unseen amenities such as the 60,000 BTU on-demand tankless water heater that offers an endless supply of hot water. The oversized 52-gallon freshwater tank is roughly 25% larger than the competition.
Each water tank is supported with large, oversized steel bars screwed to the frame, a design innovation that's proven to outperform the competitors’ aluminum strap supports. Protecting all this water is the one-piece fiberglass exterior wall, which is more resilient than pieces of metal on the exterior during travel. You’ll have a safe, comfortable ride and an equally solid camping experience thanks to the Rock Solid Stabilizer System. It has an electric tongue jack on the front A-frame and quick drop stabilizers that create a more stable camping platform. Outside, you can enjoy morning breakfast more quickly than ever with the LP Quick Connect that comes standard on Jay Flight and either optional or standard 17” griddle. From weekend warriors to full-timers, Jay Flight has what you need for an excellent camping trip.
Standard Features
and Options
