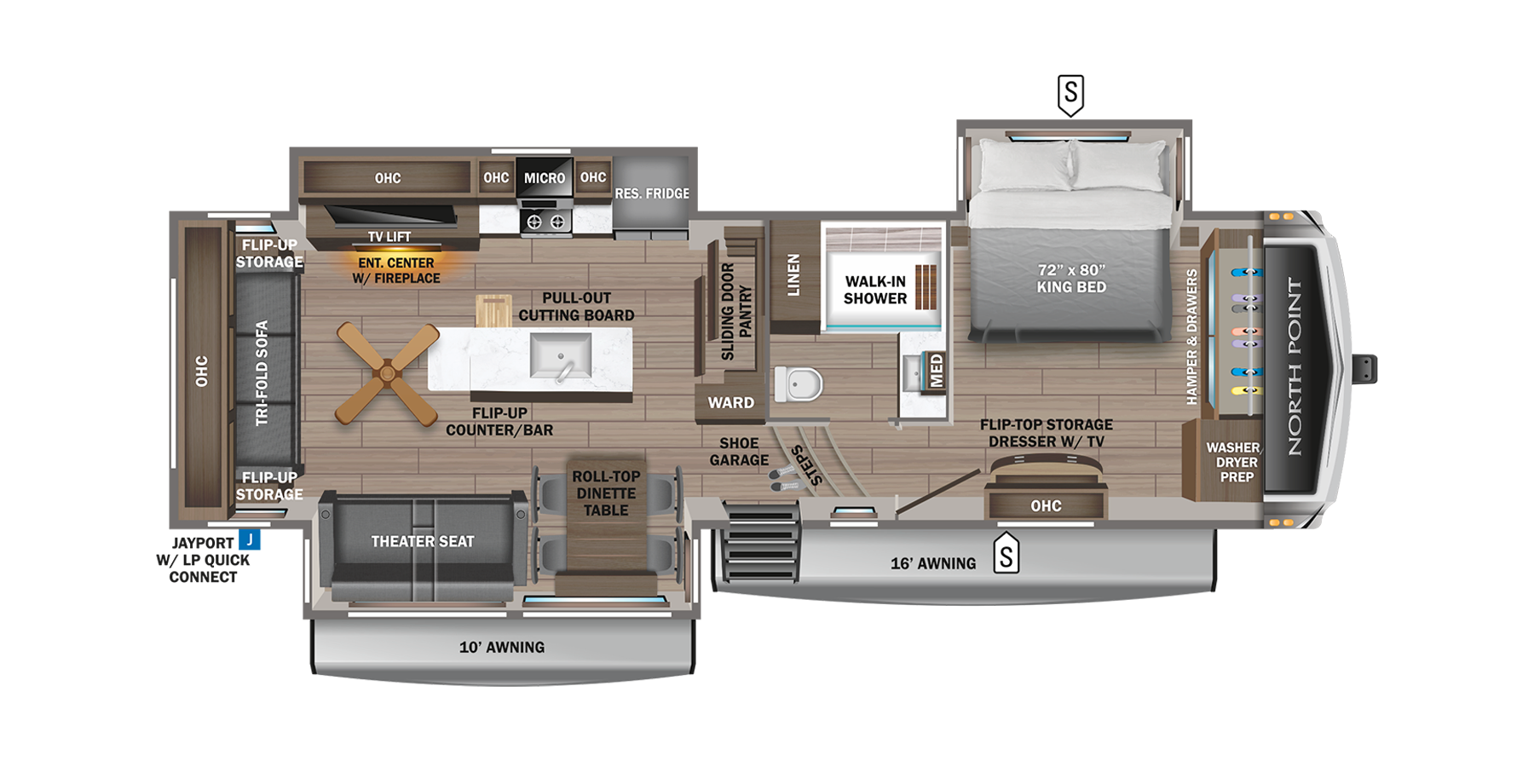

North Point Floorplans and Prices
Starting at $108,975
Sleeps up to 10
Length
36' 0" - 43' 10"
Weight
12,885 - 15,835 lbs.
Standard Features and Options
Standard Exterior Equipment
- (3) 40 lb. propane bottles with auto regulator (120 lb. max LP system)
- 102 in. wide body construction
- 12 in. structural steel I-beam with 10 in. steel drop frame
- 3,000 lb. tow hitch with 4-way pin (N/A 390CKDS)
- Battery disconnect
- Built in sewer hose carrier
- Climate Shield™ zero-degree tested weather protection:
- 40,000 BTU output furnace
- Double layer fiberglass batt insulation (roof and floor)
- Fully-enclosed and heated underbelly (ducted)
- PEX plumbing, 2 in. block foam and reflective foil
- Custom automotive-grade vinyl exterior graphics package
- Digital TV antenna with 5G Wi-Fi extender
- Exterior marine-grade speakers with Bluetooth® controller
- Frameless, dark tinted, safety-glass windows
- Fully enclosed, universal docking center:
- Black tank flush
- Independent satellite wiring
- Quick-connect outside shower
- Selectable water connections
- Whole coach cable hookups
- Winterization and sanitation hookups
- Inverter pre-wire to select outlets
- JayPort system for outside griddle (all floorplans without a standard outside kitchen)

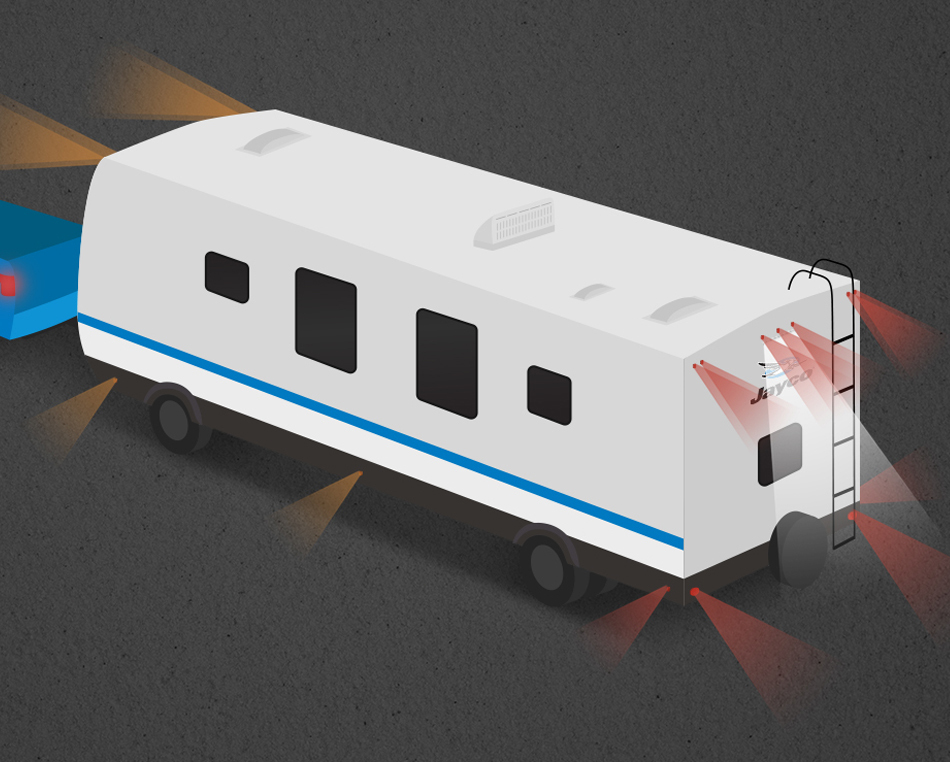

- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
- LED exterior lighting package
- Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with Alpha roof membrane system with limited lifetime warranty
- Painted fiberglass front cap with clear coat and built-in specialty LED lighting
- Pass-through storage with Slam-latch™ baggage doors
- Skirt metal enclosed drop frame
- Stronghold VBL™ aluminum framed and vacuum bond laminated gel coated fiberglass exterior walls (including rear wall and slide room end walls)
- Under-mounted spare tire
- Water heater bypass
Standard Interior Equipment
- 5/8 in. tongue-and-groove joined plywood floor decking
- Bathroom skylight
- Built in spice rack inside kitchen cabinet door (select models)

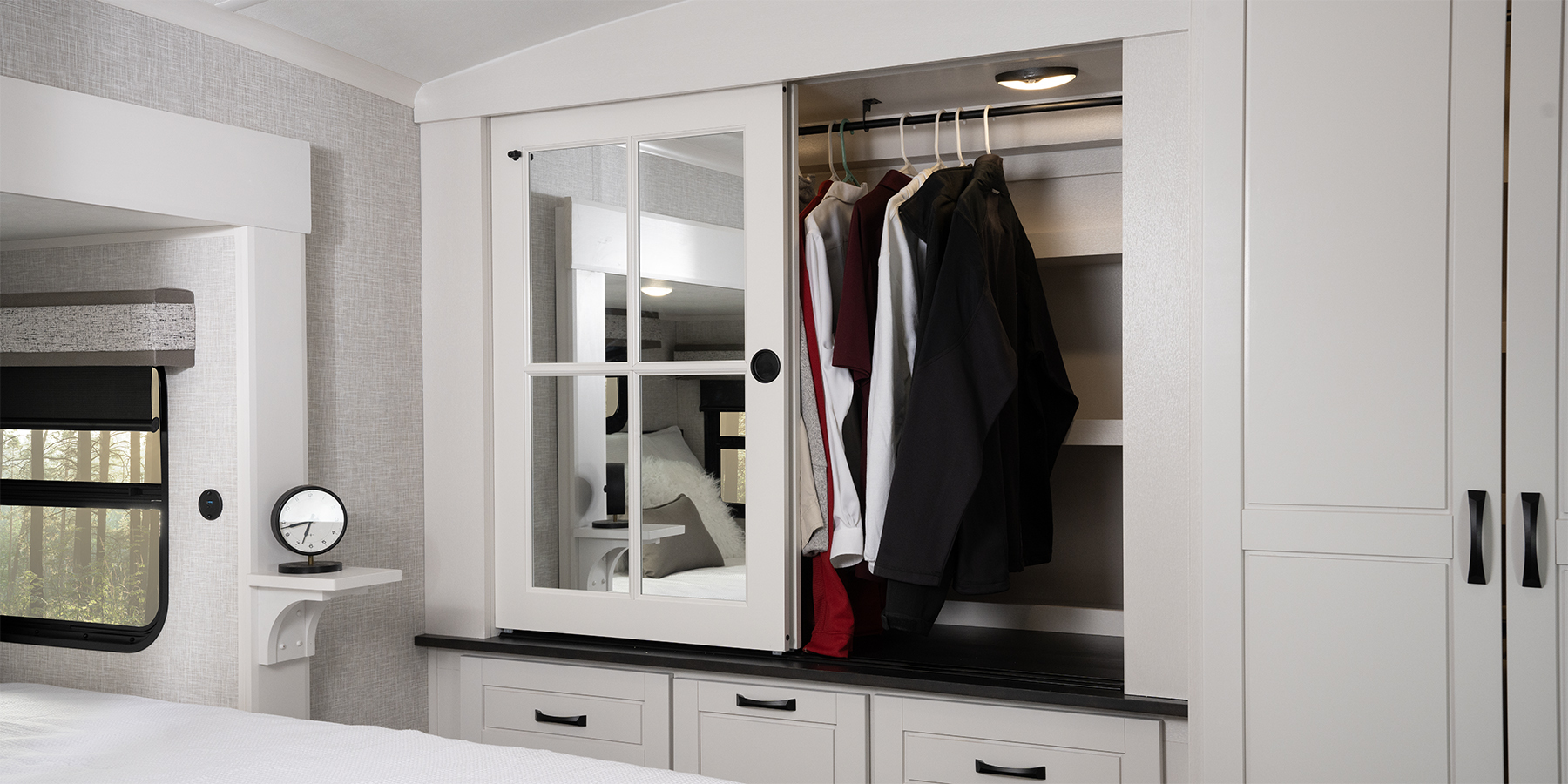

- Built-in laundry hamper in wardrobe (select models)
- Carbon monoxide and LP detector
- Ceiling fan (select models)
- CPAP prepped bedroom
- Dual USB charging ports throughout
- Extra 120V power outlets in kitchen and slide rooms
- Flip-up countertop extension/bar top (select models)
- Flip-up hidden storage in bedroom chest of drawers (select models)
- Flip-up tabletop storage next to tri-fold sofa (select models)
- Gas-strutted under-bed storage
- Handcrafted hardwood glazed doors and drawers
- Integrated under-mount sink and lever faucet in main bathroom
- JayVoice voice command system- controls lighting, A/C
- LED accent lighting above slideouts
- LED backlit custom framed mirror and medicine cabinet
- LED interior lighting throughout
- No in floor heat registers throughout coach

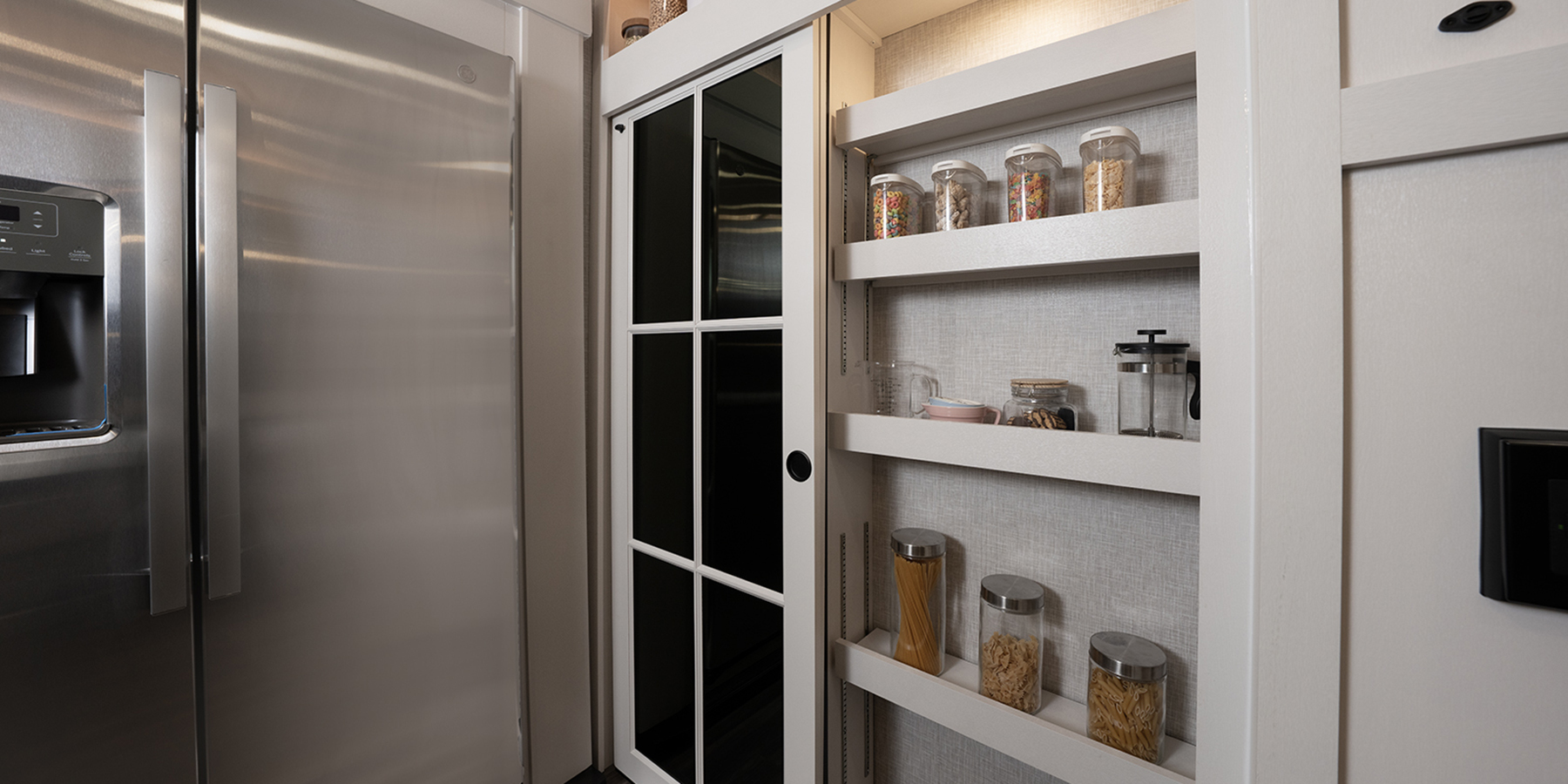

- Pantry with adjustable shelves and pull out drawers (includes 120V outlet)

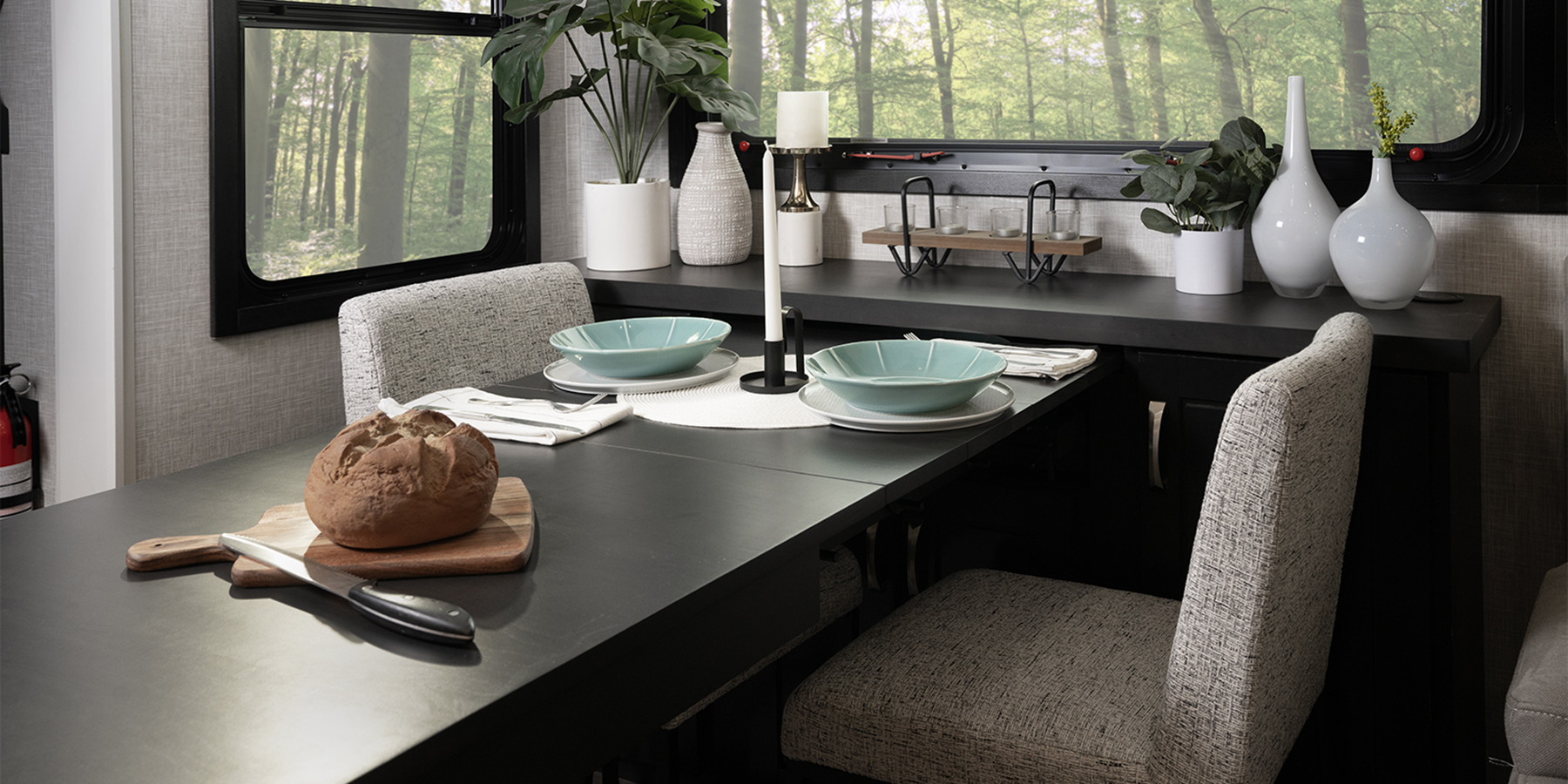

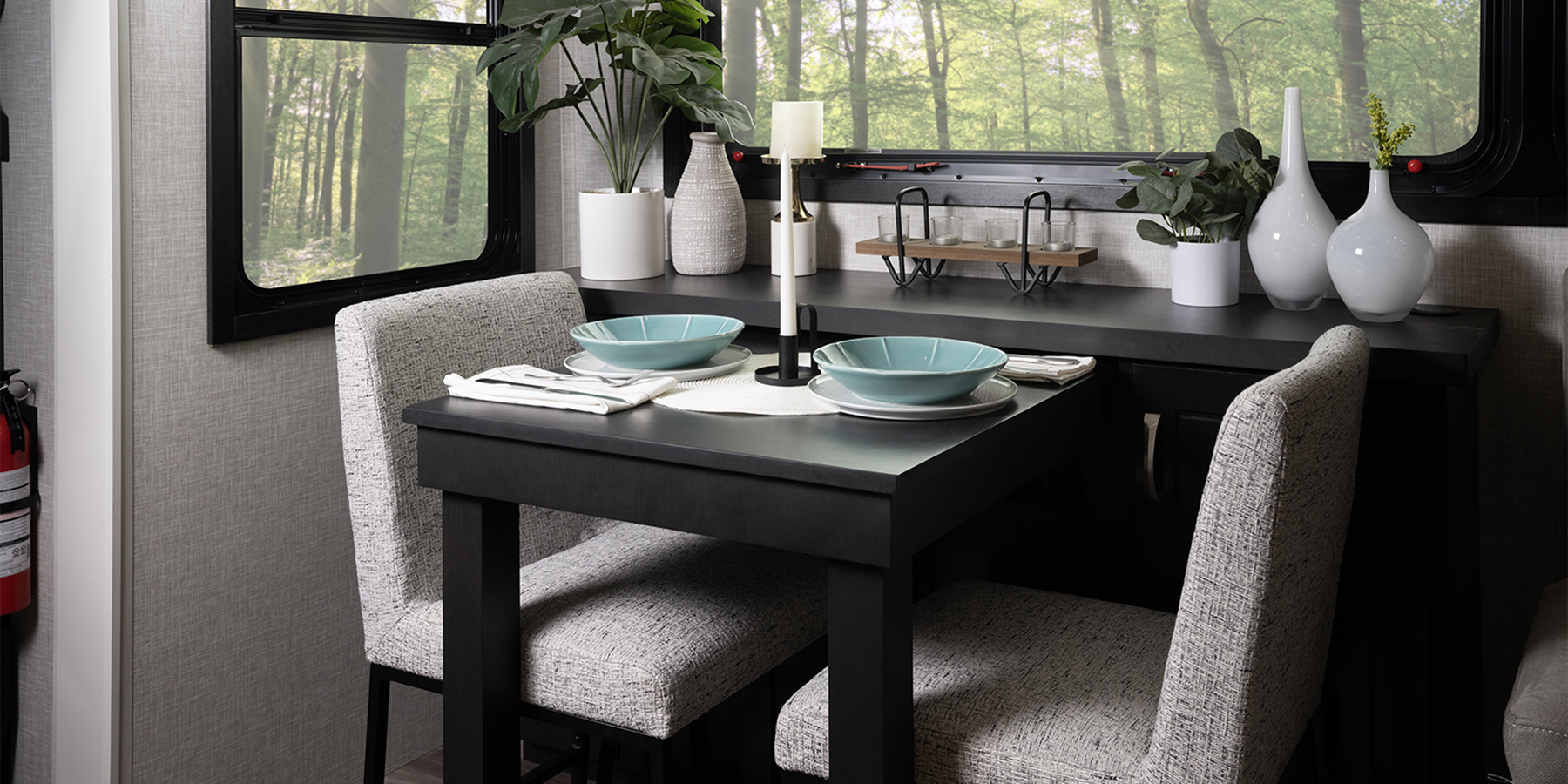

- Pull out "Roll Top" dinette

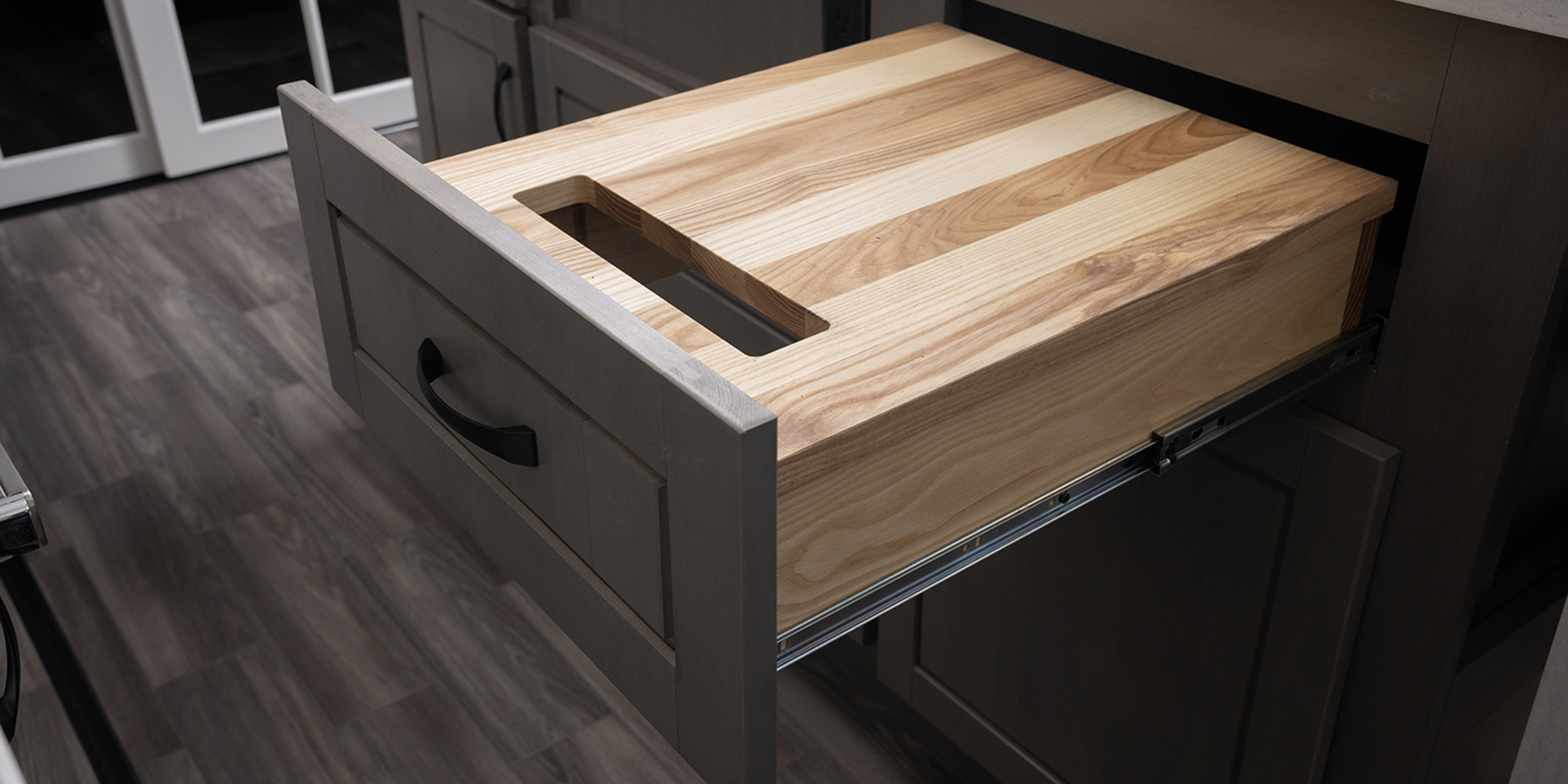

- Pull-out cutting board above trash can
- Pull-out utility drawer under kitchen sink
- Removable TV tray tables at theater seats
- Residential "Do it all" sink with pull-out kitchen faucet, glass rinse, and vegetable rinse
- Residential finished dove tail jointed drawers throughout
- Residential NuVo H2O whole coach water treatment system with water softening and triple cartridge filters
- Residential quilted bedspread and pillow shams

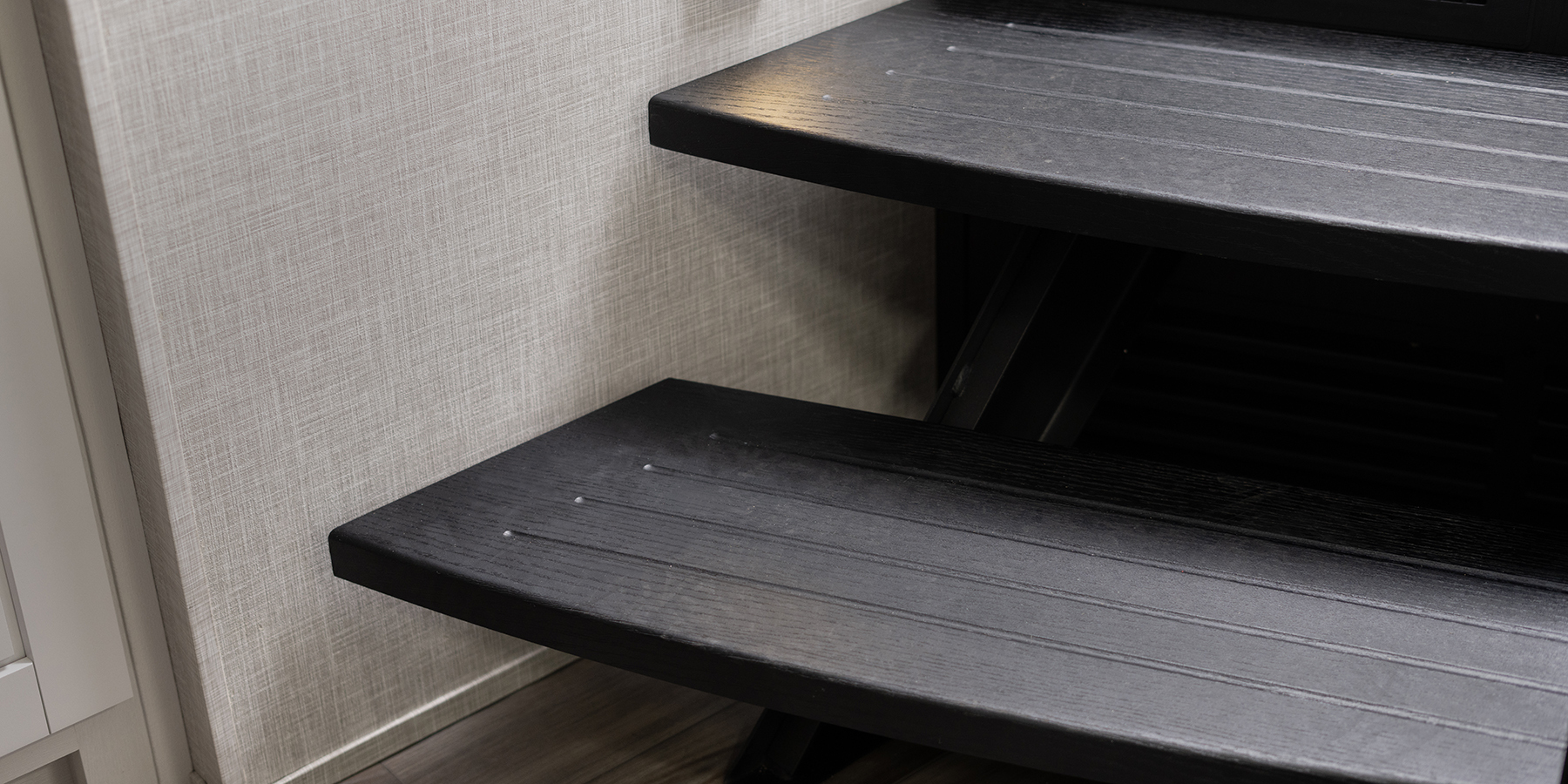

- “Shoe garage” in hallway step (select models)
- Soft close, heavy-duty, 75 lb. full-extension, steel ball-bearing drawer guides
- Solid hardwood slide fascia
- Stain protected fabric on all furniture
- Toe kick nightlights in bedroom and bathroom
- Tri-fold hide-a-bed sofa with residential sleep surface (select models)
- True interior design (Modern Farmhouse)
- Up/down switch to raise/lower the TV by theater seats
- Vinyl flooring (made in the USA) throughout (includes slideout floors)
Customer Value Package (Mandatory)
- 15,000 BTU “Whisper Quiet” A/C (main)
- 15,000 BTU “Whisper Quiet” A/C (bedroom)
- 16 gal. gas/electric DSI water heater
- 50 in. 4K Smart LED HDTV with fully digital HDMI® output and two extra HDMI cables
- Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
- Custom machined aluminum rims
- Electric patio awning with integrated RGB LED lights (Multi-color with remote control)
- Hidden hinges, magnet latches and soft close cabinet doors and drawers
- JBL® home entertainment system with sound bar and wireless subwoofer
- Keyed-Alike™ lock system (single key for all doors/locks)
- MORryde Safe-T-Rail grab handle
- Residential king (72 in. x 80 in.) mattress with under-bed storage
- Rooftop and ground solar prep
- Tire pressure monitoring system
- Wireless remote control system (includes Bluetooth® wireless controls) with dimmer switches
5 Star Handling Package (Mandatory)
- 5 in. 16 ply 'H' rated Uniroyal tires
- Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
- MORryde® CRE-3000™ rubberized suspension
- MORryde® rubber pin box
- Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs
Luxury Package (Mandatory)
- 2nd electric patio awning with integrated RGB LED lights (multi-color with remote control)
- 32 in. 4K Smart bedroom TV
- 6-point hydraulic auto-leveling system

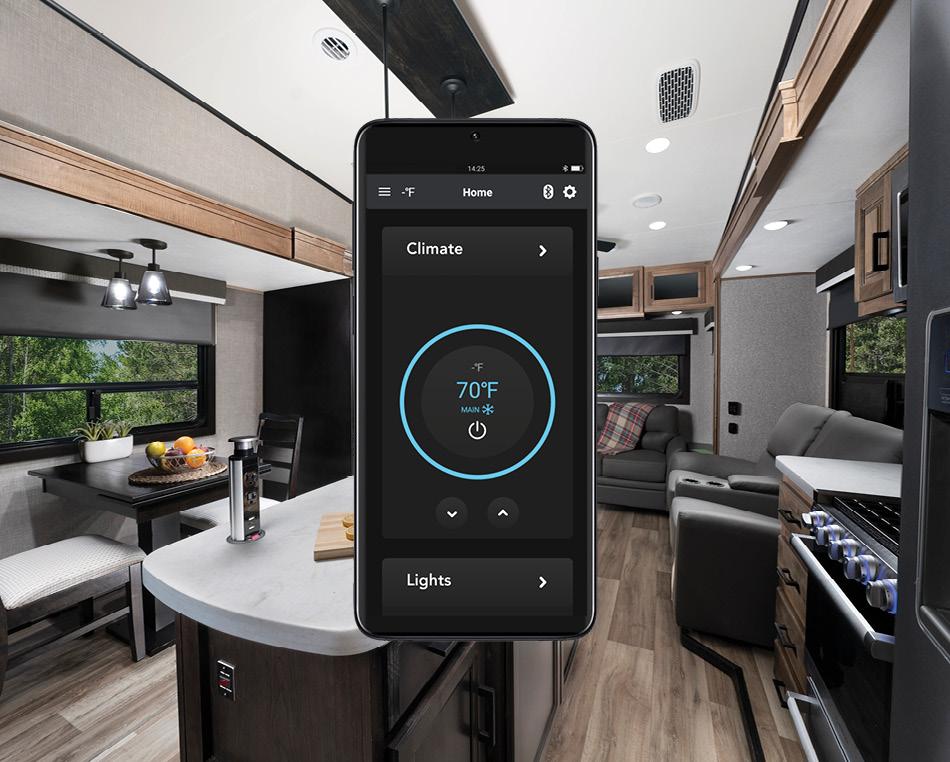

- Cellular prep for 5G Wi-Fi repeater and JAYCOMMAND® “Smart RV” system
- Central vacuum system with dust port
- Frameless dark tinted safety-glass windows
- Free-standing roll top (no pedestal) table with (2) free-standing and (2) folding chairs
- GE 21 cu. ft. residential refrigerator with 1800W inverter
- GE Profile Series residential 24 in. range (3.7 cu. ft. with 9100 BTU high output burner)
- High gloss gel coated sidewalls

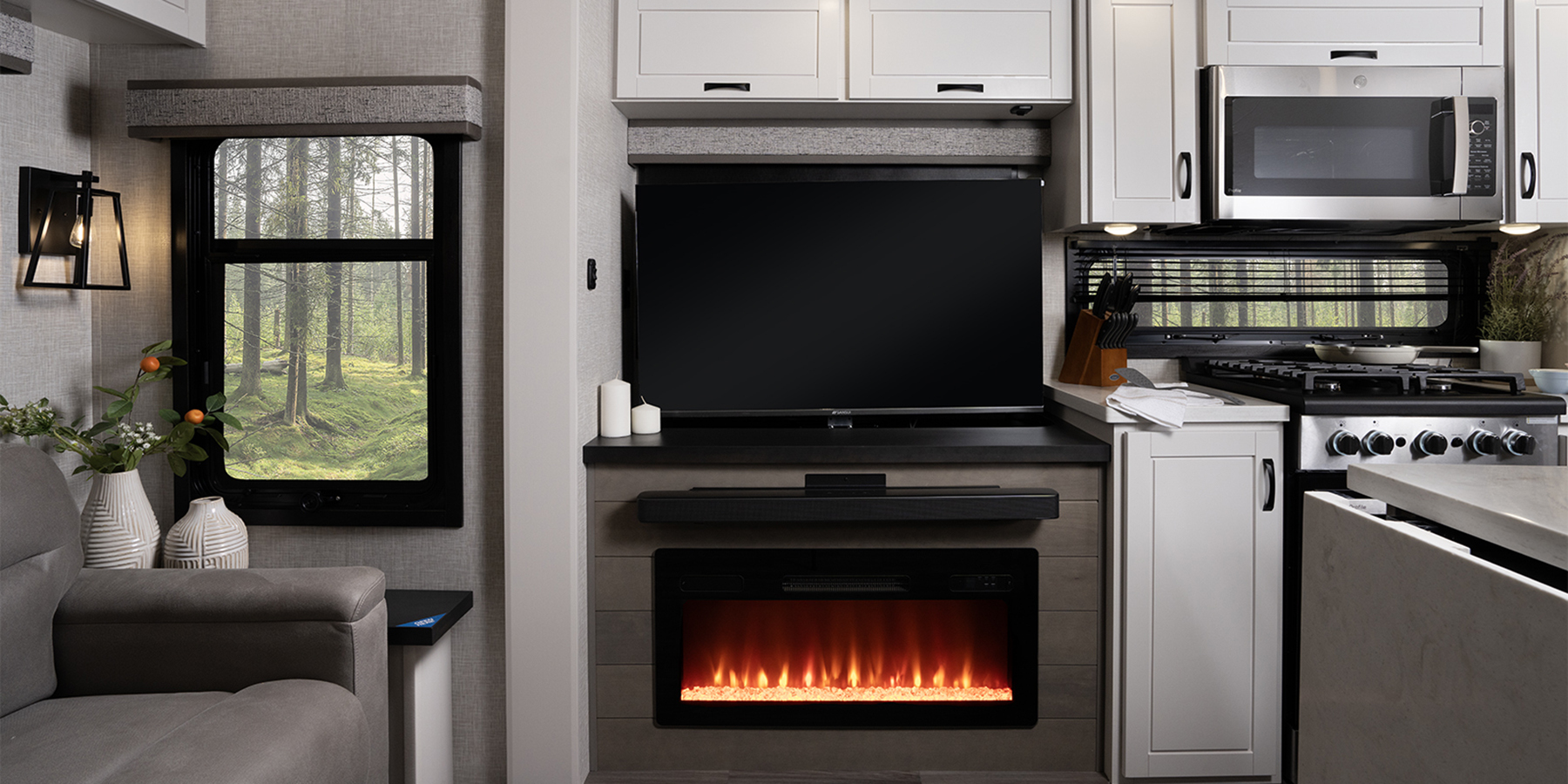

- LED fireplace with electric space heater
- MORryde® StepAbove™ entrance steps with strut assist (main entrance)
- Oversized multi-battery compartment (industry leading room for 4-6 batteries)
- Privacy roller shades
- Residential solid-surface kitchen countertop

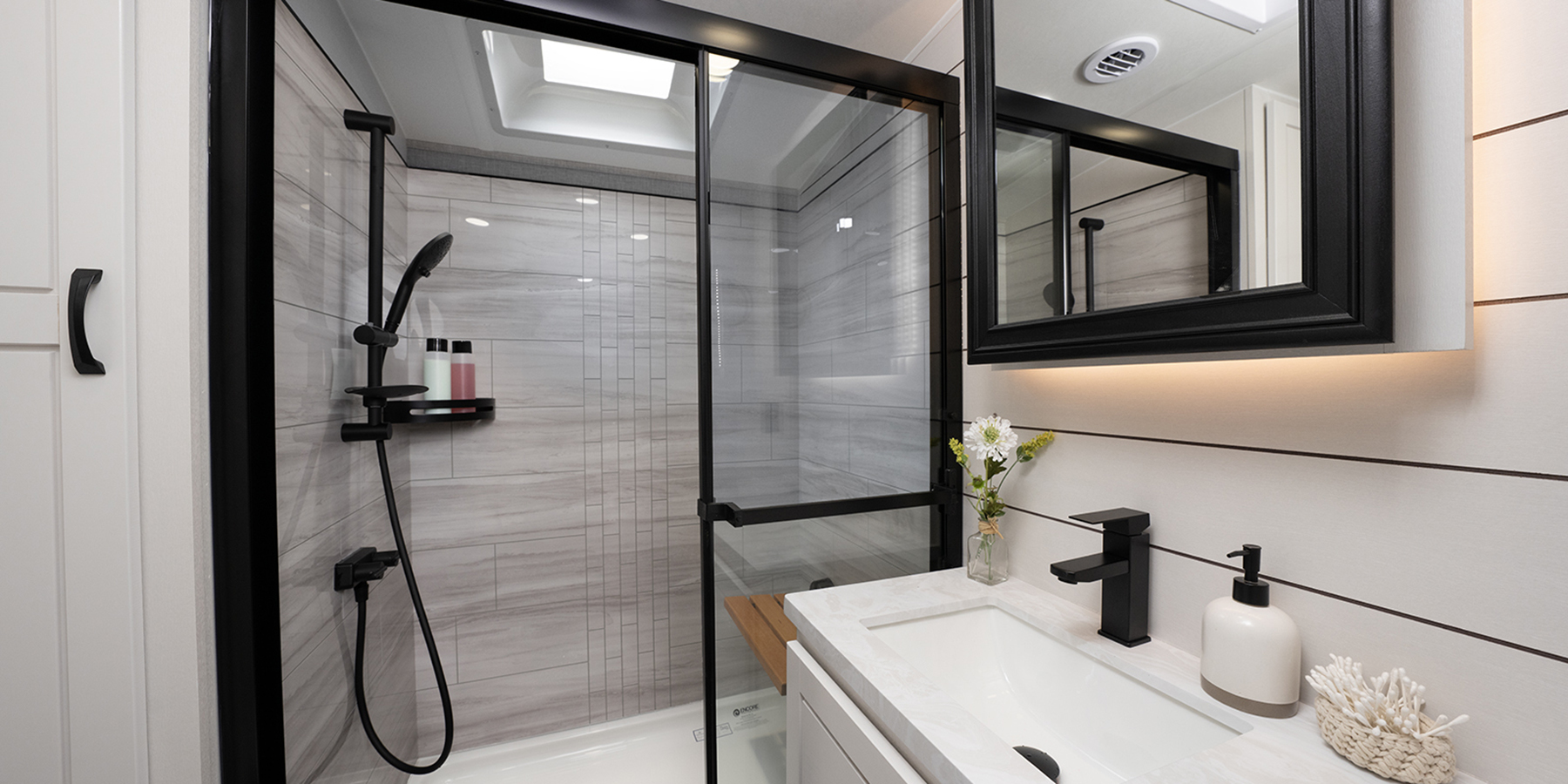

- Residential walk-in shower with shampoo/soap holder and teak seat
- Washer/dryer prep
Options
- 20 cu. ft. 12V refrigerator
- 39 in. 4K Smart TV in cargo area
- 3rd 15,000 BTU ducted A/C
- 5,500W Onan® Microquiet generator
- 7K hydraulic disc brake package (ABS N/A with disc brakes)
- 8K hydraulic disc brake package (ABS N/A with disc brakes)
- Customer Value Package: Whisper Quiet 15,000 BTU central air with heat pump
- Extreme Weather Package: 120V heated holding tank pads and 12V wrapped and heated fresh water line
- Frameless dual pane tinted safety-glass windows
- Generator prep
- MORryde independent suspension w/shocks, 8K axles and disc brakes (ABS not available)
- Outside Halo griddle for outside kitchens or JayPort system (includes LP quick-connect) (select models)
- Overlander 2 Solar Package: 30-amp controller, 1800W inverter and (2) 200W solar panels
- Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
- Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller, energy management, generator prep capable
- Queen residential foam top mattress
- Sani-Con® Turbo waste management system
- Slideout awning(s) (quantity varies by model)
- Truma on-demand hot water system
- Wireless backup/side view/front entry door observation kit with 7 in. monitor
Standard Features
and Options

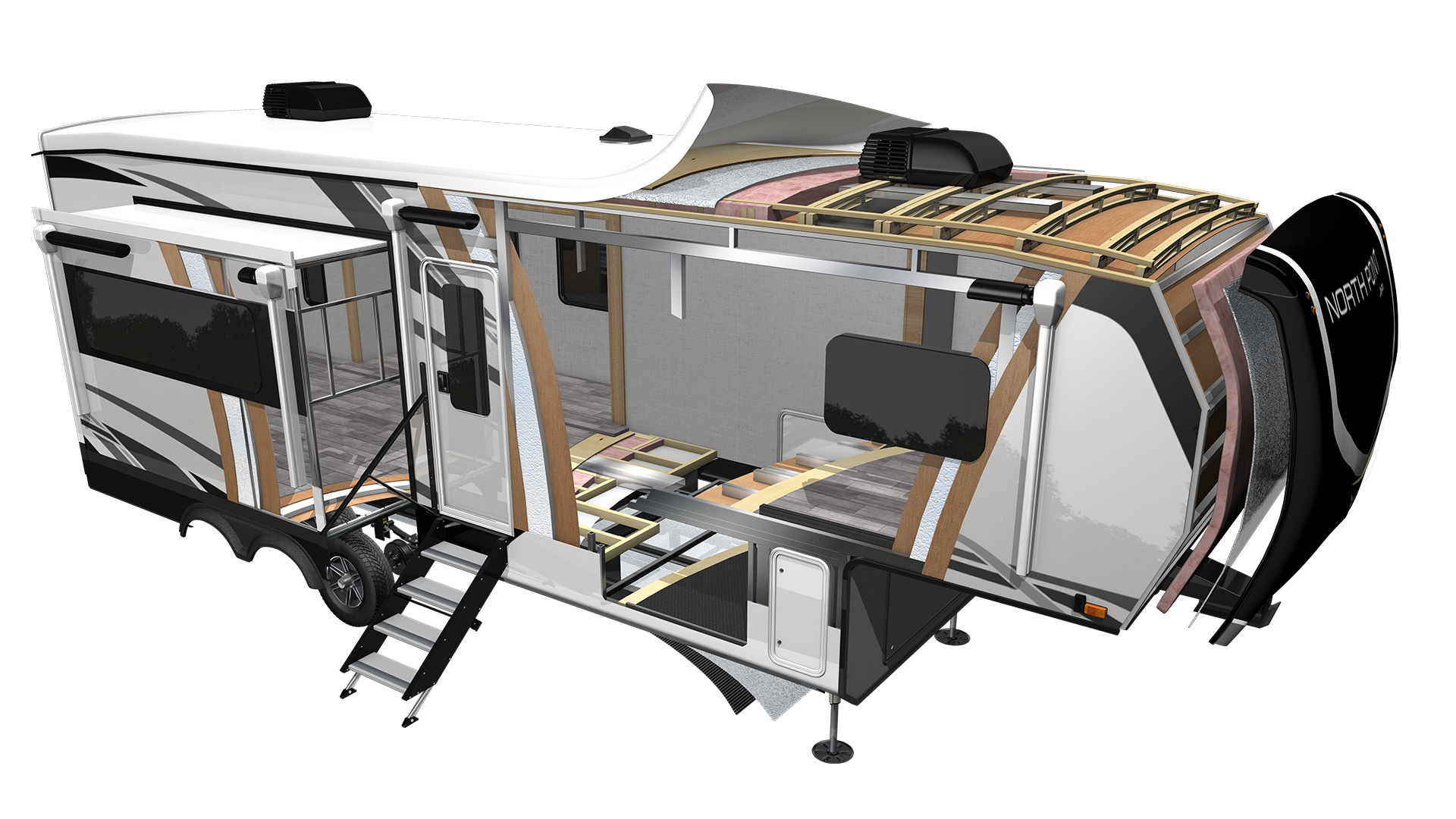

Superior Construction Elements
(Click on number for more information)
![Cutouts](/uploads/rvs/years/6649-cutout-WEB_0001_2025_North-Point.png)
1. Dual 15K BTU Whisper Quiet A/Cs
2. 3/8" Plywood Roof Decking
Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.

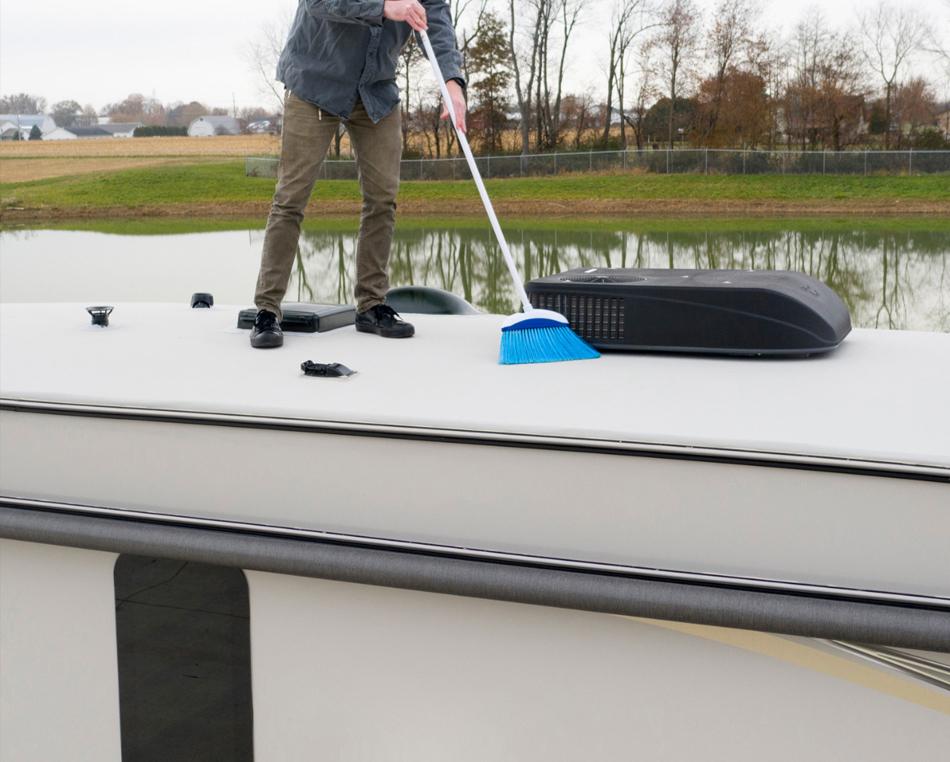

3. Magnum XL6 Truss™ Roof System
The Magnum Truss™ Roof system is one of the strongest roofs in the industry. It's capable of withstanding 50 percent more weight- up to 4,500 lbs.- than the competition so that you can safely perform maintenance and avoid costly structure damage from debris, branches or snow.
4. 102" widebody
5. 4,000 lb. Springs
Most manufacturers use standard 3500 lb. springs but on all Luxury Fifth Wheels and Toy Haulers we upgrade to the heavy duty 4000 lb. springs for maximum strength.
6. 5/8" Plywood Floor Decking
Jayco uses plywood vs. OSB or other materials because it is more eco-friendly (no formaldehyde), handles moisture better, is lighter in weight and has better screw retention.
7. Dexter® ABS Brake System with Tow Assist
8. MORryde® CRE-3000™ Suspension

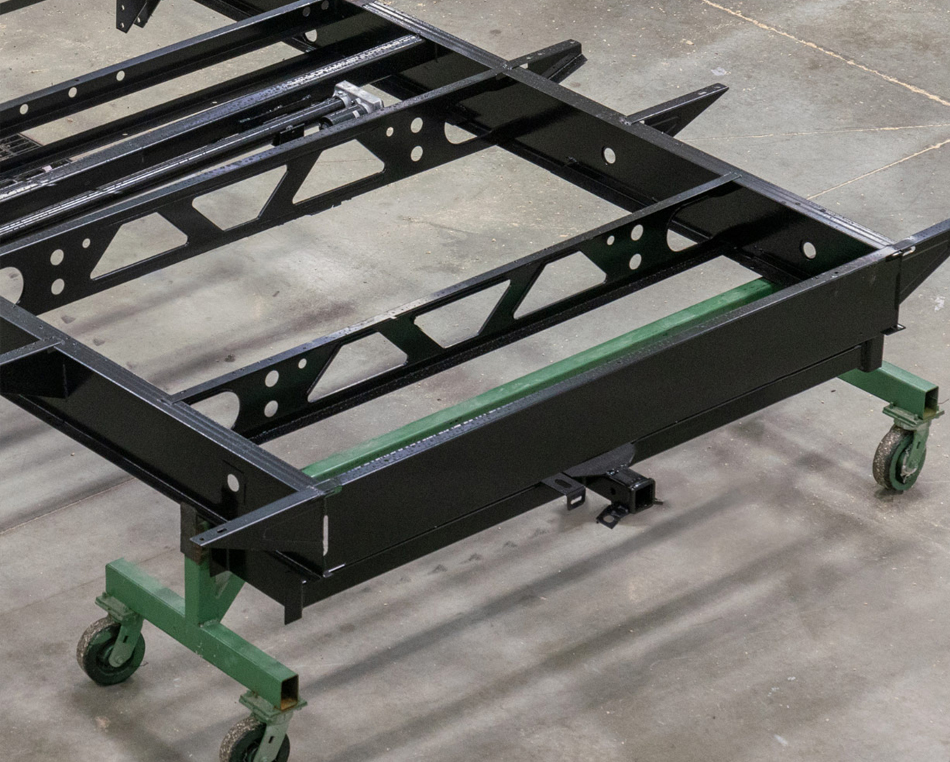

9. Strong Foundations
Your RV needs a strong foundation built specifically for your floorplan. We build each trailer on a frame that has been specifically designed by our skilled team of engineers for its size and shape to better endure the wear and tear of the road. Our frames also include more outriggers and cross members for better support and structural integrity.
