2025 North Point | 377RLBH
2025 North Point
See Floorplan with
an Option Added:
See Floorplan with
Virtual Floorplan Showings and Product Specifics Are Subject to Change Without Notice
Interior Design
Modern Farmhouse
Exterior

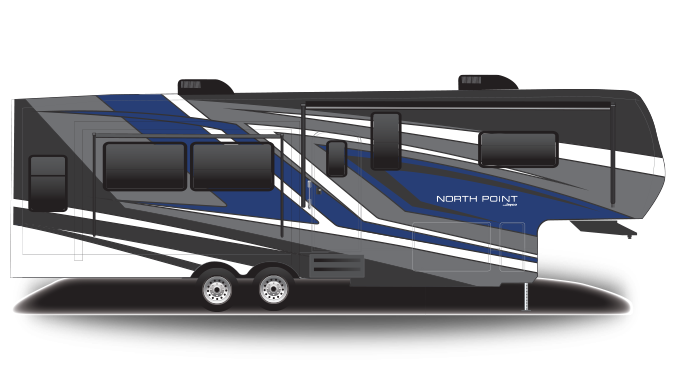

Mineral Paint

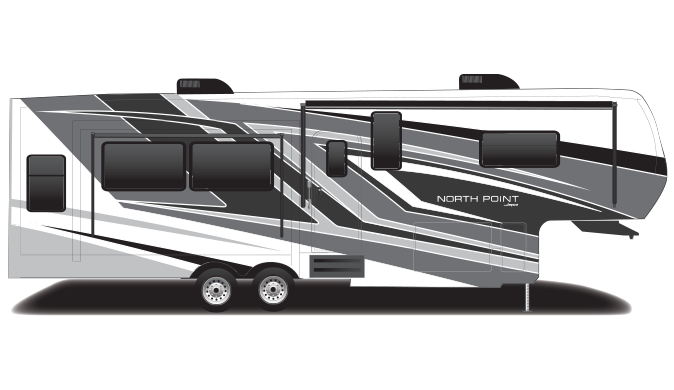

Pearl Paint

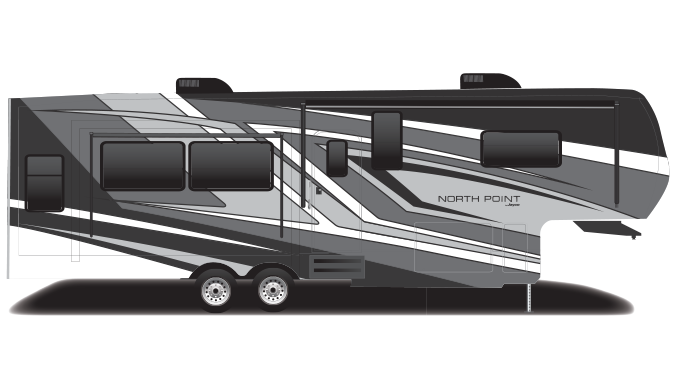

Smoke Paint
Top Feature Gallery
North Point Waterfall Counter
North Point Waterfall Counter - Extended
North Point built-in cutting board
North Point Dinette
North Point Roll-top Dinette - Extended
North Point Entertainment Center
North Point stairs with shoe rack
North Point wardrobe
North Point Waterfall Counter
North Point Waterfall Counter - Extended
North Point built-in cutting board
North Point Dinette
North Point Roll-top Dinette - Extended
North Point Entertainment Center
North Point stairs with shoe rack
North Point wardrobe
Build and Price Your Jayco
Choose your customizations below and receive a price estimate.
Specifications
Weights
| Dry Hitch Weight (lbs) | 3,015 |
| Unloaded Vehicle Weight (lbs) | 15,310 |
| Cargo Carrying Capacity (lbs) | 2,790 |
| Gross Vehicle Weight Rating (lbs) | 18,100 |
Measurements
| Exterior Length (overall) | 42' 11" |
| Exterior Length (pin to bumper) | 41' 3" |
| Exterior Height | 12' 6" |
| Exterior Height (with A/C) | 13' 4" |
| Exterior Height (with 2nd A/C) | 13' 4" |
| Exterior Width | 8' 6" |
| Exterior Width (with slides out) | 14' 6" |
| Interior Height (main) | 8' 6" |
| Interior Height (upper deck) | 6' 8" |
| Awning Length | 20' 0" |
| Awning Length 2 | 11' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 75.0 |
| Gray Water Capacity (gals) | 87.0 |
| Black Tank Capacity (gals) | 50.0 |
| Propane Unit (lbs) | 120 |
| Furnace, Auto-ignition (BTU output) | 40000 |
Miscellaneous
| Sleeps | up to 7 |
| # of outside storage compartments | 2 |
| Furnace BTU | 40000 |
| Tire Size | 215/75R17.5'H' |
Exteriors
Interior Designs
Options
2025 North Point
Starting at $108,975
Luxury and comfort combine in the Jayco North Point Luxury Fifth Wheel for the most enjoyable camping experience you’ll ever have. From the minute you leave your home, you’ll notice the difference with North Point’s industry-exclusive 5-star handling package. The handling package includes the MORryde® Pin Box with a combination rubber isolator and chucking reduction system to help with the front-to-back and side-to-side vibration. The MORryde® Rubberized Axle Suspension System provides up to 3” of up/down travel, which is essential to isolating and eliminating road shock. Most competitors’ systems allow for less than 2” of movement. All Jayco Fifth Wheels are built using 7,000-lb. or 7,400-lb. Dexter axles with Nev-R-Adjust® brakes. This braking system eliminates the need for repeated, time-consuming manual adjustments and can greatly increase stopping distance. Dexter® Heavy-Duty Shackles with Wet Bolt Fasteners and Bronze Bushings help resist the wear and tear of towing. Jayco also upgrades to heavy-duty 4,000-lb. springs instead of the standard 3,500-lb. springs. The North Point tires are 17.5” H rated 16 ply Uniroyal tires with 4,805-lb. weight rating.
While driving down the road, the 102” wide-body design of our Jayco Luxury Fifth Wheels may feel substantial, but you'll appreciate the extra living space and storage once you’re set up at camp. To enhance safety and convenience, all models are prewired for the optional Furrion® backup camera, side view observation, and security monitor system. This system works reliably even at highway speeds and is tested for extreme climates and vibration resistance, providing peace of mind for changing lanes, merging, and backing up. For added security, there is additional camera prep at the front entrance door and an internal security camera switch in the bedroom, allowing you to monitor your surroundings at night. You'll enjoy a safer and more secure camping experience with the advanced features of Jayco Luxury Fifth Wheels.
Inside the North Point, residential features abound, including GE Profile appliances – a GE 21 cu. ft. residential refrigerator with an 1800W inverter, GE Profile Series 30 in. residential convection microwave with built-in air fryer and a residential 24 in. range. These residential appliances provide convenience that mirrors the ease of cooking at home. An added bonus is the built-in microwave air fryer, reducing the need for one more small appliance to clutter the counter space. The kitchen also features a new flip-up island countertop extension and pull-out utility storage under the sink (most models) for extended workspace for cooking, entertaining or serving food.
Thinking about entertaining, the residential high-output JBL® capability is an upgraded sound bar with all systems wired to the main TV with HDMI cabling, greatly enhancing the quality and sound of the picture. There’s no need for extra cords and cables since the new electronics connect with ease. In addition, Jayco has upgraded the JBL® wireless subwoofer with an external bass control.
The North Point has all the basics covered, as well. Three, 40-lb. LP bottles mean less trips to fill propane, unlike the regular two, 30-lb. bottles other manufacturers provide. The new Nuvo H20 Whole-house, three-cartridge system in the pass-through storage provides purified drinking water and ice. Relaxing in your beautiful coach is even more enjoyable with the North Point’s HELIX Cooling System™ with its advanced design on A/C ducts and vents ensures a peaceful and comfortable environment. The result of the improvements is a curved, helix-shaped system to go along with the residential air return system. This system maximizes air flow out of the main A/C unit, making for a more efficient system than most competitors. New for this year, the residential dovetail-jointed drawers and residential built-in sink with glass cleaner and vegetable rinse are easy to use and feel like home.
Livable luxury is what the North Point fifth wheel is all about.
Standard Features
and Options
.jpg)
.jpg)
